Kenmore
Wall Oven/Microwave Combo

Model # 91147792200 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 91147792200 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

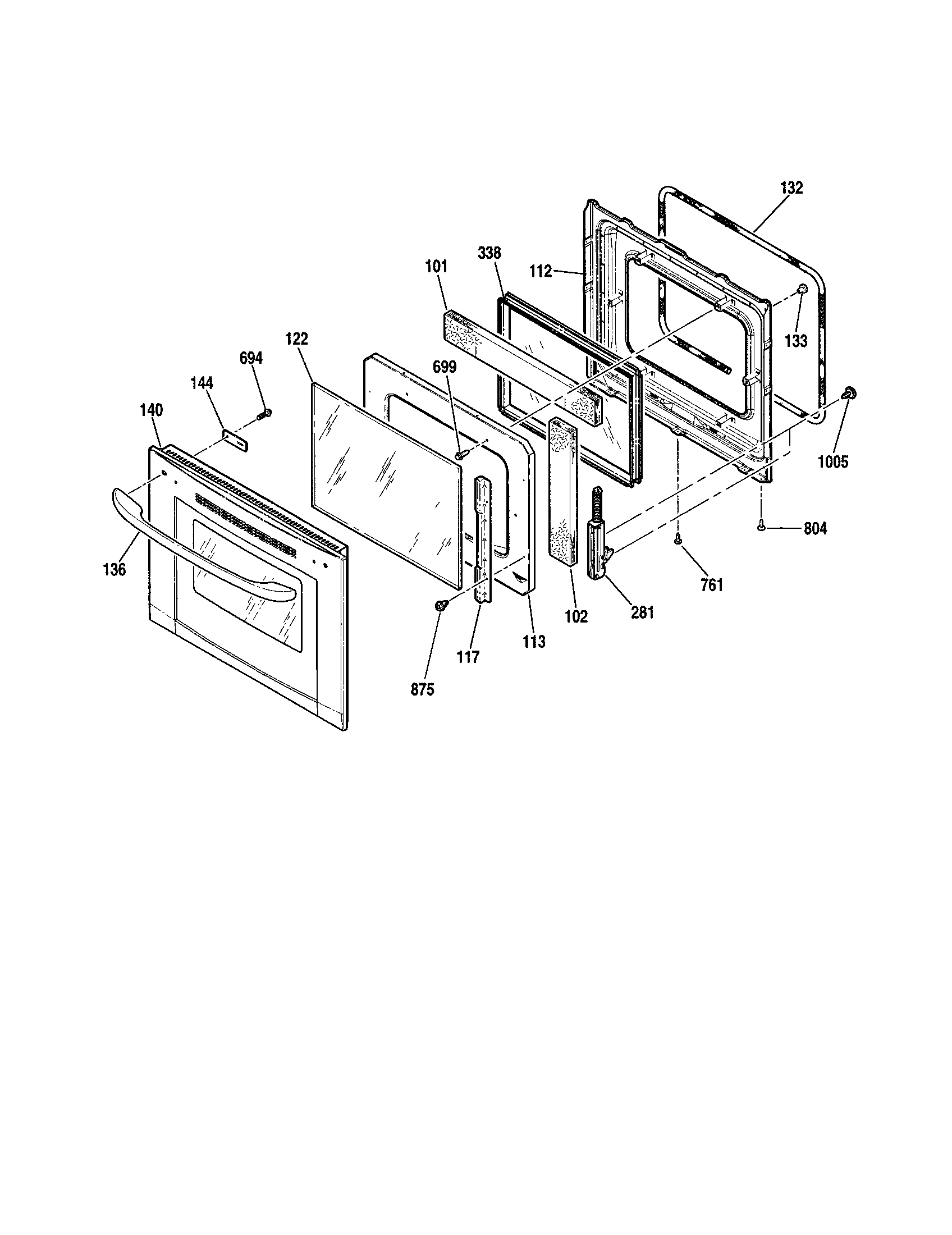

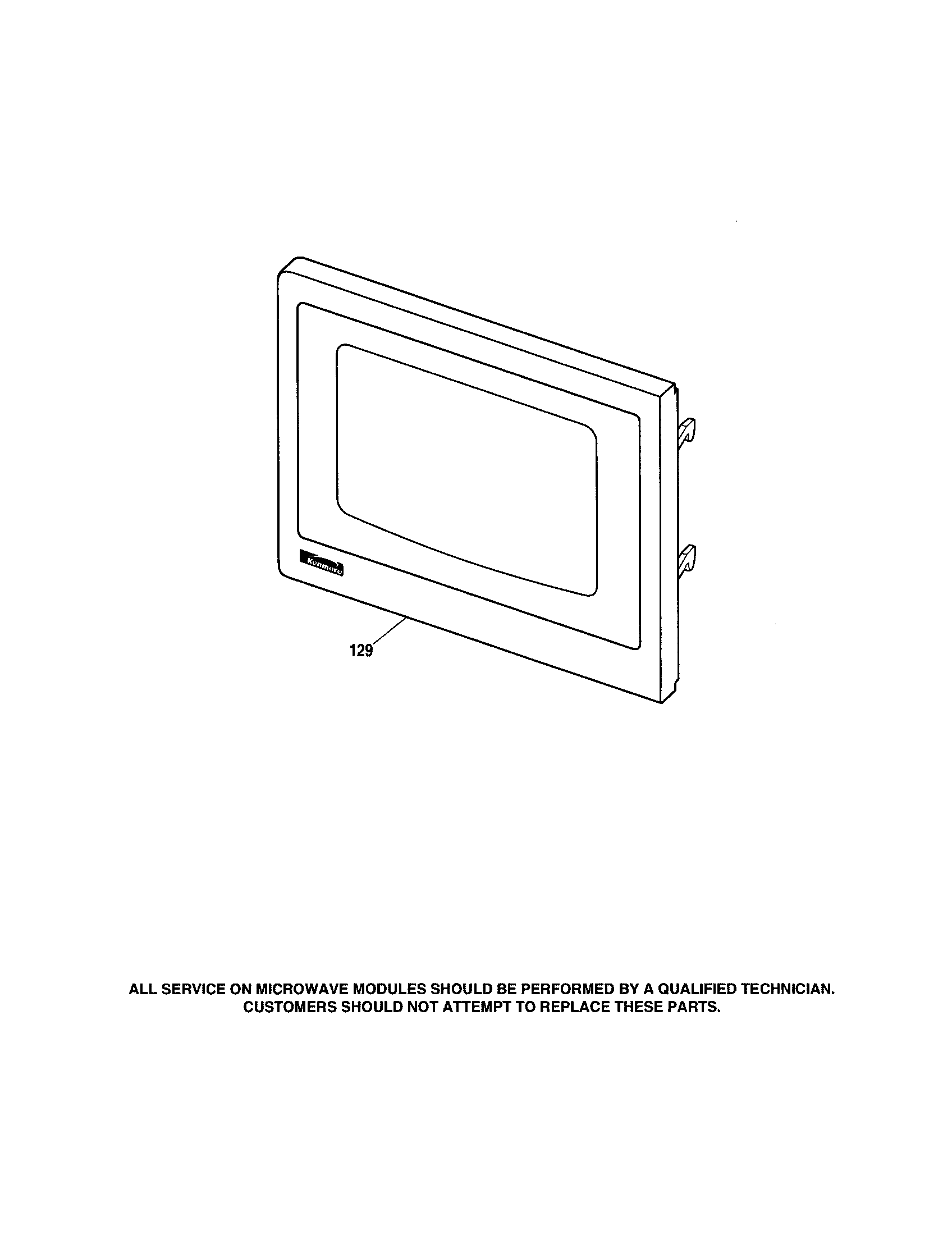

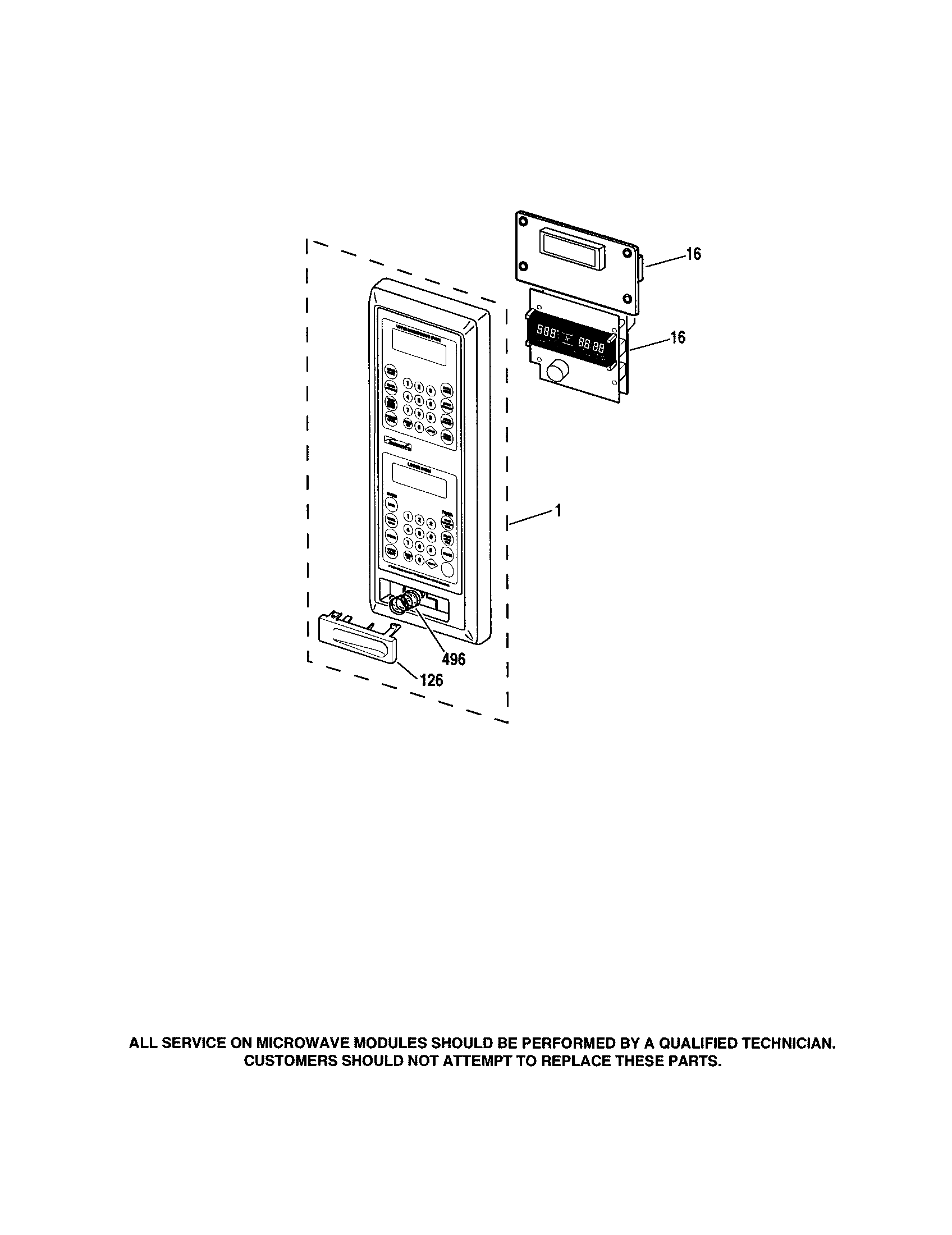

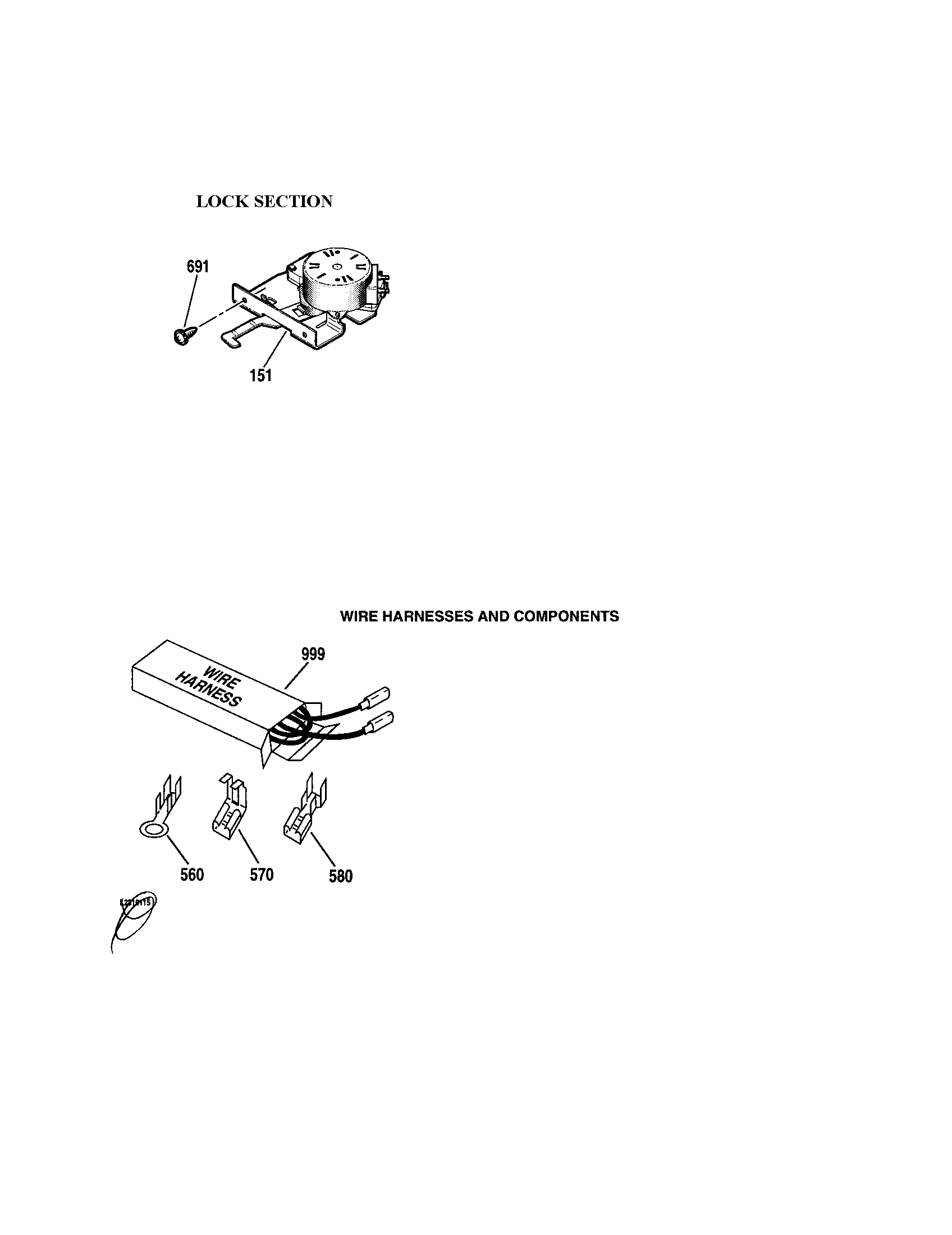

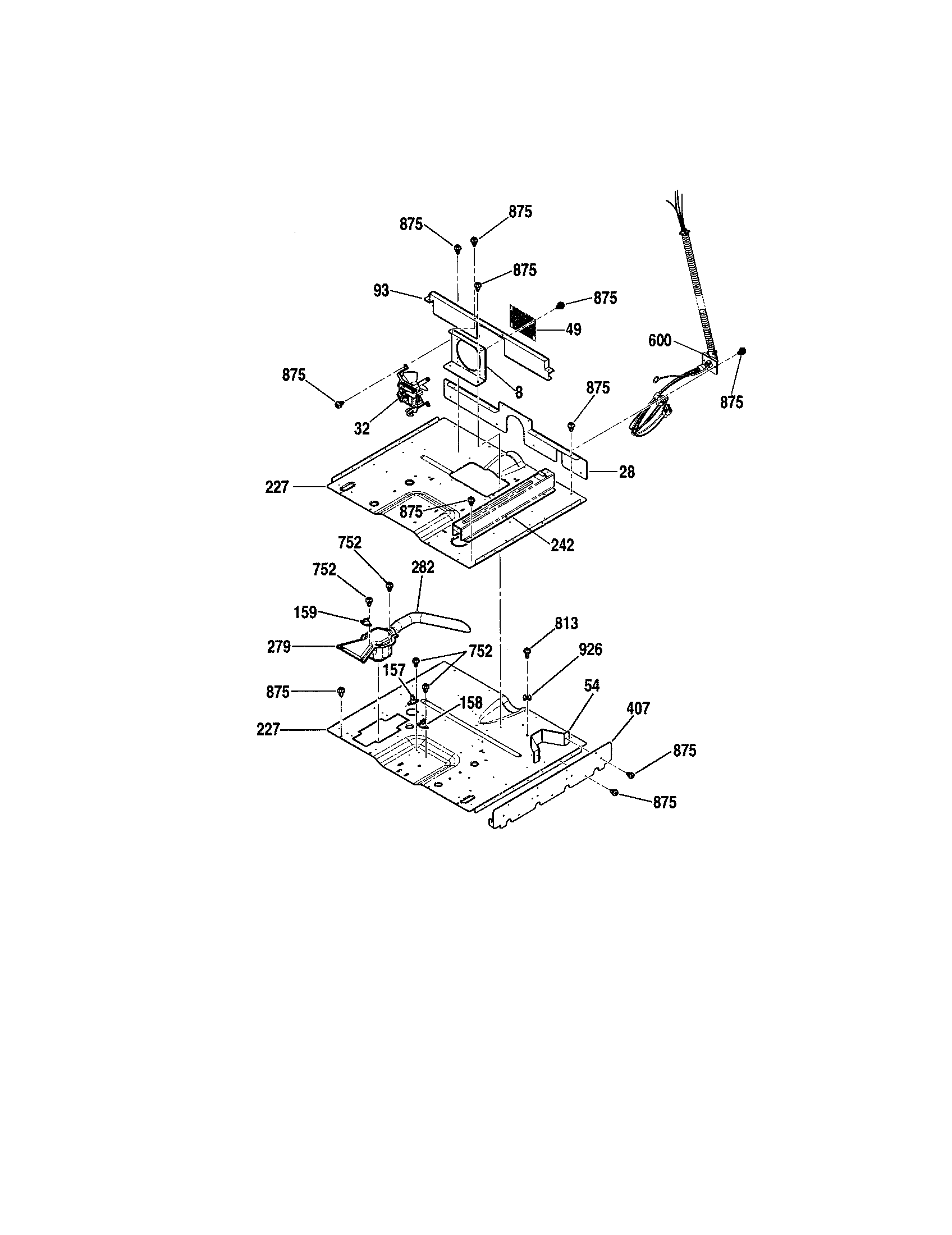

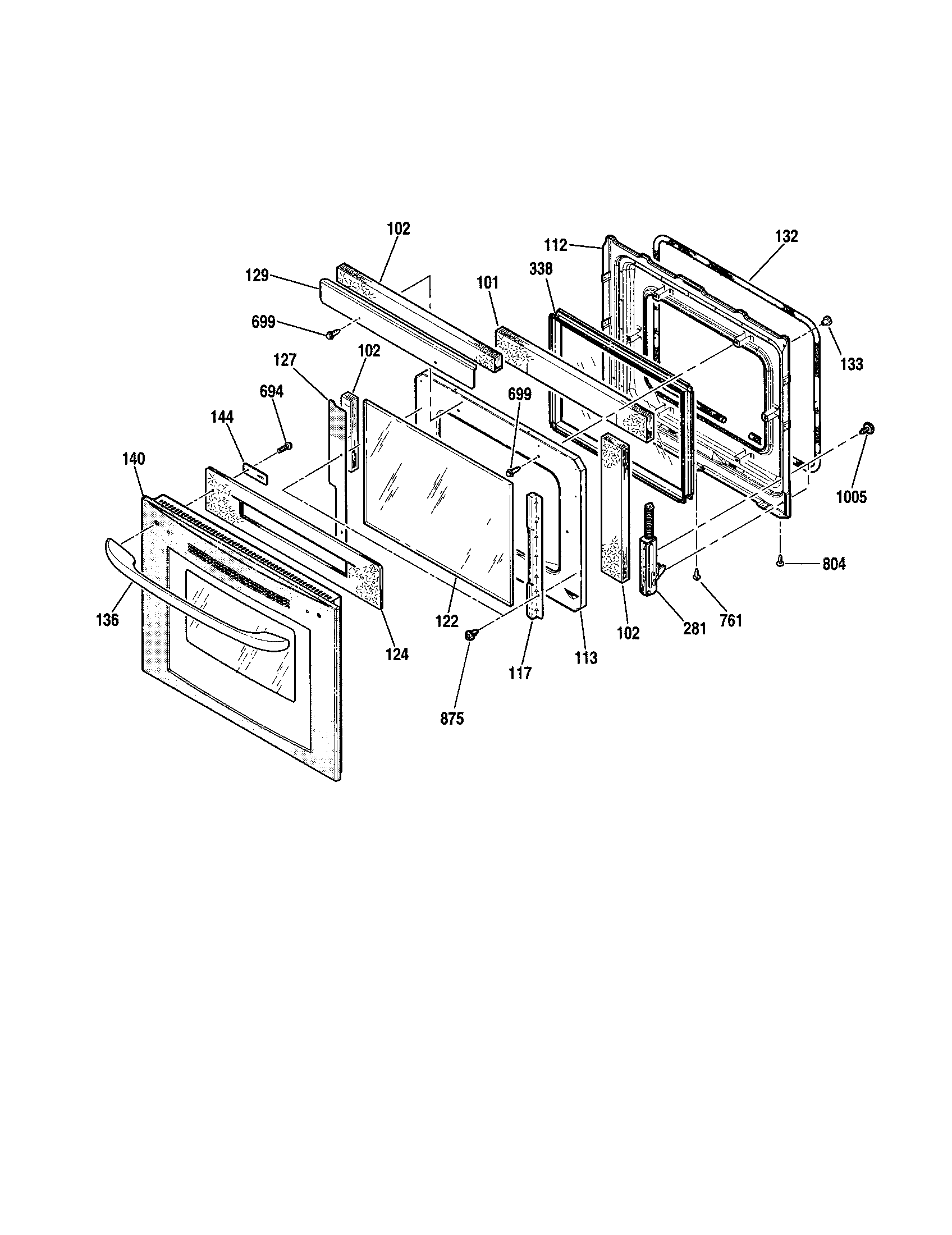

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Switch-micro WB24X0829
#576

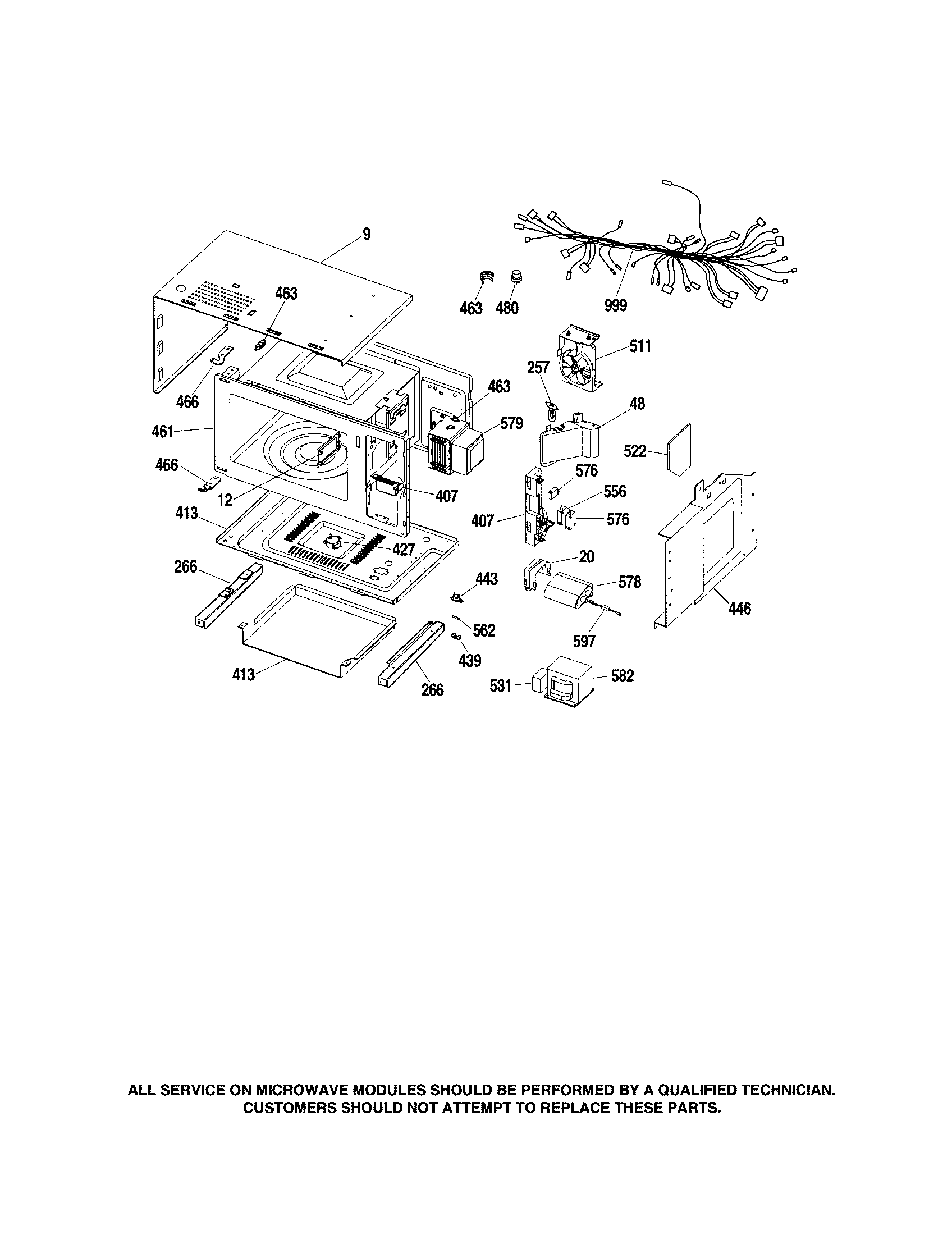

Microwave body diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#562

Microwave body diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

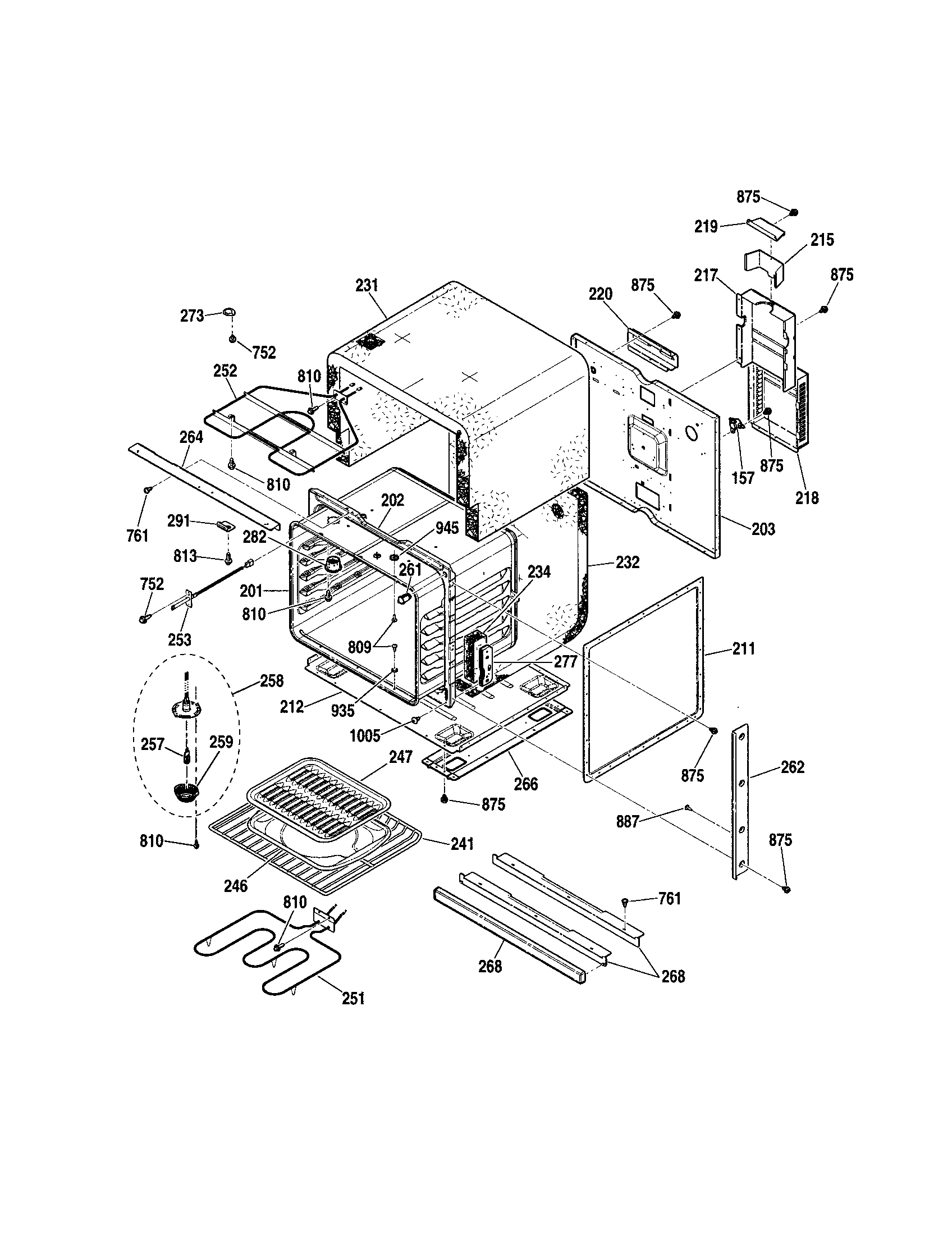

Lower body diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
High-voltage Diode WB27X10169
#597

Microwave body diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
13% OFF Phone Price : $46.60
In Stock
Microwave Magnetron (replaces Wb27x10343, Wb27x1114) WB27X10516
#579

Microwave body diagram

Microwave magnetron (replaces wb27x10343, wb27x1114)

Part #WB27X10516

BEST SELLER
$263.24 |
$12.00 OFF Phone Price : $275.24
In Stock
Range Bake Element WB44T10031
#251

Lower body diagram

Range bake element

Part #WB44T10031

BEST SELLER
$53.03 |
10% OFF Phone Price : $59.03
In Stock
Broil Element WB44T10030
#252

Lower body diagram

Broil element

Part #WB44T10030

Replaced by #WB44T10051

?
Manufacturer substitution
This part replaces WB44T10030. Substitute parts can look different from the original.
BEST SELLER
$71.94 |
8% OFF Phone Price : $77.94
Back Order
Light Bulb WB08T10007
#257

Lower body diagram

Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78 |
14% OFF Phone Price : $14.78
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Lower body diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
