Model # 867819551 Official Kenmore air conditioner condensing unit
Here are the diagrams and repair parts for Official Kenmore 867819551 air conditioner condensing unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867819551 Air Conditioner Condensing Unit
#39B

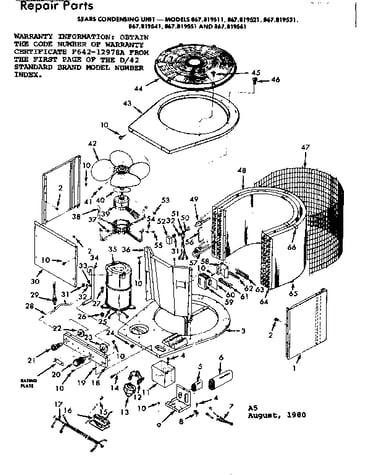

Unit parts diagram
Motor
Part #96799
Replaced by #WG840465
?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
$234.47
In Stock
#44
Unit parts diagram
Outlet grille
Part #708690
Replaced by #512848
?
Manufacturer substitution
This part replaces 708690. Substitute parts can look different from the original.
$164.46 |
7% OFF Phone Price : $176.46
In Stock
#5
Unit parts diagram
Capacitor
Part #706723
Replaced by #12005
?
Manufacturer substitution
This part replaces 706723. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#42B
Unit parts diagram
Fan blade
Part #707222
Replaced by #1080764
?
Manufacturer substitution
This part replaces 707222. Substitute parts can look different from the original.
$79.27
In Stock
#16B
Unit parts diagram
Contactor
Part #94083
Replaced by #90-170
?
Manufacturer substitution
This part replaces 94083. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
#13A
Unit parts diagram
Start device
Part #704415
The manufacturer no longer makes this part, and there's no substitute part
#25A
Unit parts diagram
Heater
Part #701327
Replaced by #1053477
?
Manufacturer substitution
This part replaces 701327. Substitute parts can look different from the original.
$152.12
In Stock
#NI
All parts diagram
Thermostat
Part #42-9295
The manufacturer no longer makes this part, and there's no substitute part
#25B
Unit parts diagram
Heater
Part #708849
Replaced by #1053477
?
Manufacturer substitution
This part replaces 708849. Substitute parts can look different from the original.
$152.12
In Stock
#49B
Unit parts diagram
Tube
Part #709842
The manufacturer no longer makes this part, and there's no substitute part
