Model # MGRH451BDB Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag MGRH451BDB gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

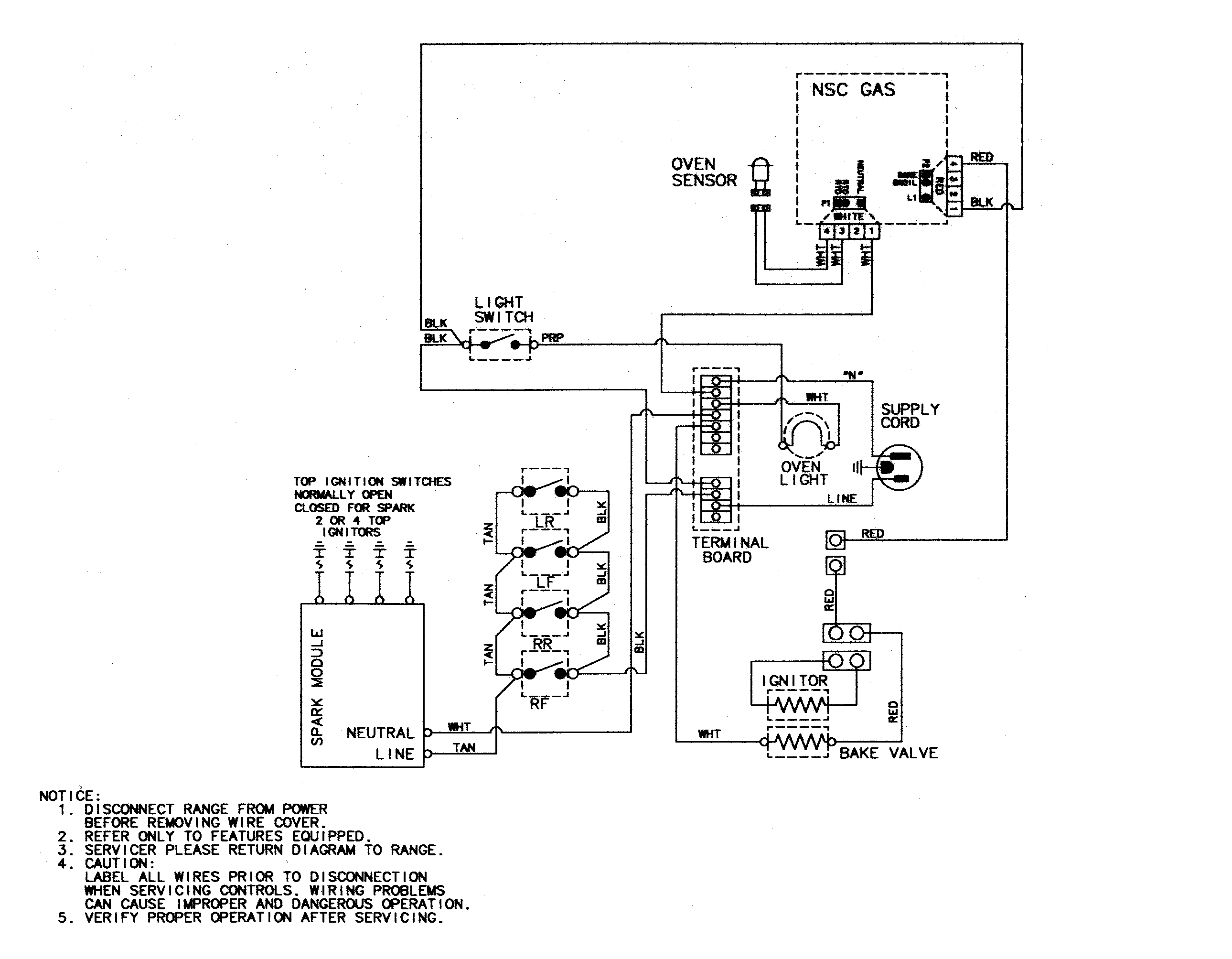

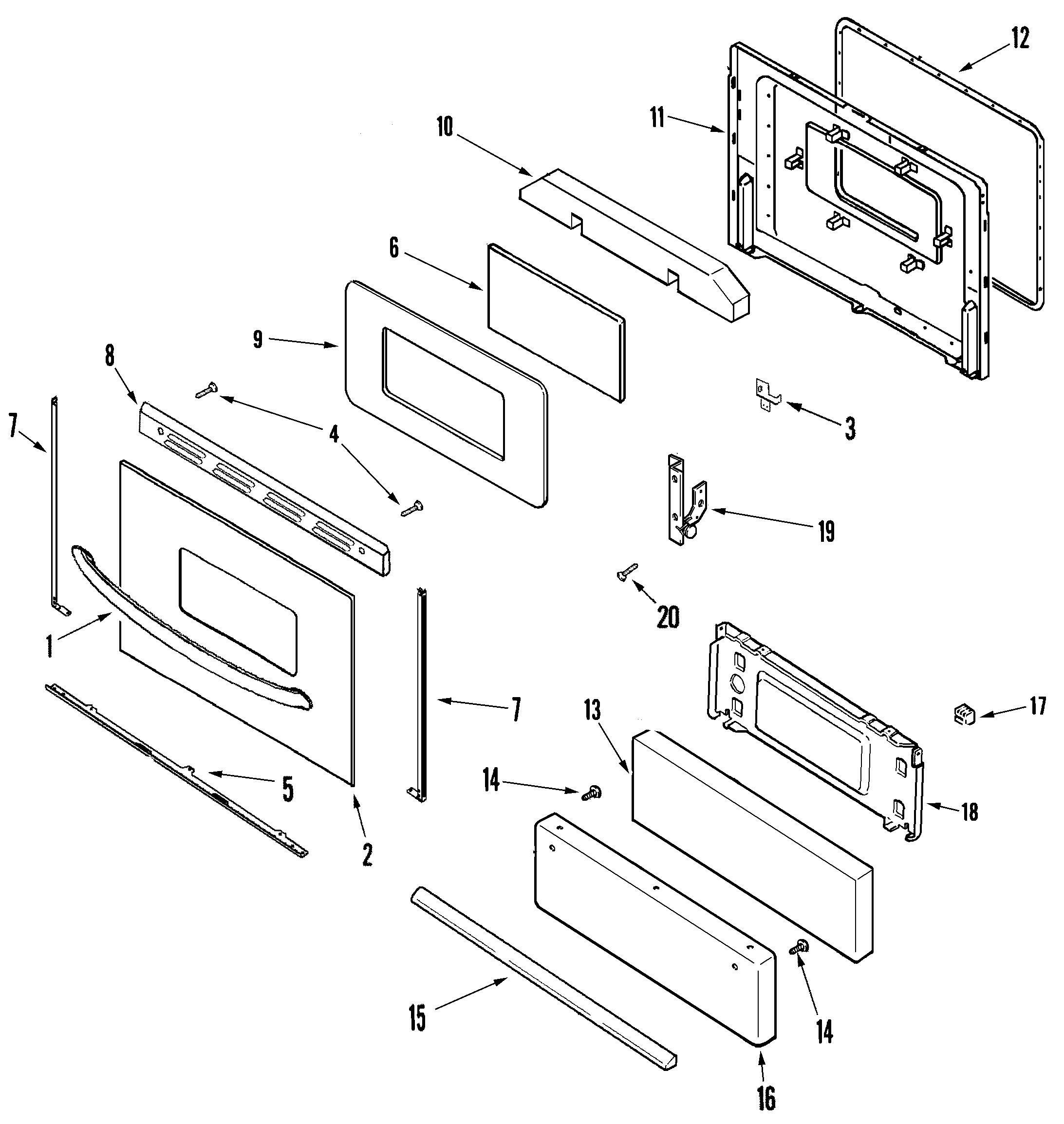

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Oven Bulb 7407P103-60
#4

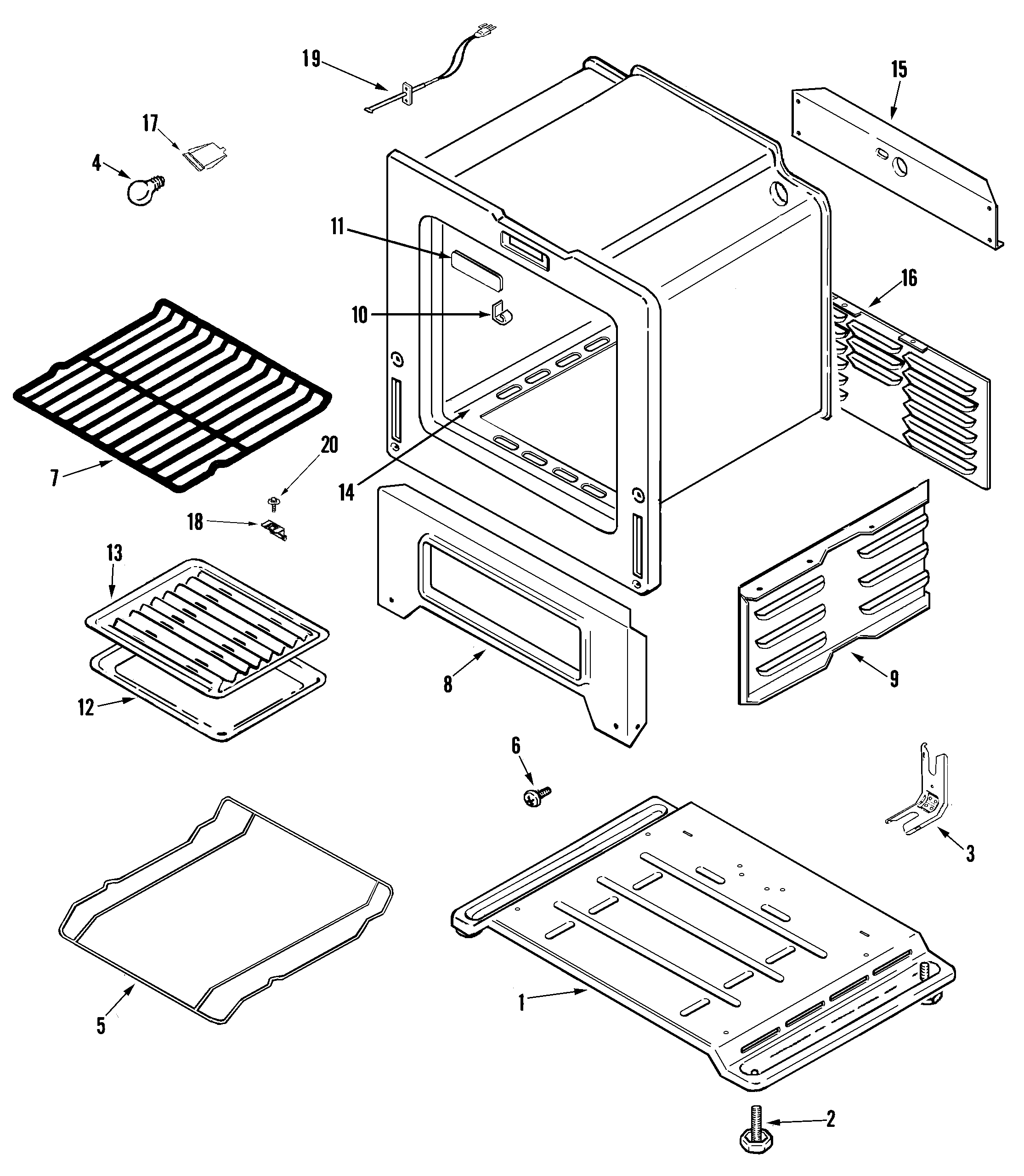

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Sealed Burner 3412D018-26
#4A

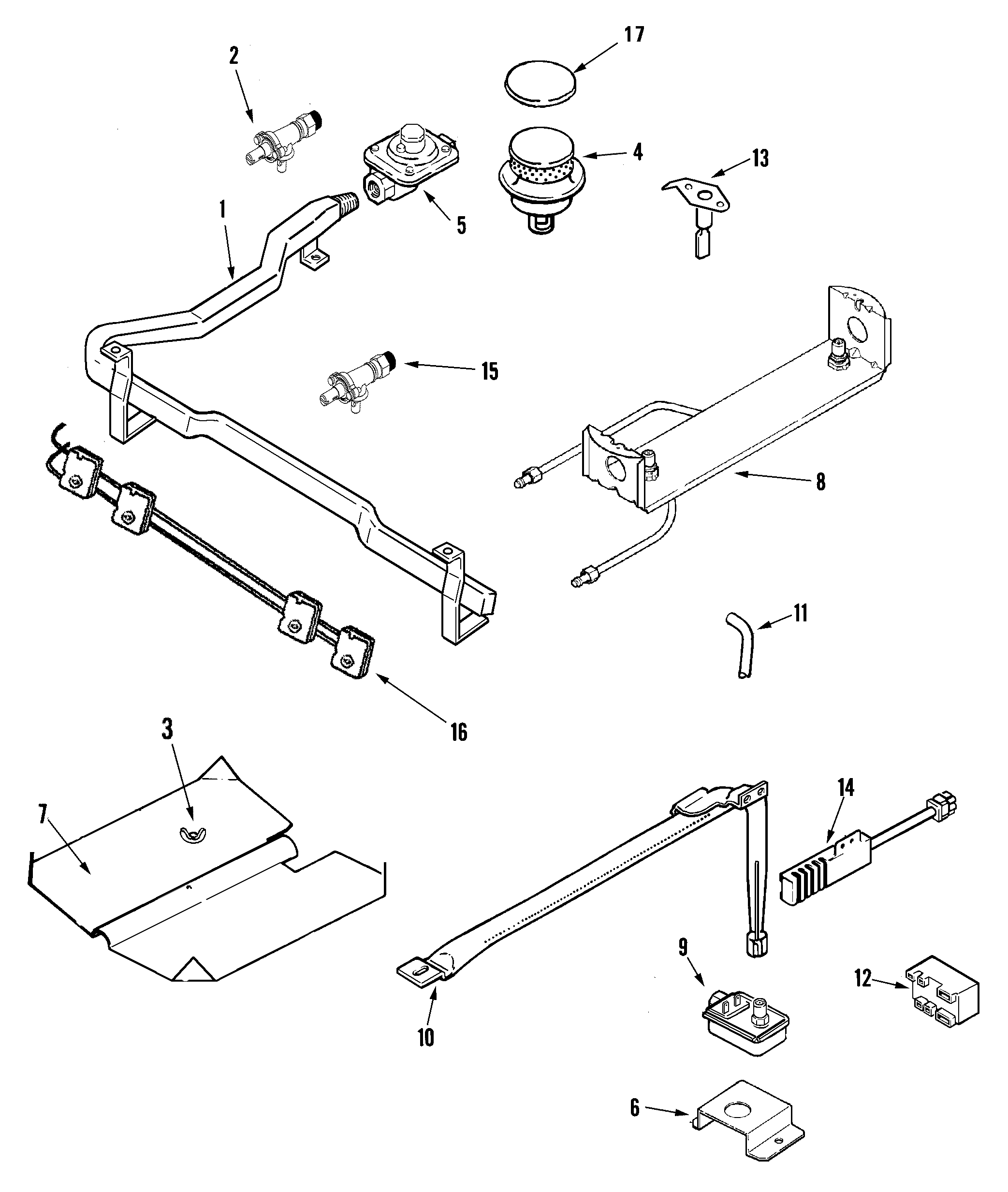

Gas controls diagram

Sealed burner

Part #3412D018-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D018-26. Substitute parts can look different from the original.
$51.64 |
10% OFF Phone Price : $57.64
In Stock
Oven Screw 74003004
#16

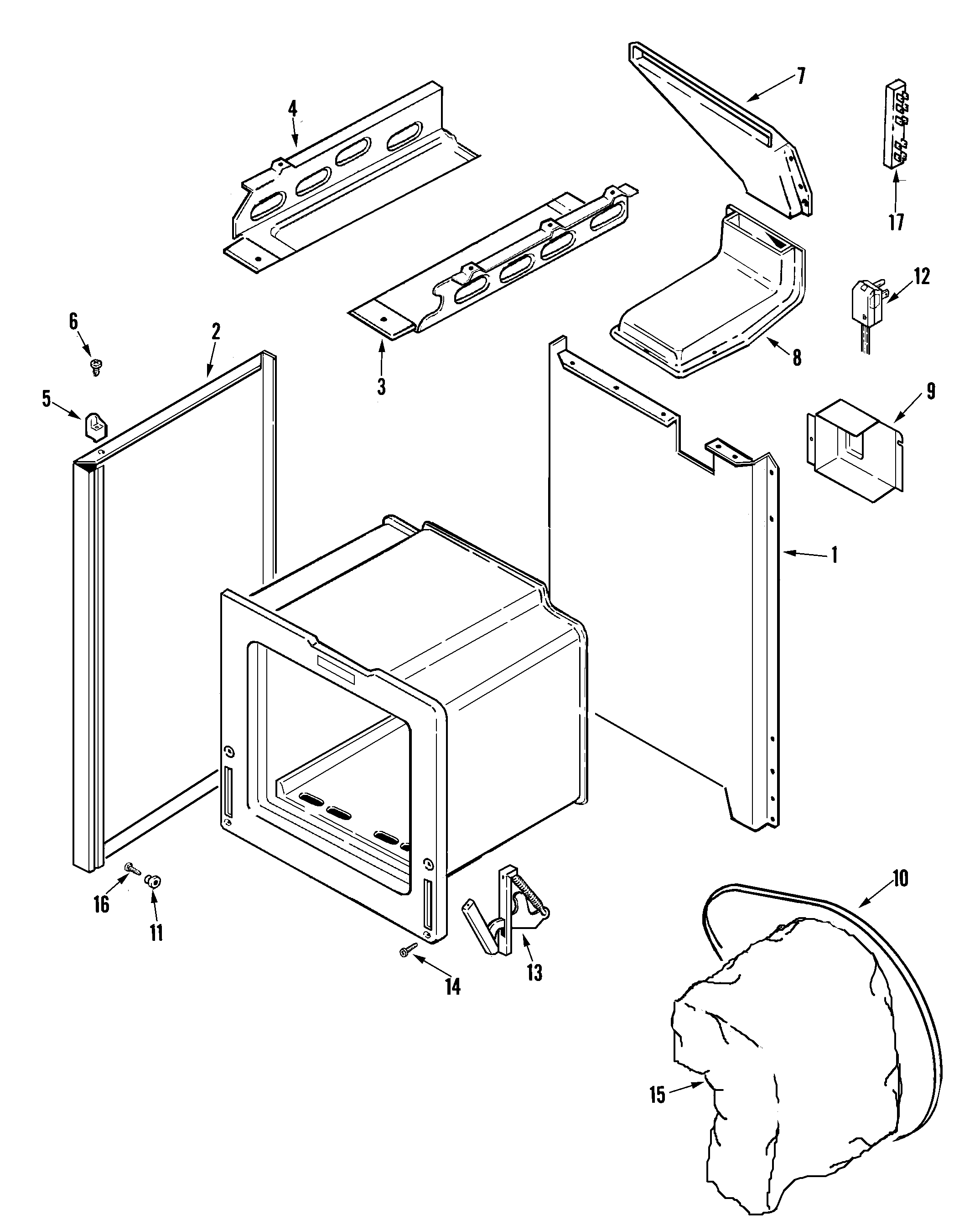

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Screw 74009537
Screw

Part #74009537

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 74009537. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 790448
#6A

Oven/base diagram

Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Burner Kit 12001496
#4

Gas controls diagram

Burner kit

Part #12001496

Replaced by #WP3412D025-09

?
Manufacturer substitution
This part replaces 12001496. Substitute parts can look different from the original.
$78.31 |
7% OFF Phone Price : $84.31
In Stock
Bracket, Ant 74005564
#3

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Range Oven Door Hinge 74011141
#13

Body diagram

Range oven door hinge

Part #74011141

Replaced by #WP74011141

?
Manufacturer substitution
This part replaces 74011141. Substitute parts can look different from the original.
$85.27 |
7% OFF Phone Price : $91.27
In Stock
Screw 74009540
Screw

Part #74009540

Replaced by #WP98008544

?
Manufacturer substitution
This part replaces 74009540. Substitute parts can look different from the original.
$8.23
In Stock
Main Glide 74004558
#13C

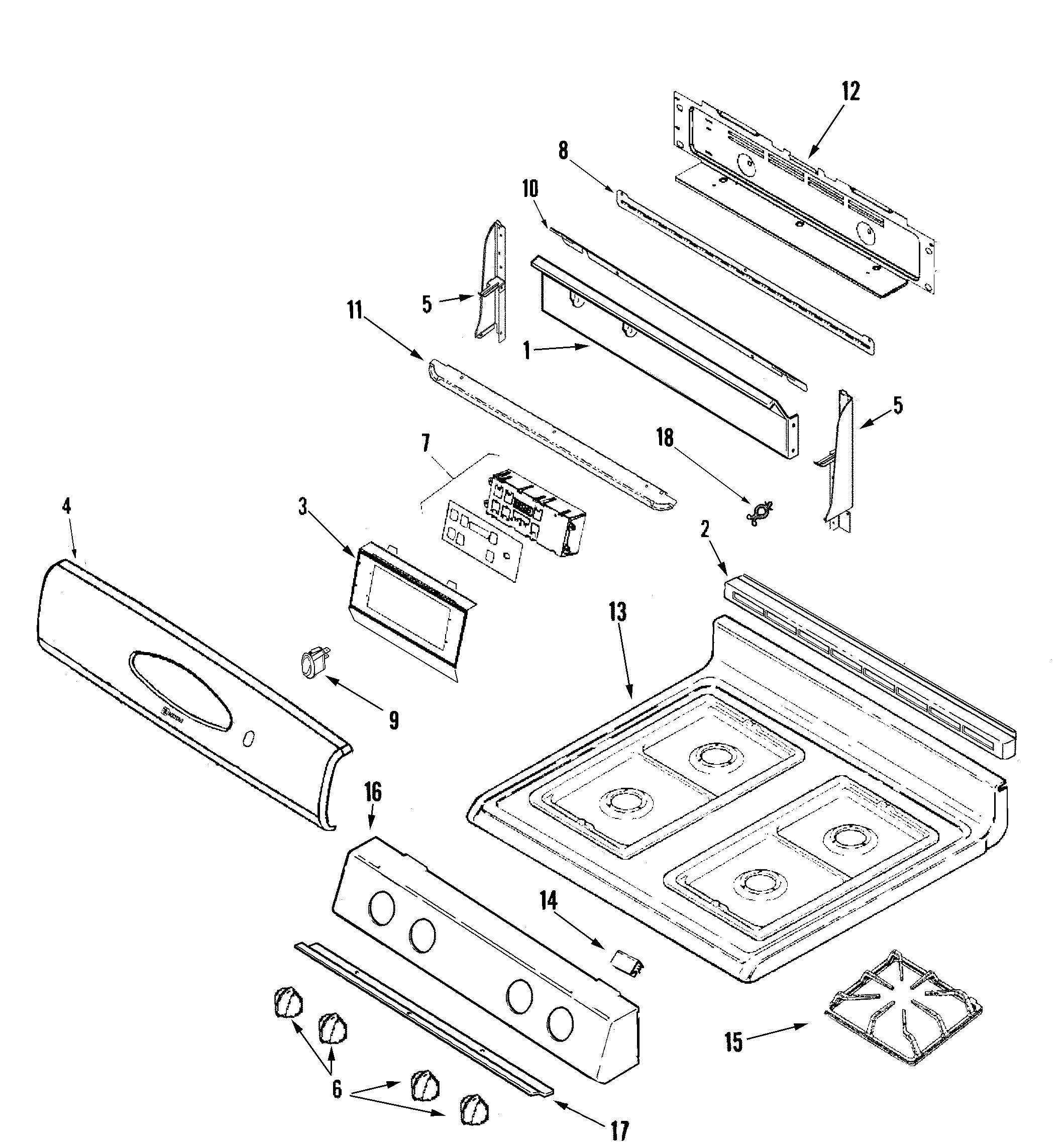

Control panel/top assembly diagram

Main glide

Part #74004558

Replaced by #W11189172

?
Manufacturer substitution
This part replaces 74004558. Substitute parts can look different from the original.
$11.89 |
14% OFF Phone Price : $13.89
In Stock
