Ryobi
Angle Grinder

Model # G-1801 Official Ryobi angle grinder

Here are the diagrams and repair parts for Official Ryobi G-1801 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Connector 6530209

#NI01

All parts diagram

Connector

Part #6530209

The manufacturer no longer makes this part, and there's no substitute part

Phillips Pan Screw M5 X 40 9020540
#3

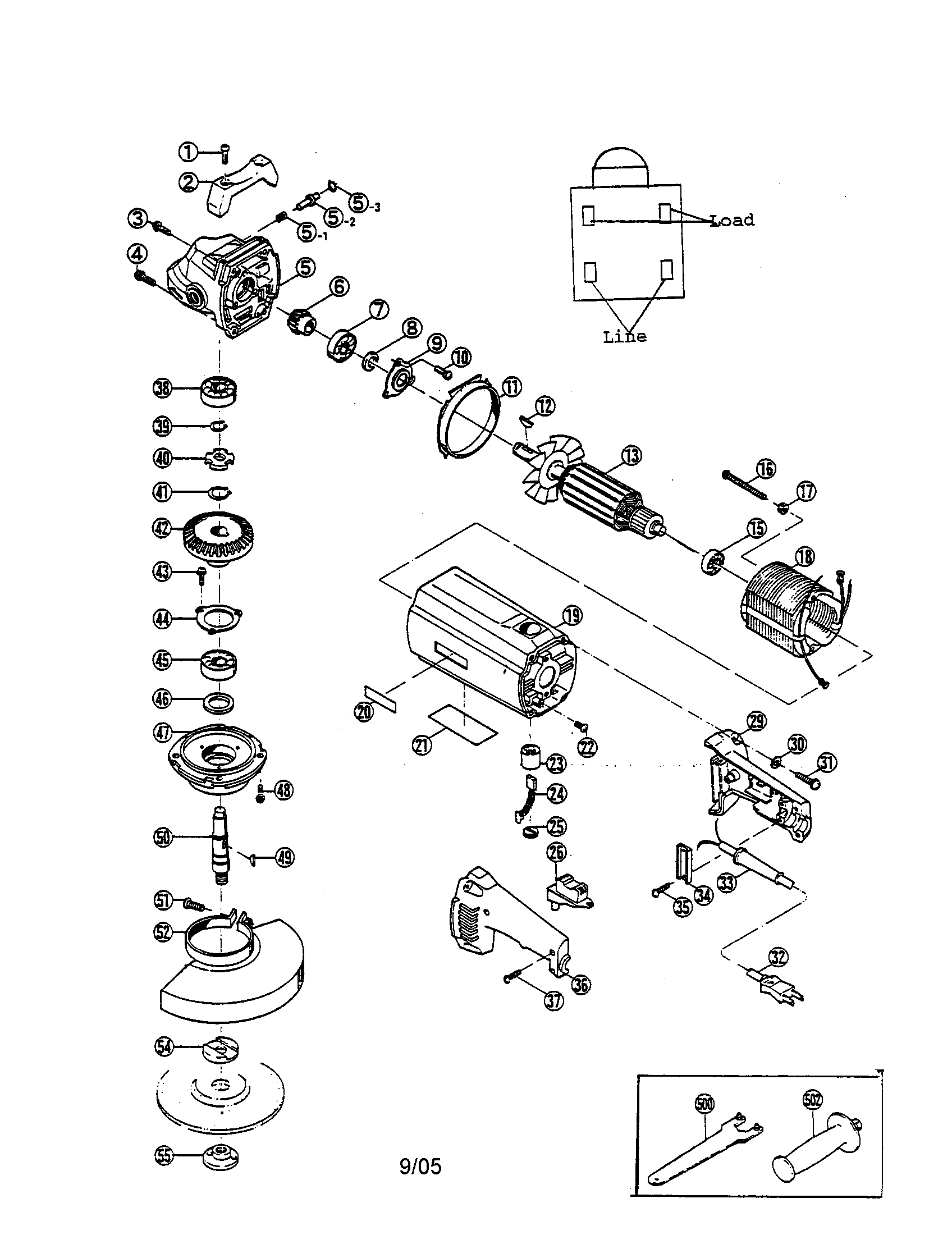

Grinder diagram

Phillips pan screw m5 x 40

Part #9020540

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 9020520
Pan screw

Part #9020520

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 6910927
#21

Grinder diagram

Nameplate

Part #6910927

The manufacturer no longer makes this part, and there's no substitute part

Fan Casing 6490110
#11

Grinder diagram

Fan casing

Part #6490110

The manufacturer no longer makes this part, and there's no substitute part

Armature 6030649
#13

Grinder diagram

Armature

Part #6030649

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #6203llh 9896203
#45

Grinder diagram

Ball bearing #6203llh

Part #9896203

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060414
#35

Grinder diagram

Screw

Part #9060414

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt M5 X 75 (2) 6130216
#16

Grinder diagram

Hex head bolt m5 x 75 (2)

Part #6130216

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #6200llh 9896200
#15

Grinder diagram

Ball bearing #6200llh

Part #9896200

The manufacturer no longer makes this part, and there's no substitute part
