Frigidaire
Top-Mount Refrigerator

Model # FFPT12F0KM0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFPT12F0KM0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

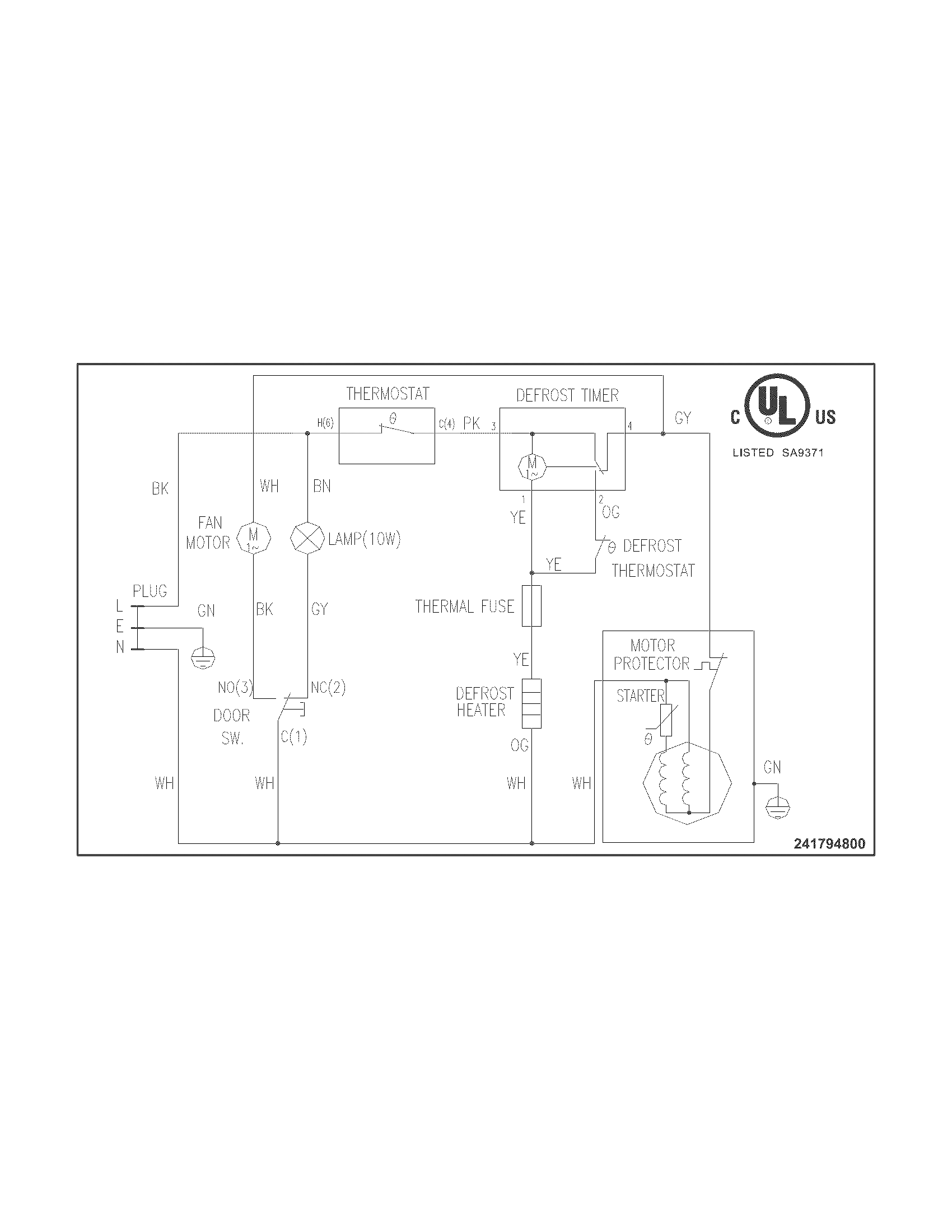

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Refrigerator Run Capacitor (replaces 5304513803) 5304470340
#35

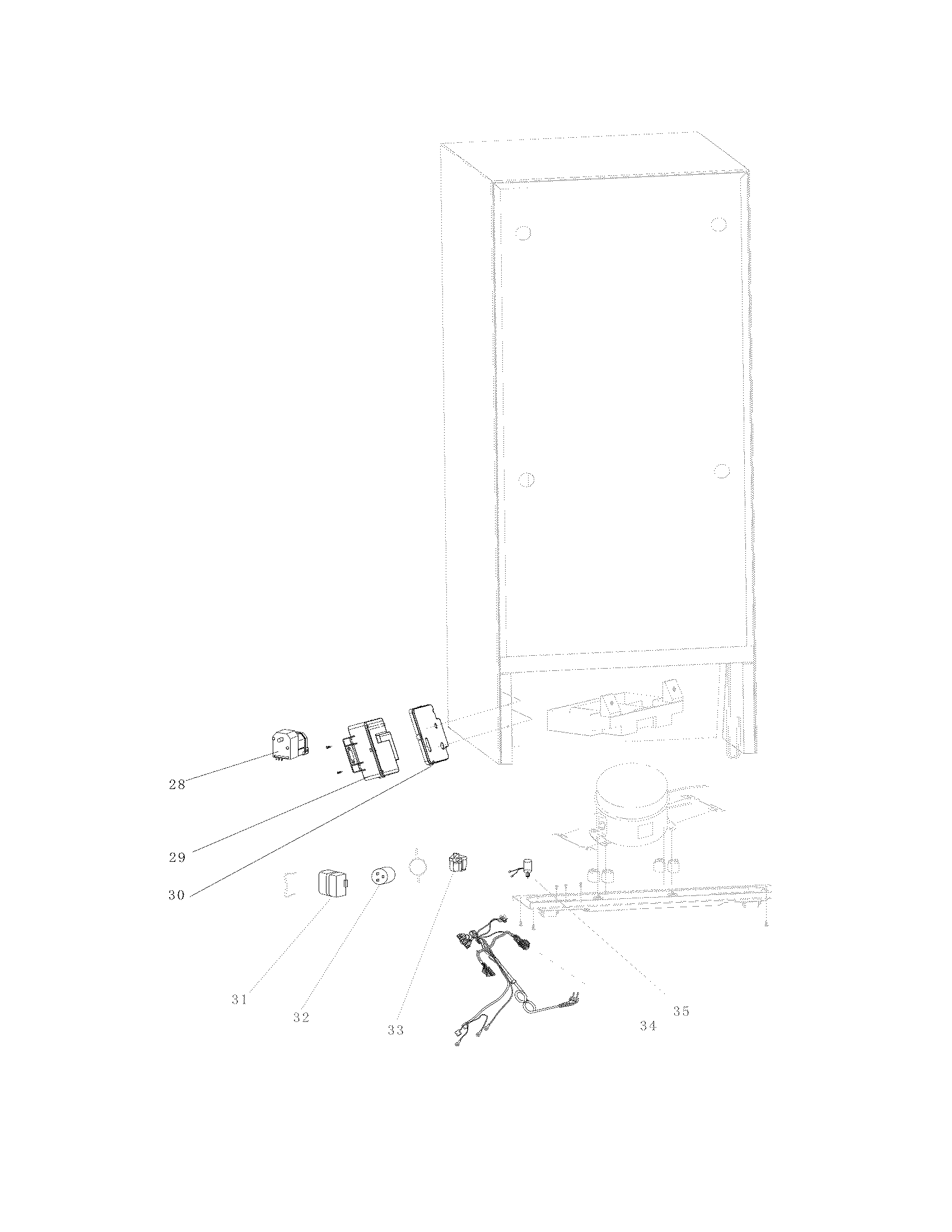

System diagram

Refrigerator run capacitor (replaces 5304513803)

Part #5304470340

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Refrigerator Glass Shelf 5304470358
#20

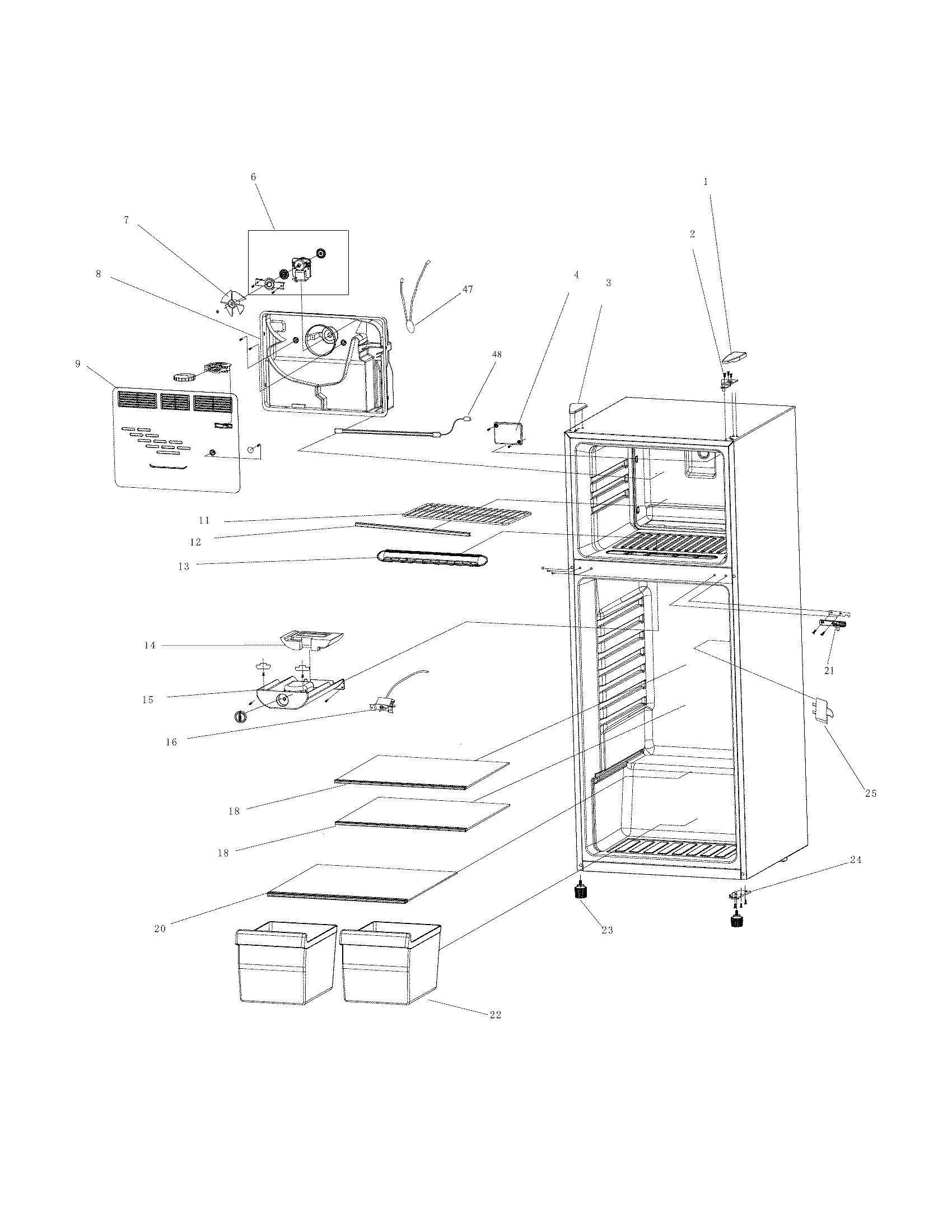

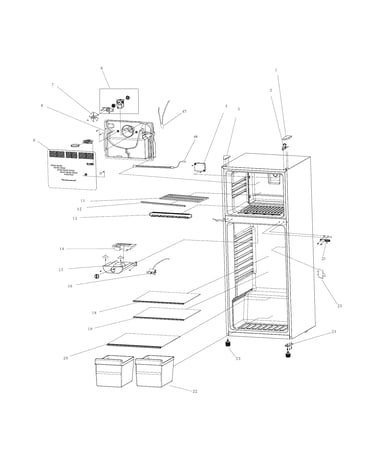

Cabinet/controls diagram

Refrigerator glass shelf

Part #5304470358

$137.62
In Stock
Refrigerator Door Bin 5304470329
#27

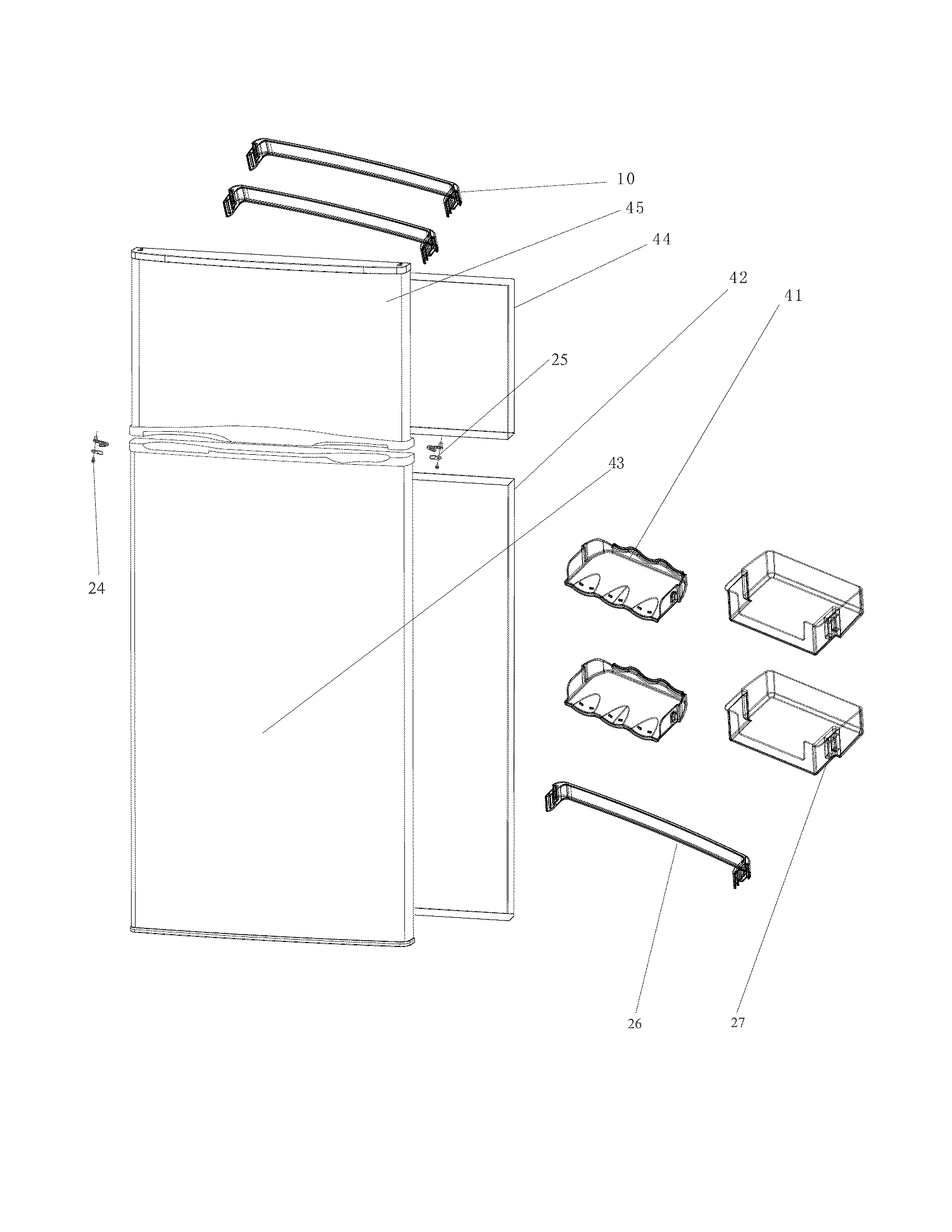

Door diagram

Refrigerator door bin

Part #5304470329

$66.76
In Stock
Refrigerator Crisper Drawer 5304470324
#22

Cabinet/controls diagram

Refrigerator crisper drawer

Part #5304470324

$126.40
In Stock
Refrigerator Door Shelf Rail 5304470328
#26

Door diagram

Refrigerator door shelf rail

Part #5304470328

$50.04
In Stock
Refrigerator Door Switch 5304470327
#25

Cabinet/controls diagram

Refrigerator door switch

Part #5304470327

Replaced by #5304498687

?
Manufacturer substitution
This part replaces 5304470327. Substitute parts can look different from the original.
$43.31
In Stock
Refrigerator Compressor Start Relay 5304470337
#33

System diagram

Refrigerator compressor start relay

Part #5304470337

Replaced by #5304508629

?
Manufacturer substitution
This part replaces 5304470337. Substitute parts can look different from the original.
This item is not returnable
$34.81 |
15% OFF Phone Price : $40.81
In Stock
Refrigerator Defrost Thermostat And Sensor 5304487805
#47

Cabinet/controls diagram

Refrigerator defrost thermostat and sensor

Part #5304487805

Replaced by #5304504239

?
Manufacturer substitution
This part replaces 5304487805. Substitute parts can look different from the original.
$71.84
In Stock
Refrigerator Defrost Heater 5304475839
#48

Cabinet/controls diagram

Refrigerator defrost heater

Part #5304475839

Replaced by #5304504239

?
Manufacturer substitution
This part replaces 5304475839. Substitute parts can look different from the original.
$71.84
In Stock
Refrigerator Gasket 5304486195
#42

Door diagram

Refrigerator gasket

Part #5304486195

Replaced by #5304491301

?
Manufacturer substitution
This part replaces 5304486195. Substitute parts can look different from the original.
$106.12
In Stock
