Model # TH21V2C-P1315906WC Official Amana top-mount refrigerator

Here are the diagrams and repair parts for Official Amana TH21V2C-P1315906WC top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

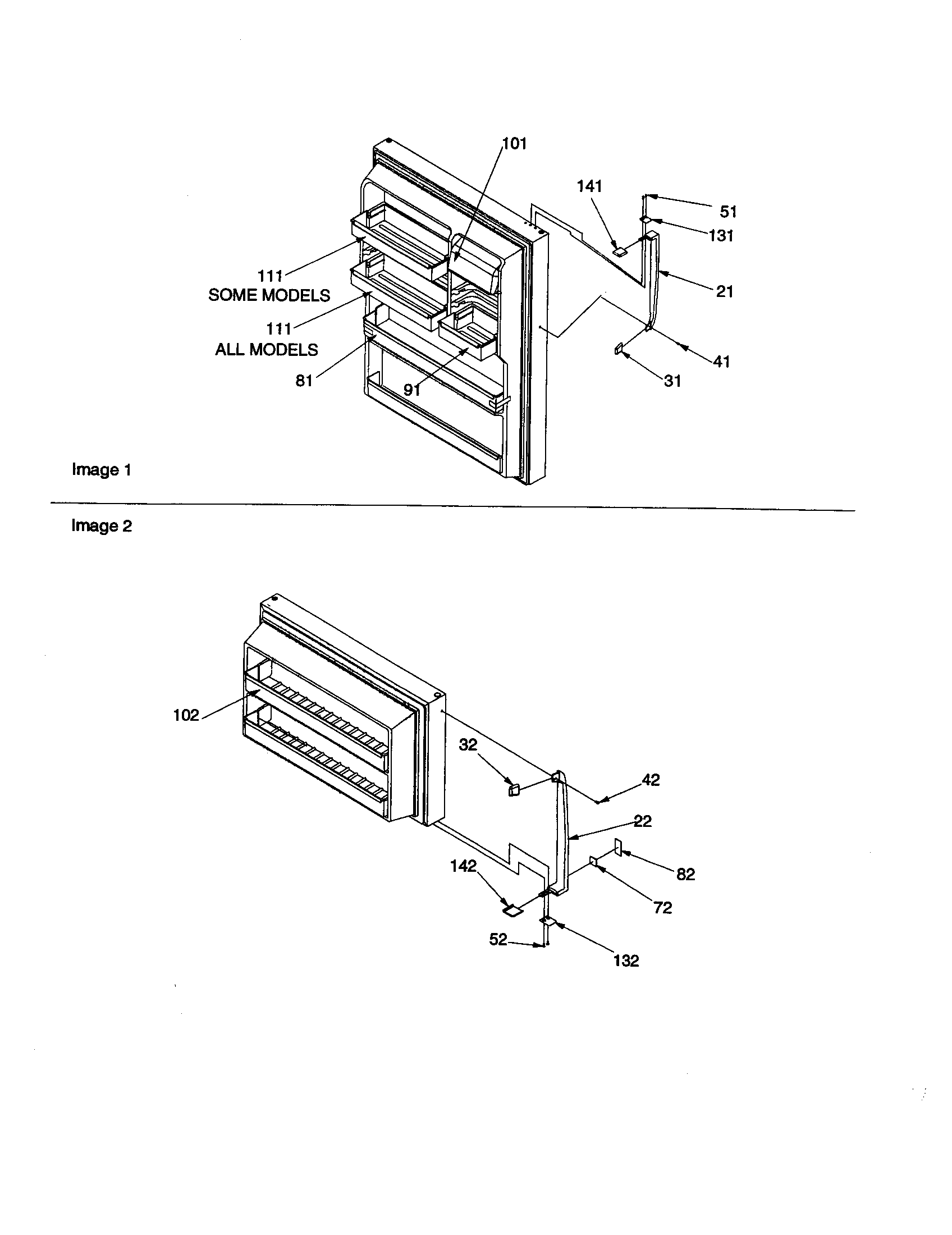

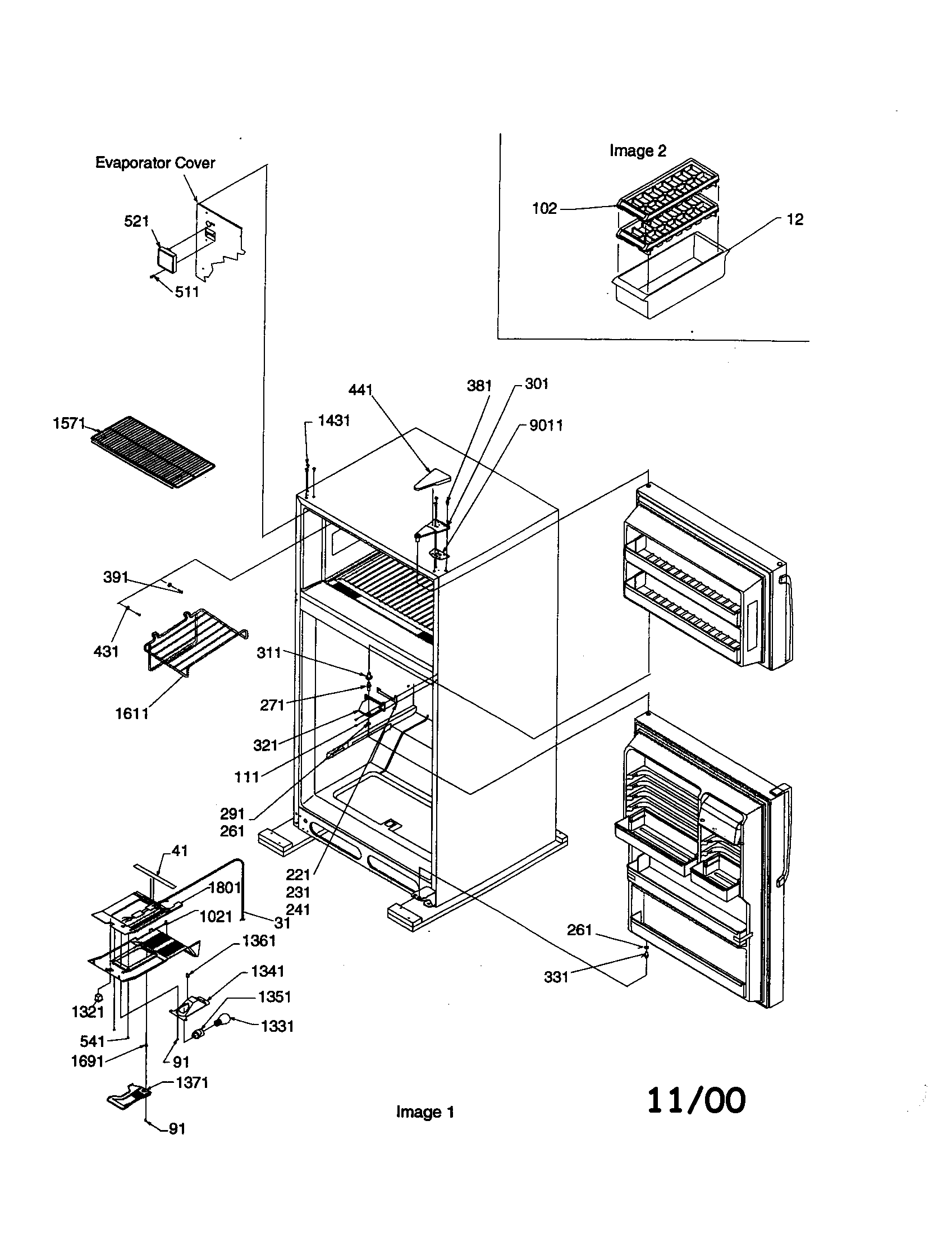

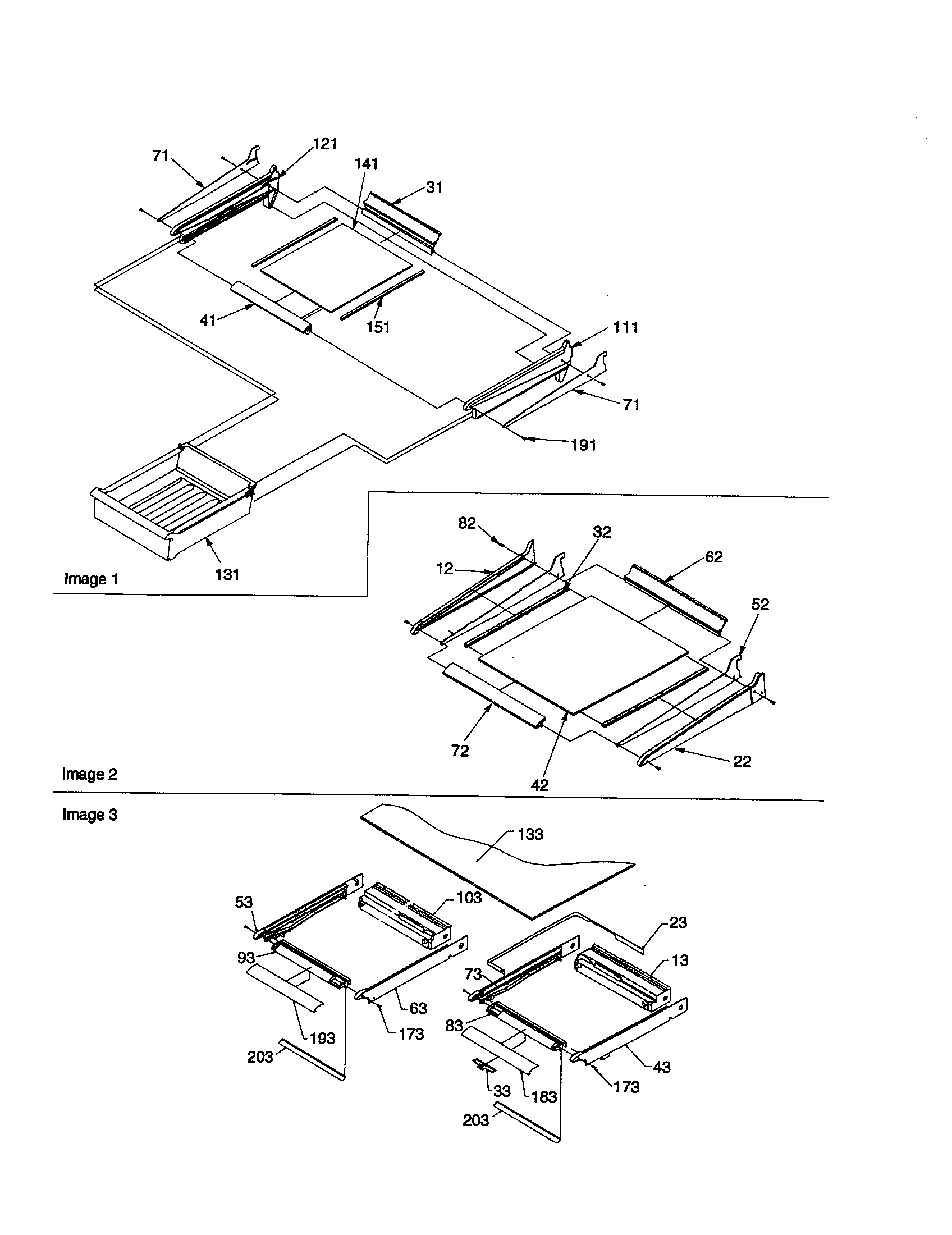

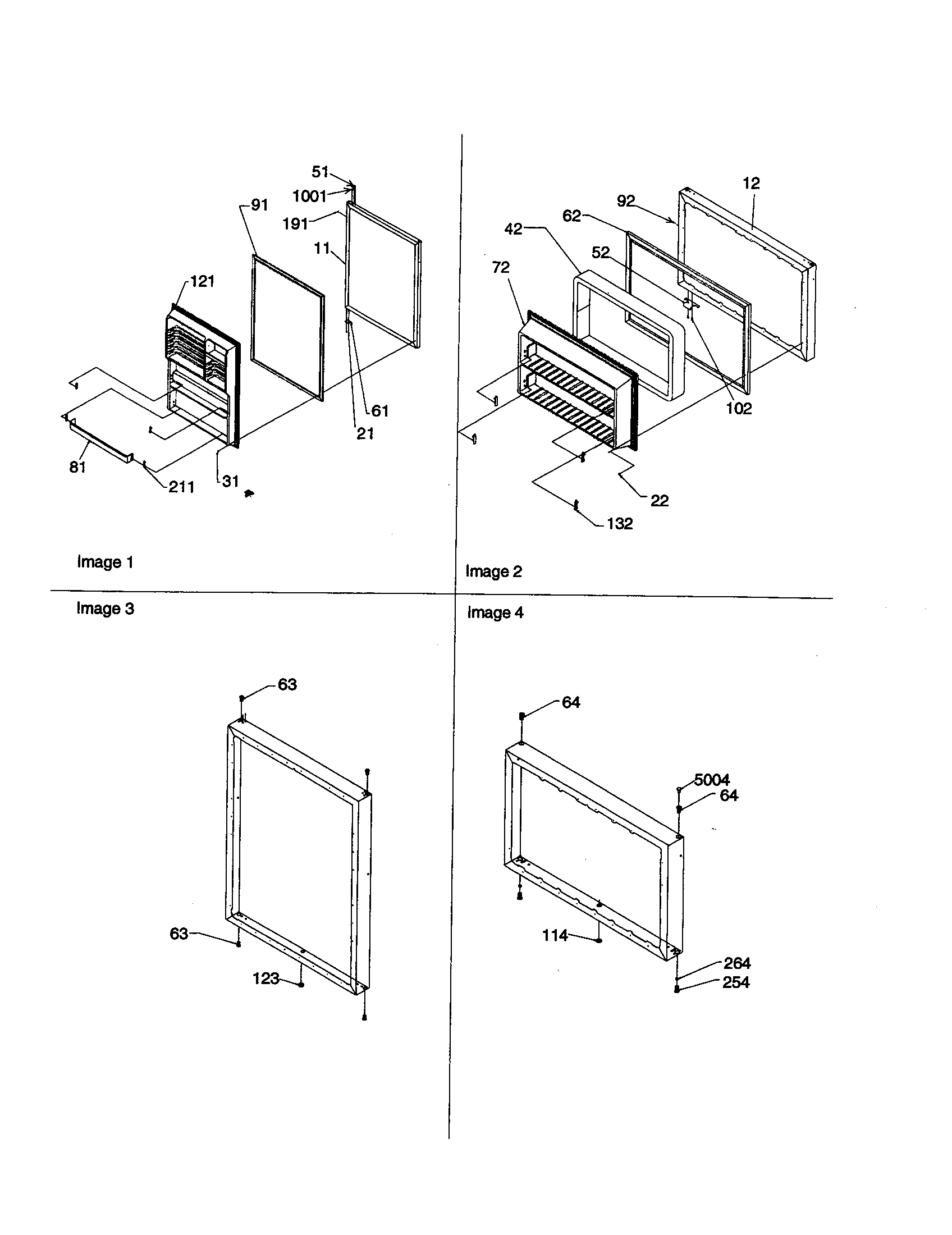

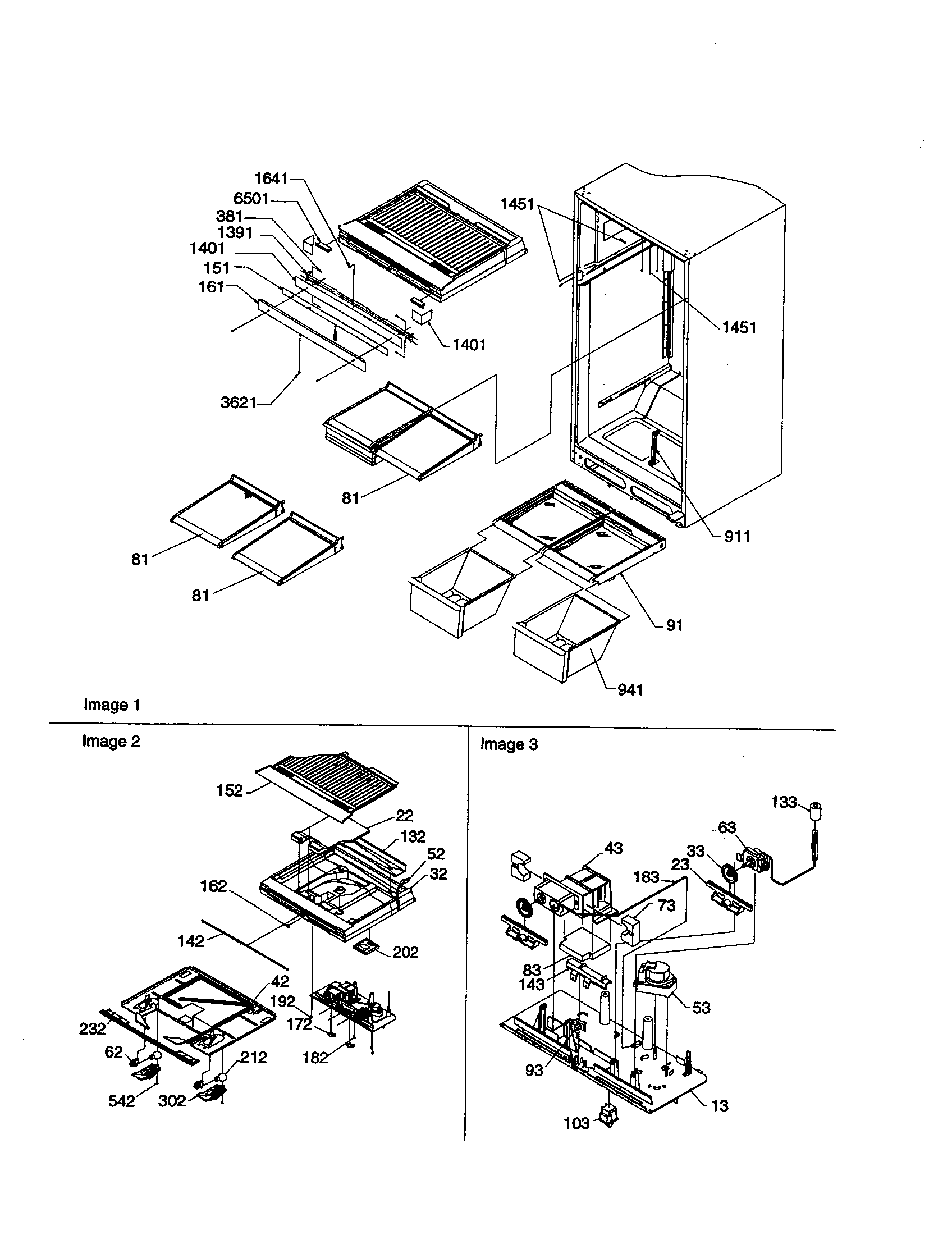

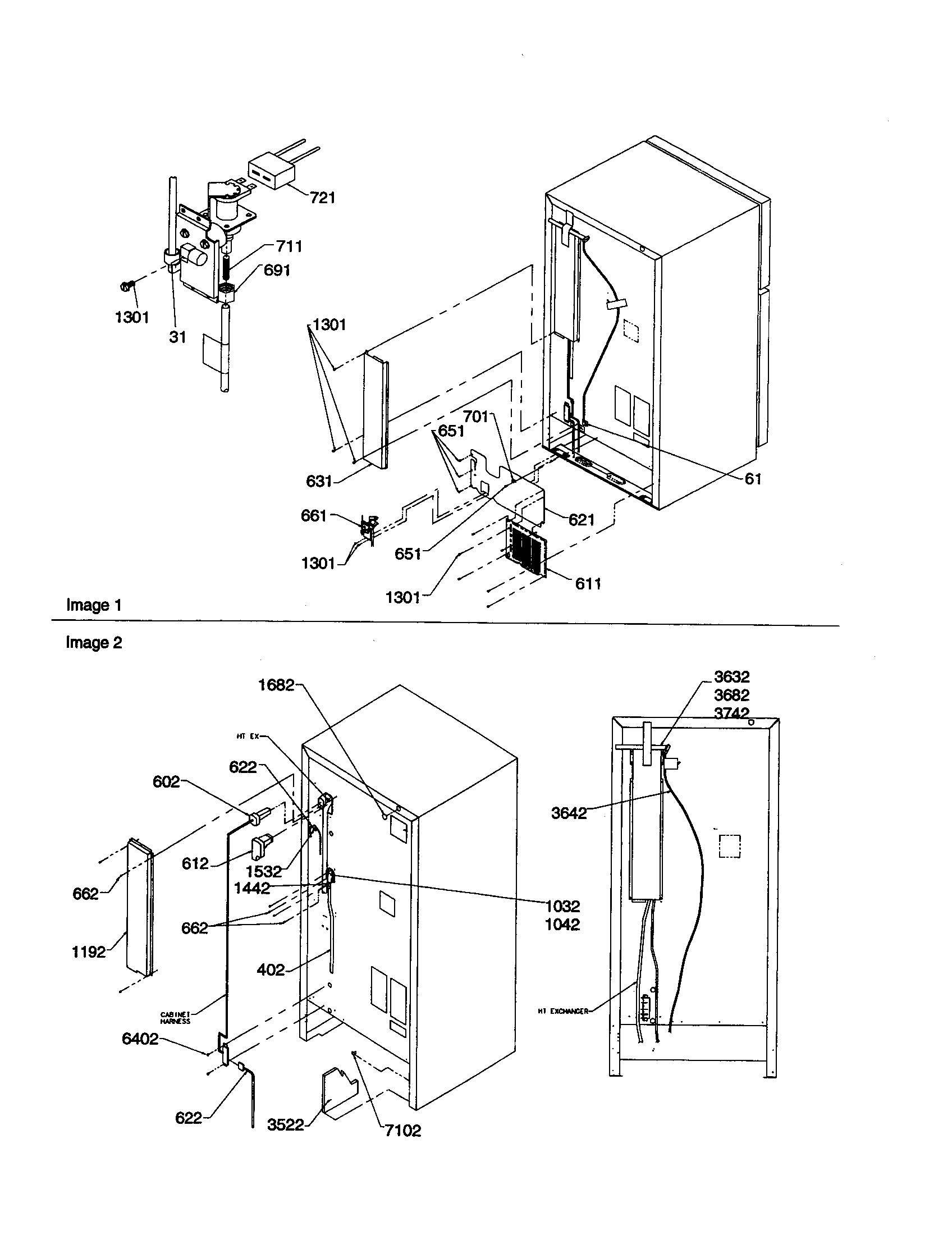

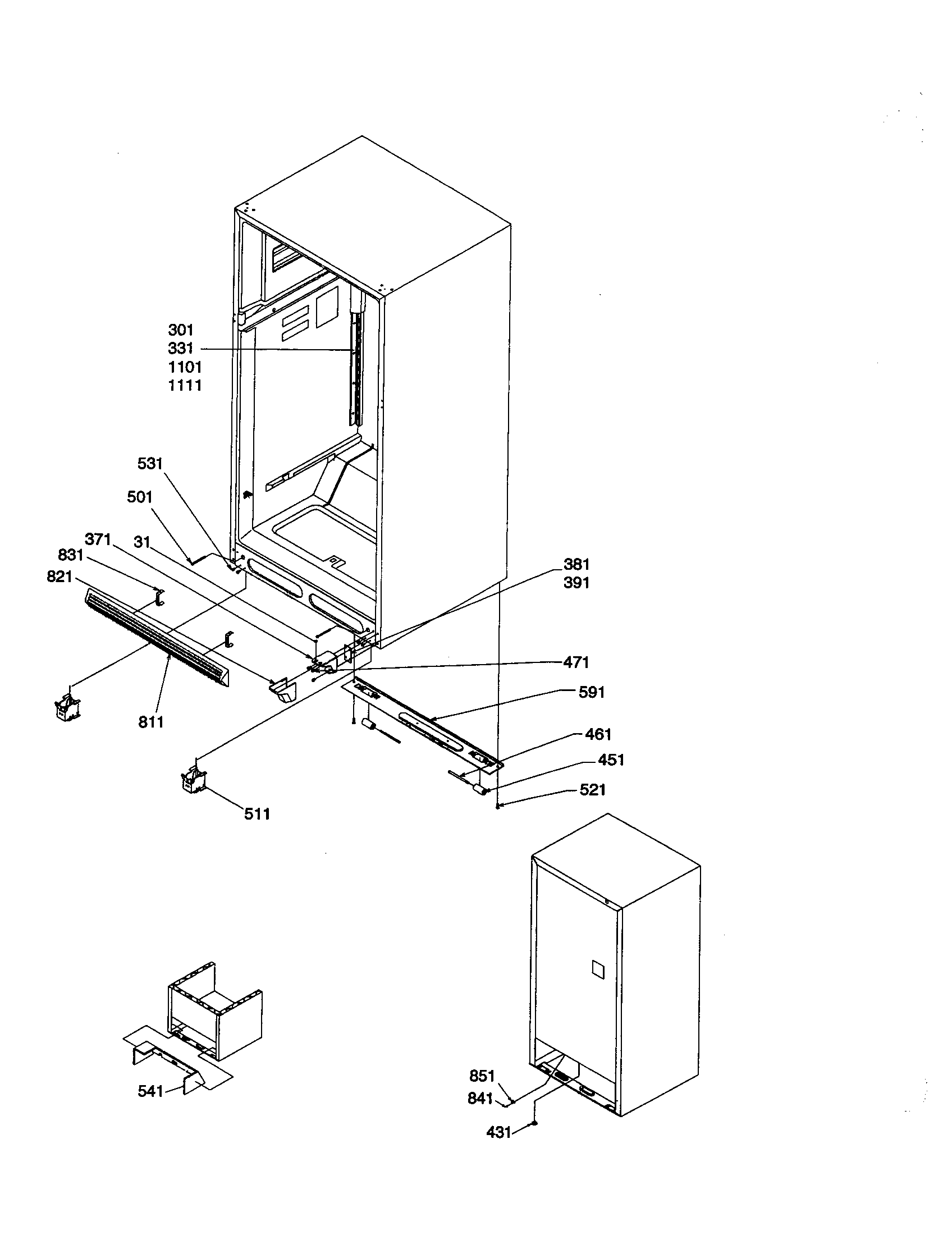

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Refrigerator Ice Maker D7824705
#122

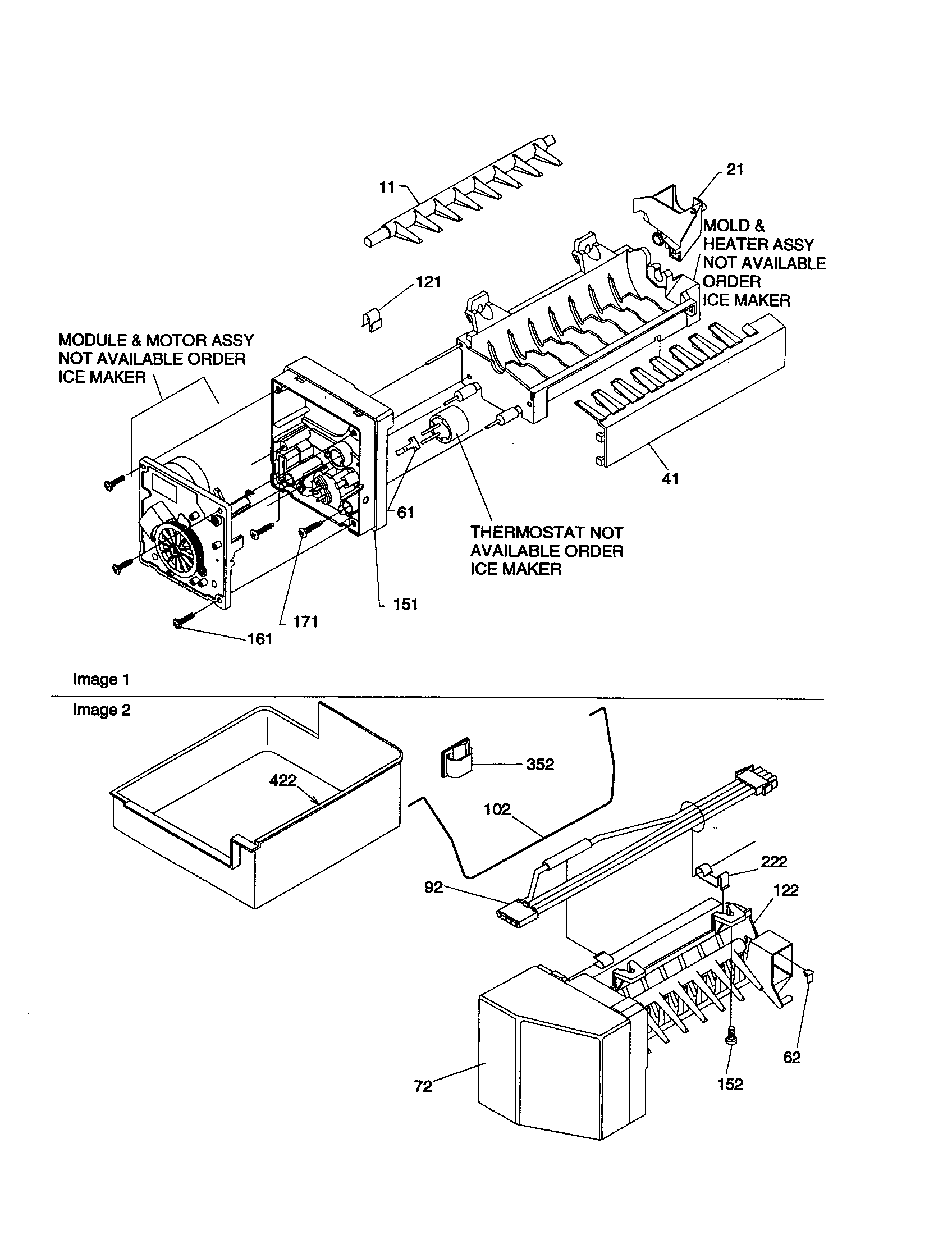

Ice maker assembly diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch C3680308
Refrigerator switch

Part #C3680308

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680308. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 10927205
#202

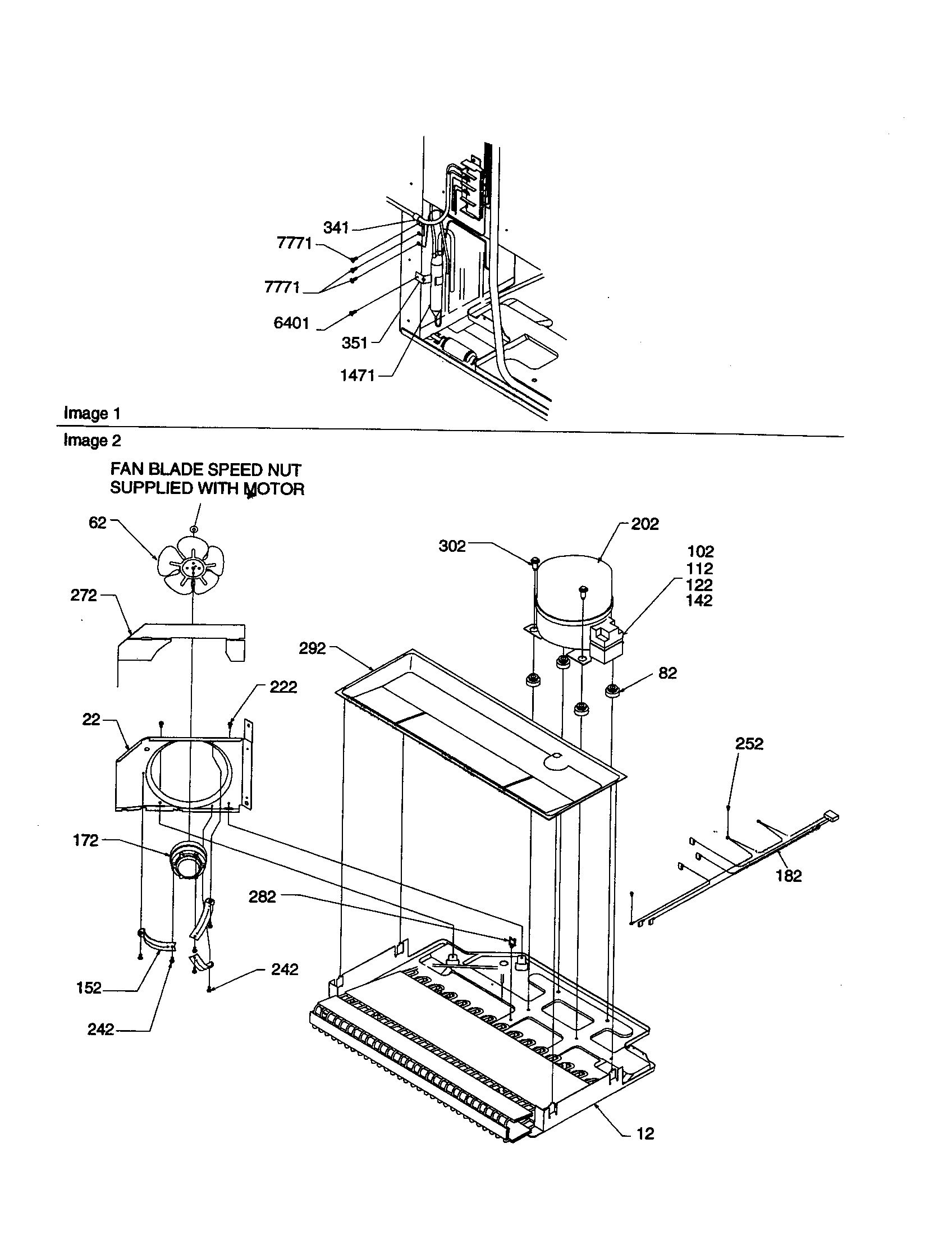

Machine compartment diagram

Refrigerator compressor

Part #10927205

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 10927205. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Fan Motor 10449506
#34

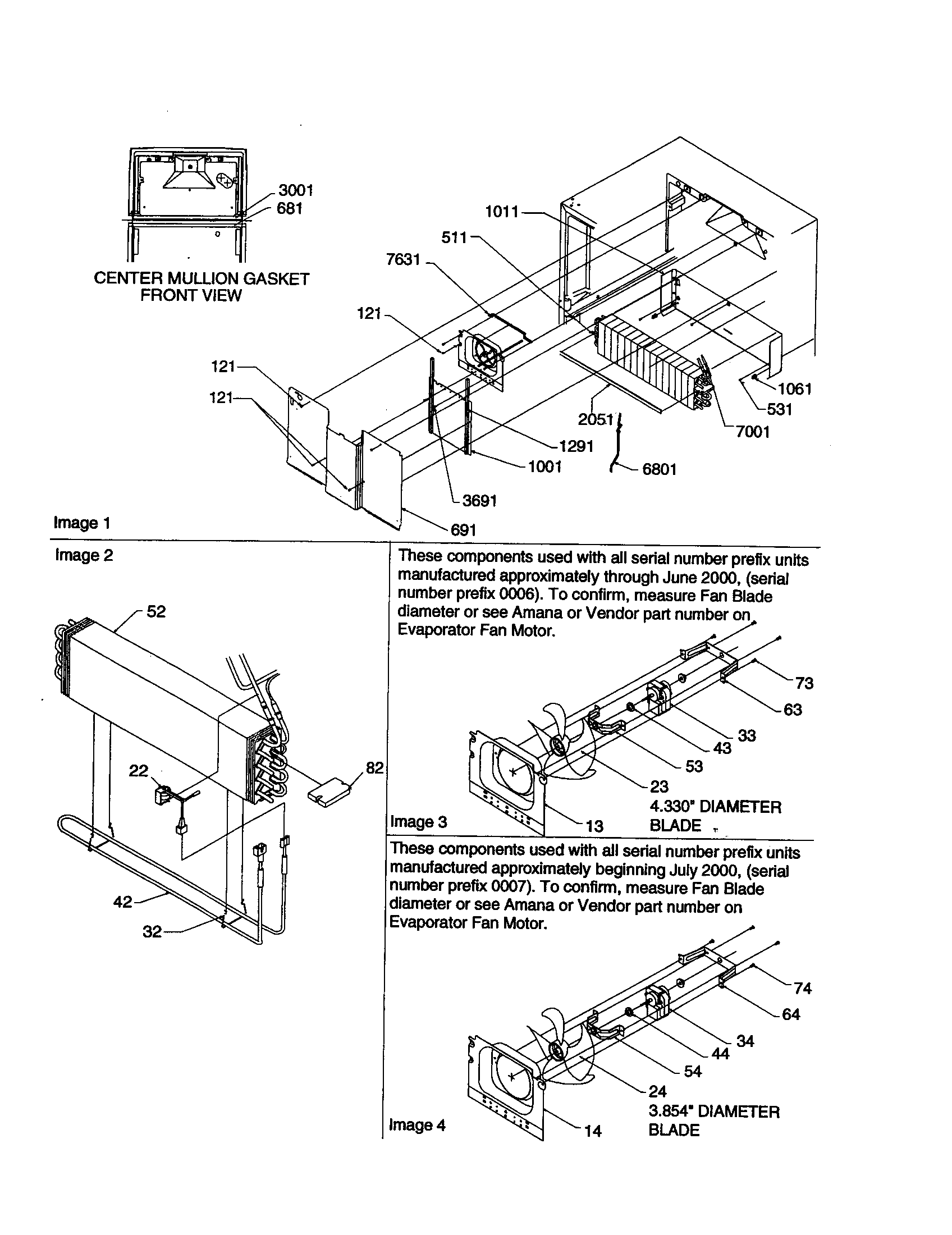

Evaporator/evaporator fan motor diagram

Refrigerator fan motor

Part #10449506

Replaced by #WPW10189703

?
Manufacturer substitution
This part replaces 10449506. Substitute parts can look different from the original.
BEST SELLER
$49.77 |
11% OFF Phone Price : $55.77
In Stock
Refrigerator Condenser Fan Motor 10884506
#172

Machine compartment diagram

Refrigerator condenser fan motor

Part #10884506

Replaced by #833697

?
Manufacturer substitution
This part replaces 10884506. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw M0211533
Refrigerator screw

Part #M0211533

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0211533. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Harness D7813004
#92

Ice maker assembly diagram

Refrigerator harness

Part #D7813004

Replaced by #WPD7813010

?
Manufacturer substitution
This part replaces D7813004. Substitute parts can look different from the original.
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Refrigerator Dispenser Water Tube B5705308
Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Cup R0156839
#21

Ice maker assembly diagram

Refrigerator cup

Part #R0156839

Replaced by #WP628356

?
Manufacturer substitution
This part replaces R0156839. Substitute parts can look different from the original.
This item is not returnable
$27.77 |
18% OFF Phone Price : $33.77
In Stock
