Model # R-220FW Official Sharp microwave
Here are the diagrams and repair parts for Official Sharp R-220FW microwave, as well as links to manuals and error code tables, if available.

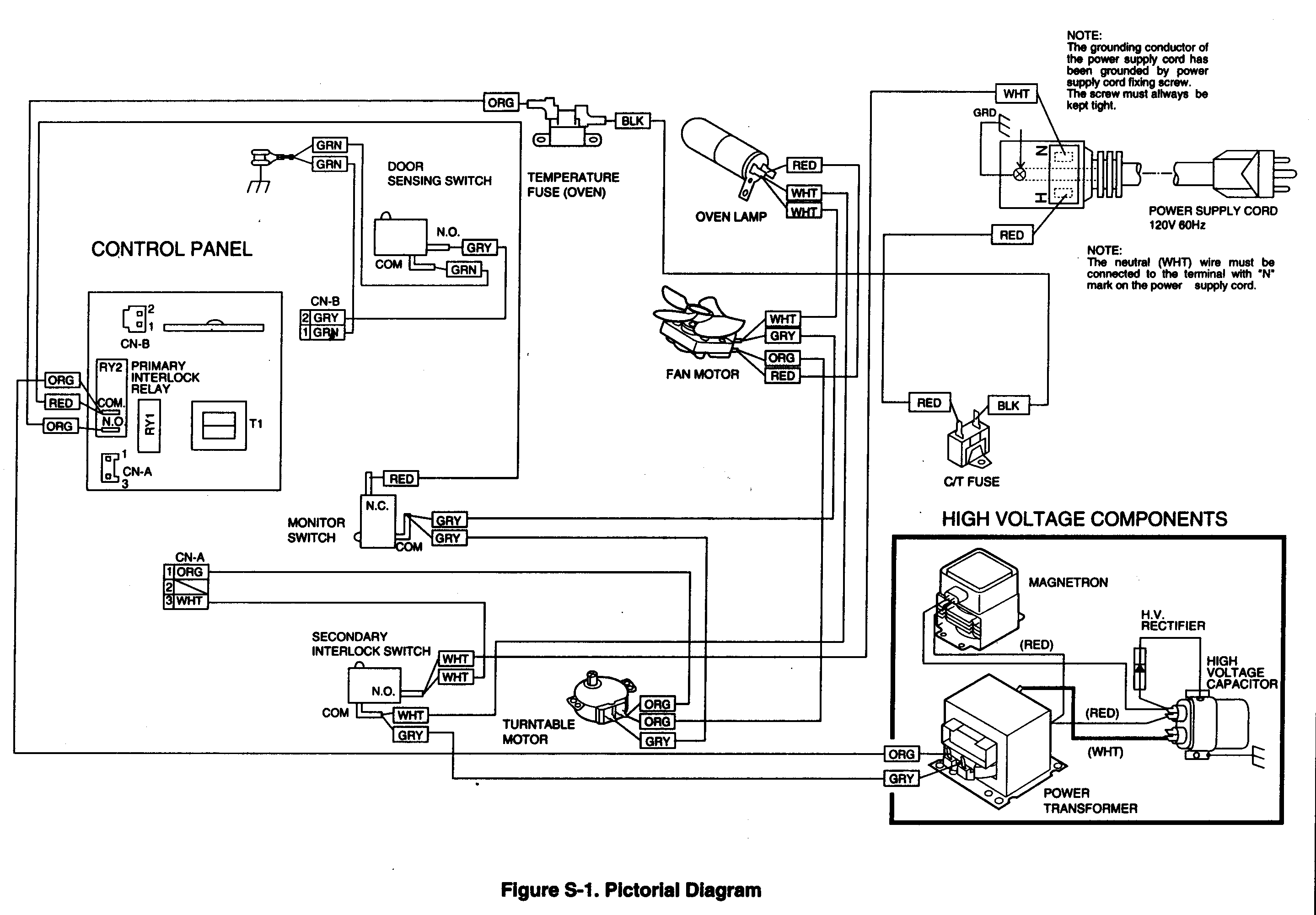

By Schematic
SELECT DIAGRAM
Browse Parts for
R-220FW Microwaves
#1-1

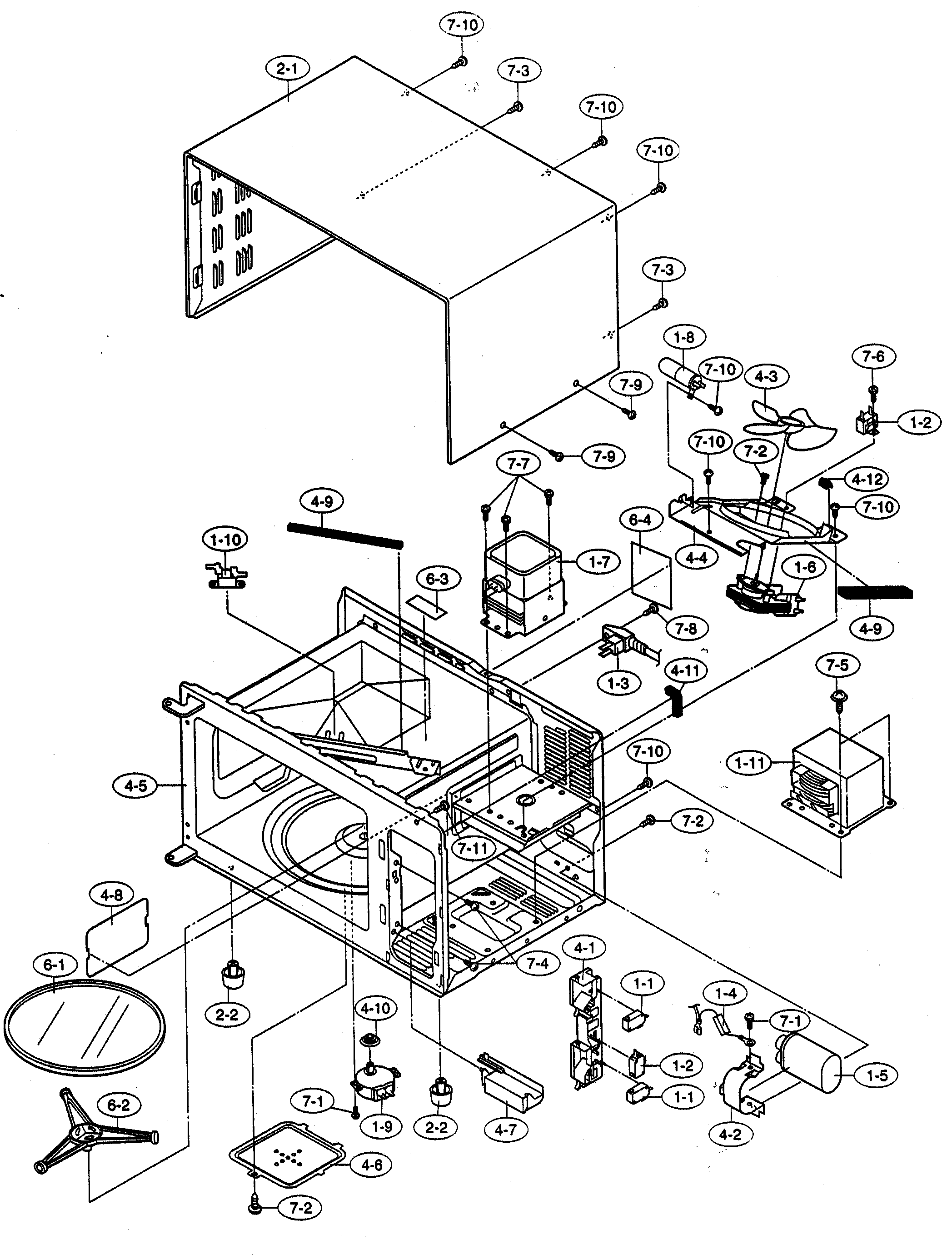

Oven/cabinet parts diagram
Switch
Part #QSW-MA085WRE0
The manufacturer no longer makes this part, and there's no substitute part
#1-1A
Oven/cabinet parts diagram
Switch
Part #QSW-MA137WRE0
The manufacturer no longer makes this part, and there's no substitute part
#3-4

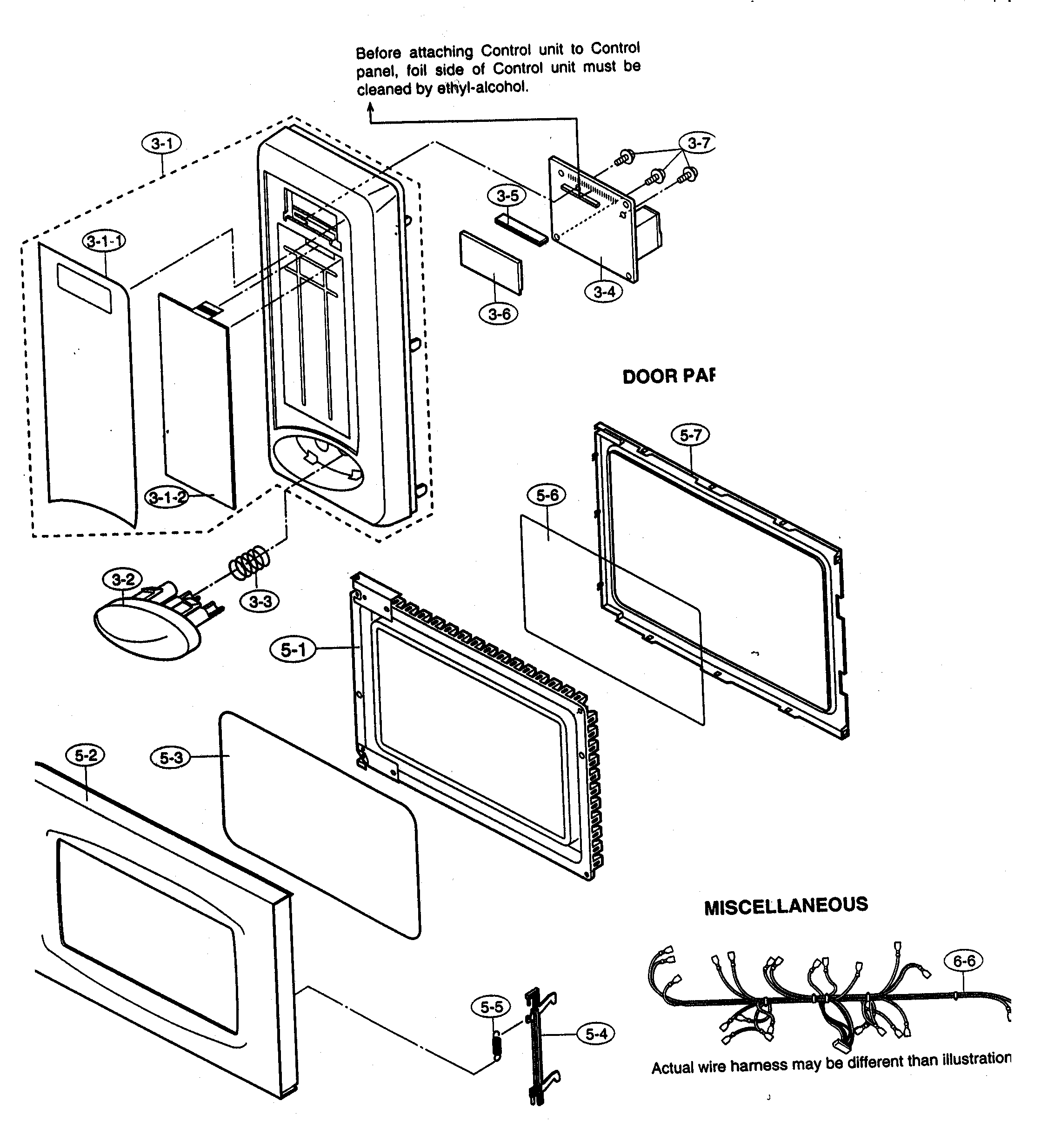

Control panels/door/miscellaneous diagram
Power control board assembly
Part #DPWBFC240WRUZ
The manufacturer no longer makes this part, and there's no substitute part
#3-6
Control panels/door/miscellaneous diagram
Display
Part #RLCDSA105DRZZ
The manufacturer no longer makes this part, and there's no substitute part
#1-2
Oven/cabinet parts diagram
Switch
Part #FFS-BA030WRKZ
The manufacturer no longer makes this part, and there's no substitute part
#5-3
Control panels/door/miscellaneous diagram
Screen
Part #HPNL-A773WRRZ
The manufacturer no longer makes this part, and there's no substitute part
#4-10
Oven/cabinet parts diagram
Packing
Part #PPACGA176WREZ
The manufacturer no longer makes this part, and there's no substitute part
#1-10
Oven/cabinet parts diagram
Microwave thermal cut-off
Part #QFS-TA038WRE0
The manufacturer no longer makes this part, and there's no substitute part
#1-8
Oven/cabinet parts diagram
Microwave lamp
Part #RLMPTA082WRZZ
The manufacturer no longer makes this part, and there's no substitute part
#1-5A
Oven/cabinet parts diagram
Capacitor
Part #RC-QZA307WRZZ
The manufacturer no longer makes this part, and there's no substitute part
Effective articles & videos to help repair your microwaves
