Model # 867763281 Official Kenmore gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867763281 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

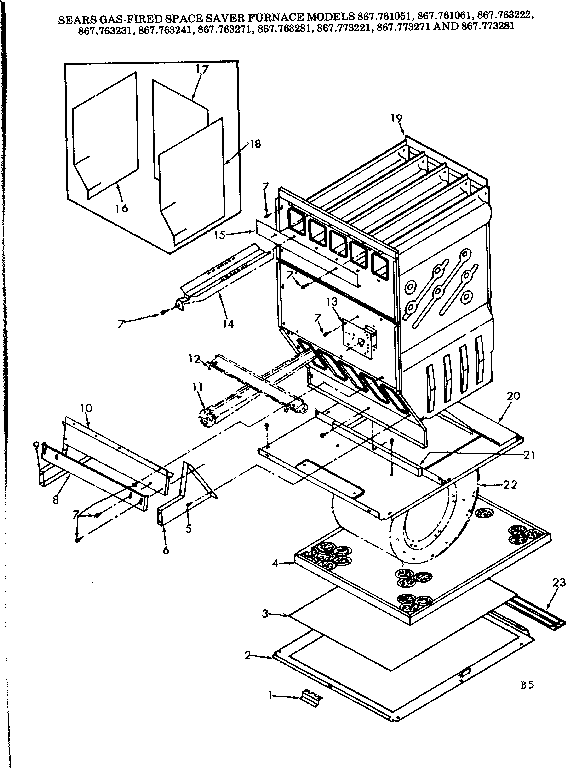

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Catch 602090
#8

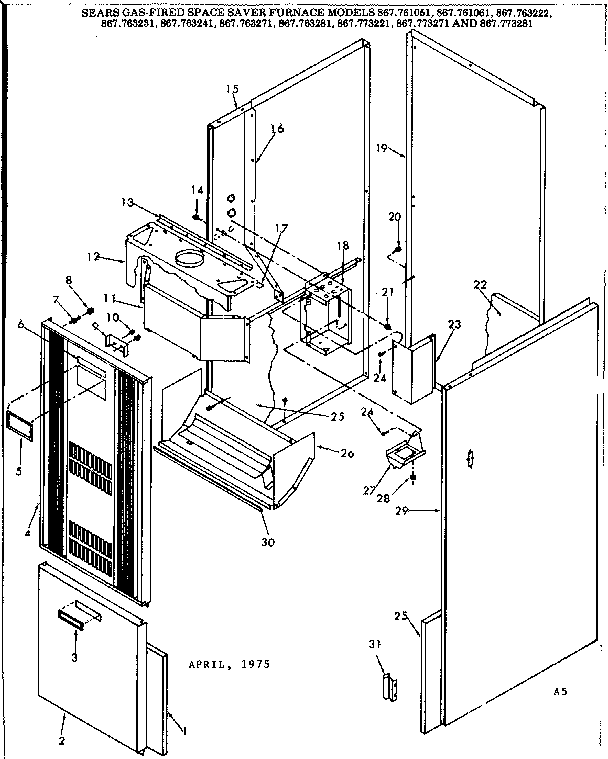

Cabinet diagram

Catch

Part #602090

Replaced by #279570

?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Strike 602089
#7

Cabinet diagram

Strike

Part #602089

Replaced by #279570

?
Manufacturer substitution
This part replaces 602089. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Catch 91581
#5

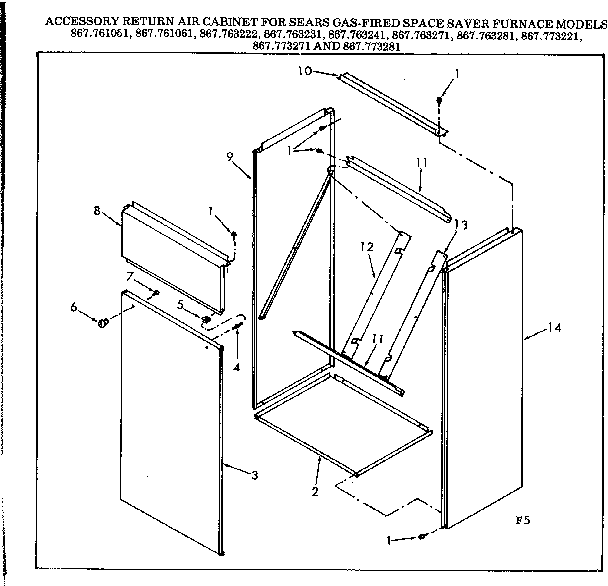

Accessory return air cabinet diagram

Catch

Part #91581

Replaced by #279570

?
Manufacturer substitution
This part replaces 91581. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Strike 91580
#4

Accessory return air cabinet diagram

Strike

Part #91580

Replaced by #279570

?
Manufacturer substitution
This part replaces 91580. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Furnace Blower Fan Wheel 600586
#16C

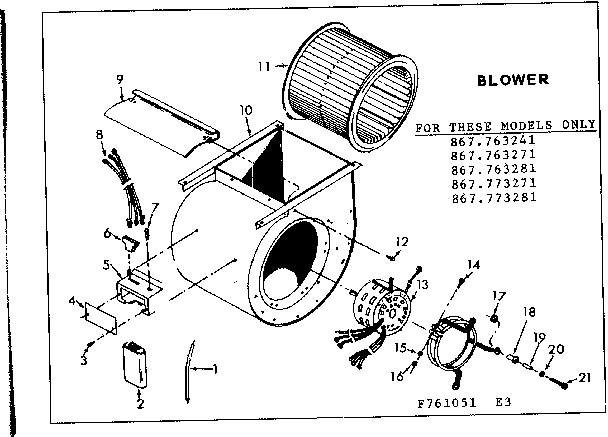

Blower asm diagram

Furnace blower fan wheel

Part #600586

$127.13 |
9% OFF Phone Price : $139.13
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock

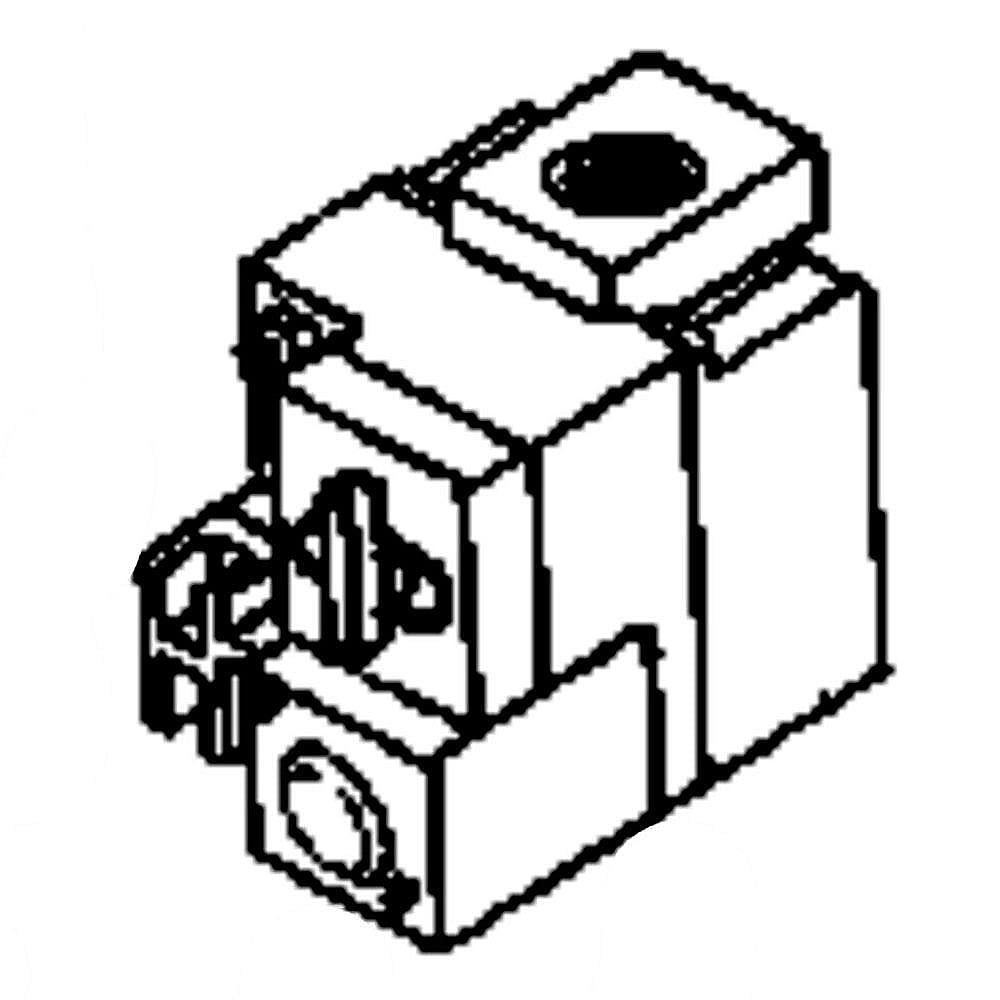

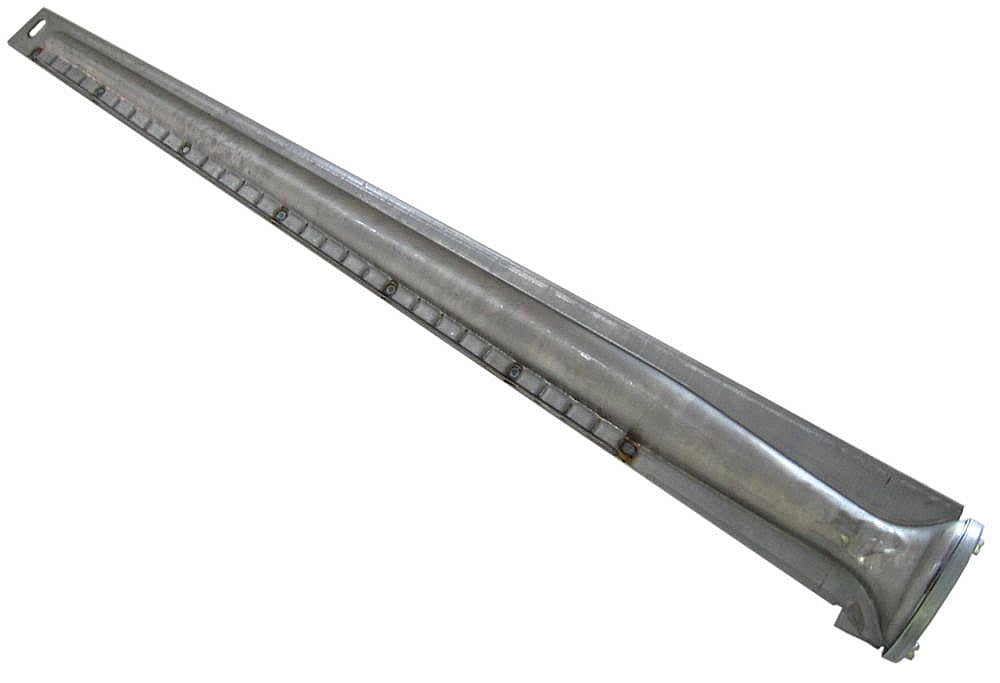

Air Shutter 94927
#22

Controls and burner diagram

Air shutter

Part #94927

Replaced by #1149512

?
Manufacturer substitution
This part replaces 94927. Substitute parts can look different from the original.
$97.44
In Stock
Ferrule Nut 29441
#26

Controls and burner diagram

Ferrule nut

Part #29441

Replaced by #100108370

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 600271
#28C

Controls and burner diagram

Thermocouple

Part #600271

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 600271. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
