Space Heater

Model # 583400021 Official Kenmore 50000-btu portable heater

Here are the diagrams and repair parts for Official Kenmore 583400021 50000-btu portable heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Remington Space Heater Pump Rotor Insert M22009
#12

Motor and pump assembly diagram

Remington space heater pump rotor insert

Part #M22009

The manufacturer no longer makes this part, and there's no substitute part

Reddy Space Heater Pump Rotor Blade M8643
#10

Motor and pump assembly diagram

Reddy space heater pump rotor blade

Part #M8643

The manufacturer no longer makes this part, and there's no substitute part

Remington Space Heater Pump Hole Plug M22997
#16

Motor and pump assembly diagram

Remington space heater pump hole plug

Part #M22997

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly M29750-04
#6

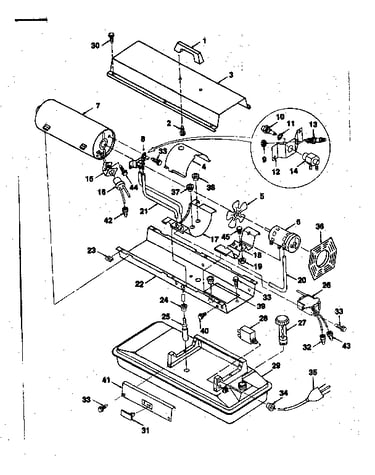

Functional replacement parts diagram

Motor assembly

Part #M29750-04

The manufacturer no longer makes this part, and there's no substitute part

Burner Assembly M29707-03
#8

Functional replacement parts diagram

Burner assembly

Part #M29707-03

The manufacturer no longer makes this part, and there's no substitute part

Air Filter M29633
#4

Motor and pump assembly diagram

Air filter

Part #M29633

The manufacturer no longer makes this part, and there's no substitute part

Plug M50826
#31

Functional replacement parts diagram

Plug

Part #M50826

The manufacturer no longer makes this part, and there's no substitute part

Kit M50671-01
#28

Functional replacement parts diagram

Kit

Part #M50671-01

The manufacturer no longer makes this part, and there's no substitute part

Connector M13942-7
#42

Functional replacement parts diagram

Connector

Part #M13942-7

The manufacturer no longer makes this part, and there's no substitute part

Decal M51168-01

#NI

All parts diagram

Decal

Part #M51168-01

The manufacturer no longer makes this part, and there's no substitute part
