Upright Vacuum

Model # C1815 Official Hoover professional conquest cleaner

Here are the diagrams and repair parts for Official Hoover C1815 professional conquest cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part

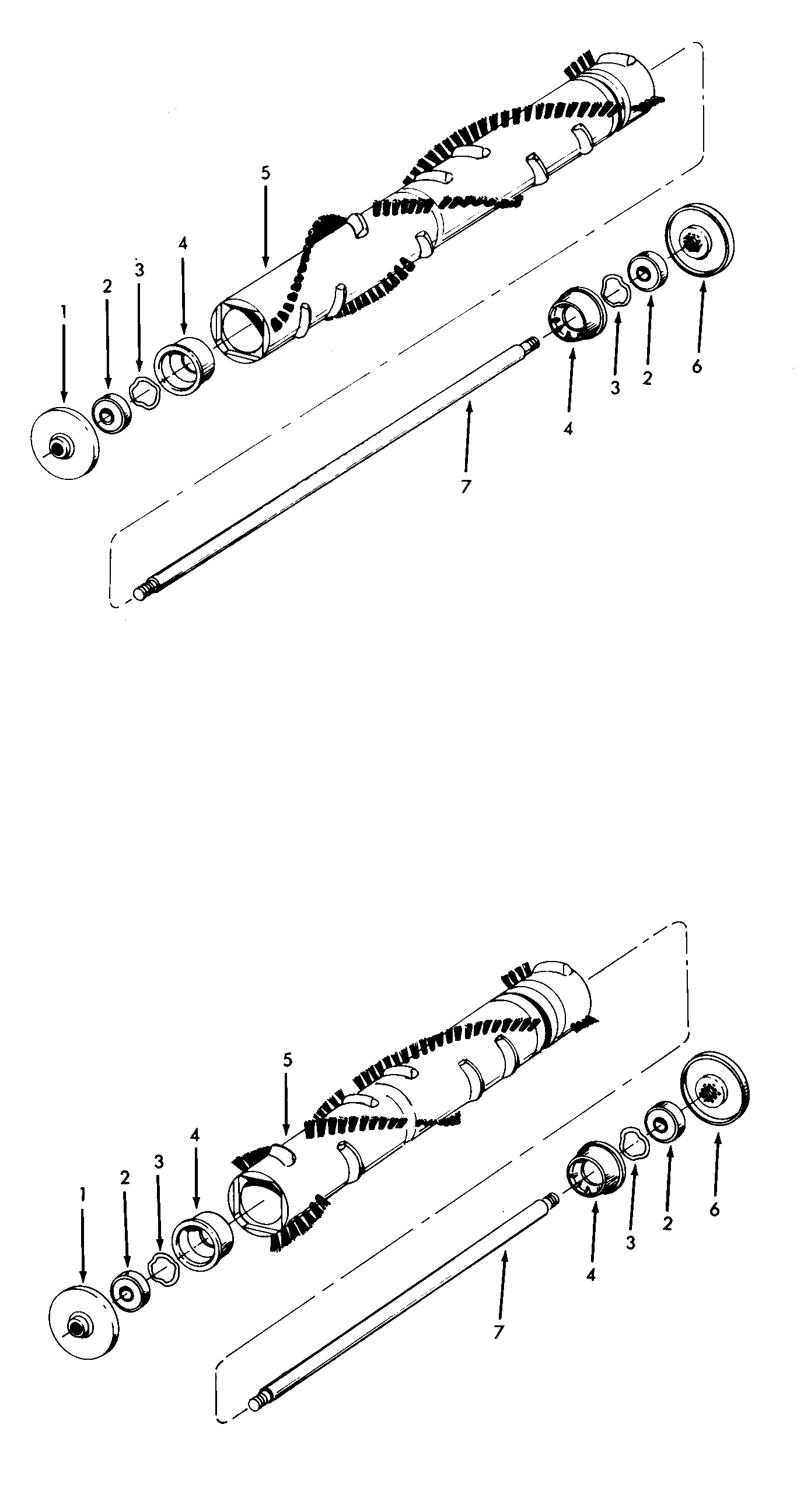

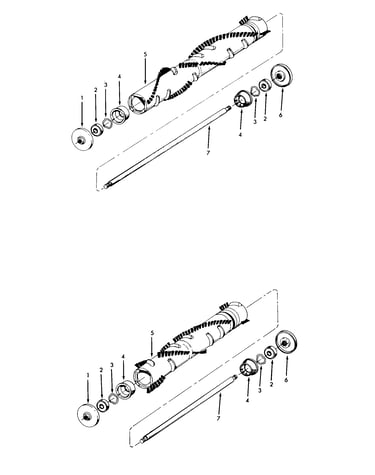

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
C1815 Vacuum Cleaners
Cord Protctr 36216008
#16

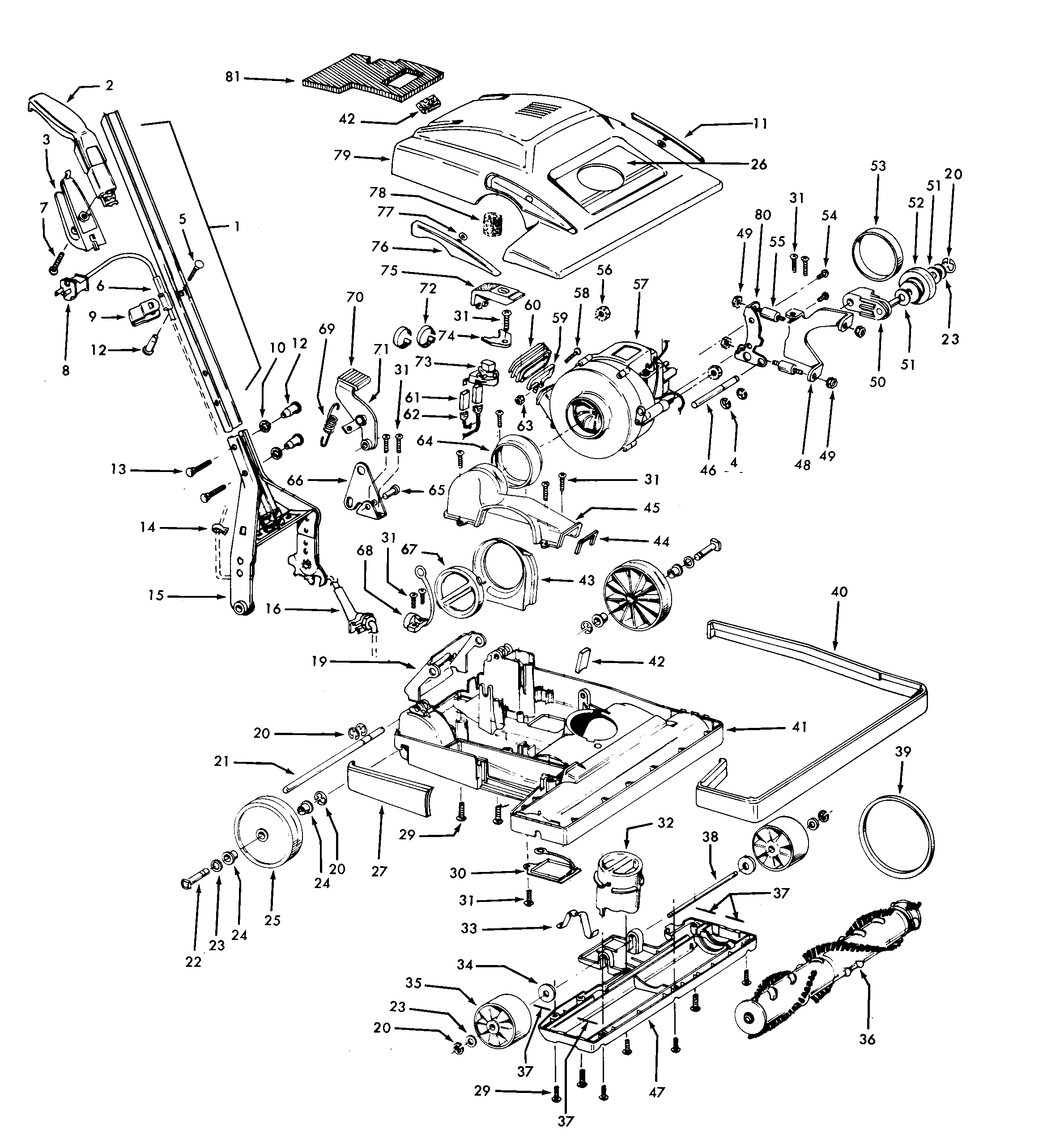

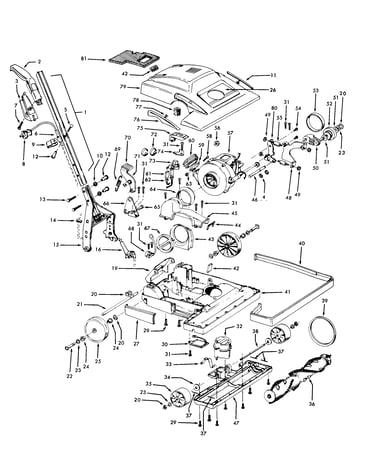

Handle, mainbody, hood, switch diagram

Cord protctr

Part #36216008

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 36128003
#1

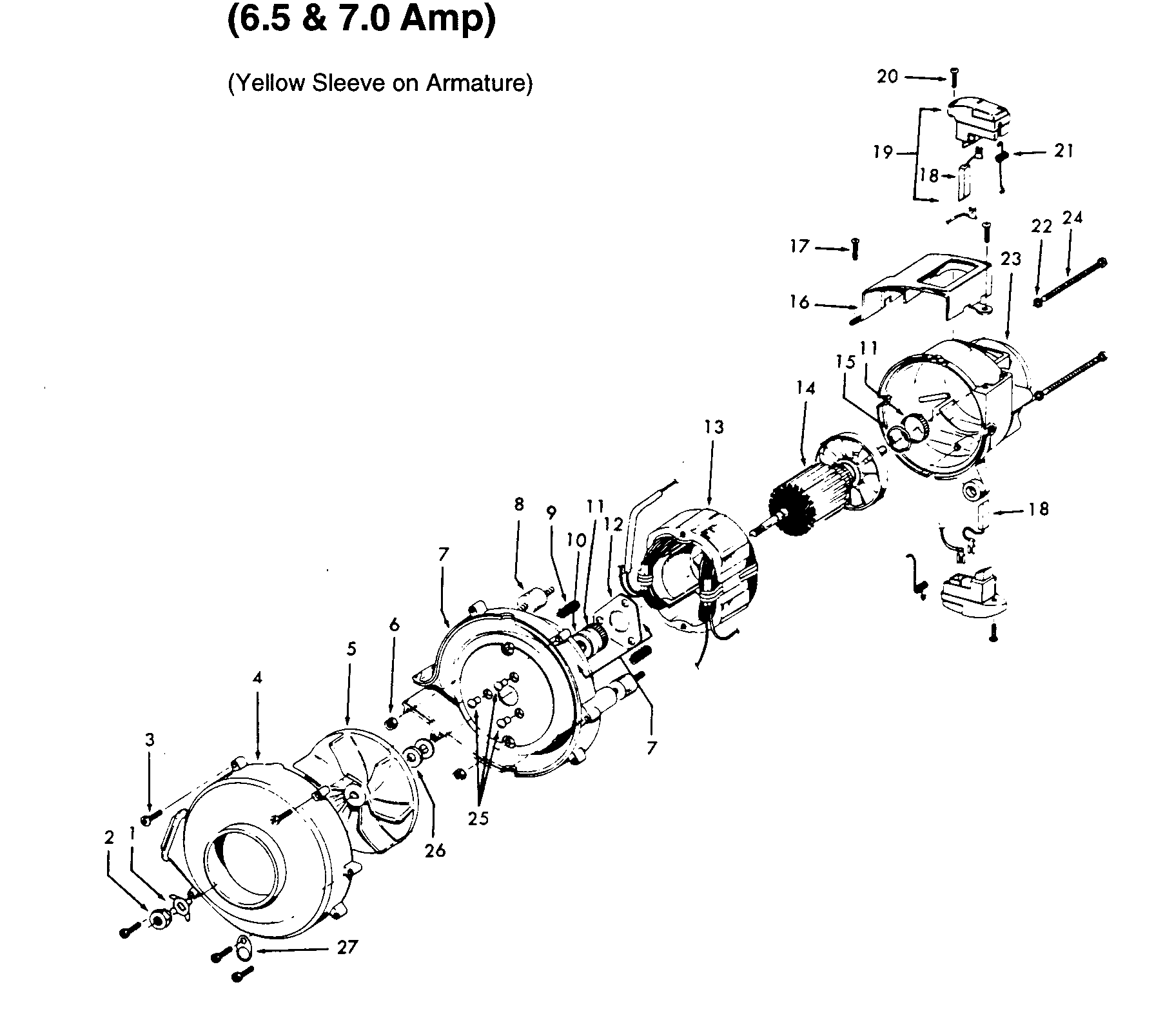

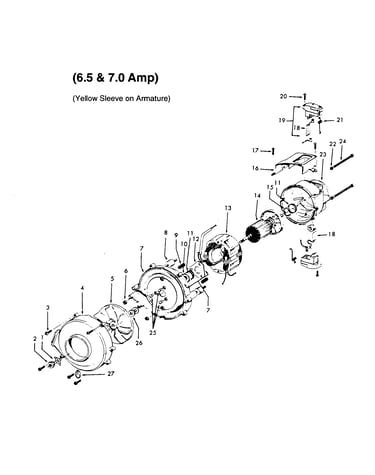

Motor assembly diagram

Lock washer

Part #36128003

The manufacturer no longer makes this part, and there's no substitute part

Cloth Bag 43667057
#19

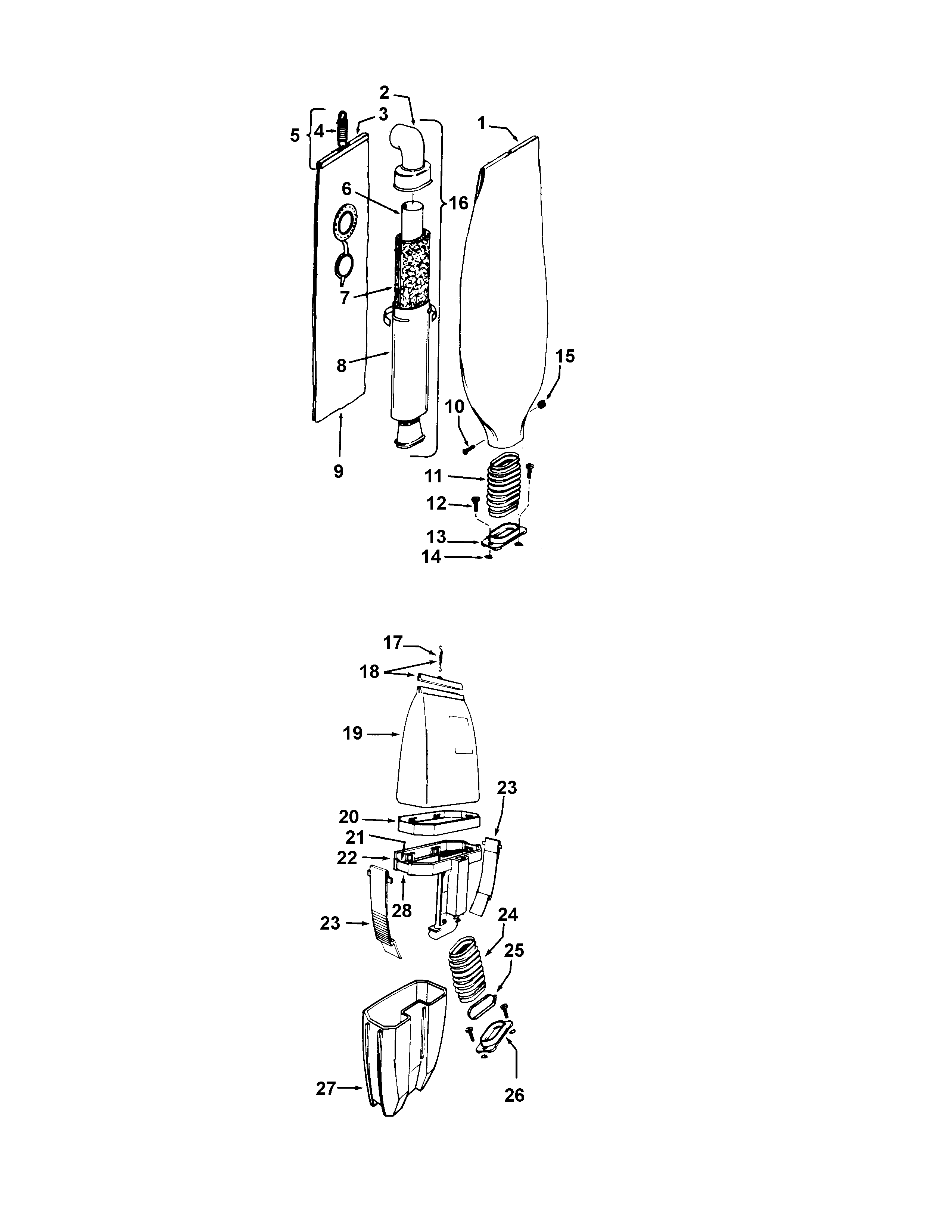

Dirtcup, bagassembly, outerbag diagram

Cloth bag

Part #43667057

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447003
#31

Handle, mainbody, hood, switch diagram

Regina vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part

Dust Cup 38775001
#27

Dirtcup, bagassembly, outerbag diagram

Dust cup

Part #38775001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 37257083
#8

Dirtcup, bagassembly, outerbag diagram

Vacuum housing

Part #37257083

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528013
#39

Handle, mainbody, hood, switch diagram

Vacuum beater bar belt

Part #38528013

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag 43667054
#9

Dirtcup, bagassembly, outerbag diagram

Vacuum bag

Part #43667054

The manufacturer no longer makes this part, and there's no substitute part

Axle 32512001
#22

Handle, mainbody, hood, switch diagram

Axle

Part #32512001

The manufacturer no longer makes this part, and there's no substitute part

Star Ring 24198001
#11

Motor assembly diagram

Star ring

Part #24198001

The manufacturer no longer makes this part, and there's no substitute part
