Model # 8047202550 Official Sears slide projector

Here are the diagrams and repair parts for Official Sears 8047202550 slide projector, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Focus Assembly 6-2637-3
#1B

Optical components diagram

Focus assembly

Part #6-2637-3

The manufacturer no longer makes this part, and there's no substitute part

Blowr Assem. 6-2629
#17

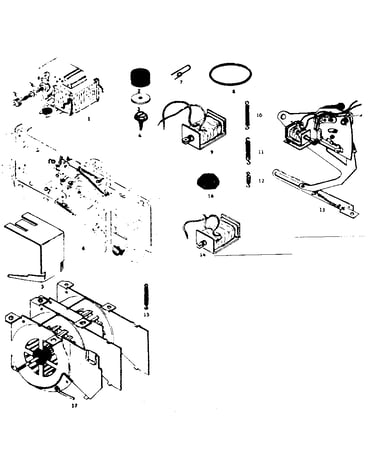

Electrical and mechanical assemblies diagram

Blowr assem.

Part #6-2629

The manufacturer no longer makes this part, and there's no substitute part

Term Board 6-2677
#3C

Optical components diagram

Term board

Part #6-2677

The manufacturer no longer makes this part, and there's no substitute part

Optical Device Ring Belt 196-195
#1

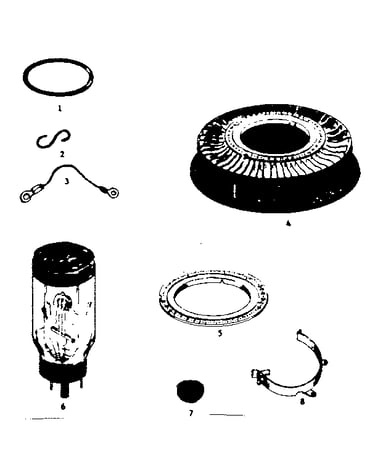

Miscellaneous diagram

Optical device ring belt

Part #196-195

The manufacturer no longer makes this part, and there's no substitute part

Cord Holder 119-63
#20

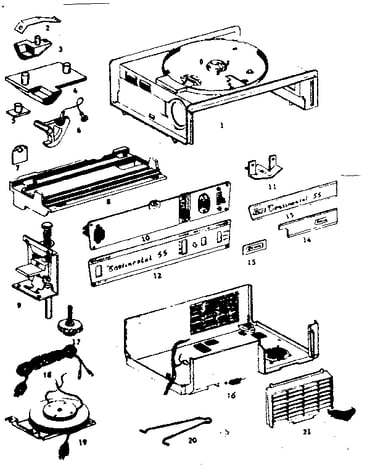

Upper and lower housing diagram

Cord holder

Part #119-63

The manufacturer no longer makes this part, and there's no substitute part

Control Cable 46-39
#3

Miscellaneous diagram

Control cable

Part #46-39

The manufacturer no longer makes this part, and there's no substitute part

Motor Screw 207-797
#4

Electrical and mechanical assemblies diagram

Motor screw

Part #207-797

The manufacturer no longer makes this part, and there's no substitute part

Term. Bd. 6-2677-1
#3A

Optical components diagram

Term. bd.

Part #6-2677-1

The manufacturer no longer makes this part, and there's no substitute part

Lens Assembly 6-2034-6
#7B

Optical components diagram

Lens assembly

Part #6-2034-6

The manufacturer no longer makes this part, and there's no substitute part

Spring 220-328
#10

Electrical and mechanical assemblies diagram

Spring

Part #220-328

The manufacturer no longer makes this part, and there's no substitute part
