Samsung
Microwave/Hood Combo

Model # SMH1927B/XAA-00 Official Samsung microwave/hood combo

Here are the diagrams and repair parts for Official Samsung SMH1927B-XAA-00 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

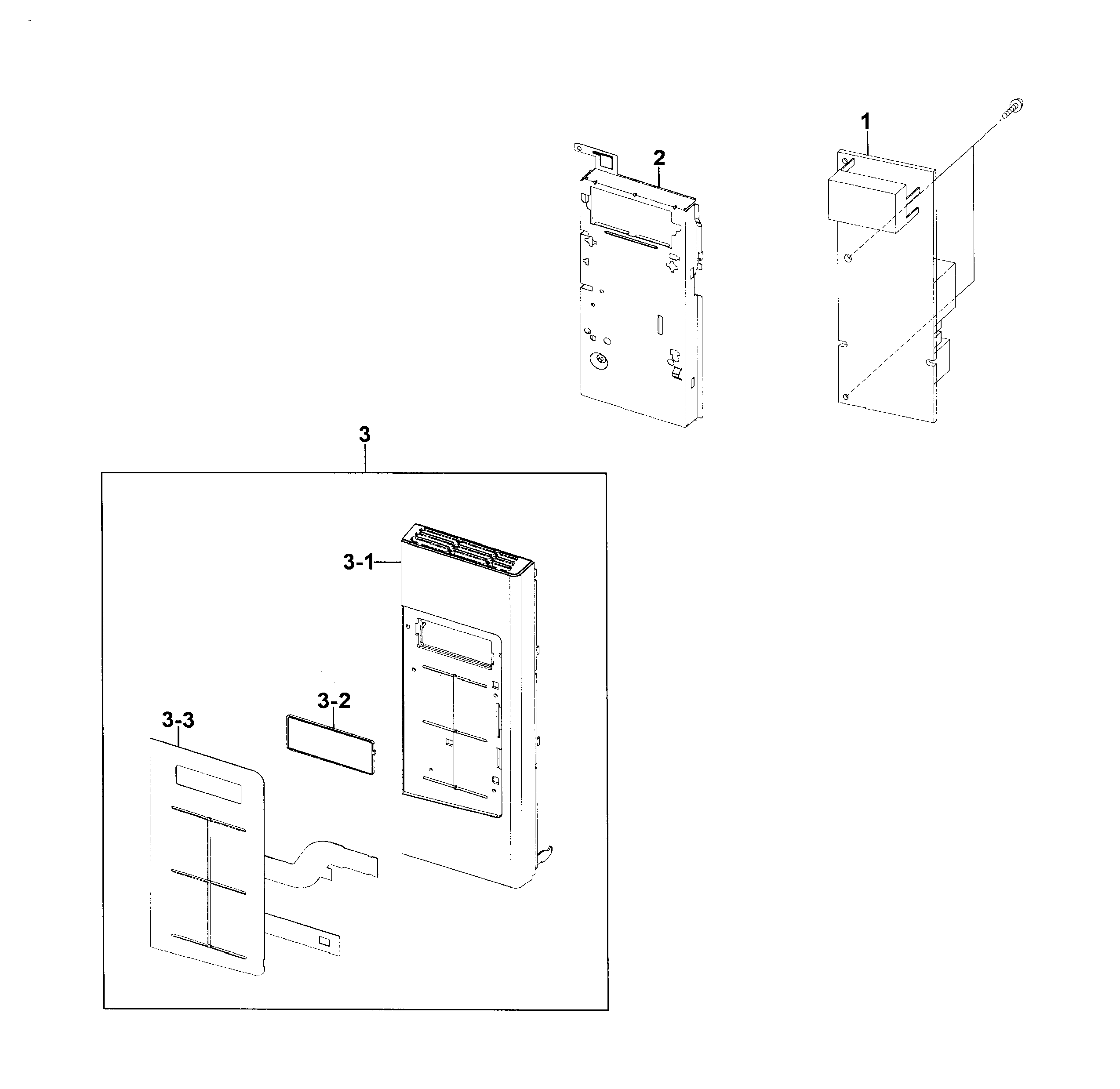

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Microwave Magnetron (replaces Om75p21esgn) OM75P-21-ESGN
#28

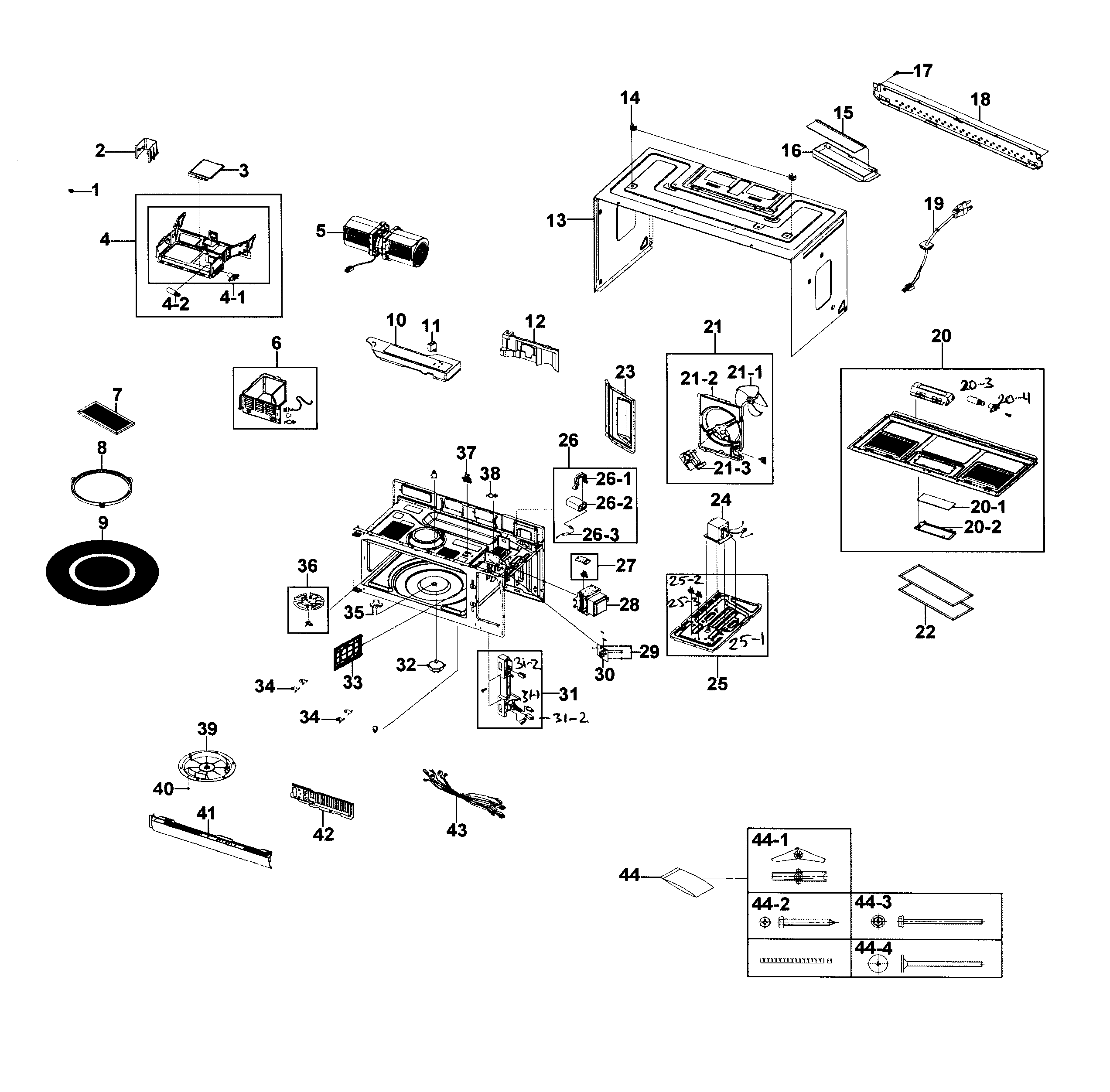

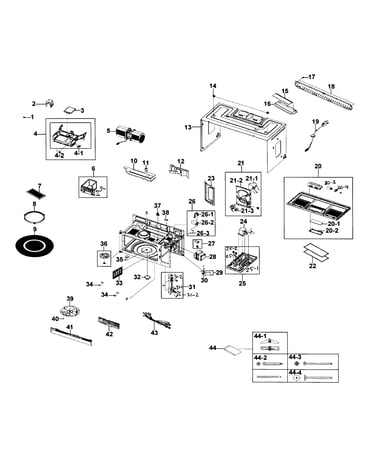

Cabinet assy diagram

Microwave magnetron (replaces om75p21esgn)

Part #OM75P-21-ESGN

BEST SELLER
$128.65 |
9% OFF Phone Price : $140.65
In Stock
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#26-3

Cabinet assy diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave High-voltage Capacitor (replaces 2501-000258) 2501-001011
#26-2

Cabinet assy diagram

Microwave high-voltage capacitor (replaces 2501-000258)

Part #2501-001011

BEST SELLER
$55.81 |
10% OFF Phone Price : $61.81
In Stock
Microwave High-voltage Transformer DE26-00126B
#24

Cabinet assy diagram

Microwave high-voltage transformer

Part #DE26-00126B

Replaced by #DE26-00126A

?
Manufacturer substitution
This part replaces DE26-00126B. Substitute parts can look different from the original.
BEST SELLER
$116.01 |
9% OFF Phone Price : $128.01
In Stock
Microwave Door Latch DE64-01308A
#1-4

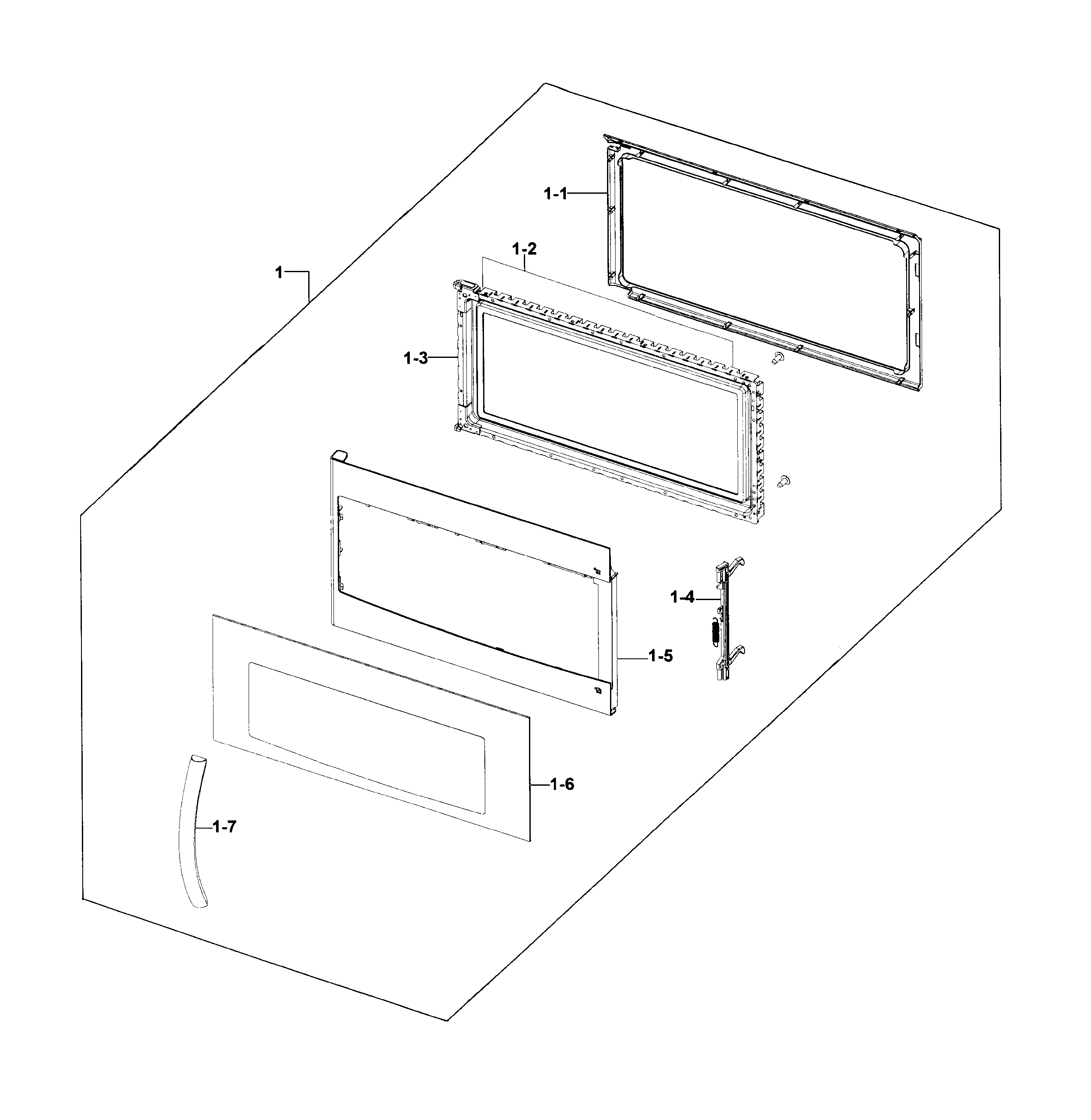

Door assy diagram

Microwave door latch

Part #DE64-01308A

Replaced by #DE64-00760A

?
Manufacturer substitution
This part replaces DE64-01308A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$21.83 |
22% OFF Phone Price : $27.83
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#31-2

Cabinet assy diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Range Thermal Cut-off (replaces De47-20117a) DE47-20034A
#25-2

Cabinet assy diagram

Range thermal cut-off (replaces de47-20117a)

Part #DE47-20034A

BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Microwave Door Micro-switch 3405-001033
#31-1

Cabinet assy diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave Noise Filter Assembly DE96-00400D
#30

Cabinet assy diagram

Microwave noise filter assembly

Part #DE96-00400D

BEST SELLER
$66.48 |
8% OFF Phone Price : $72.48
In Stock
Microwave Grease Filter (replaces De63-00196b) DE63-00196A
#22

Cabinet assy diagram

Microwave grease filter (replaces de63-00196b)

Part #DE63-00196A

$21.83 |
22% OFF Phone Price : $27.83
In Stock
