Poulan
Gas Line Trimmer

Model # PP136E Official Poulan trimmer

Here are the diagrams and repair parts for Official Poulan PP136E trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Fuel Line 530071404
#6

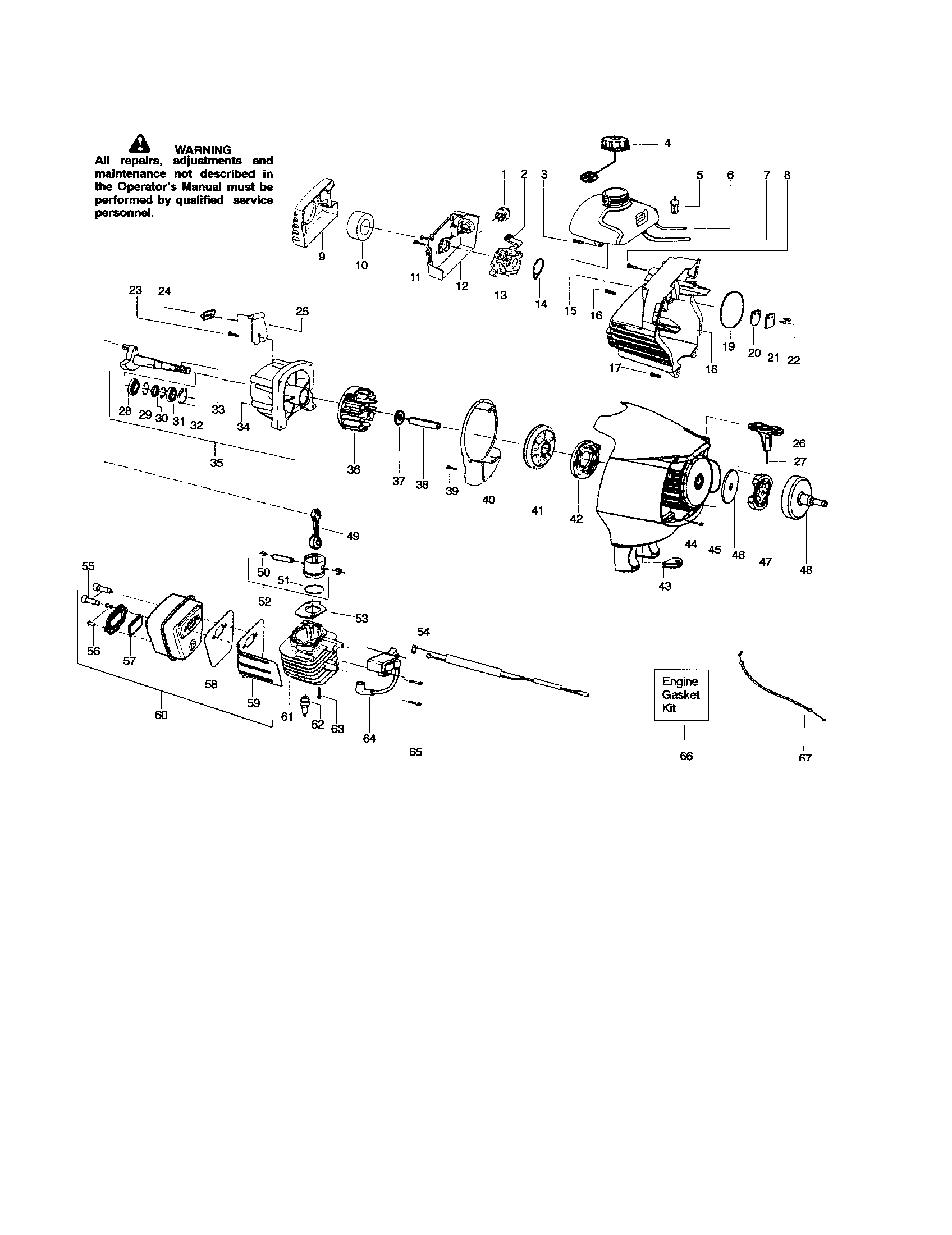

Cylinder/crankshaft/crankcase diagram

Fuel line

Part #530071404

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530071404. Substitute parts can look different from the original.
BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#7

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Bulb (replaces 5300477-21, 530-047721) 530047721
#1

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment engine carburetor primer bulb (replaces 5300477-21, 530-047721)

Part #530047721

BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Ignition Module 530039234
#64

Cylinder/crankshaft/crankcase diagram

Ignition module

Part #530039234

Replaced by #501092801

?
Manufacturer substitution
This part replaces 530039234. Substitute parts can look different from the original.
BEST SELLER
$31.24 |
16% OFF Phone Price : $37.24
In Stock
Tng Asm 537419202
#26

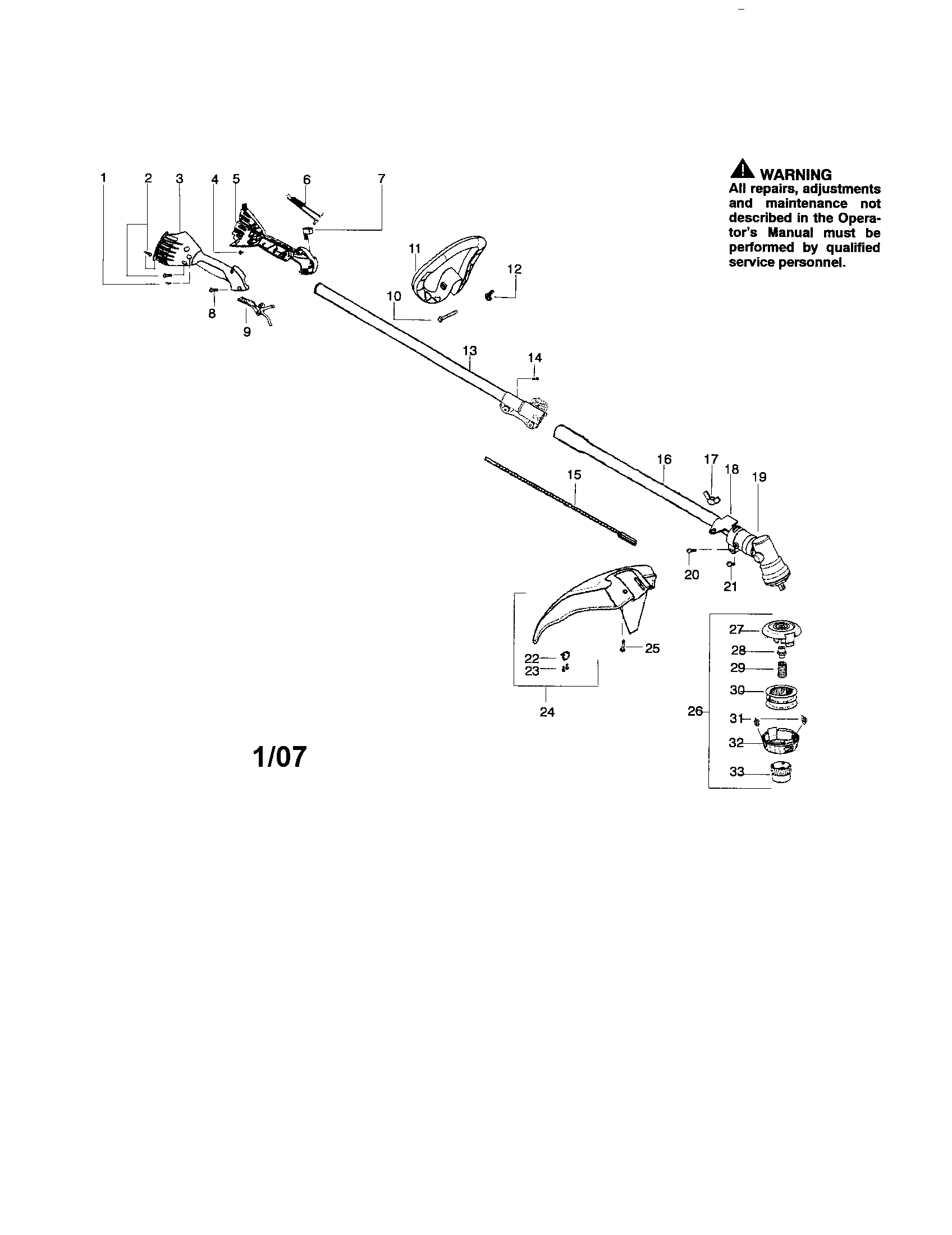

Driveshaft/shield/handle diagram

Tng asm

Part #537419202

Replaced by #596585805

?
Manufacturer substitution
This part replaces 537419202. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Cover P25 537419401
#32

Driveshaft/shield/handle diagram

Cover p25

Part #537419401

Replaced by #545003365

?
Manufacturer substitution
This part replaces 537419401. Substitute parts can look different from the original.
This item is not returnable
$12.14 |
14% OFF Phone Price : $14.14
In Stock
Eyelet P25 537419701
#31

Driveshaft/shield/handle diagram

Eyelet p25

Part #537419701

Replaced by #545003365

?
Manufacturer substitution
This part replaces 537419701. Substitute parts can look different from the original.
This item is not returnable
$12.14 |
14% OFF Phone Price : $14.14
In Stock
Start Spring 545054901
#42

Cylinder/crankshaft/crankcase diagram

Start spring

Part #545054901

Replaced by #545008014

?
Manufacturer substitution
This part replaces 545054901. Substitute parts can look different from the original.
This item is not returnable
$13.00 |
13% OFF Phone Price : $15.00
In Stock
Lawn & Garden Equipment Screw 530015814
#23

Driveshaft/shield/handle diagram

Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Shaft 530071936
#13

Driveshaft/shield/handle diagram

Shaft

Part #530071936

Replaced by #575260201

?
Manufacturer substitution
This part replaces 530071936. Substitute parts can look different from the original.
$35.75 |
14% OFF Phone Price : $41.75
In Stock
