Dacor
Warming Drawer

Model # PW30 Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor PW30 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Nut 83308
#8

Top can assy diagram

Nut

Part #83308

This item is not returnable
In Stock
Appliance Screw, #8 X 3/8-in 83263
#11

Drawer assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
In Stock
Appliance Screw 83534
#12

Top can assy diagram

Appliance screw

Part #83534

This item is not returnable
Back Order
Cabinet We 27204
#1

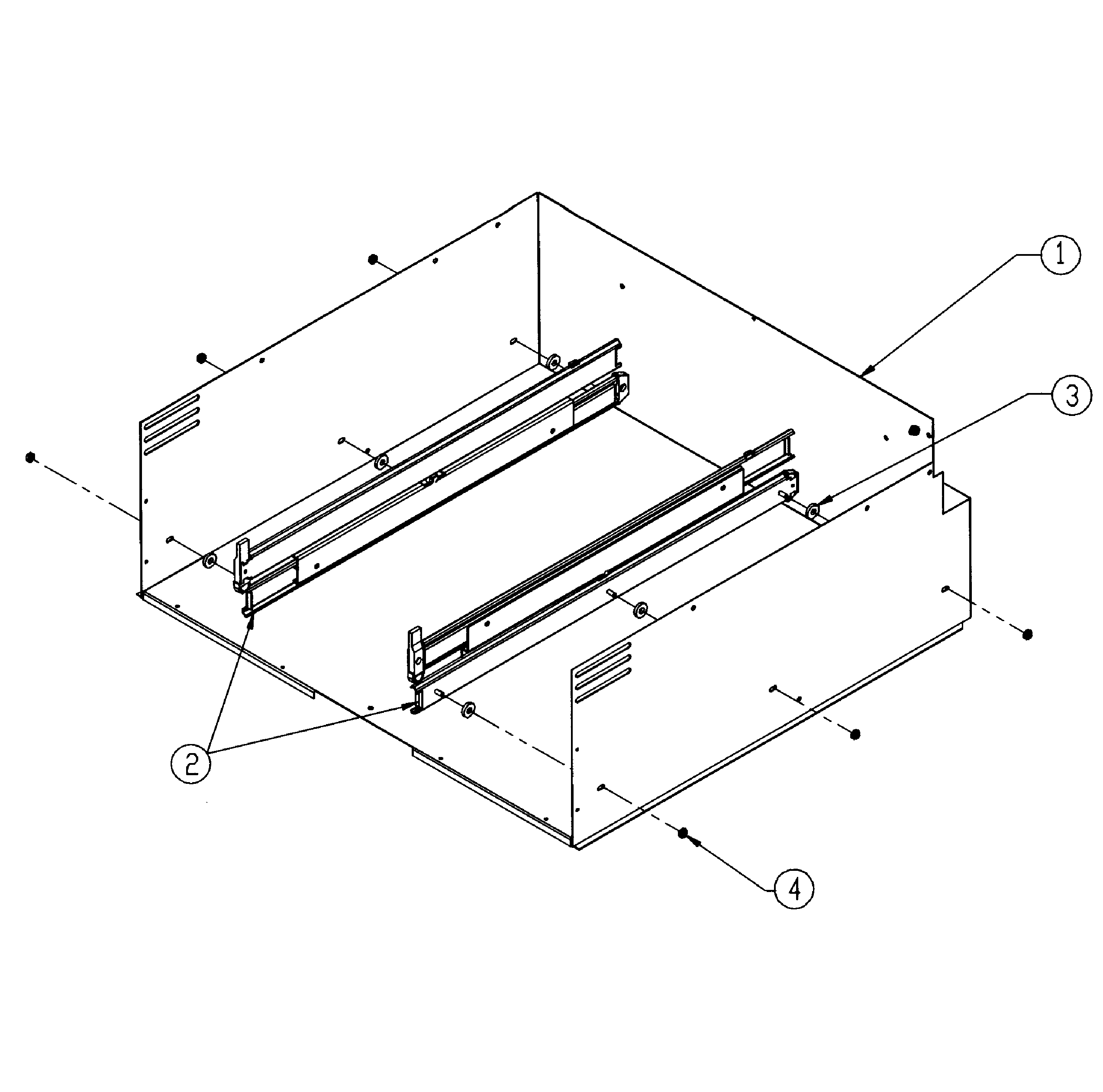

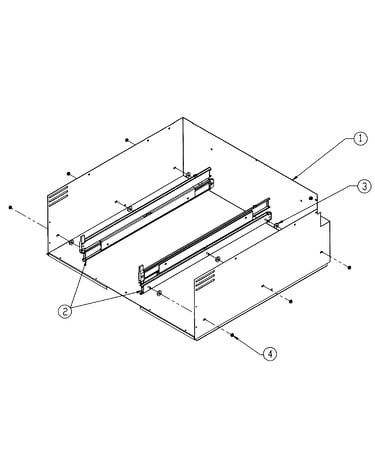

Cabinet assy diagram

Cabinet we

Part #27204

In Stock
Top Can As 27222
#3

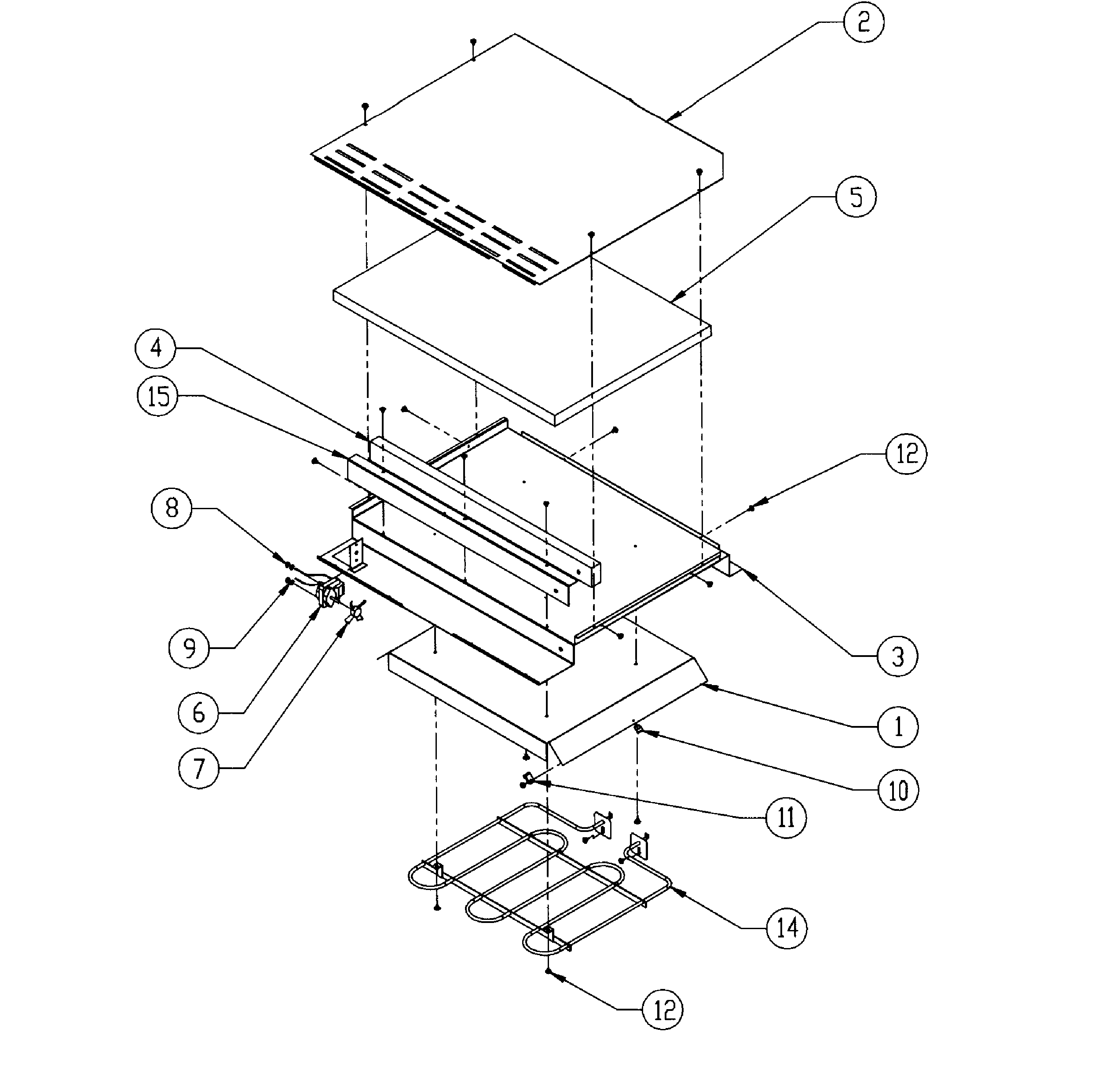

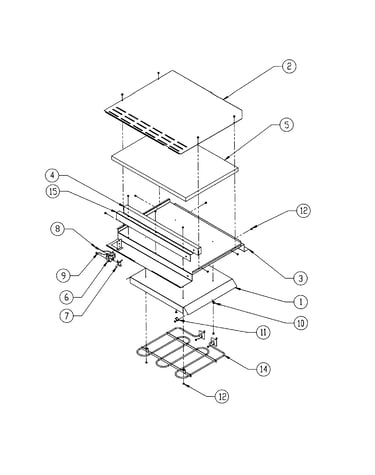

Top can assy diagram

Top can as

Part #27222

In Stock
Door Handle 92010R
#14

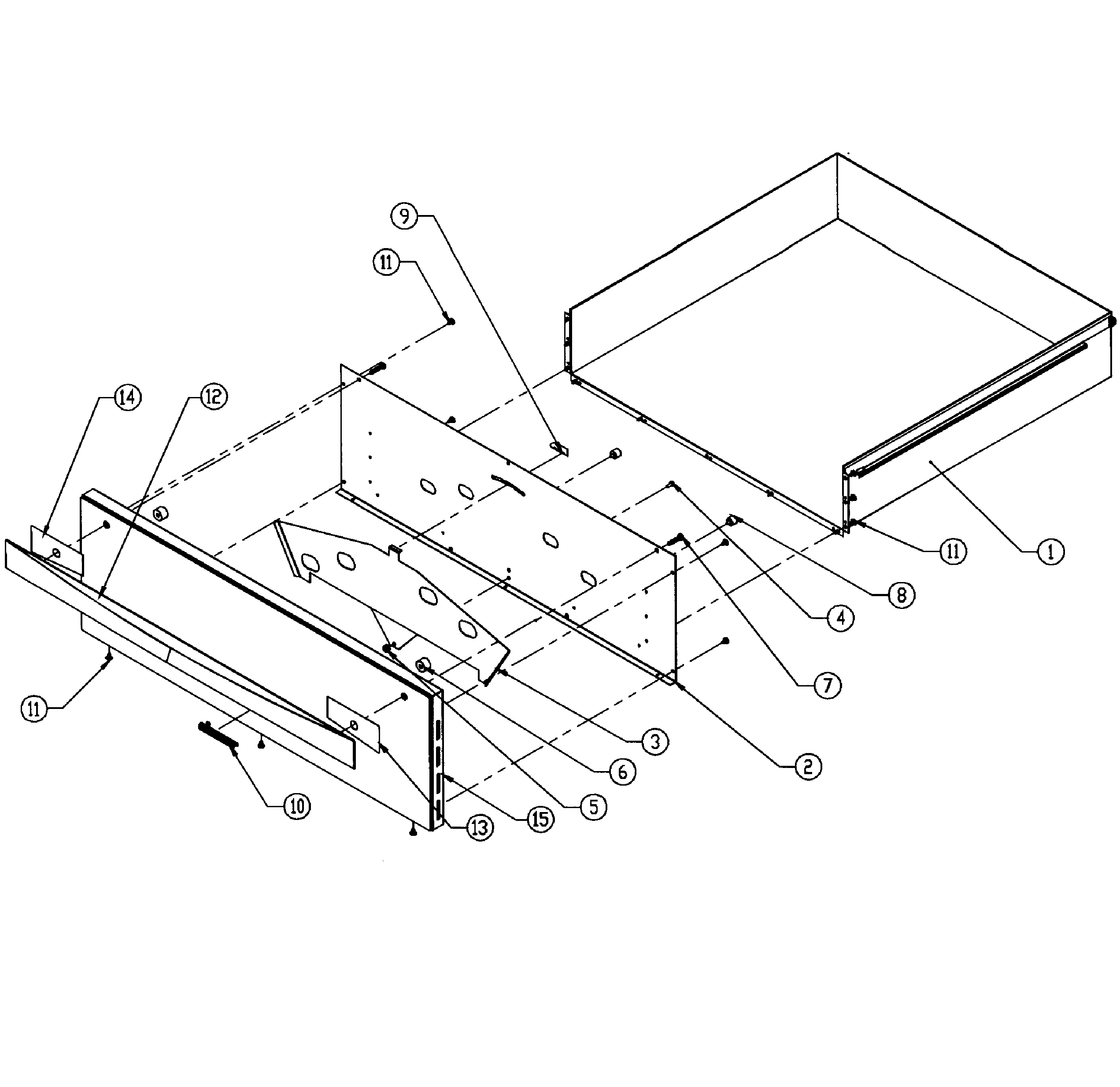

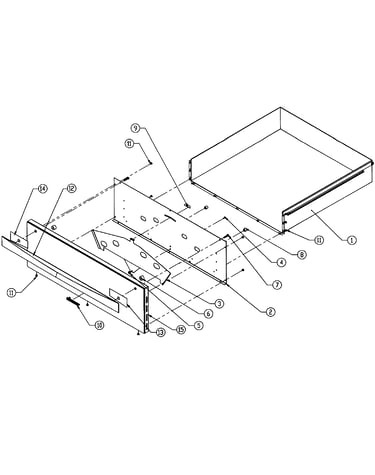

Drawer assy diagram

Door handle

Part #92010R

In Stock
Slide 36454
#3

Drawer assy diagram

Slide

Part #36454

In Stock
Screw 83692
#7

Drawer assy diagram

Screw

Part #83692

This item is not returnable
In Stock
Control 82627
#4

Top can assy diagram

Control

Part #82627

This item is not returnable
In Stock
Tubular Fan 83266
#9

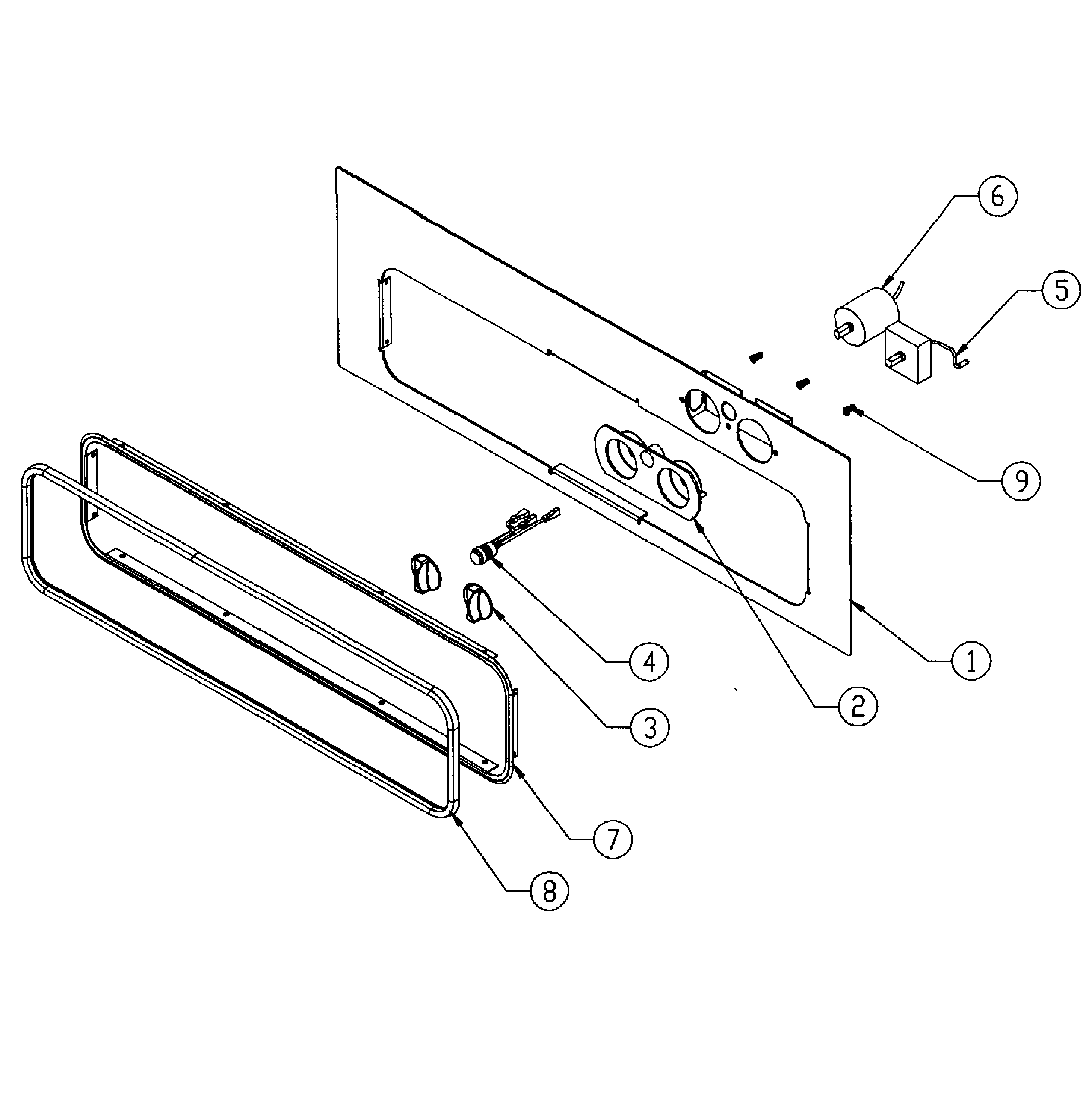

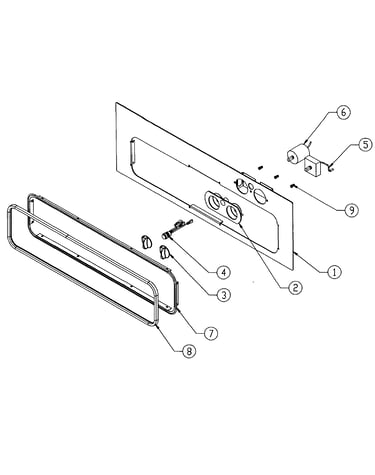

Front frame diagram

Tubular fan

Part #83266

This item is not returnable
In Stock
