Space Heater

Model # 155854270 Official Kenmore unvented gas heater

Here are the diagrams and repair parts for Official Kenmore 155854270 unvented gas heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

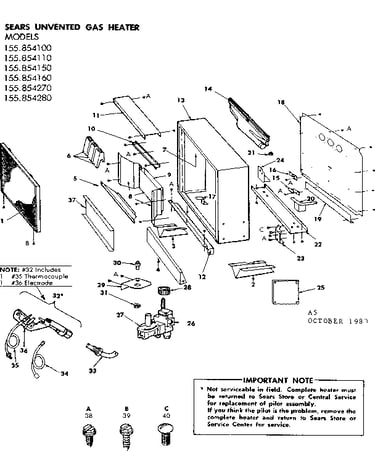

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Pilot Tube Z3565
#33

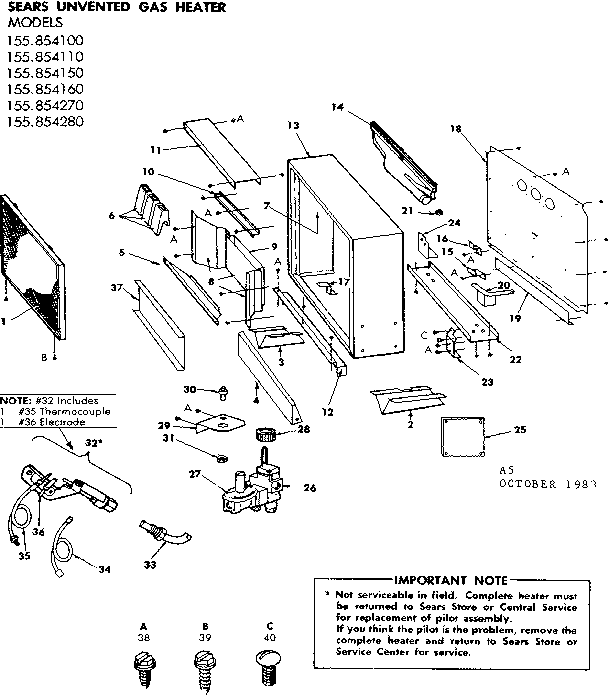

Replacement parts diagram

Pilot tube

Part #Z3565

The manufacturer no longer makes this part, and there's no substitute part

Cord K9541
#64

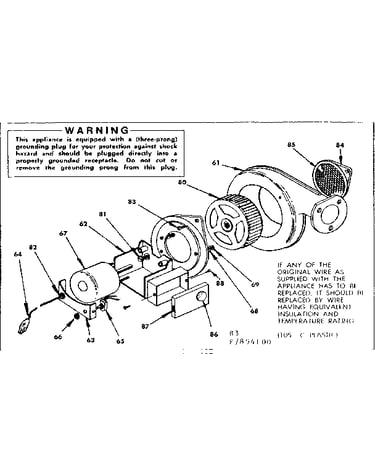

Blower assembly diagram

Cord

Part #K9541

The manufacturer no longer makes this part, and there's no substitute part

Pilot Assembly K17535
#32

Replacement parts diagram

Pilot assembly

Part #K17535

The manufacturer no longer makes this part, and there's no substitute part

Knob K17573
#28

Replacement parts diagram

Knob

Part #K17573

The manufacturer no longer makes this part, and there's no substitute part

Base T20206
#4B

Replacement parts diagram

Base

Part #T20206

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple K17547
#35

Replacement parts diagram

Thermocouple

Part #K17547

The manufacturer no longer makes this part, and there's no substitute part

Bracket T20174
#17

Replacement parts diagram

Bracket

Part #T20174

The manufacturer no longer makes this part, and there's no substitute part

Bracket T20191
#24

Replacement parts diagram

Bracket

Part #T20191

The manufacturer no longer makes this part, and there's no substitute part

Electrode K17597
#36

Replacement parts diagram

Electrode

Part #K17597

The manufacturer no longer makes this part, and there's no substitute part

Screen T12321
#85

Blower assembly diagram

Screen

Part #T12321

The manufacturer no longer makes this part, and there's no substitute part
