Homelite
Gas Line Trimmer

Model # UT20823 Official Homelite trimmer/brushcutter

Here are the diagrams and repair parts for Official Homelite UT20823 trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

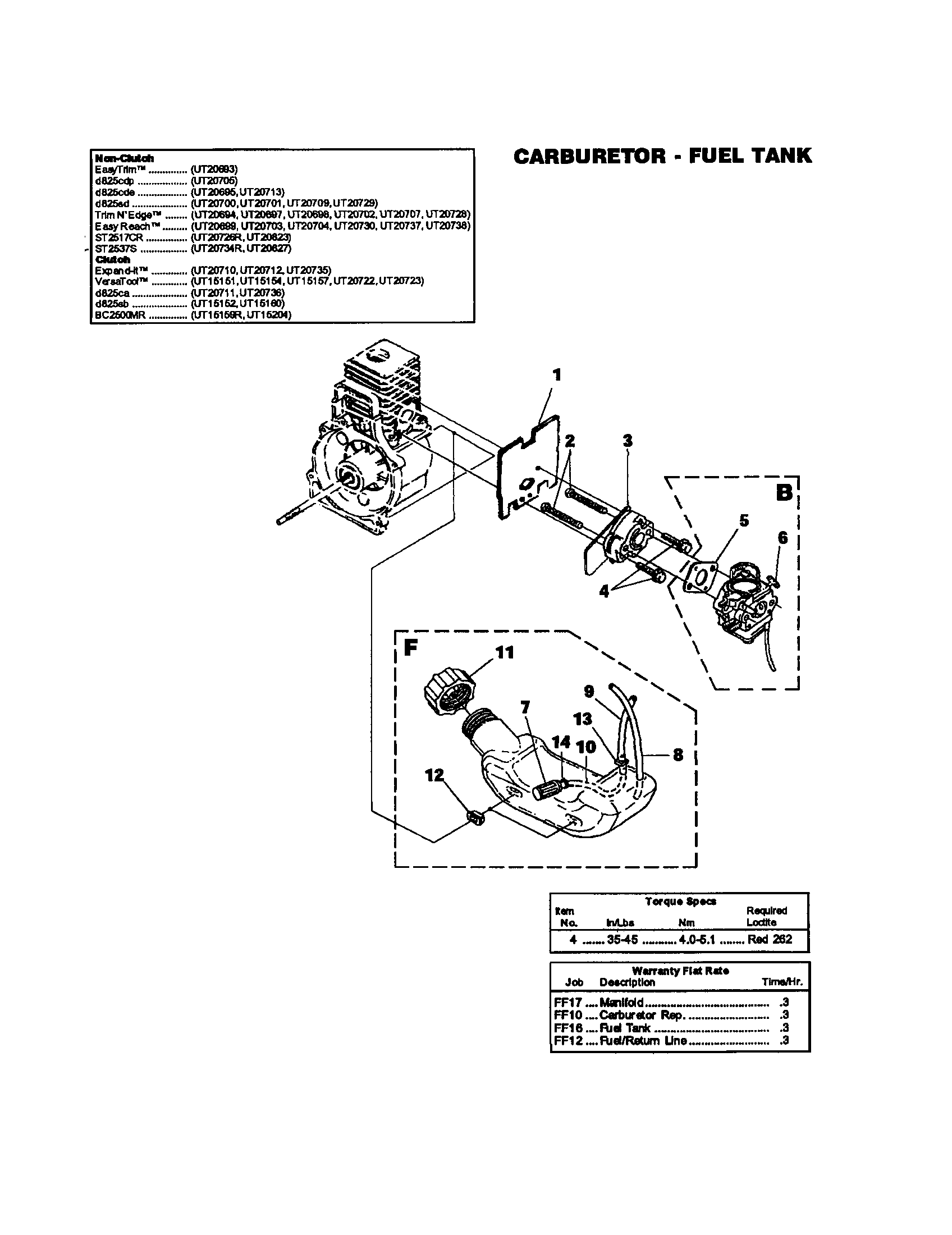

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Trigger UP03015
#19

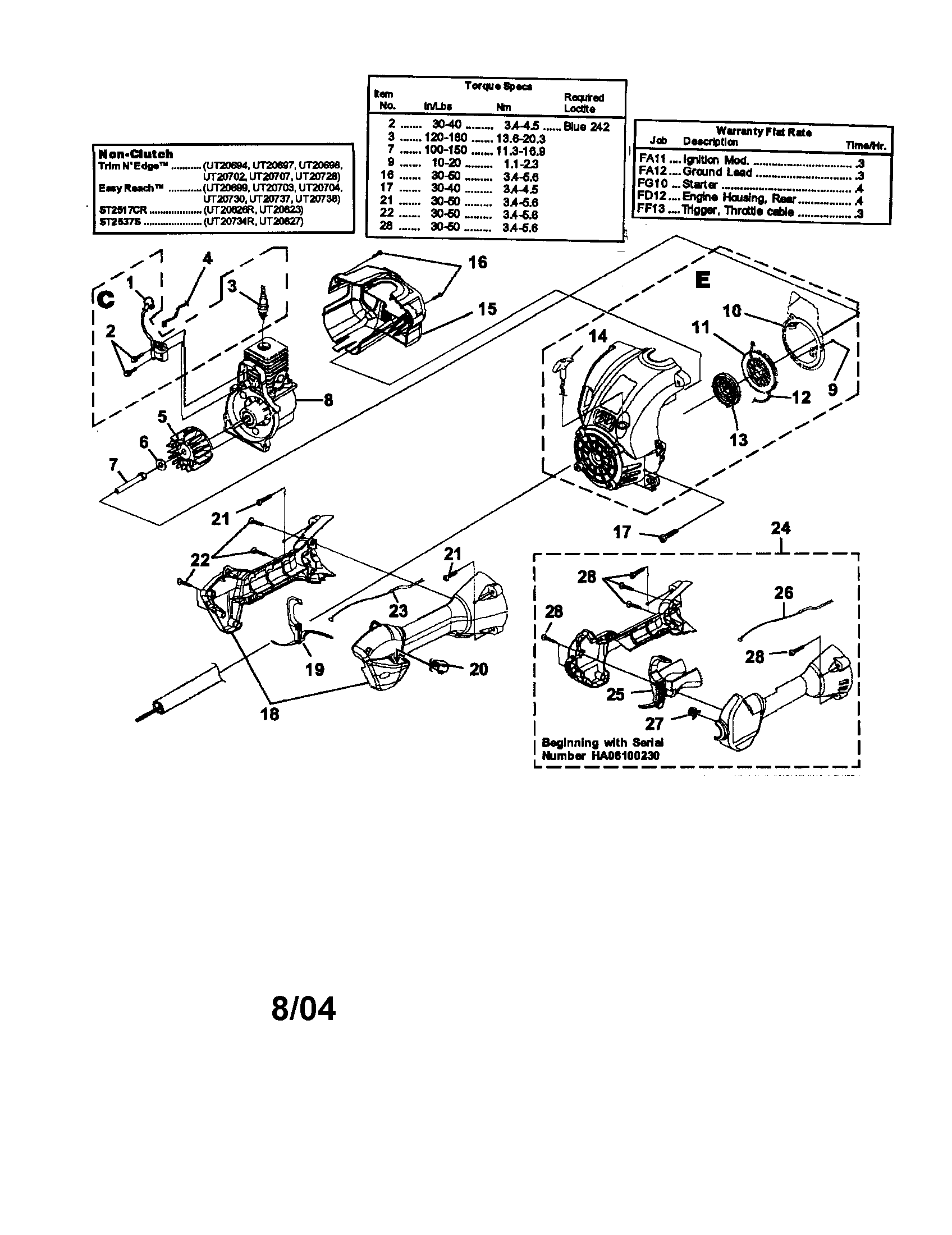

Ignition/rotor/starter/clutch diagram

Trigger

Part #UP03015

The manufacturer no longer makes this part, and there's no substitute part

Muffler Guard UP00027
#13

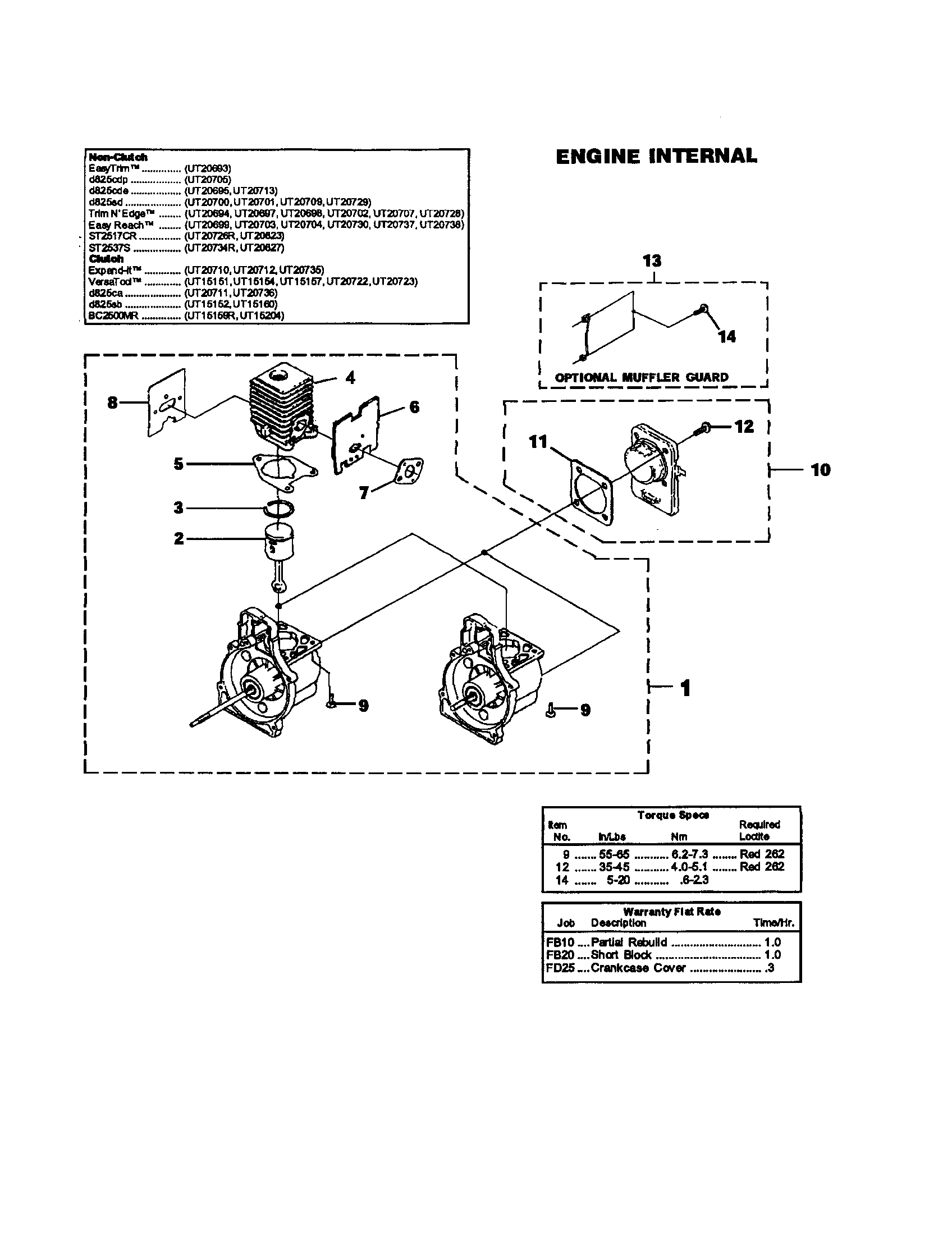

Engine internal diagram

Muffler guard

Part #UP00027

The manufacturer no longer makes this part, and there's no substitute part

Torx Bit (t25) For Clutch Drums UP06544

#NI05

All parts diagram

Torx bit (t25) for clutch drums

Part #UP06544

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug UP03883
#3

Ignition/rotor/starter/clutch diagram

Spark plug

Part #UP03883

The manufacturer no longer makes this part, and there's no substitute part

Blade D98717C

#NI18

All parts diagram

Blade

Part #D98717C

The manufacturer no longer makes this part, and there's no substitute part

Head Gear UP06970
#7

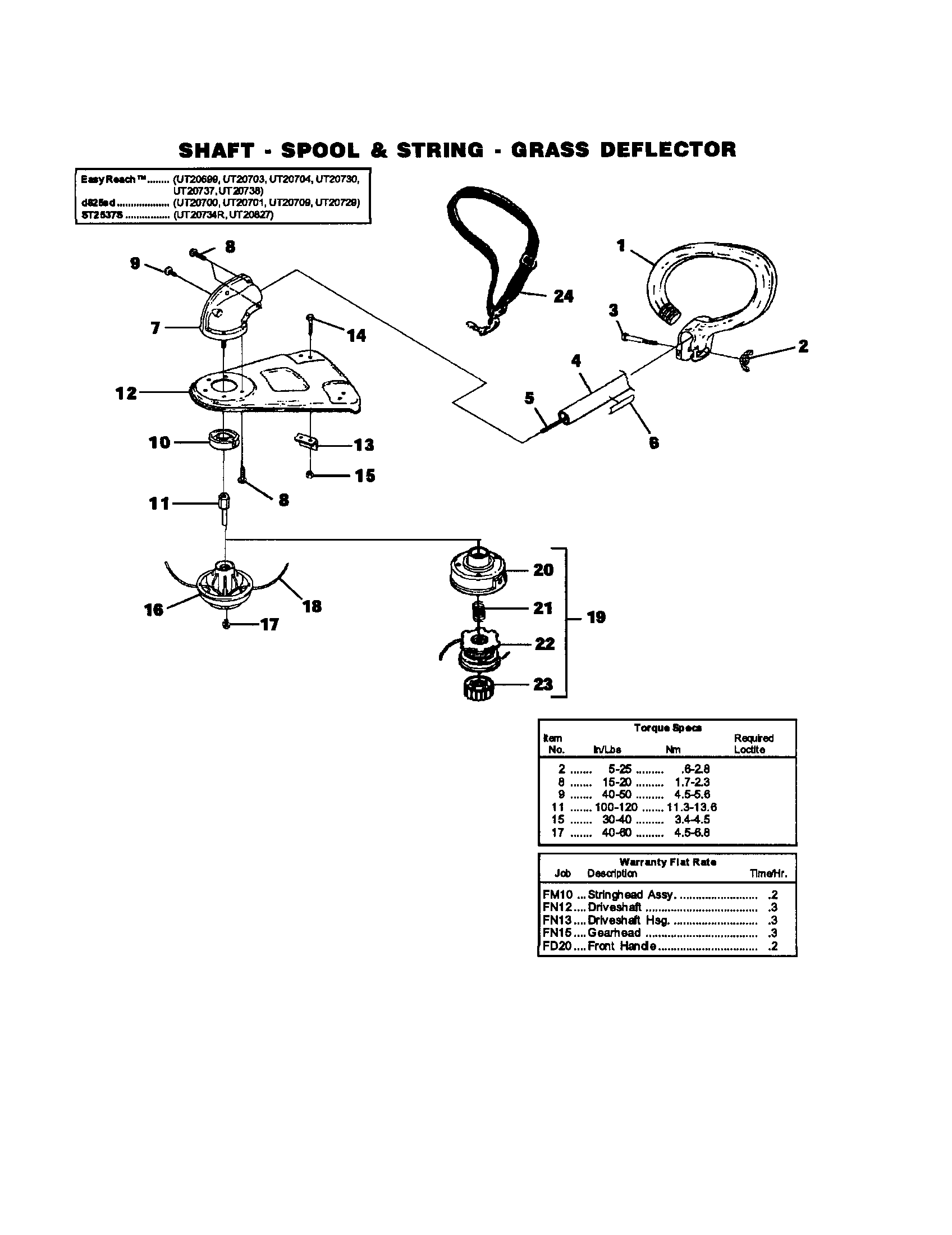

Shaft/spool/string/grass deflector diagram

Head gear

Part #UP06970

The manufacturer no longer makes this part, and there's no substitute part

Bolt UP04295
#12

Engine internal diagram

Bolt

Part #UP04295

The manufacturer no longer makes this part, and there's no substitute part

Air Filter And Switch A04707A
#D

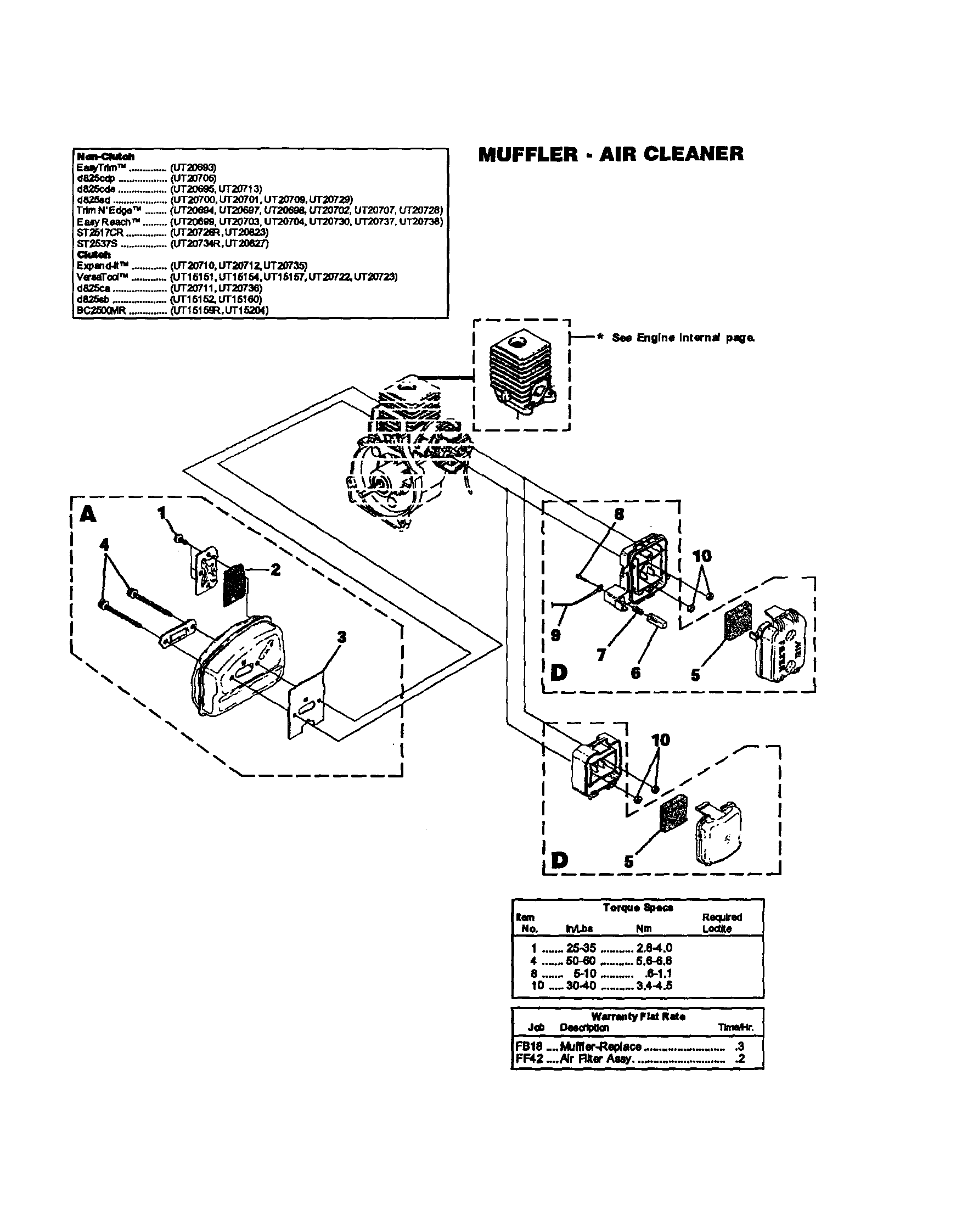

Muffler/air cleaner diagram

Air filter and switch

Part #A04707A

The manufacturer no longer makes this part, and there's no substitute part

Housing UP02965
#15

Ignition/rotor/starter/clutch diagram

Housing

Part #UP02965

The manufacturer no longer makes this part, and there's no substitute part

Gasket UP04335
#11

Engine internal diagram

Gasket

Part #UP04335

The manufacturer no longer makes this part, and there's no substitute part
