Thermador
Dishwasher

Model # THD3600 Official Thermador dishwasher

Here are the diagrams and repair parts for Official Thermador THD3600 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Tube 01-30-915
#157

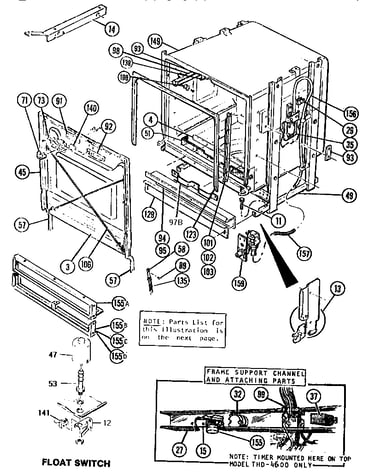

Door/frames diagram

Tube

Part #01-30-915

The manufacturer no longer makes this part, and there's no substitute part

Clip 01-33-212
Clip

Part #01-33-212

The manufacturer no longer makes this part, and there's no substitute part

Rack 01-34-342
#6A

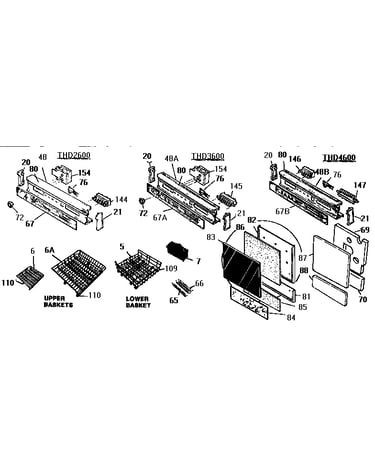

Control panel/racks diagram

Rack

Part #01-34-342

The manufacturer no longer makes this part, and there's no substitute part

Strike 01-37-213
#92

Door/frames diagram

Strike

Part #01-37-213

The manufacturer no longer makes this part, and there's no substitute part

Gasket 01-35-839
#96

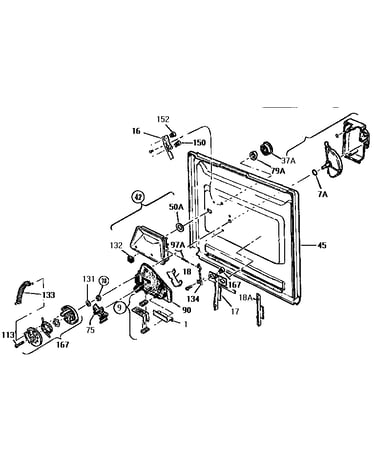

Door/dispenser diagram

Gasket

Part #01-35-839

The manufacturer no longer makes this part, and there's no substitute part

Bi-metal 01-35-736
#90

Door/dispenser diagram

Bi-metal

Part #01-35-736

The manufacturer no longer makes this part, and there's no substitute part

Basket 01-34-730
#7

Control panel/racks diagram

Basket

Part #01-34-730

The manufacturer no longer makes this part, and there's no substitute part

Switch 01-36-270
#144

Control panel/racks diagram

Switch

Part #01-36-270

The manufacturer no longer makes this part, and there's no substitute part

Bearing 01-31-295
Bearing

Part #01-31-295

The manufacturer no longer makes this part, and there's no substitute part

Straight Vane 01-33-452
#161

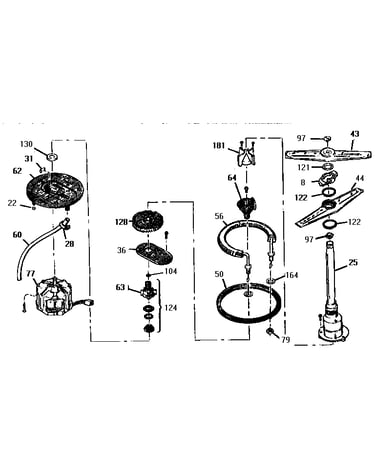

Motor diagram

Straight vane

Part #01-33-452

The manufacturer no longer makes this part, and there's no substitute part
