Model # NENS208GZA/7L32A Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag NENS208GZA-7L32A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

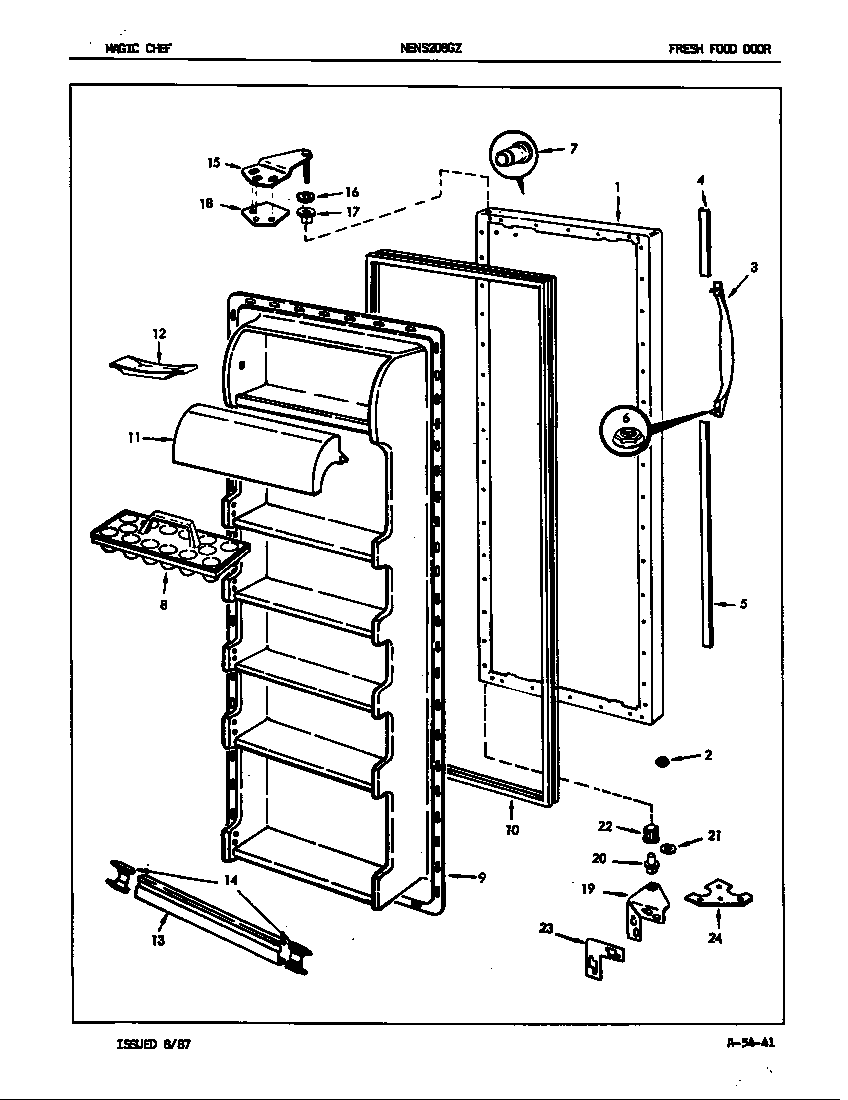

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Drier 13900
#28

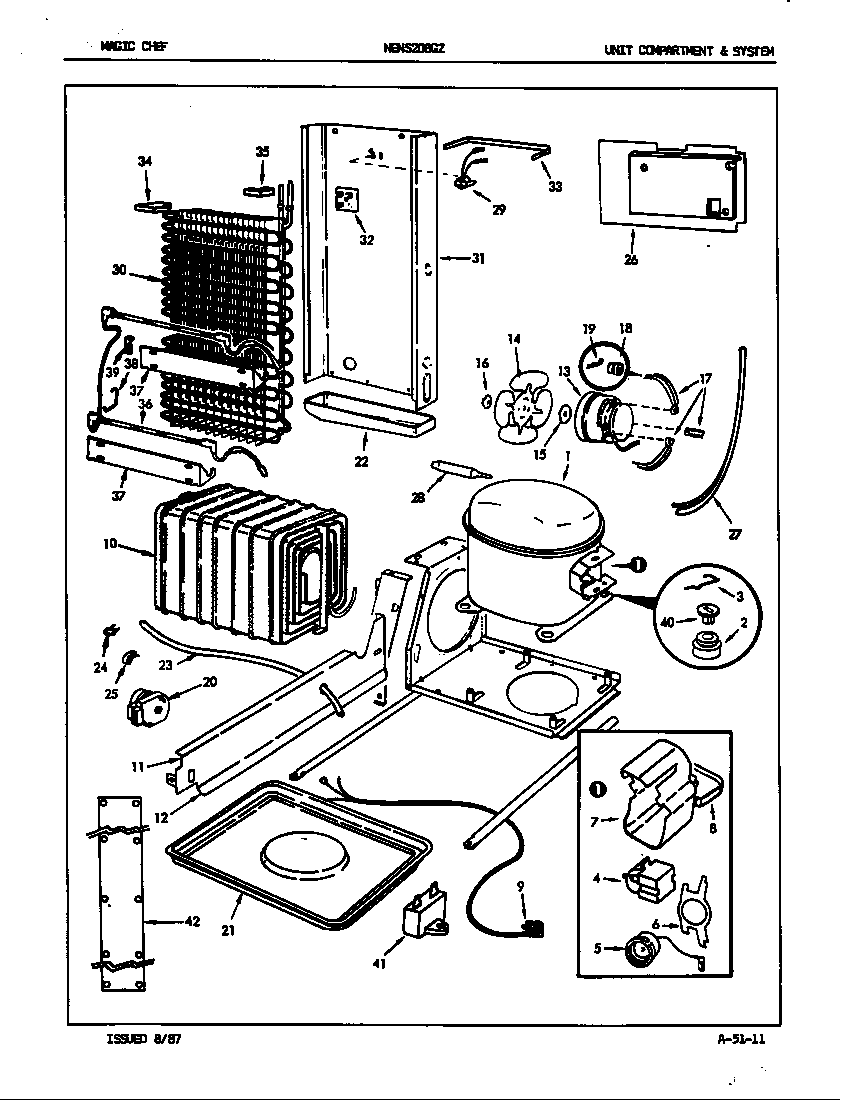

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Bulb 31956
#11

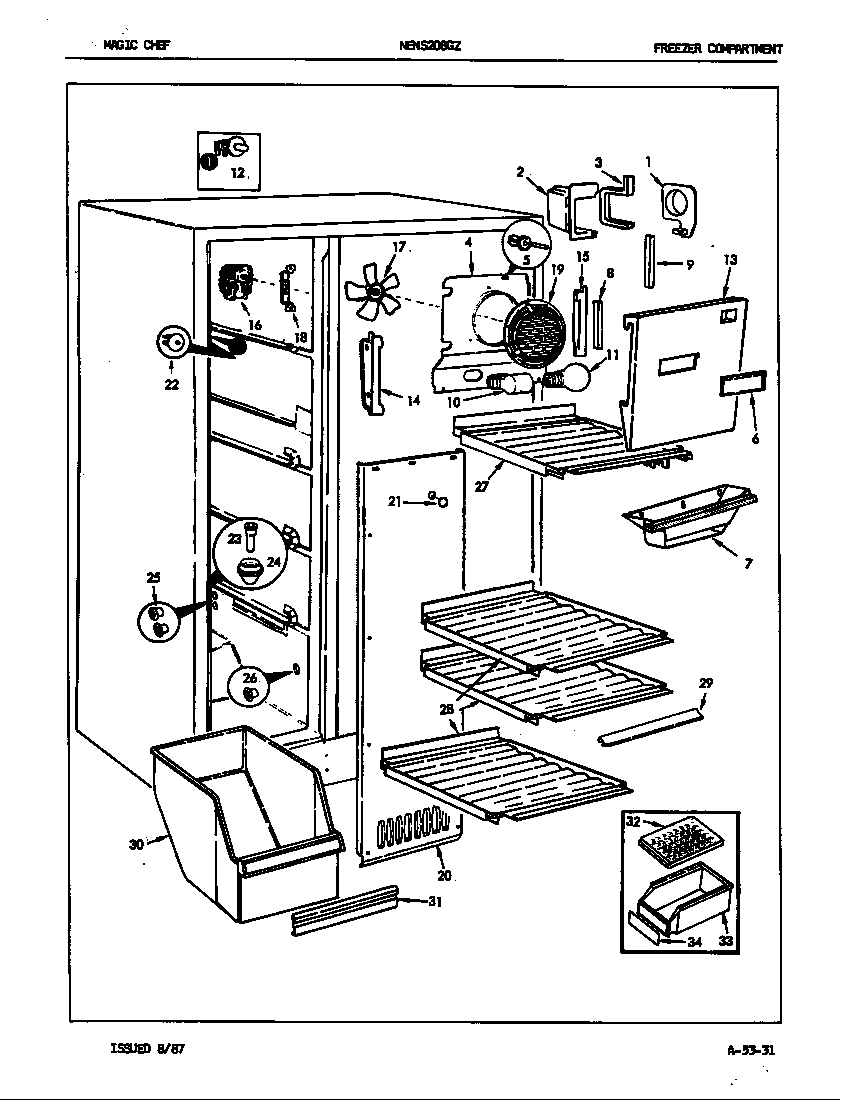

Freezer compartment diagram

Light bulb

Part #31956

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Start Relay 65529-1
#4

Unit compartment & system diagram

Refrigerator start relay

Part #65529-1

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 65529-1. Substitute parts can look different from the original.
BEST SELLER
$71.10 |
8% OFF Phone Price : $77.10
In Stock
Drain Hose Clamp 9602-3
#24

Unit compartment & system diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Fan Motor 28056-12
#13

Unit compartment & system diagram

Refrigerator fan motor

Part #28056-12

Replaced by #833697

?
Manufacturer substitution
This part replaces 28056-12. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Kick Plate Screw 9986-101
#5A

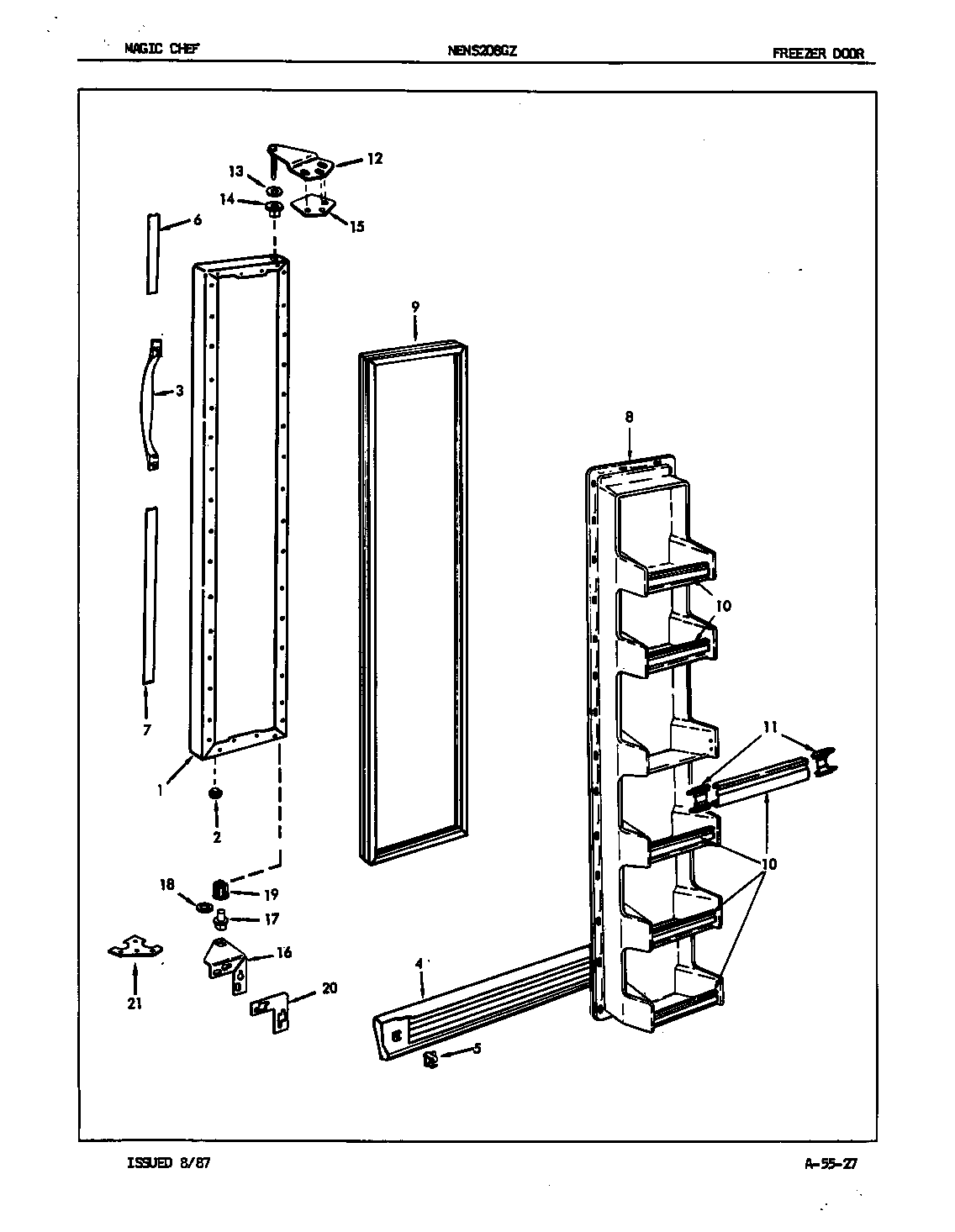

Freezer door diagram

Refrigerator kick plate screw

Part #9986-101

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 9986-101. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Run Capacitor 66121-1
#41

Unit compartment & system diagram

Refrigerator run capacitor

Part #66121-1

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 66121-1. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Defrost Heater 52764-14
#36

Unit compartment & system diagram

Refrigerator defrost heater

Part #52764-14

Replaced by #WP61001846

?
Manufacturer substitution
This part replaces 52764-14. Substitute parts can look different from the original.
$31.79 |
16% OFF Phone Price : $37.79
In Stock
Refrigerator Light Bulb 55771
#10

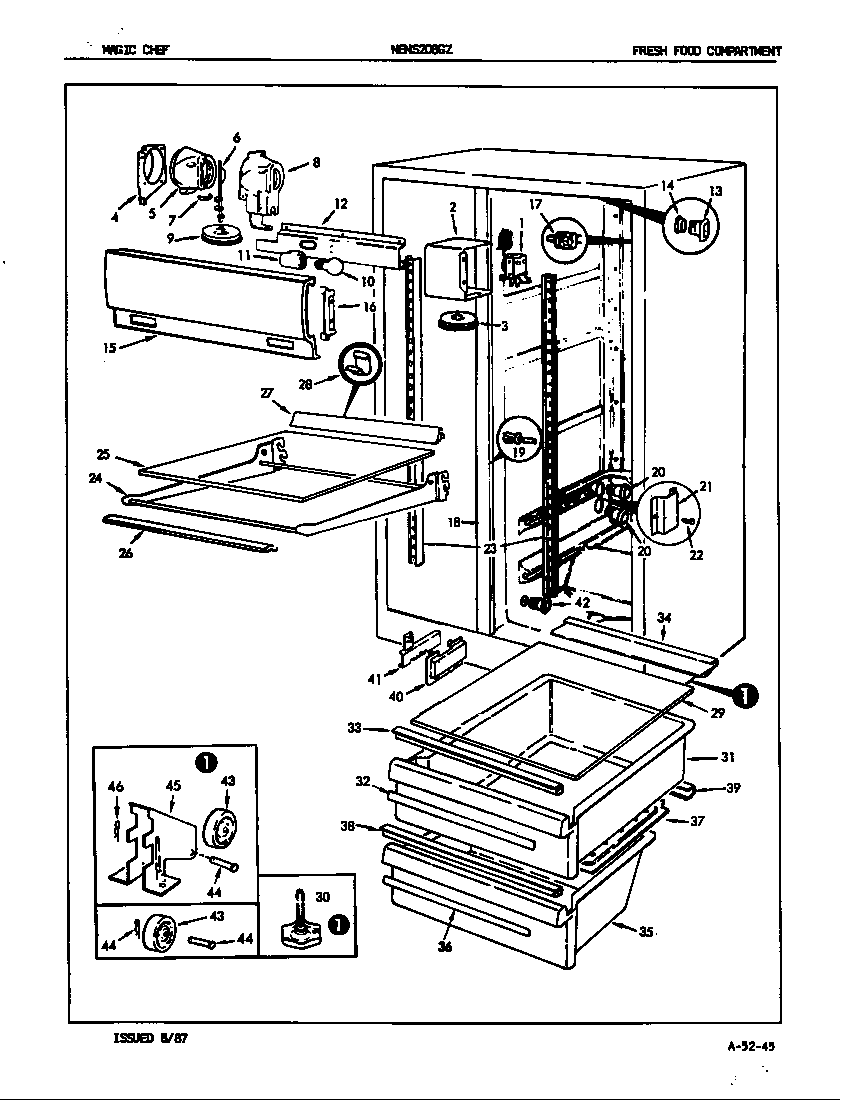

Fresh food compartment diagram
