Maytag
Microwave/Hood Combo

Model # YMMV1175JK0 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag YMMV1175JK0 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Microwave/hood Light Bulb 8206232
#17

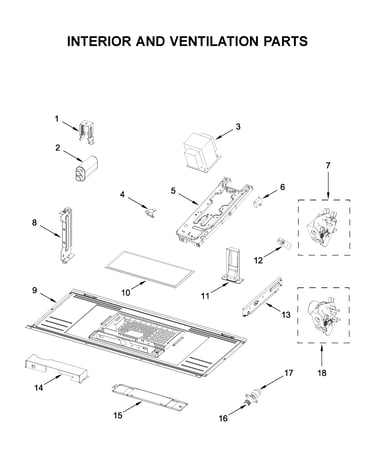

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Lamp Assembly 4393681
#6

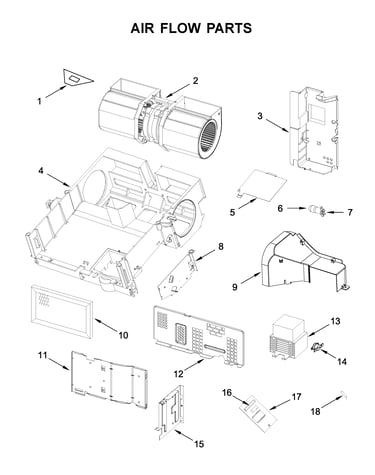

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave Light Socket W10210871
#16

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Turntable Gl W11335034
#1

Turntable parts diagram

Turntable gl

Part #W11335034

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W11335034. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave Noise Filter W10422269
#17

Air flow parts diagram

Microwave noise filter

Part #W10422269

$23.21 |
21% OFF Phone Price : $29.21
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

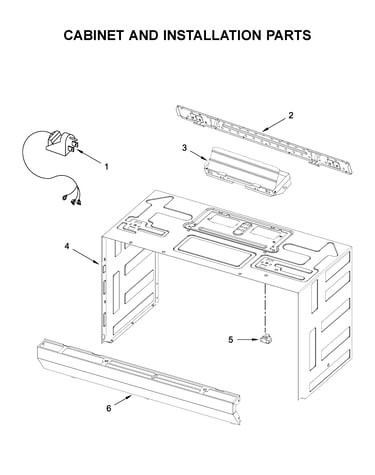

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$52.18 |
10% OFF Phone Price : $58.18
In Stock
Assembly, Upper Interlock (includes Switches) W11169310
#7

Interior and ventilation parts diagram

Assembly, upper interlock (includes switches)

Part #W11169310

Replaced by #W11182140

?
Manufacturer substitution
This part replaces W11169310. Substitute parts can look different from the original.
$19.97 |
9% OFF Phone Price : $21.97
In Stock
Charcole Fil W10845250
#10

Air flow parts diagram

Charcole fil

Part #W10845250

Replaced by #W10892387

?
Manufacturer substitution
This part replaces W10845250. Substitute parts can look different from the original.
This item is not returnable
$13.22 |
13% OFF Phone Price : $15.22
In Stock
Housing W10210878
#7

Air flow parts diagram

Housing

Part #W10210878

Replaced by #WPW10210878

?
Manufacturer substitution
This part replaces W10210878. Substitute parts can look different from the original.
$19.07 |
10% OFF Was : $21.19
In Stock
Microwave Magnetron Thermistor W10163422
#12

Interior and ventilation parts diagram

Microwave magnetron thermistor

Part #W10163422

$63.77 |
9% OFF Phone Price : $69.77
In Stock
