Model # GFP1528PNDG Official GE laundry accessory

Here are the diagrams and repair parts for Official GE GFP1528PNDG laundry accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Laundry Center Screw WH2X1217
#369

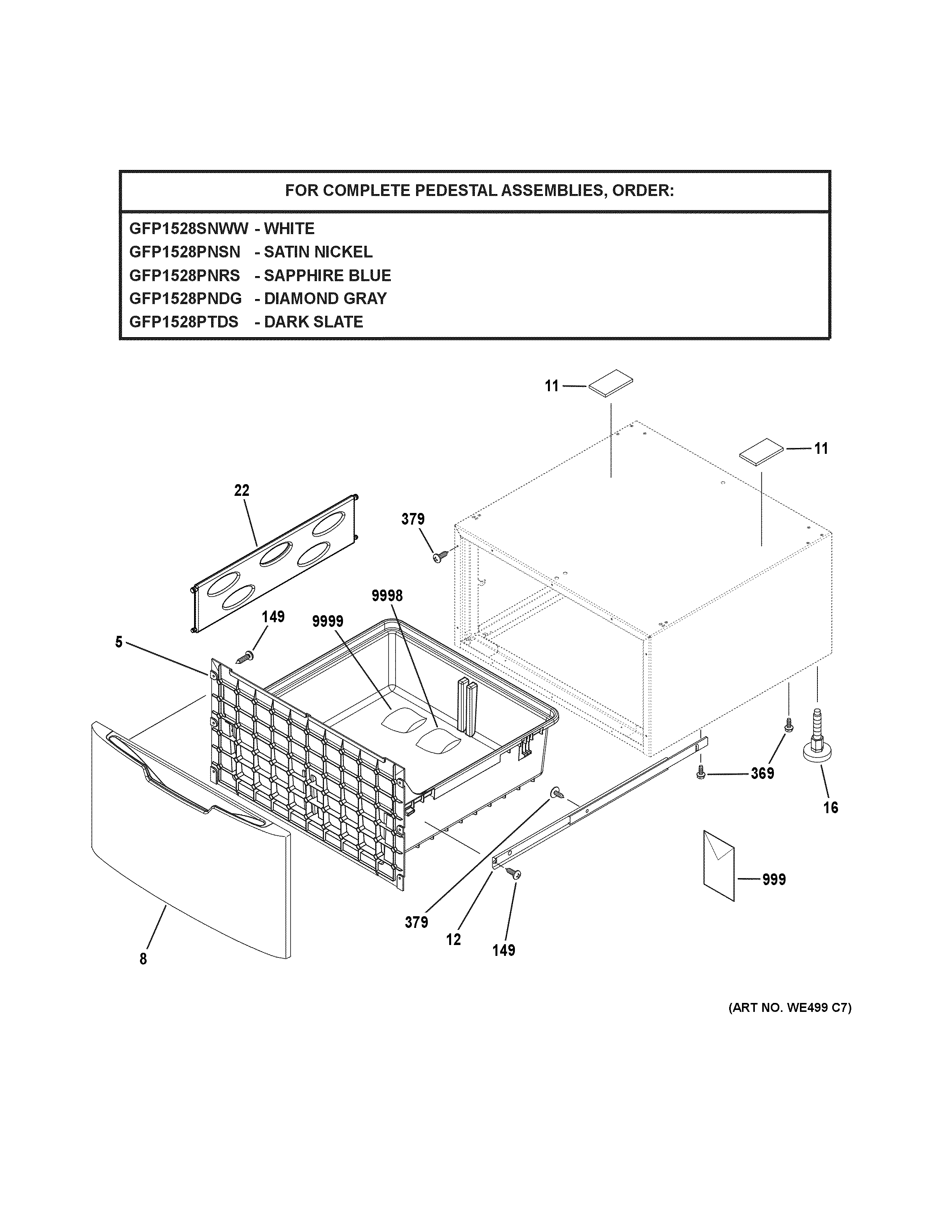

Pedestal diagram

Laundry center screw

Part #WH2X1217

$7.09 |
12% OFF Phone Price : $8.09
In Stock
Laundry Appliance Pedestal Drawer Slide Rail WH16X10099
#12

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #WH16X10099

$18.49
In Stock
Ge Pedestal Front Panel Diamond Gray WH13X30243
#8

Pedestal diagram

Ge pedestal front panel diamond gray

Part #WH13X30243

$89.40
In Stock
Pedestal Drawer Divider WH01X30237
#22

Pedestal diagram

Pedestal drawer divider

Part #WH01X30237

This item is not returnable
$26.02 |
19% OFF Phone Price : $32.02
In Stock
Scr 8-18 Ab WE02X20373
#379

Pedestal diagram

Scr 8-18 ab

Part #WE02X20373

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Leg Assembly WH01X10585
#16

Pedestal diagram

Leg assembly

Part #WH01X10585

This item is not returnable
$8.32 |
11% OFF Phone Price : $9.32
In Stock
Foam Pad WH01X30260
#11

Pedestal diagram

Foam pad

Part #WH01X30260

$11.40
In Stock
Laundry Appliance Pedestal Installation Bracket Kit (replaces Wh01x30240) WH02X30977
#9999

Pedestal diagram

Laundry appliance pedestal installation bracket kit (replaces wh01x30240)

Part #WH02X30977

$63.54 |
9% OFF Phone Price : $69.54
In Stock
Scr 8-18 Hi/ WR01X10196
#149

Pedestal diagram

Scr 8-18 hi/

Part #WR01X10196

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pedestal Drawer WH13X30238
#5

Pedestal diagram

Pedestal drawer

Part #WH13X30238

Replaced by #WH13X37597

?
Manufacturer substitution
This part replaces WH13X30238. Substitute parts can look different from the original.
$75.56
In Stock
