Model # A05LH8N1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire A05LH8N1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

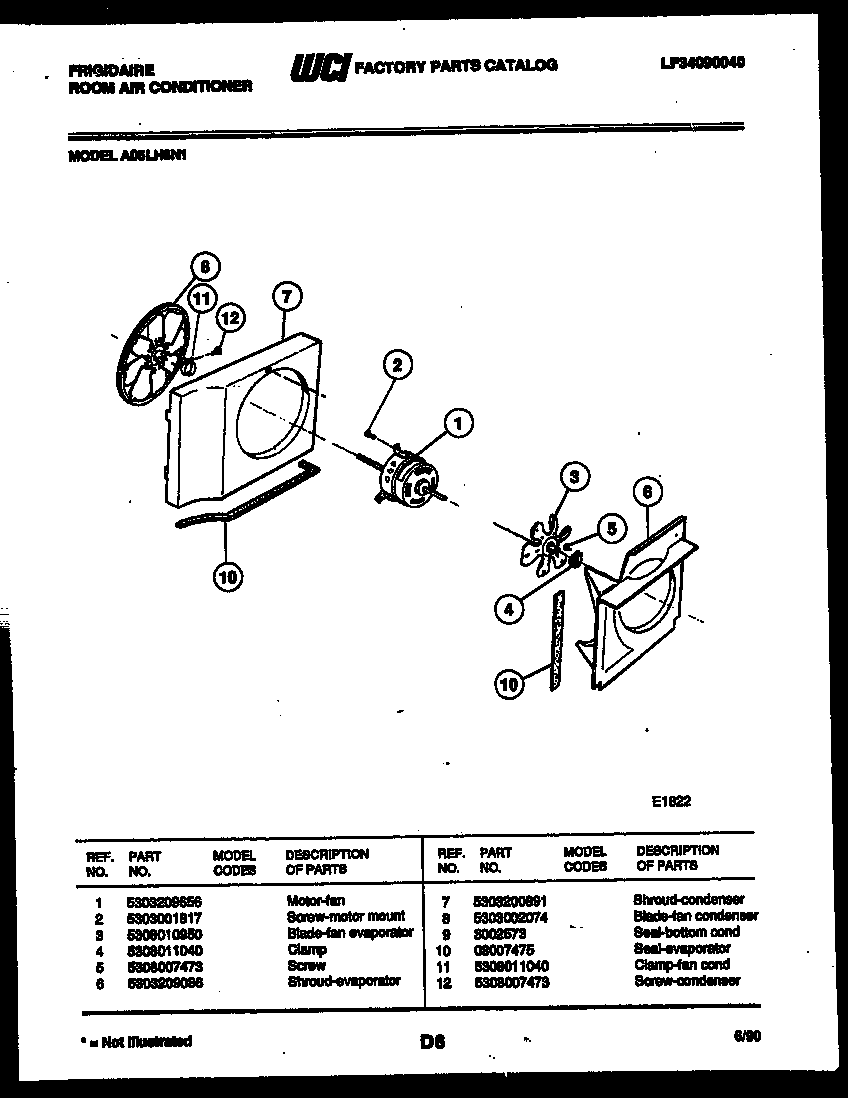

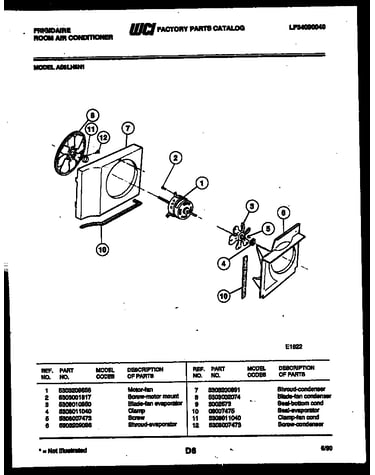

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#3

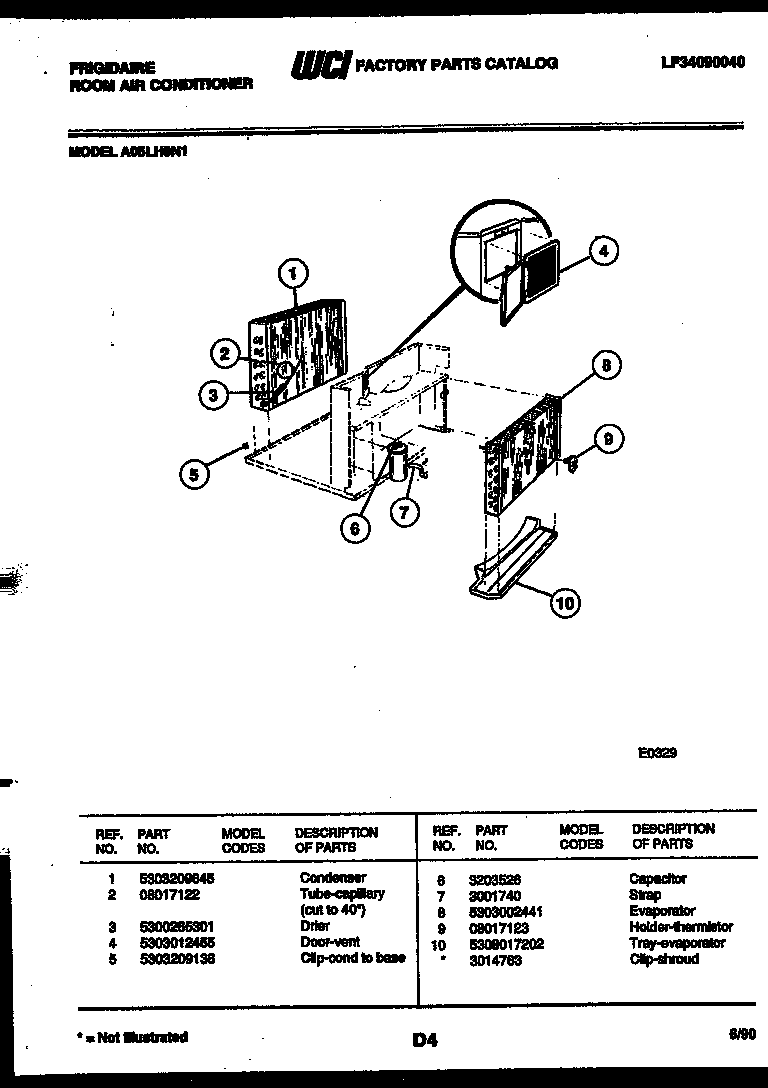

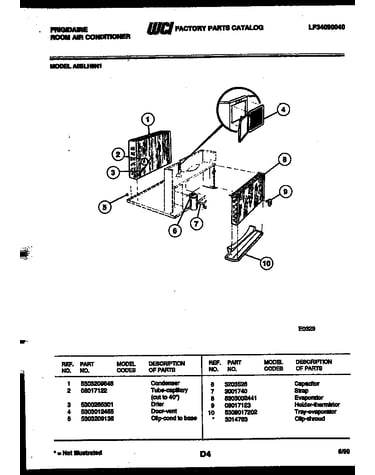

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 5308007473
Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Door 5303012455
#4

Unit parts diagram

Door

Part #5303012455

This item is not returnable
$5.99
In Stock
Louver 08017364
#6

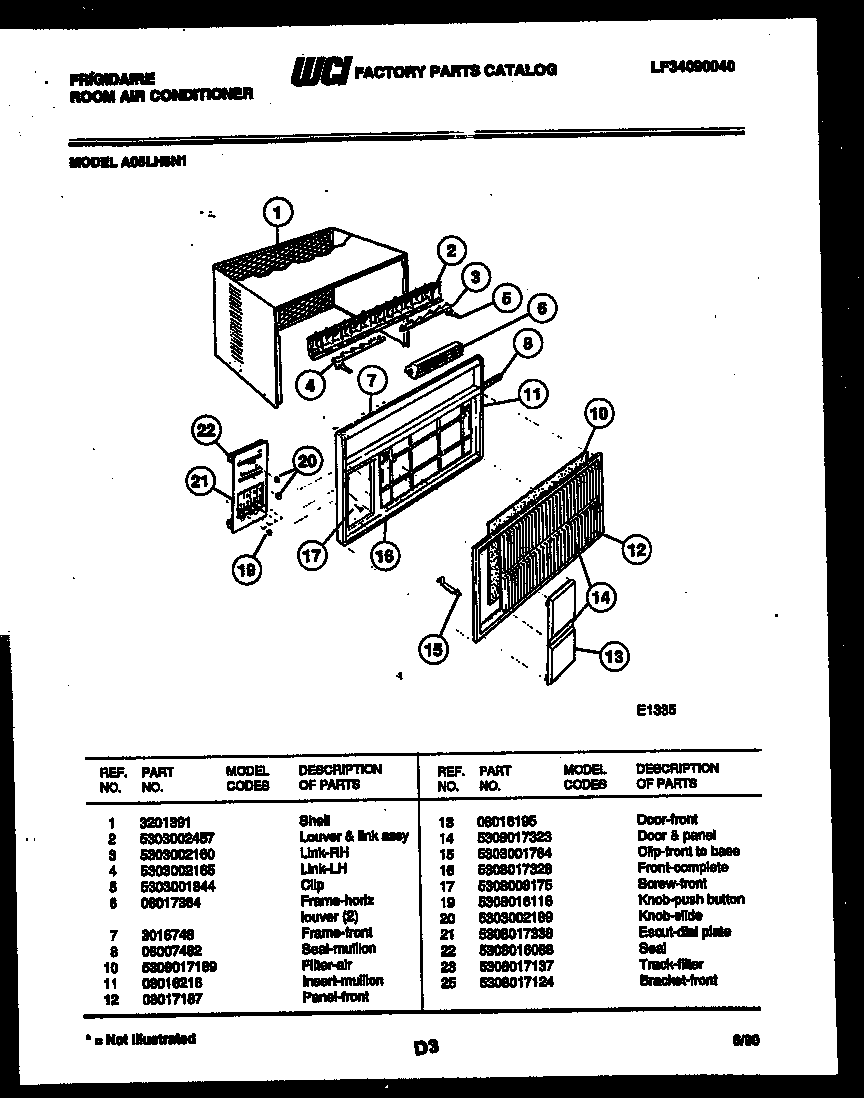

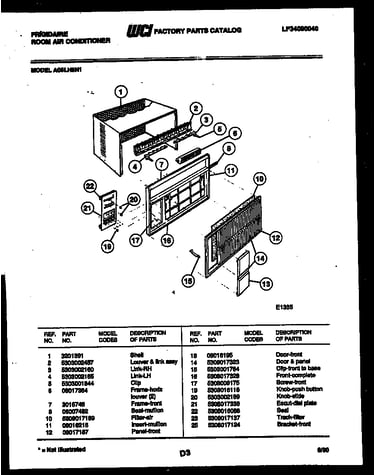

Cabinet parts diagram

Louver

Part #08017364

This item is not returnable
$4.99
In Stock
Nut 08016090
#4

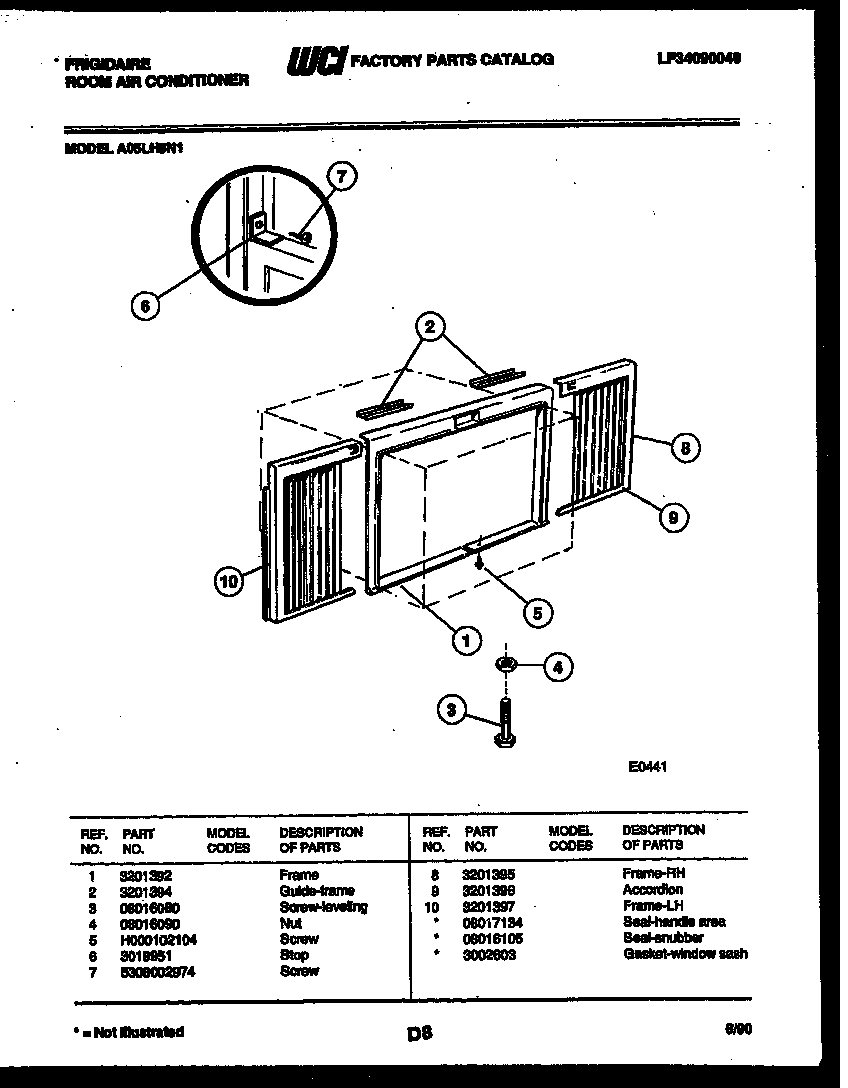

Window mounting parts diagram

Nut

Part #08016090

This item is not returnable
$2.16
In Stock
Gasket 3002603

#NI

All parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Screw H000102104
#5

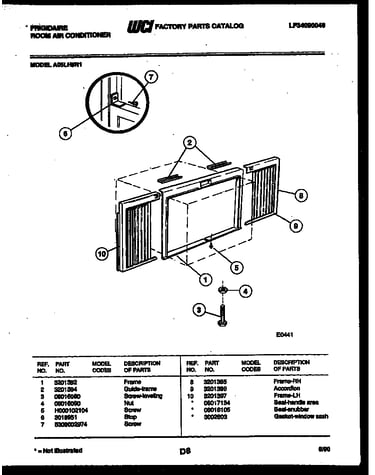

Window mounting parts diagram

Screw

Part #H000102104

The manufacturer no longer makes this part, and there's no substitute part

Control 5308017366
#1

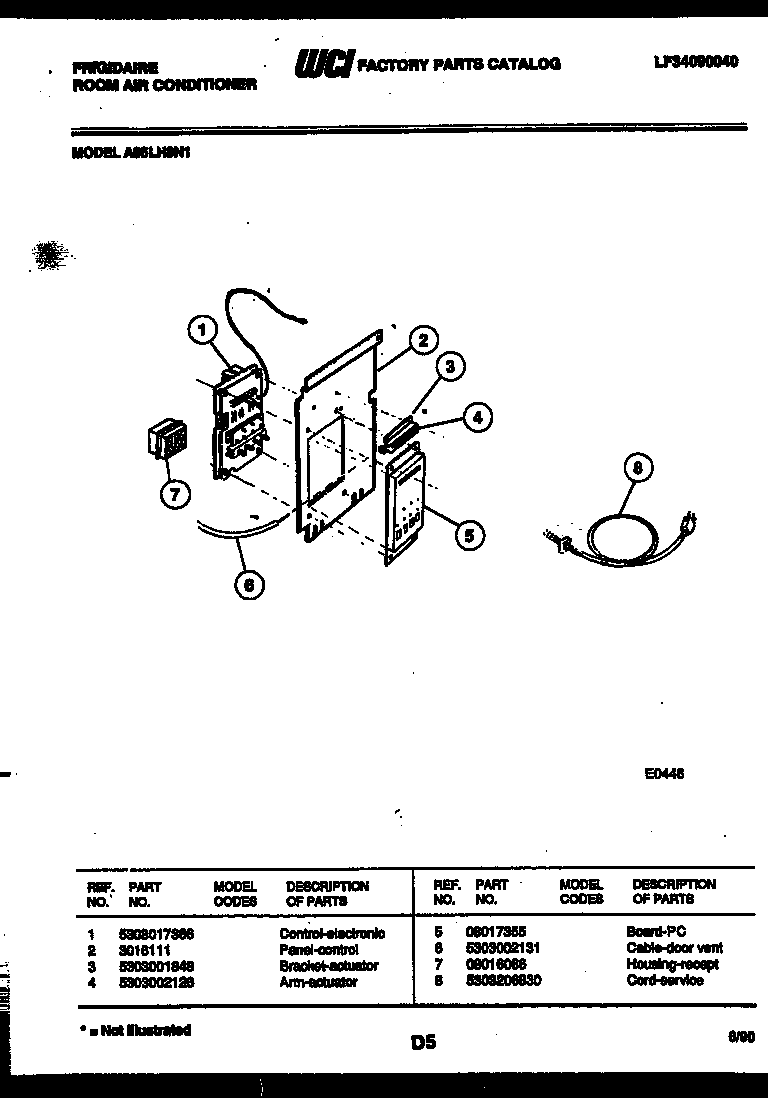

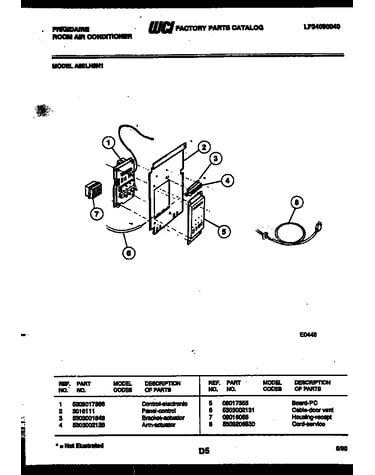

Electrical parts diagram

Control

Part #5308017366

The manufacturer no longer makes this part, and there's no substitute part

Protector 3016424
#4

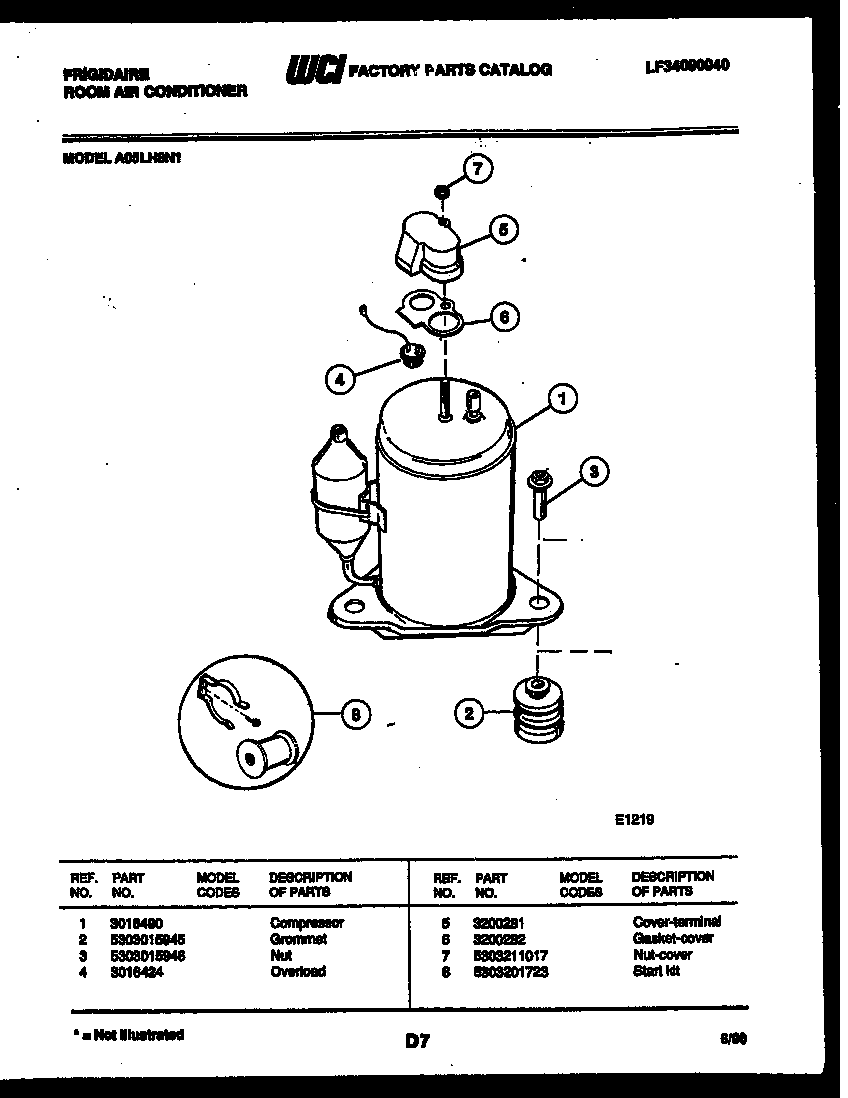

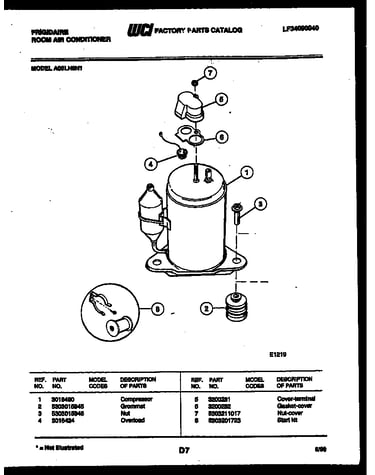

Compressor parts diagram

Protector

Part #3016424

The manufacturer no longer makes this part, and there's no substitute part

Filter 5308017189
#10

Cabinet parts diagram

Filter

Part #5308017189

The manufacturer no longer makes this part, and there's no substitute part
