Model # SC8836EBQ2 Official Whirlpool 36" gas sealed cooktop

Here are the diagrams and repair parts for Official Whirlpool SC8836EBQ2 36" gas sealed cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Spark Module 4381542
#5

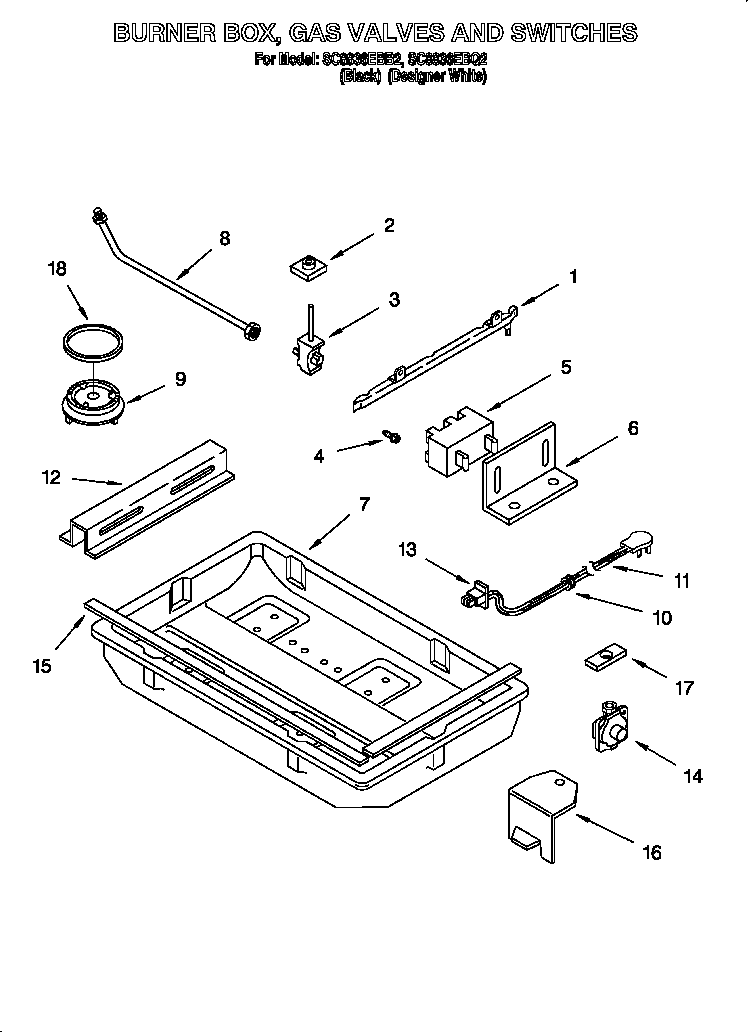

Burner box, gas valves and switches diagram

Spark module

Part #4381542

Replaced by #12001596

?
Manufacturer substitution
This part replaces 4381542. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
Control Knob 4381524
#3A

Cooktop and grate diagram

Control knob

Part #4381524

Replaced by #WP74001253

?
Manufacturer substitution
This part replaces 4381524. Substitute parts can look different from the original.
$21.22 |
22% OFF Phone Price : $27.22
In Stock
Screw 4381534
#9

Cooktop and grate diagram

Screw

Part #4381534

Replaced by #WP4159387

?
Manufacturer substitution
This part replaces 4381534. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Control Knob 4381523
#3B

Cooktop and grate diagram

Control knob

Part #4381523

Replaced by #WP74001385

?
Manufacturer substitution
This part replaces 4381523. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Igniter Switch 4381538
#2

Burner box, gas valves and switches diagram

Igniter switch

Part #4381538

Replaced by #WP7403P367-60

?
Manufacturer substitution
This part replaces 4381538. Substitute parts can look different from the original.
$60.09 |
9% OFF Phone Price : $66.09
In Stock
Mounting Bracket 4381543
#6

Burner box, gas valves and switches diagram

Mounting bracket

Part #4381543

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4381555
#11

Burner box, gas valves and switches diagram

Power cord

Part #4381555

The manufacturer no longer makes this part, and there's no substitute part

Gasket 4381564
#18

Burner box, gas valves and switches diagram

Gasket

Part #4381564

The manufacturer no longer makes this part, and there's no substitute part

Grommet 4381533
#8

Cooktop and grate diagram

Grommet

Part #4381533

The manufacturer no longer makes this part, and there's no substitute part

Foam Seal (white) 4381565

#NI

All parts diagram

Foam seal (white)

Part #4381565

The manufacturer no longer makes this part, and there's no substitute part
