Model # EQUITY LT 286E Official Epson printer

Here are the diagrams and repair parts for Official Epson EQUITY-LT-286E printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

Lcd Front Panel (b) PCF104-1
#701

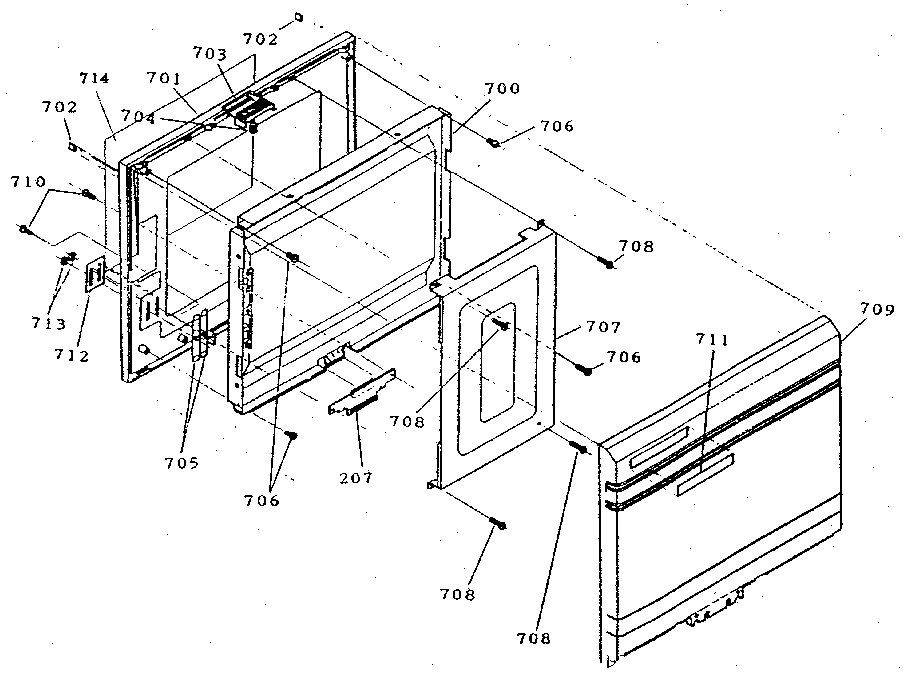

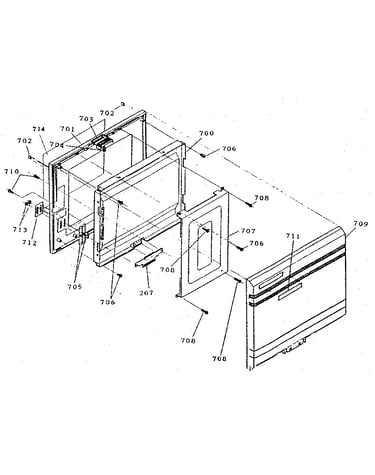

L.c.d. unit diagram

Lcd front panel (b)

Part #PCF104-1

The manufacturer no longer makes this part, and there's no substitute part

Insul Sht PCF101-100
#162

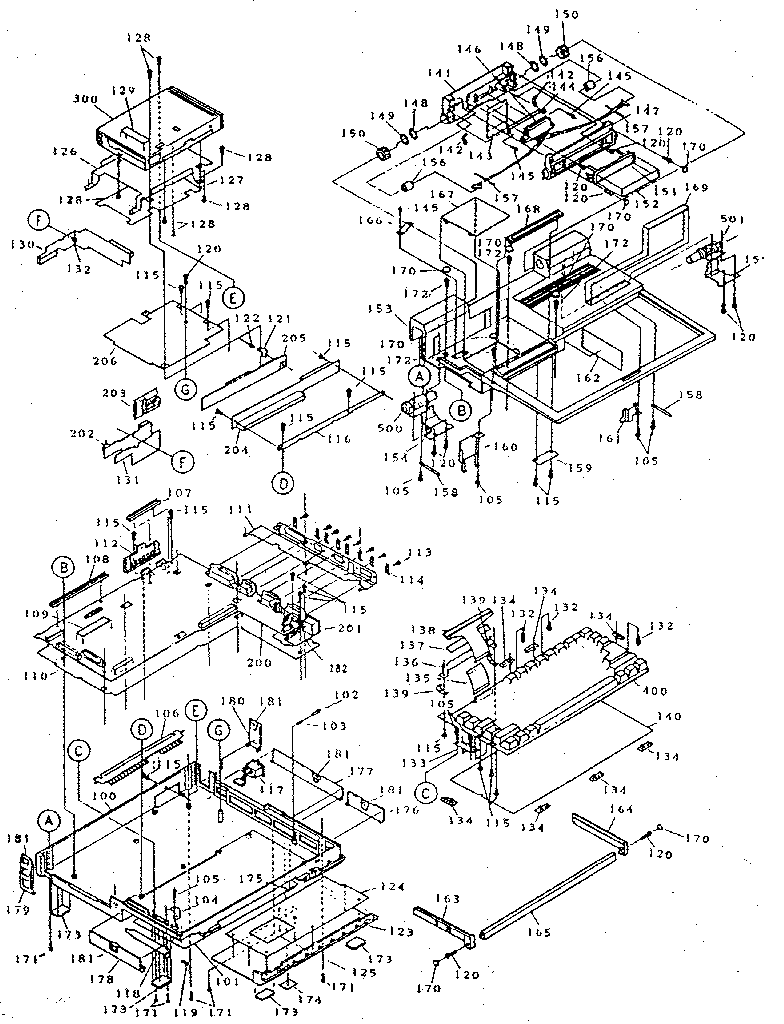

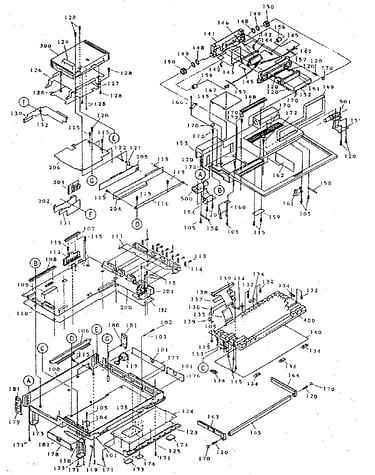

Main unit diagram

Insul sht

Part #PCF101-100

The manufacturer no longer makes this part, and there's no substitute part

Handle B PCF101-12
#164

Main unit diagram

Handle b

Part #PCF101-12

The manufacturer no longer makes this part, and there's no substitute part

K Bd PCF101-70
#205

Main unit diagram

K bd

Part #PCF101-70

The manufacturer no longer makes this part, and there's no substitute part

Screw PCF101-90
#128

Main unit diagram

Screw

Part #PCF101-90

The manufacturer no longer makes this part, and there's no substitute part

Screw PCF108-23
#818

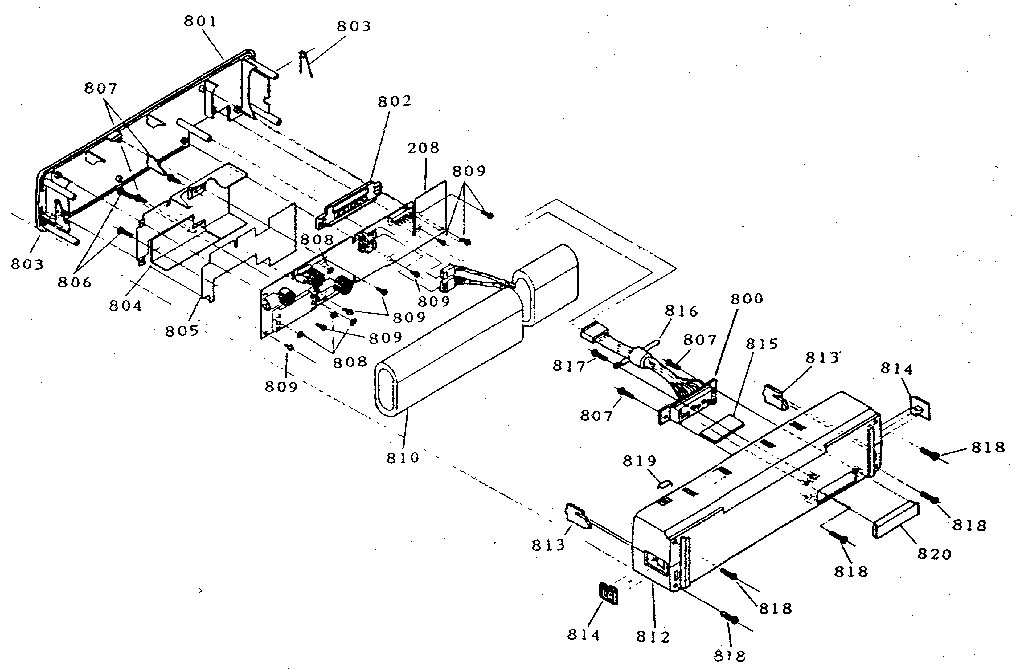

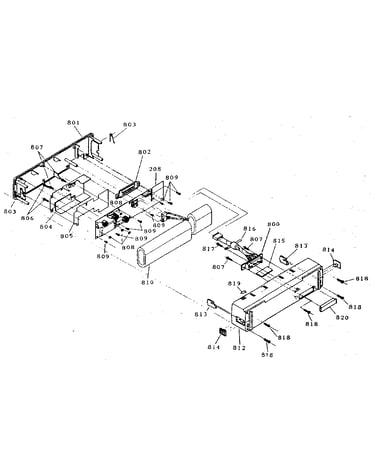

Battery unit diagram

Screw

Part #PCF108-23

The manufacturer no longer makes this part, and there's no substitute part

Screw PCF101-95
#105

Main unit diagram

Screw

Part #PCF101-95

The manufacturer no longer makes this part, and there's no substitute part

Lock Angle PCF101-22
#104

Main unit diagram

Lock angle

Part #PCF101-22

The manufacturer no longer makes this part, and there's no substitute part

Dip Sw Stkr PCF101-50
#125

Main unit diagram

Dip sw stkr

Part #PCF101-50

The manufacturer no longer makes this part, and there's no substitute part

Ic Sheet PCF101-113
#109

Main unit diagram

Ic sheet

Part #PCF101-113

The manufacturer no longer makes this part, and there's no substitute part
