Kenmore
Countertop Microwave

Model # 5658904380 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5658904380 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

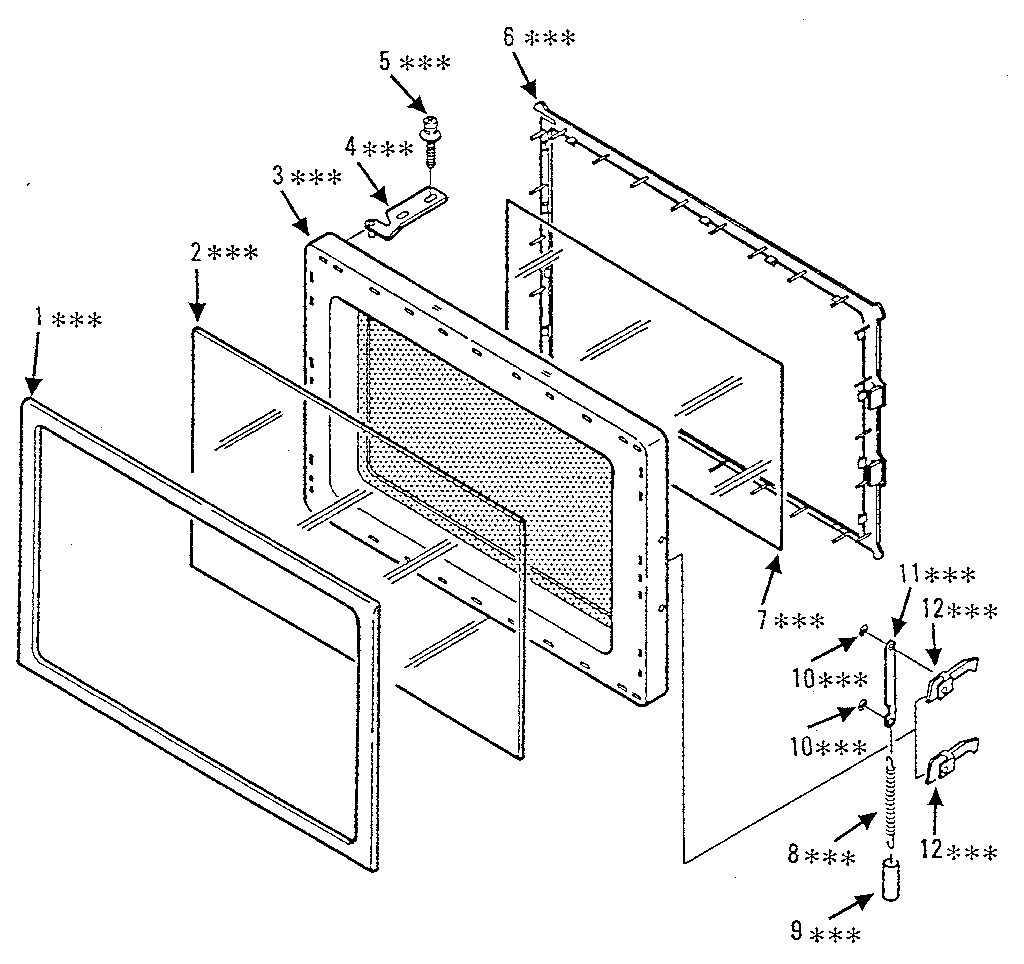

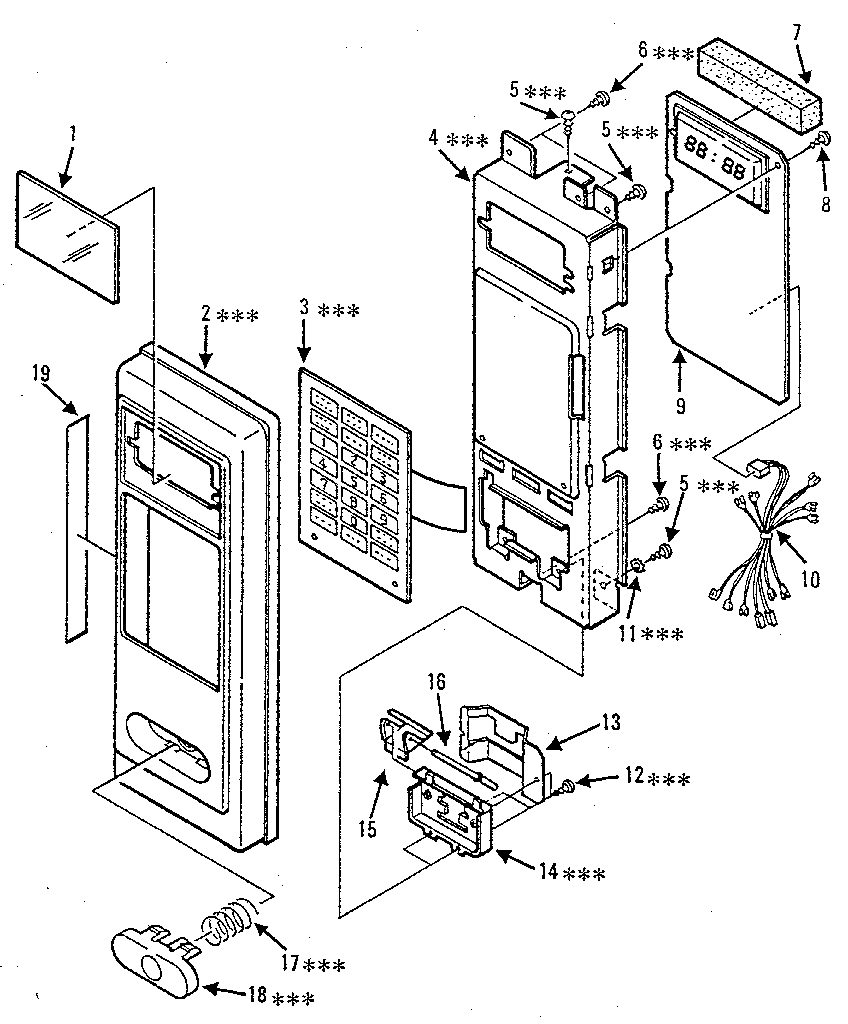

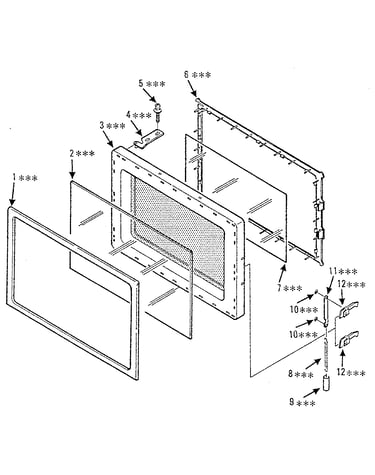

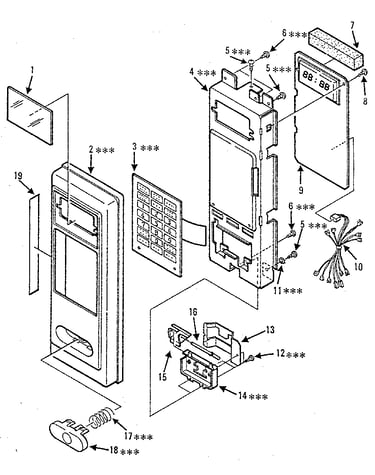

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Microwave Fuse, 15-amp 11255
#5

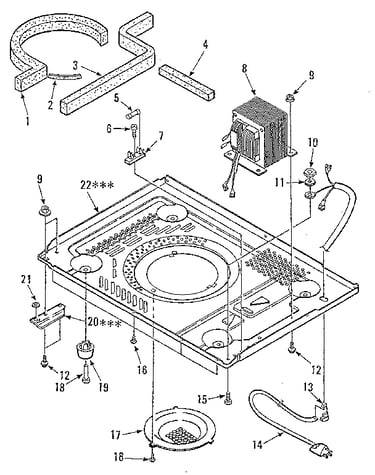

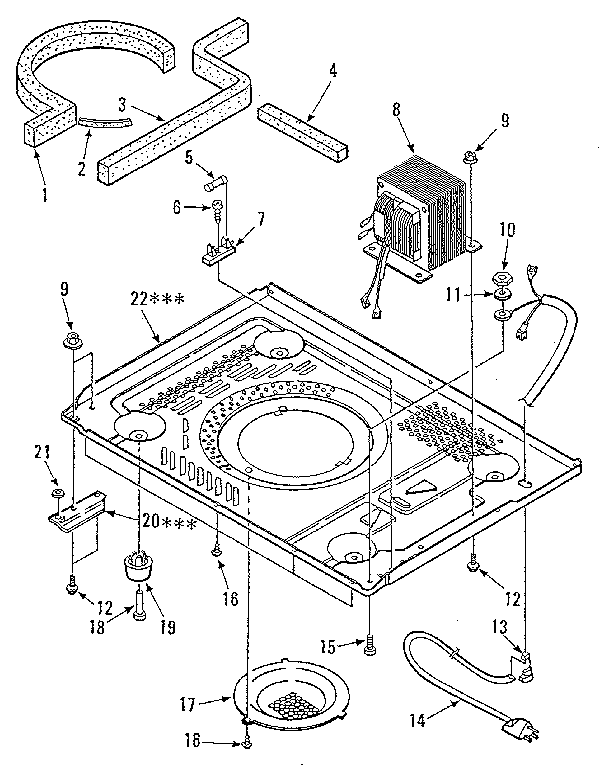

Microwave diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse Holder 13553
#7

Microwave diagram

Microwave fuse holder

Part #13553

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 15112
#6A

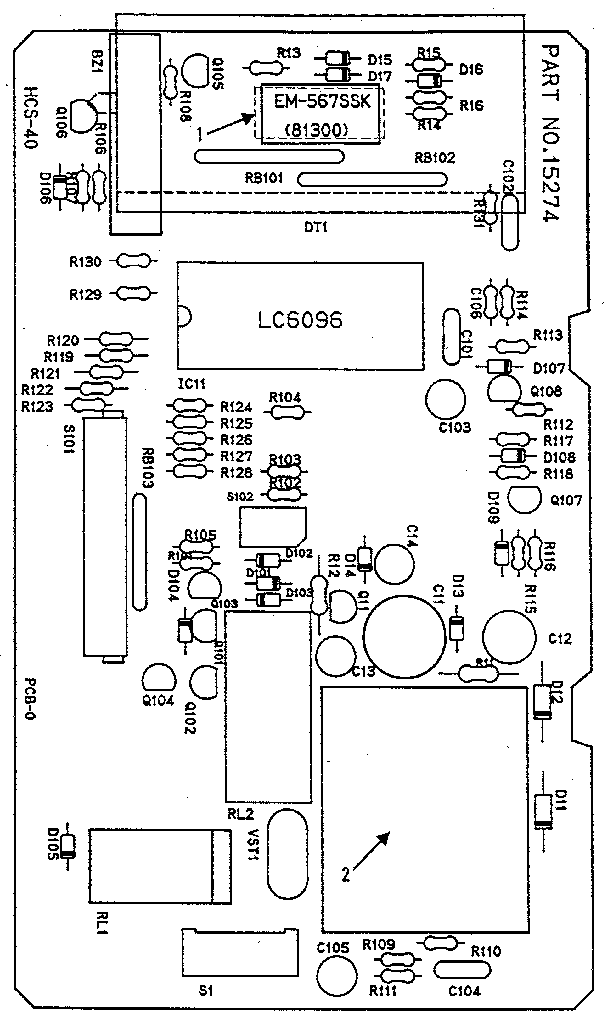

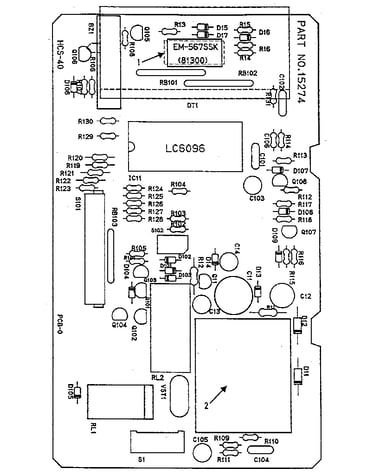

Power and control circuit board diagram

Capacitor

Part #15112

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 14582
#18

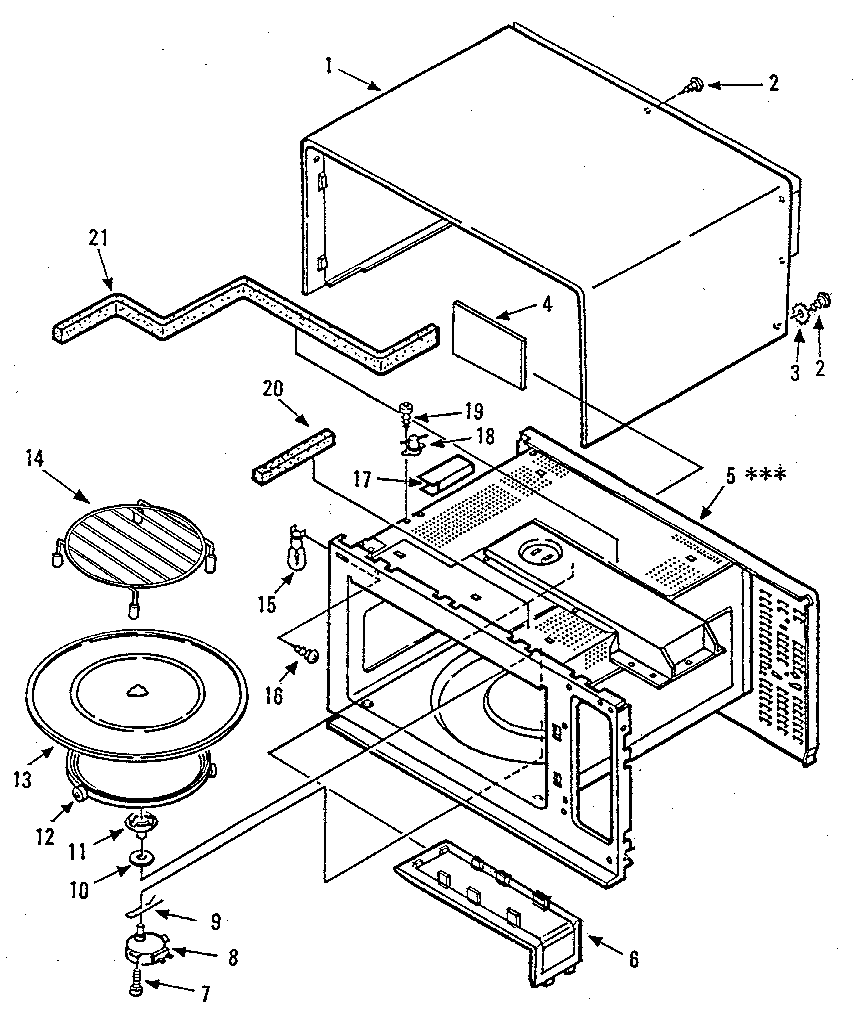

Cabinet diagram

Thermostat

Part #14582

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 14689
#6

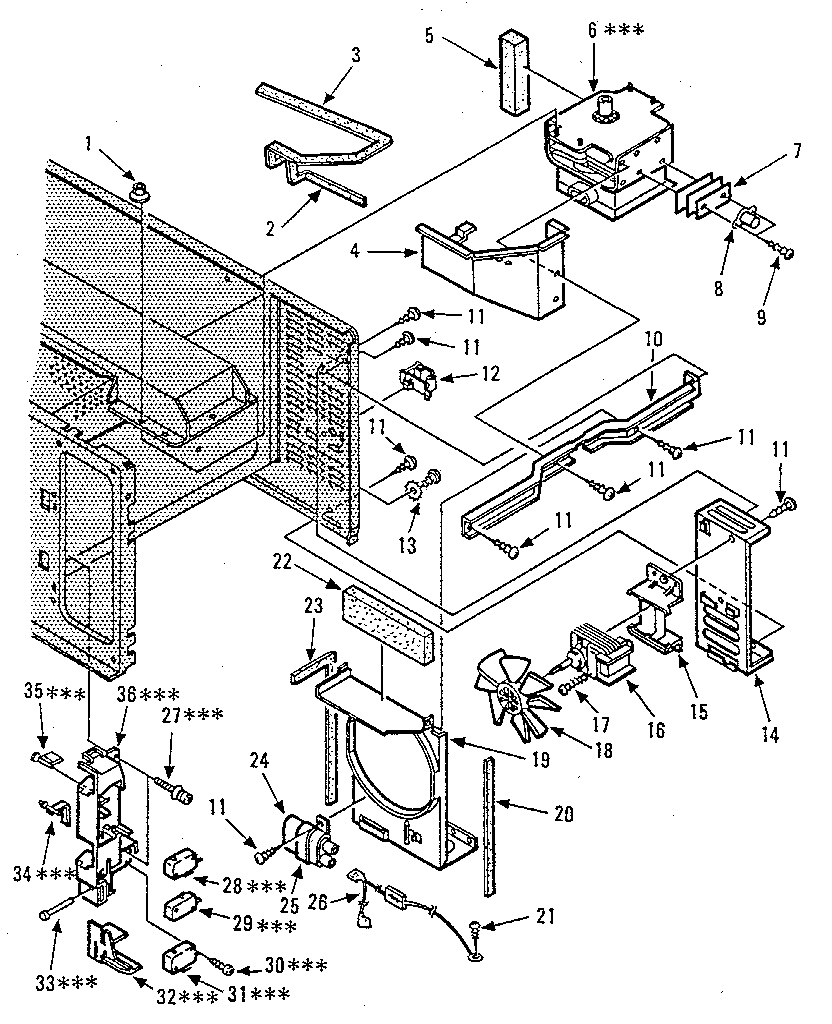

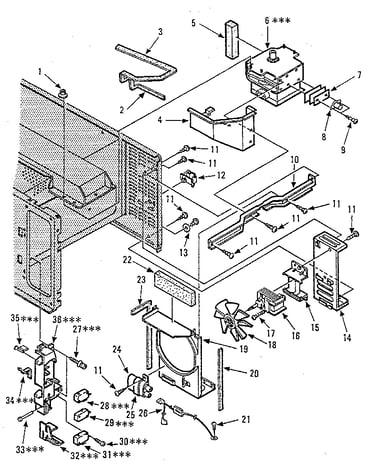

Switches and microwave diagram

Magnetron

Part #14689

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 15117
#6G

Power and control circuit board diagram

Capacitor

Part #15117

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 15077
#29

Switches and microwave diagram

Micro-switch

Part #15077

The manufacturer no longer makes this part, and there's no substitute part

Diode 15106
Diode

Part #15106

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#31

Switches and microwave diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11564
#6H

Power and control circuit board diagram

Capacitor

Part #11564

The manufacturer no longer makes this part, and there's no substitute part
