Canister Vacuum

Model # S3093--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3093- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

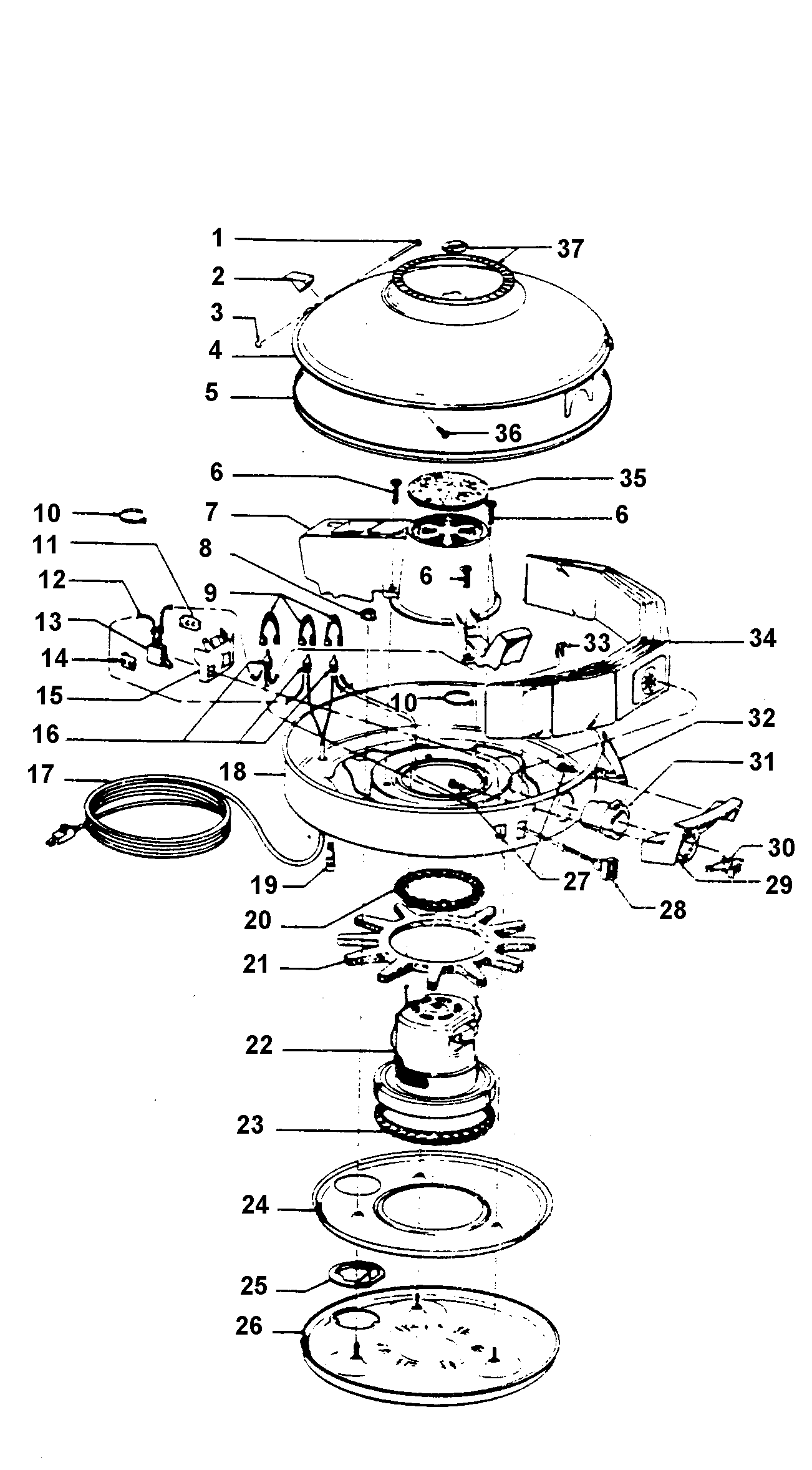

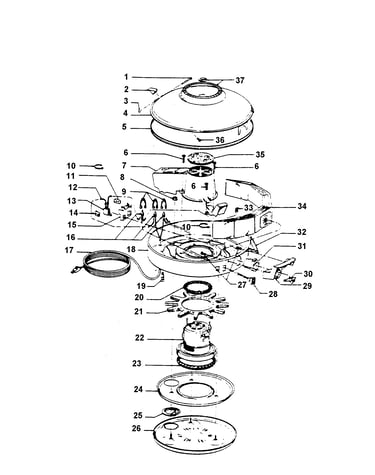

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Screw 21429406
#2

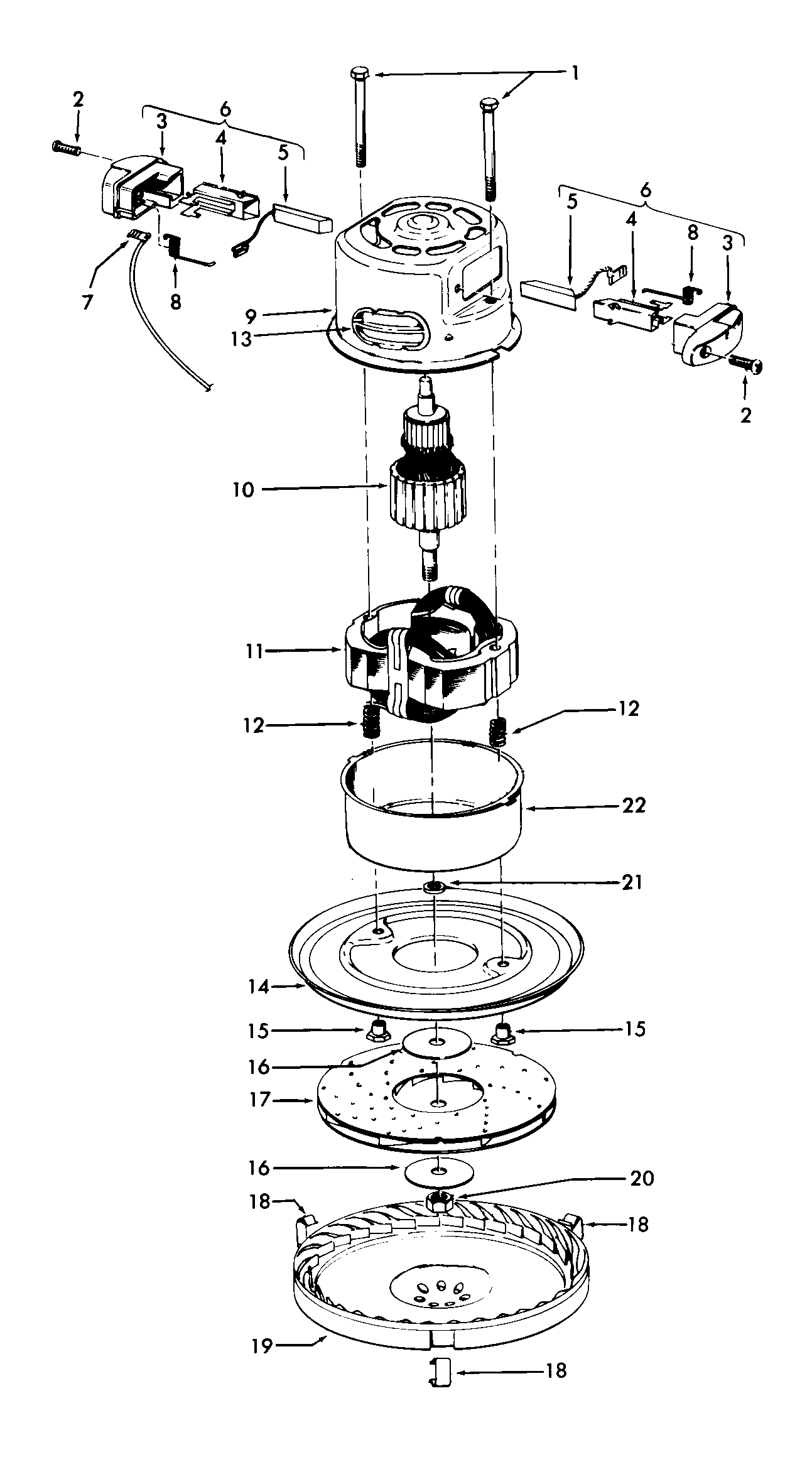

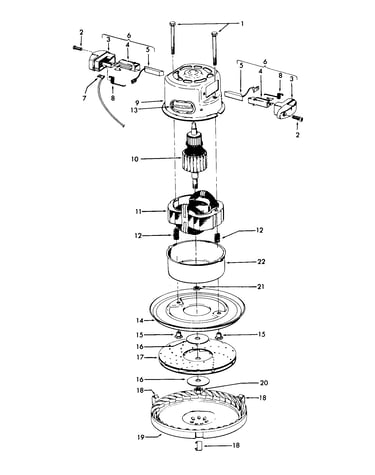

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#8

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Hose Tube 43468055
#31

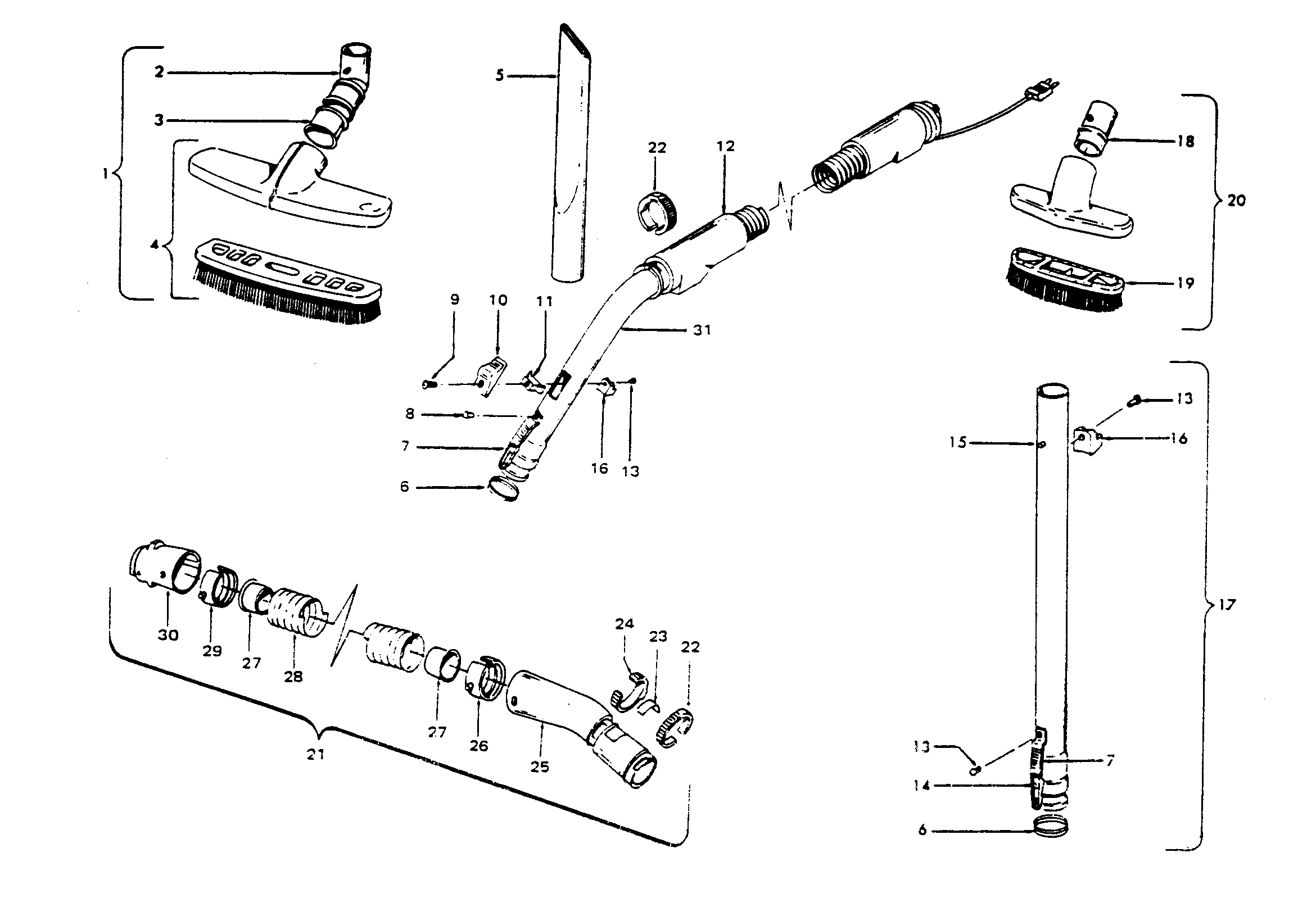

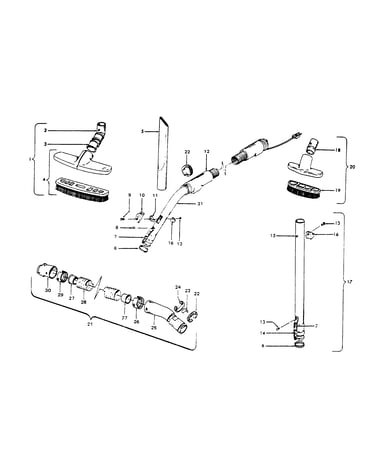

Hose, cleaningtools diagram

Hose tube

Part #43468055

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#3A

Hose, cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#5

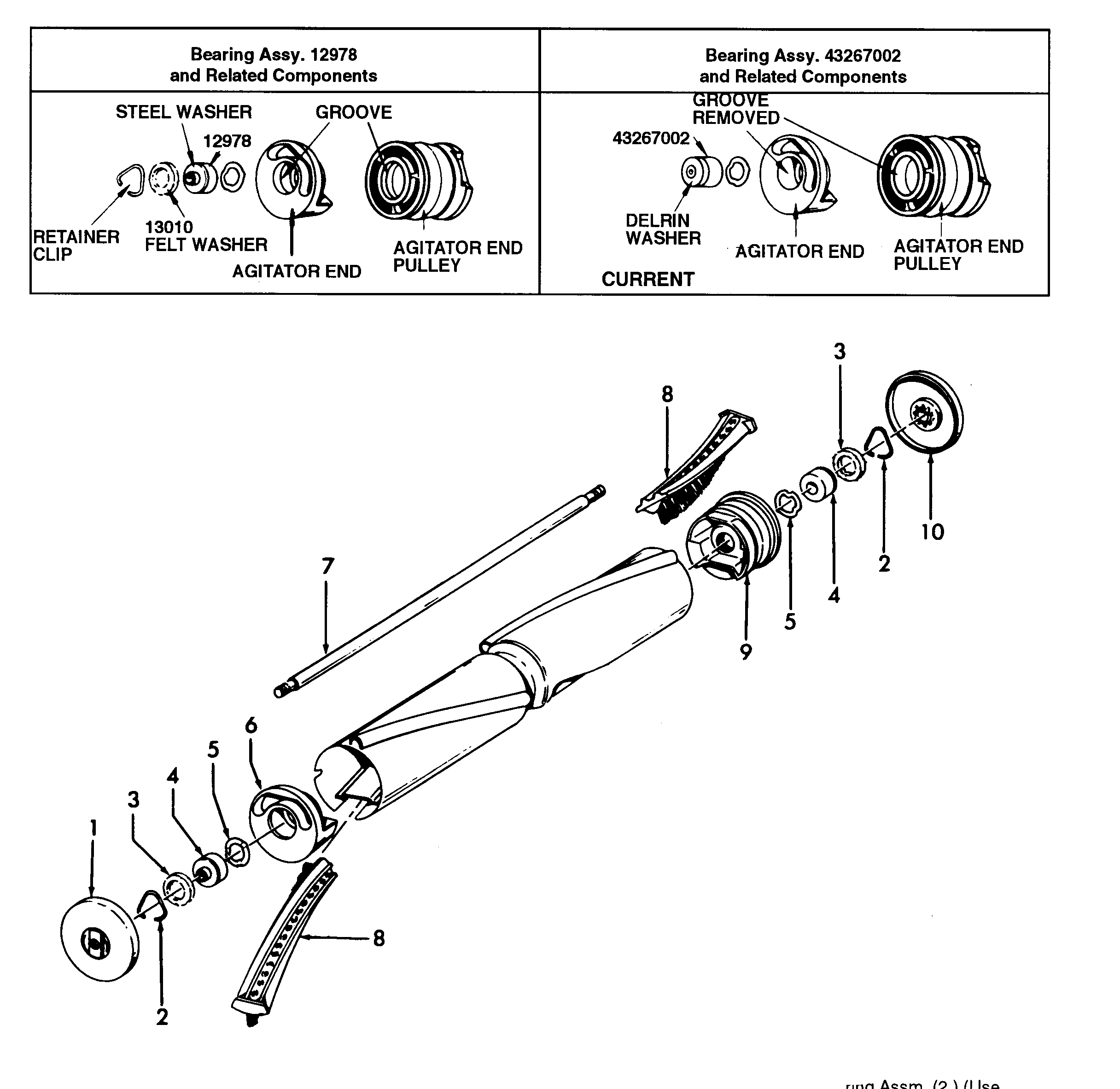

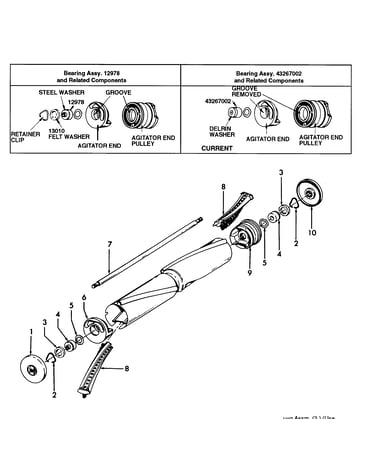

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#22

Hose, cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Connector 32855003
#30

Hose, cleaningtools diagram

Connector

Part #32855003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#5

Hose, cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Light Bulb 27317307
#2

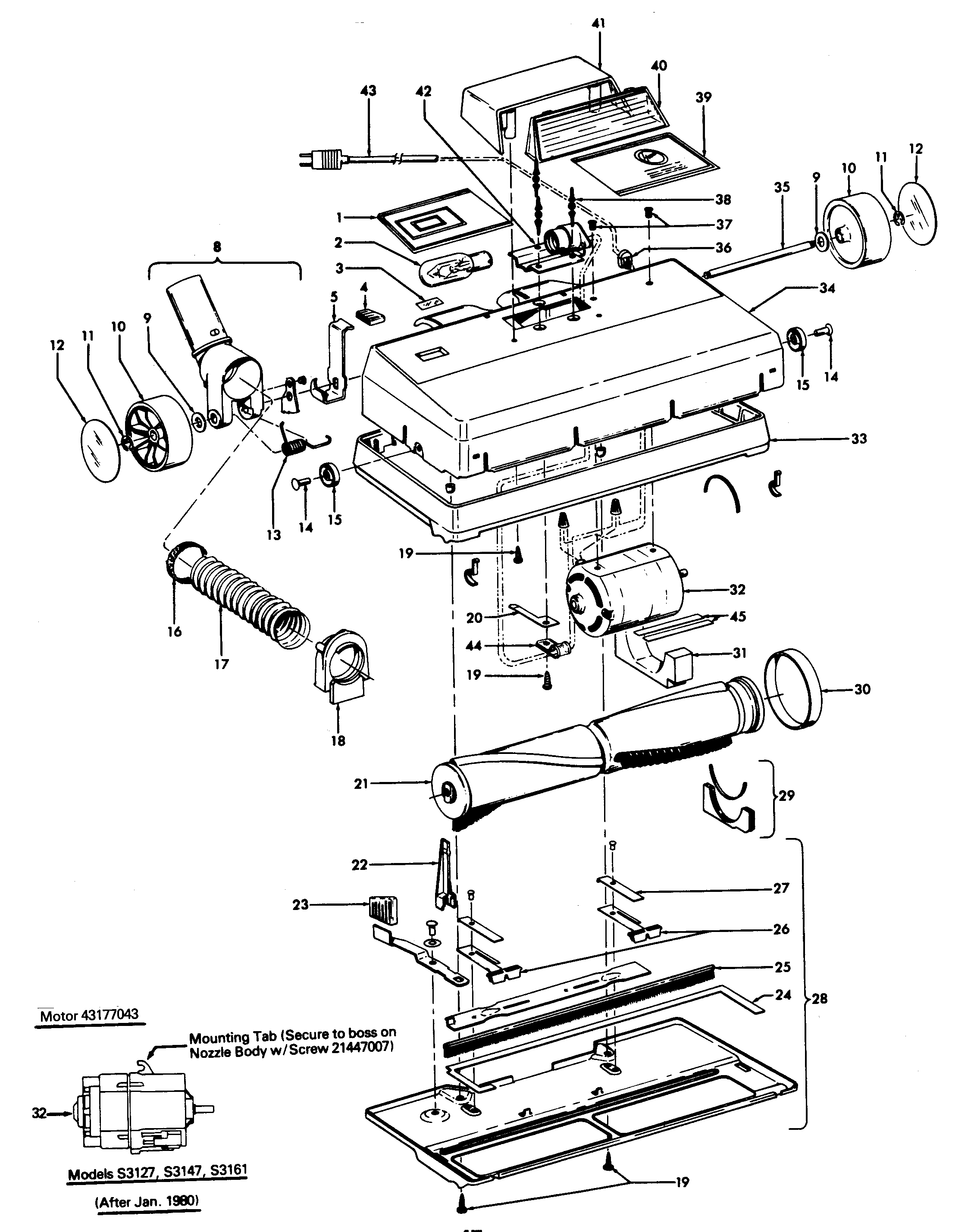

Powerednozzle diagram

Kenmore vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#2A

Hose, cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part
