Craftsman
Line Trimmer

Model # 234795512 Official Craftsman 26.2-cc gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 234795512 26.2-cc gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

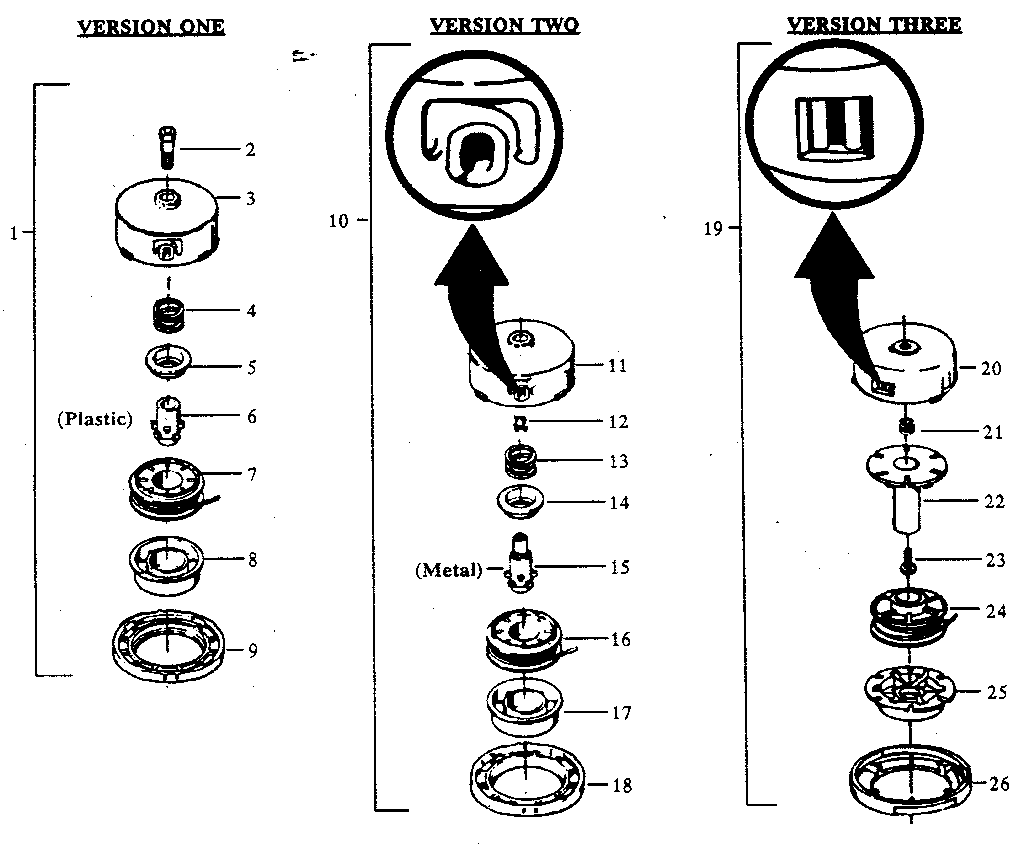

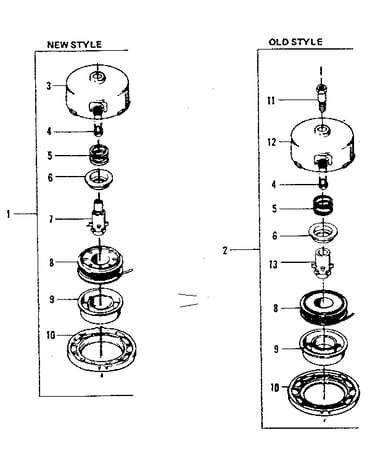

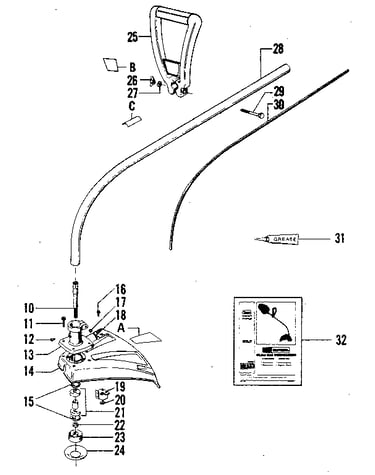

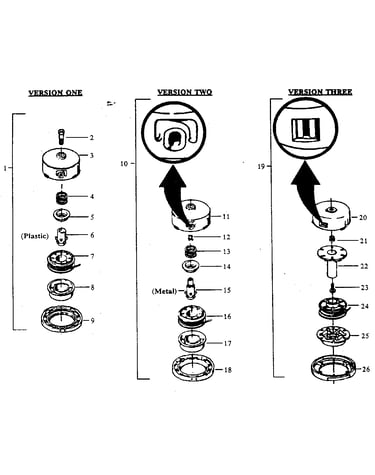

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Fuel Line 21042
#14

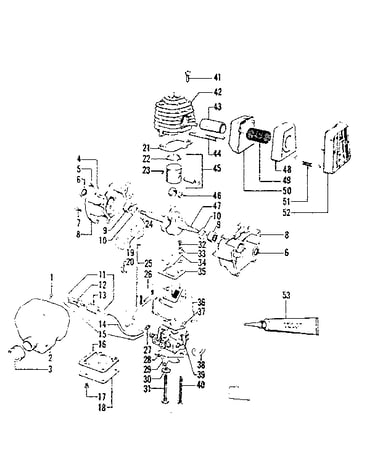

Engine diagram

Fuel line

Part #21042

Replaced by #530069216

?
Manufacturer substitution
This part replaces 21042. Substitute parts can look different from the original.
BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Cap 24437
#3

Engine diagram

Cap

Part #24437

Replaced by #530014347

?
Manufacturer substitution
This part replaces 24437. Substitute parts can look different from the original.
BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Gasket Kit 35186

#NI

All parts diagram

Gasket kit

Part #35186

Replaced by #530069844

?
Manufacturer substitution
This part replaces 35186. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$26.00 |
19% OFF Phone Price : $32.00
In Stock
Check Valve 23166
#1

Engine diagram

Check valve

Part #23166

Replaced by #530026119

?
Manufacturer substitution
This part replaces 23166. Substitute parts can look different from the original.
This item is not returnable
$9.26
In Stock
Fuel Line 21043
#38

Engine diagram

Fuel line

Part #21043

Replaced by #530069571

?
Manufacturer substitution
This part replaces 21043. Substitute parts can look different from the original.
This item is not returnable
$9.26
In Stock
Repair Kit 35185

#NI

All parts diagram

Repair kit

Part #35185

Replaced by #530035185

?
Manufacturer substitution
This part replaces 35185. Substitute parts can look different from the original.
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Diaphragm 35166
#7B

Carburetor diagram

Diaphragm

Part #35166

Replaced by #504130807

?
Manufacturer substitution
This part replaces 35166. Substitute parts can look different from the original.
This item is not returnable
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Washer 15127
#22

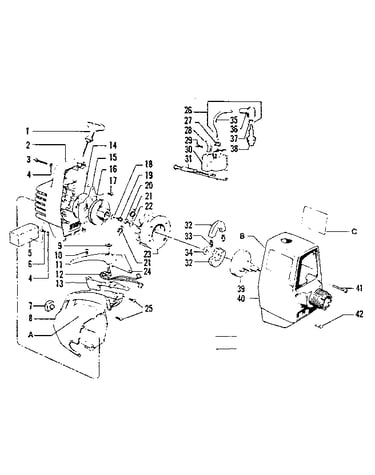

Rope and handle starter diagram

Washer

Part #15127

Replaced by #530015127

?
Manufacturer substitution
This part replaces 15127. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Air Filter 24371
#5

Rope and handle starter diagram

Air filter

Part #24371

Replaced by #530024371

?
Manufacturer substitution
This part replaces 24371. Substitute parts can look different from the original.
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Retainer Ring 15162
#23

Engine diagram

Retainer ring

Part #15162

Replaced by #530015162

?
Manufacturer substitution
This part replaces 15162. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
