Kenmore
Canister Vacuum

Model # 1162839081 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162839081 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Contact Pin 4150715
#6

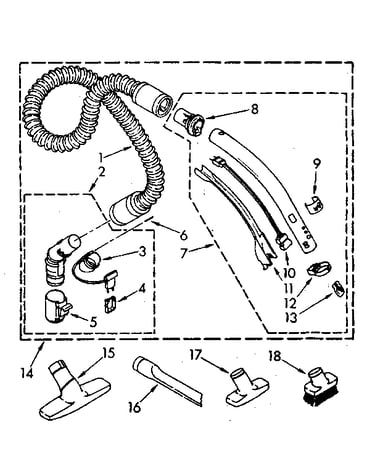

Hose and attachment diagram

Contact pin

Part #4150715

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Receptacle Assembly 4147243
#24

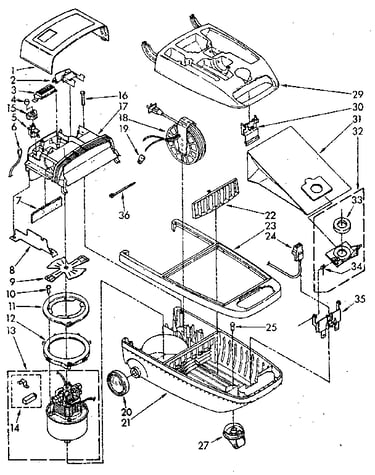

Vacuum cleaner diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4147126
#20

Vacuum cleaner diagram

Vacuum wheel

Part #4147126

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Vacuum cleaner diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 4147694
#18

Vacuum cleaner diagram

Cord reel

Part #4147694

The manufacturer no longer makes this part, and there's no substitute part

Base Bumper 4147118
#23

Vacuum cleaner diagram

Base bumper

Part #4147118

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4147110
#15

Hose and attachment diagram

Floor brush

Part #4147110

The manufacturer no longer makes this part, and there's no substitute part

Mount 706821
#12

Vacuum cleaner diagram

Mount

Part #706821

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4147192
#29

Vacuum cleaner diagram

Canister hood

Part #4147192

The manufacturer no longer makes this part, and there's no substitute part

Hose 4150575
#1

Hose and attachment diagram

Hose

Part #4150575

The manufacturer no longer makes this part, and there's no substitute part
