Model # 13191062 Official Craftsman 20" rotary power lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191062 20" rotary power lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Washer 52160
#19

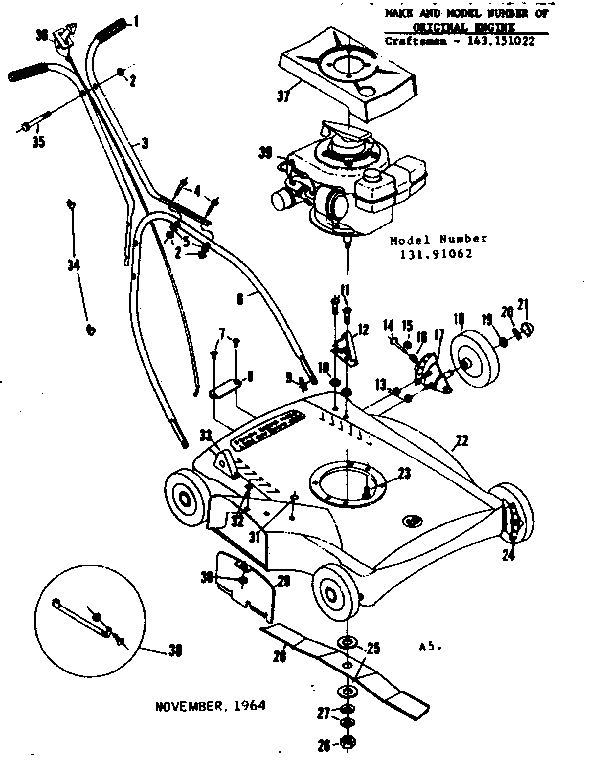

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Wheel Assembly 57521
#18

Replacement parts diagram

Wheel assembly

Part #57521

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 271166
#30

Replacement parts diagram

Stop nut

Part #271166

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 455563
#9

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 9418936
#2

Replacement parts diagram

Lock nut

Part #9418936

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 423561
#23

Replacement parts diagram

Washer screw

Part #423561

The manufacturer no longer makes this part, and there's no substitute part

Wheel Adjustment Assembly 56285
#17

Replacement parts diagram

Wheel adjustment assembly

Part #56285

The manufacturer no longer makes this part, and there's no substitute part

Washer 50885
#25

Replacement parts diagram

Washer

Part #50885

The manufacturer no longer makes this part, and there's no substitute part

Housing-20 56444
#22

Replacement parts diagram

Housing-20

Part #56444

The manufacturer no longer makes this part, and there's no substitute part

Engine, Briggs & Stratton, Model #120k02 N/P
Engine, briggs & stratton, model #120k02

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
