Model # JGBS07PEH2CC Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS07PEH2CC gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

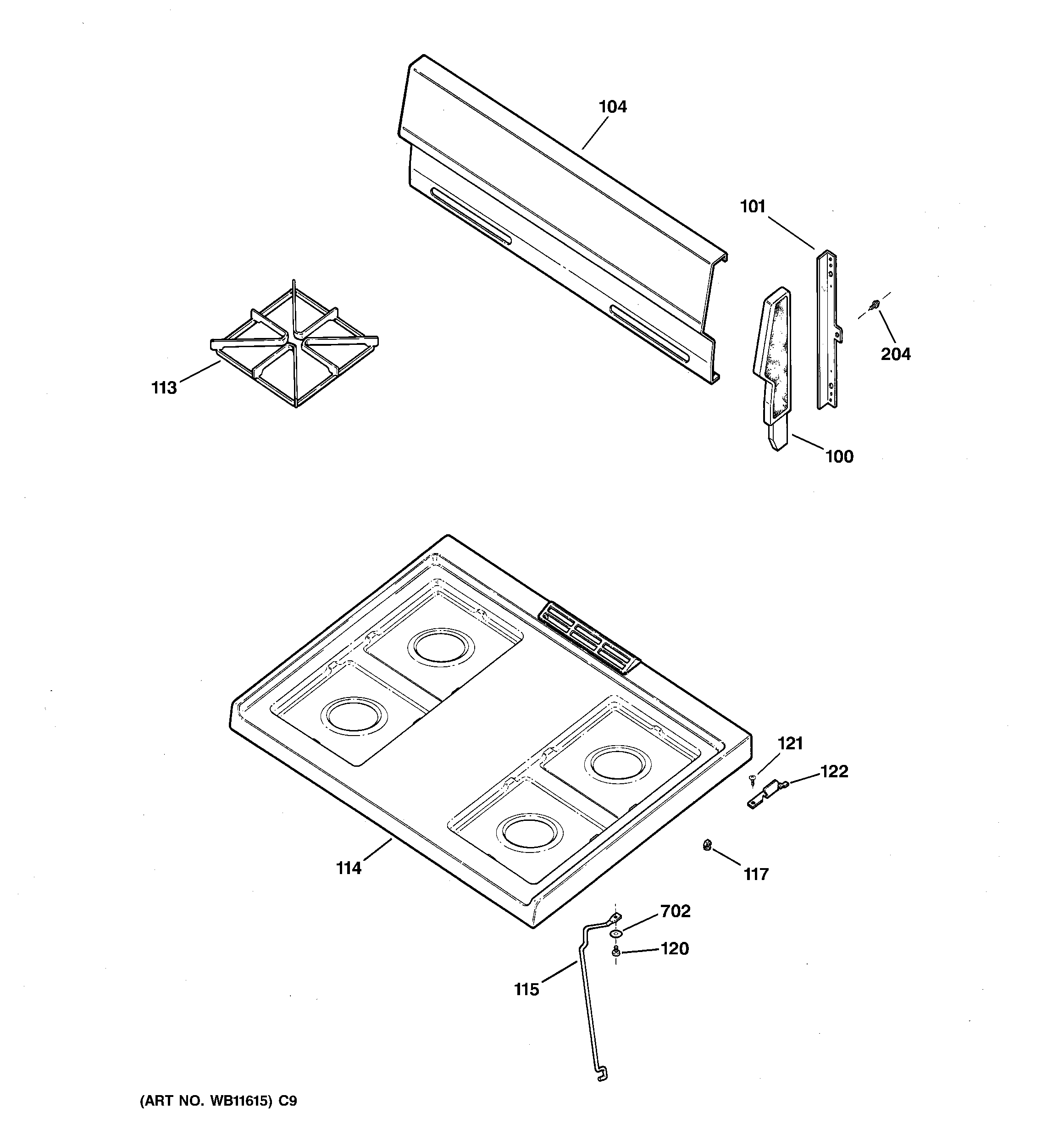

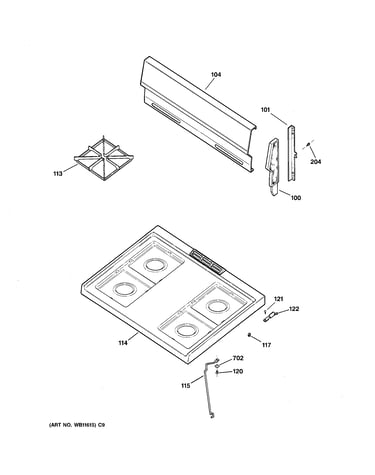

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Bake Burner Ignition WB13K0021
#218

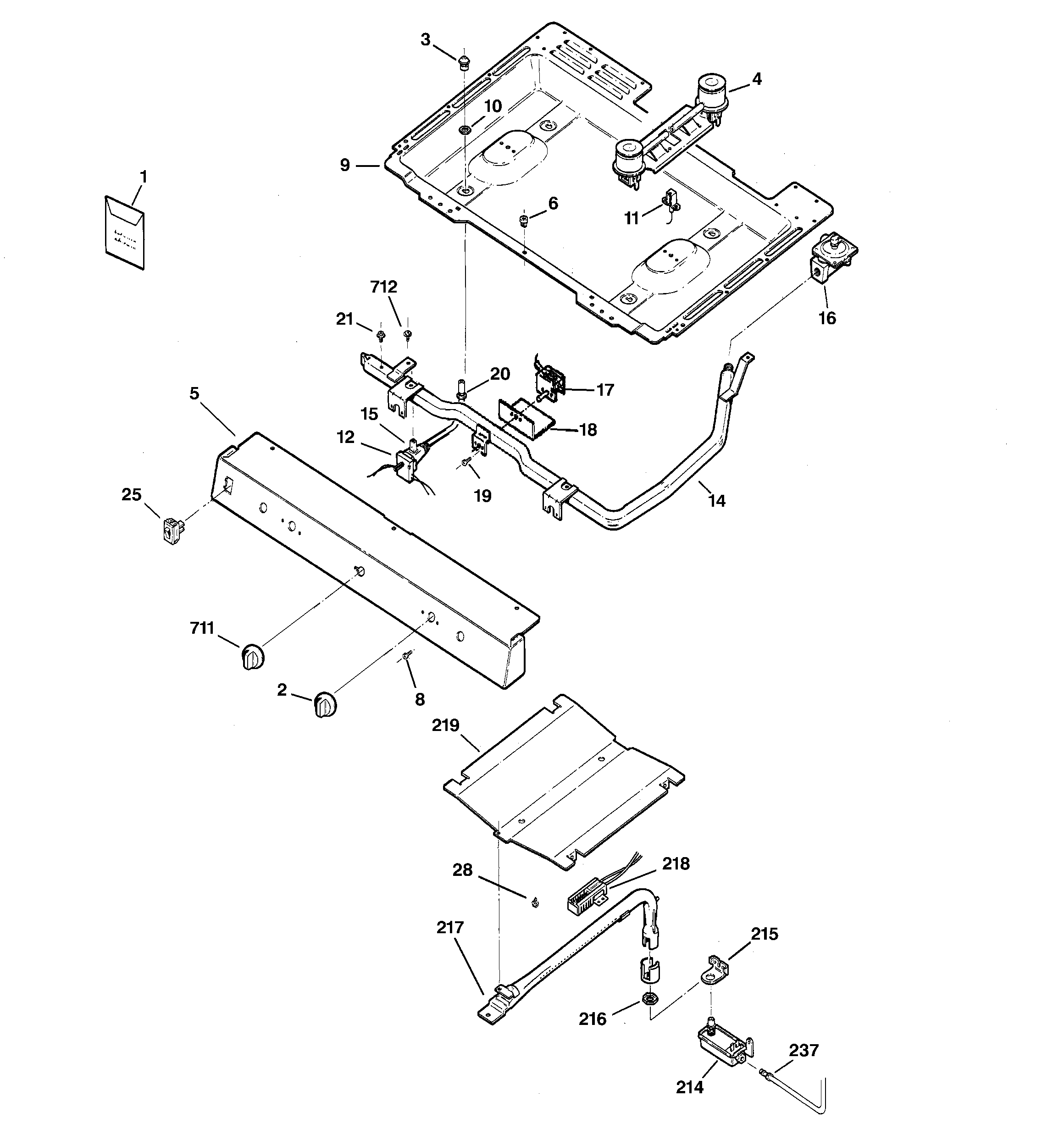

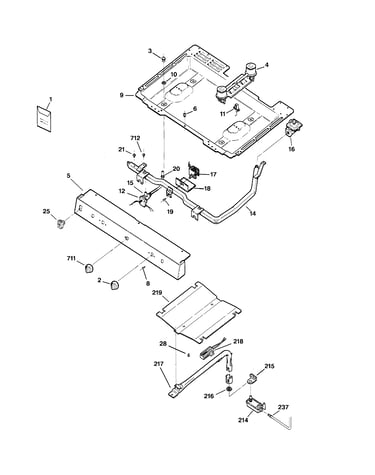

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

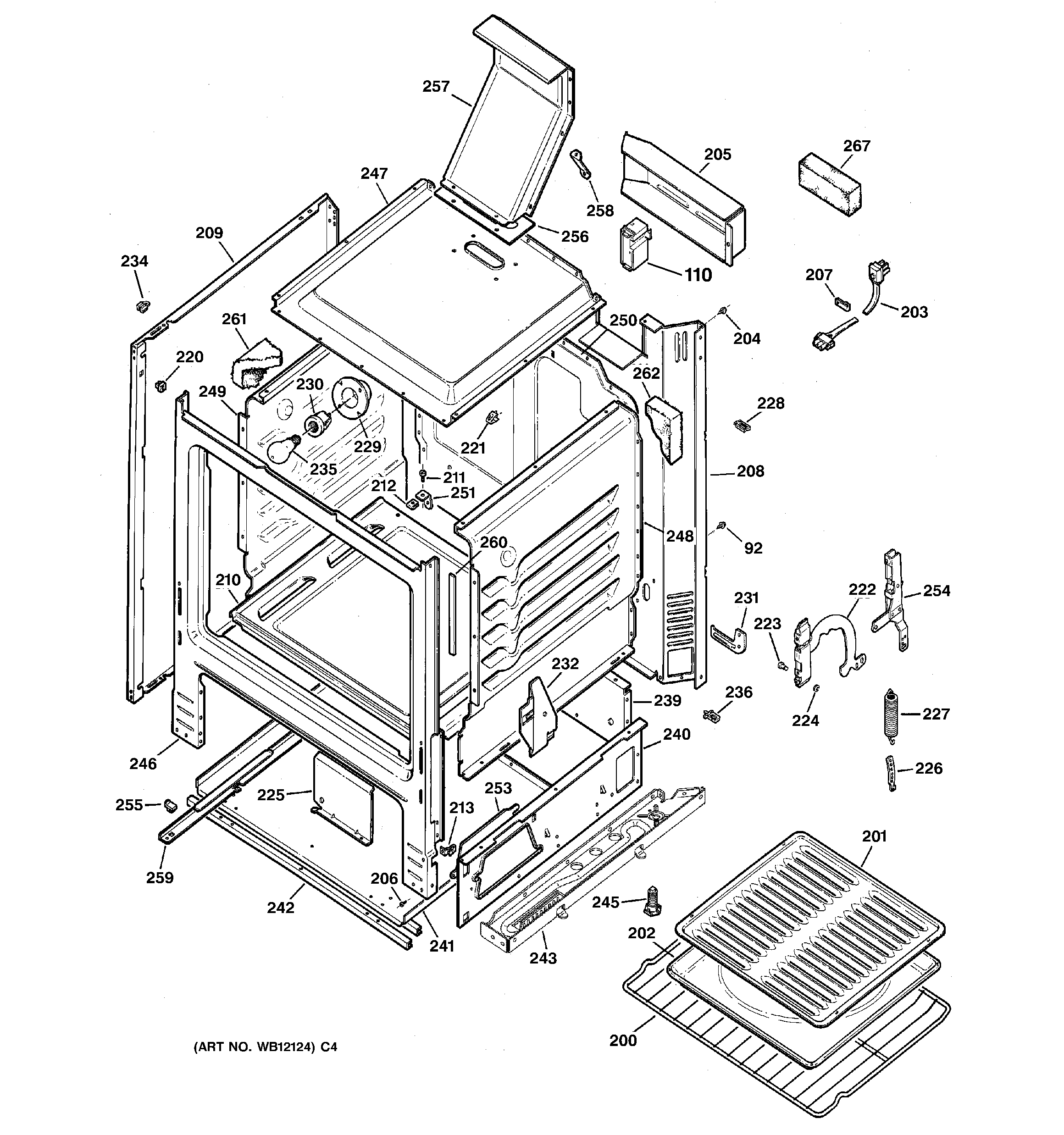

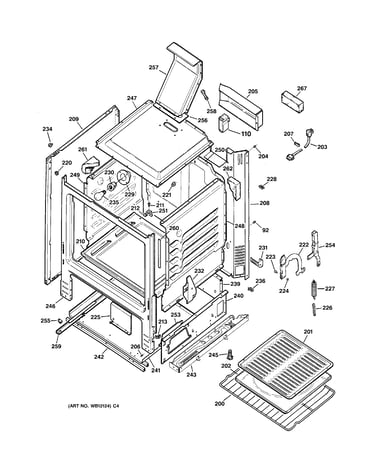

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Door Gasket WB32K0003
#318

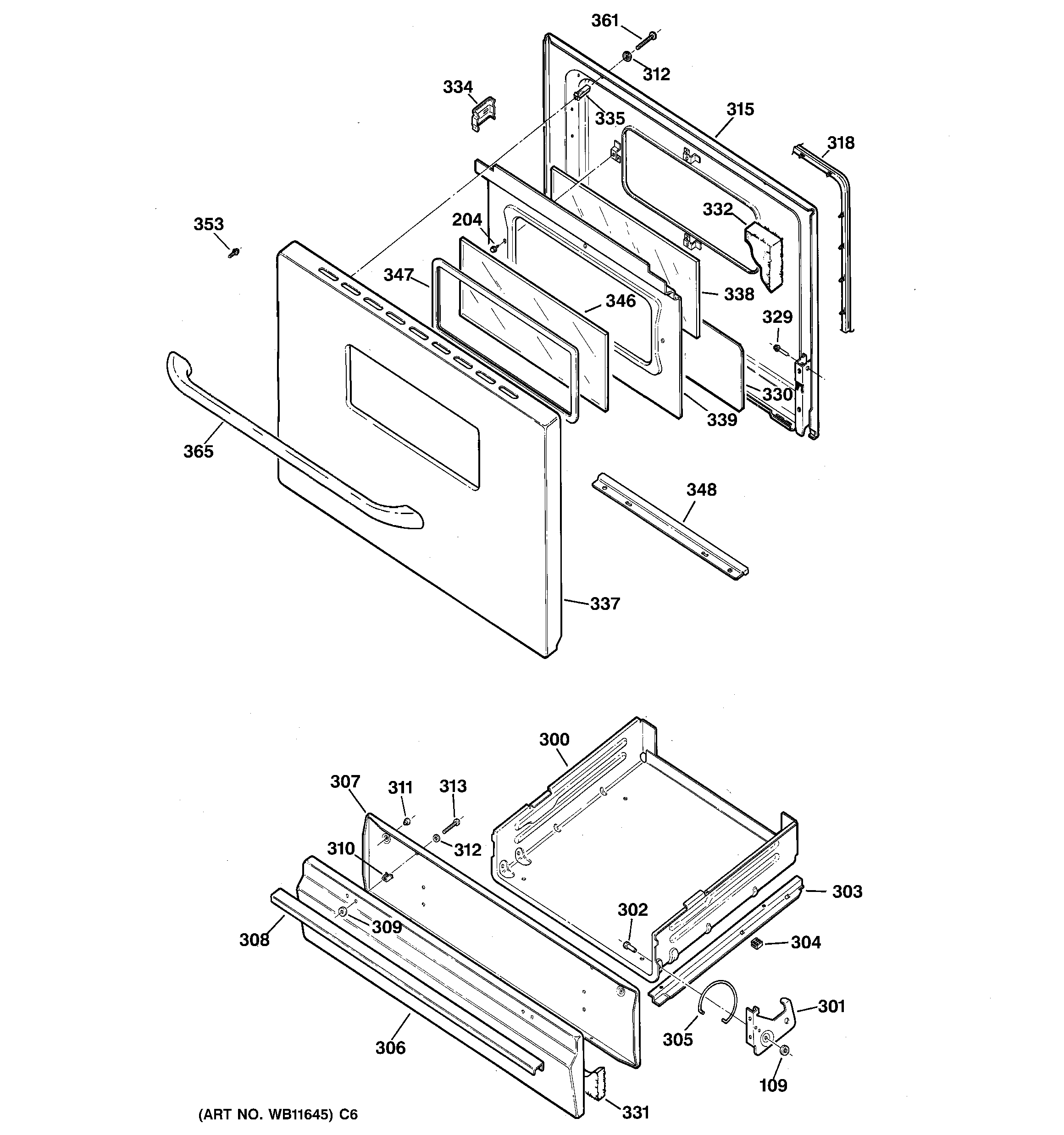

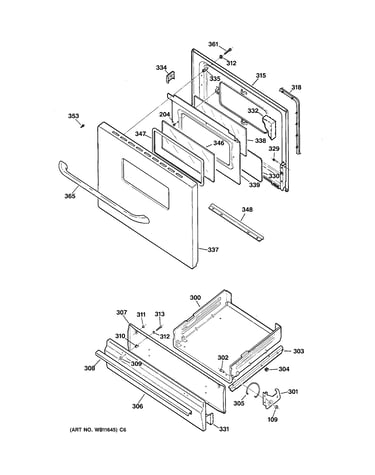

Door & drawer parts diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Oven Rack WB48K5019
#200

Body parts diagram

Oven rack

Part #WB48K5019

Replaced by #WB48T10095

?
Manufacturer substitution
This part replaces WB48K5019. Substitute parts can look different from the original.
$51.46 |
10% OFF Phone Price : $57.46
In Stock
Range Surface Burner Igniter Switch WB24K10017
#12

Gas & burner parts diagram

Range surface burner igniter switch

Part #WB24K10017

$73.14 |
8% OFF Phone Price : $79.14
In Stock
Surface Igniter Burner WB19K0020
#11

Gas & burner parts diagram

Surface igniter burner

Part #WB19K0020

Replaced by #WB18X26988

?
Manufacturer substitution
This part replaces WB19K0020. Substitute parts can look different from the original.
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Range Screw WB01K10002
#8

Gas & burner parts diagram

Range screw

Part #WB01K10002

This item is not returnable
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Line Cord WB18K0007
#203

Body parts diagram

Line cord

Part #WB18K0007

Replaced by #WB18K10036

?
Manufacturer substitution
This part replaces WB18K0007. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Broiler Rack WB48K10008
#201

Body parts diagram

Broiler rack

Part #WB48K10008

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48K10008. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Screw (black) WB01K0042
Screw (black)

Part #WB01K0042

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K0042. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
