GE
Warming Drawer

Model # PTD915SM1SS Official GE warming drawer

Here are the diagrams and repair parts for Official GE PTD915SM1SS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Heating Element WB44X10029
#3

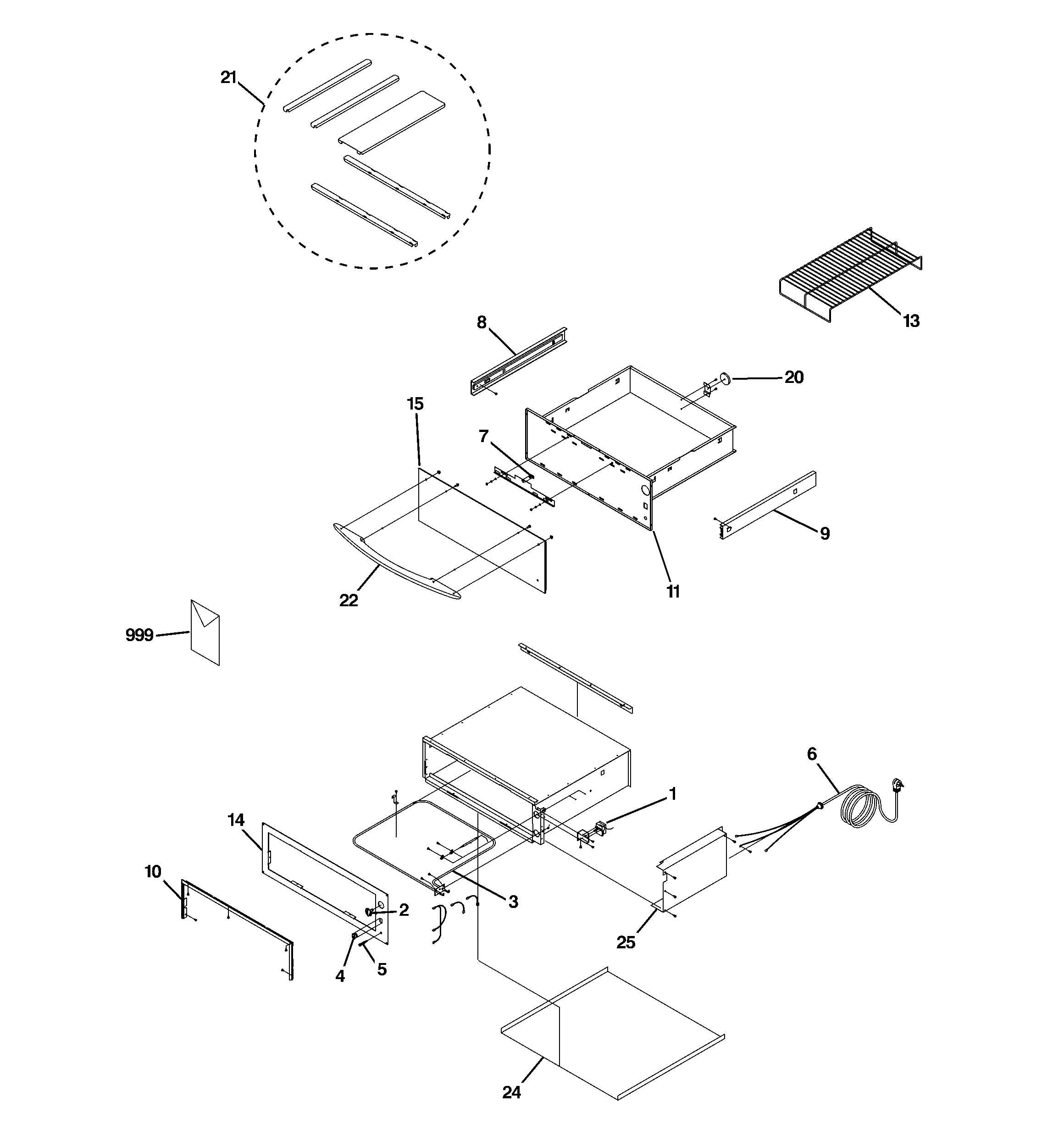

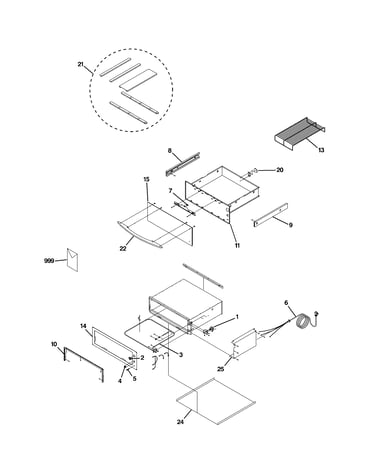

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Cover WB56X10780
#24

Warming drawer diagram

Cover

Part #WB56X10780

$61.50
In Stock
Rail Kit, 30 WB64X10002
#21

Warming drawer diagram

Rail kit, 30

Part #WB64X10002

Replaced by #WB64X10032

?
Manufacturer substitution
This part replaces WB64X10002. Substitute parts can look different from the original.
$248.70
In Stock
Handle Profile WB15T10160
#22

Warming drawer diagram

Handle profile

Part #WB15T10160

Replaced by #WB15T10192

?
Manufacturer substitution
This part replaces WB15T10160. Substitute parts can look different from the original.
$173.19 |
6% OFF Phone Price : $185.19
In Stock
Magnet WB02X11339
#20

Warming drawer diagram

Magnet

Part #WB02X11339

The manufacturer no longer makes this part, and there's no substitute part

Wire Rack WB48X10045
#13

Warming drawer diagram

Wire rack

Part #WB48X10045

The manufacturer no longer makes this part, and there's no substitute part

Drawer Frame WB58X10020
#11

Warming drawer diagram

Drawer frame

Part #WB58X10020

The manufacturer no longer makes this part, and there's no substitute part

Knob, Vent S WB03X10061
#7

Warming drawer diagram

Knob, vent s

Part #WB03X10061

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB02X10588
#6

Warming drawer diagram

Power cord

Part #WB02X10588

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WB20X10011
#1

Warming drawer diagram

Thermostat

Part #WB20X10011

The manufacturer no longer makes this part, and there's no substitute part
