Model # PUY-A36NHA-BS Official Mitsubishi split-system outdoor unit

Here are the diagrams and repair parts for Official Mitsubishi PUY-A36NHA-BS split-system outdoor unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Switch,hp T7WE05208
#NI

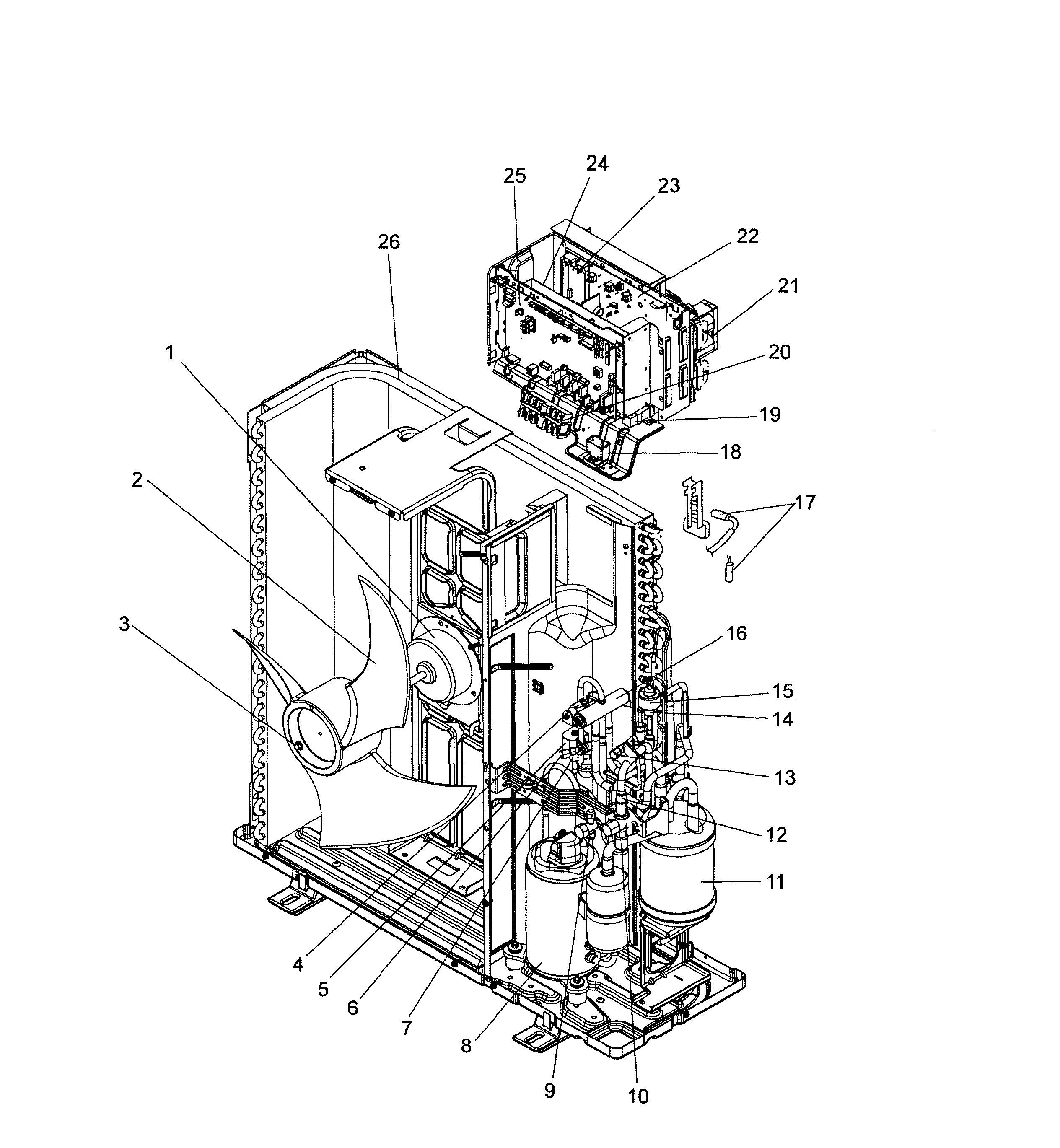

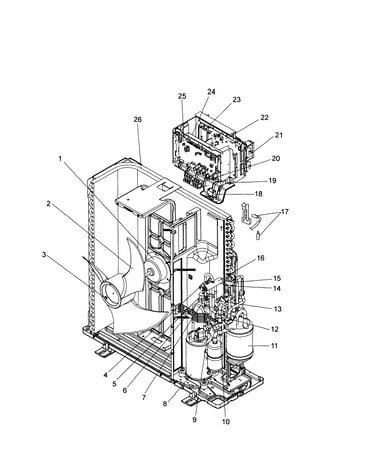

Functional parts diagram

Switch,hp

Part #T7WE05208

The manufacturer no longer makes this part, and there's no substitute part

Strainer R01E03450
#12

Functional parts diagram

Strainer

Part #R01E03450

The manufacturer no longer makes this part, and there's no substitute part

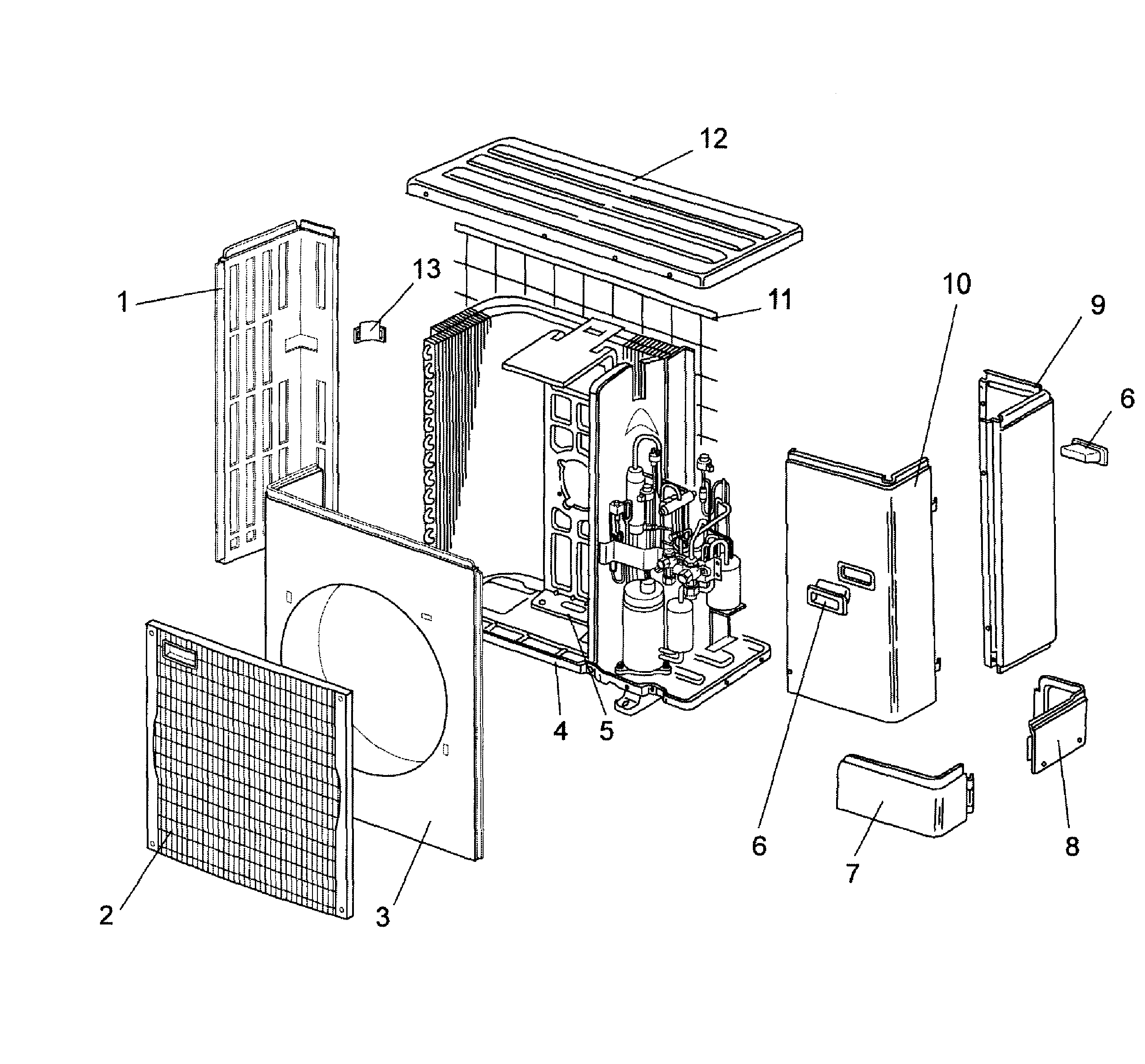

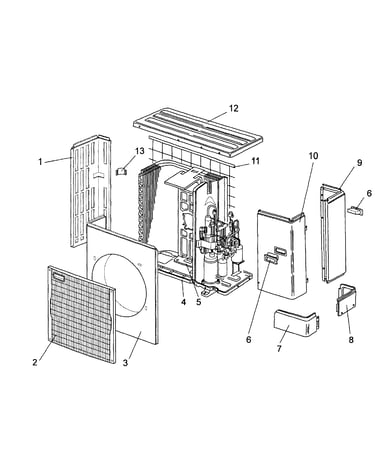

Front Panel T7WE01667
#3

Cabinet parts diagram

Front panel

Part #T7WE01667

The manufacturer no longer makes this part, and there's no substitute part

Thermistor R0117T201
#NI

Functional parts diagram

Thermistor

Part #R0117T201

The manufacturer no longer makes this part, and there's no substitute part

Fan Grille T7WE02691
#2

Cabinet parts diagram

Fan grille

Part #T7WE02691

The manufacturer no longer makes this part, and there's no substitute part

Ser Panel T7WE07668
#10

Cabinet parts diagram

Ser panel

Part #T7WE07668

The manufacturer no longer makes this part, and there's no substitute part

Resistor T7WE01234
#19

Functional parts diagram

Resistor

Part #T7WE01234

The manufacturer no longer makes this part, and there's no substitute part

Cap 3.5mf T7WE06255
#18

Functional parts diagram

Cap 3.5mf

Part #T7WE06255

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor T7WE28763
#1

Functional parts diagram

Central air conditioner condenser fan motor

Part #T7WE28763

The manufacturer no longer makes this part, and there's no substitute part

Thermistor R01E65202
#NI

Functional parts diagram

Thermistor

Part #R01E65202

The manufacturer no longer makes this part, and there's no substitute part
