Model # CDC550CL-P1188329W Official Caloric dishwasher

Here are the diagrams and repair parts for Official Caloric CDC550CL-P1188329W dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

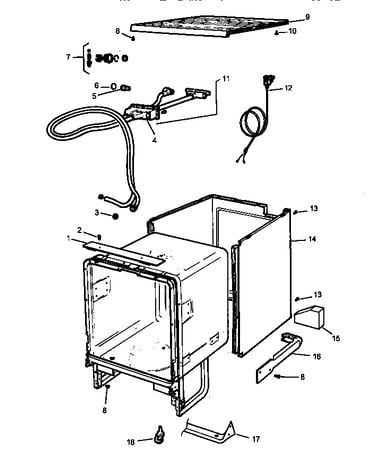

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Impeller R0905519
#23

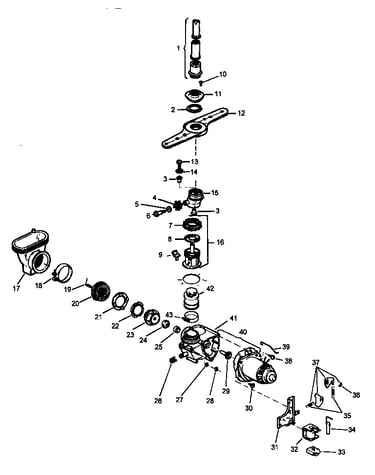

Motor pump/water distribution components diagram

Impeller

Part #R0905519

The manufacturer no longer makes this part, and there's no substitute part

Support Arm R0901009
#16

Motor pump/water distribution components diagram

Support arm

Part #R0901009

The manufacturer no longer makes this part, and there's no substitute part

Nut R0901004
#7

Motor pump/water distribution components diagram

Nut

Part #R0901004

The manufacturer no longer makes this part, and there's no substitute part

Screw R0900001
Screw

Part #R0900001

The manufacturer no longer makes this part, and there's no substitute part

Trim Side Door R0905722
#27

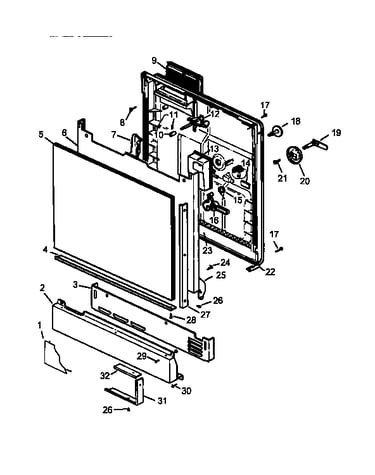

Door assembly diagram

Trim side door

Part #R0905722

The manufacturer no longer makes this part, and there's no substitute part

Grader, Nut R0905563
#20

Motor pump/water distribution components diagram

Grader, nut

Part #R0905563

The manufacturer no longer makes this part, and there's no substitute part

Switch Pushbutton R0902530
#7

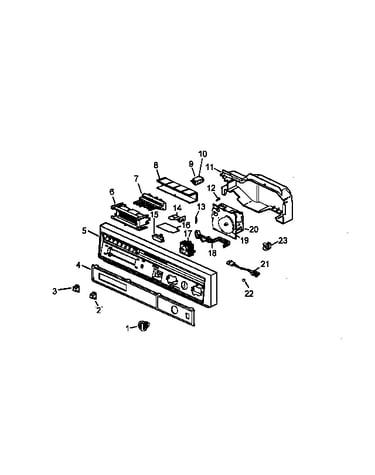

Control panel assembly diagram

Switch pushbutton

Part #R0902530

The manufacturer no longer makes this part, and there's no substitute part

Panel Service R0903034
#2

Door assembly diagram

Panel service

Part #R0903034

The manufacturer no longer makes this part, and there's no substitute part

Shaft R0903503
#24

Motor pump/water distribution components diagram

Shaft

Part #R0903503

The manufacturer no longer makes this part, and there's no substitute part

Piston & Nut Assembly R0903586
#42

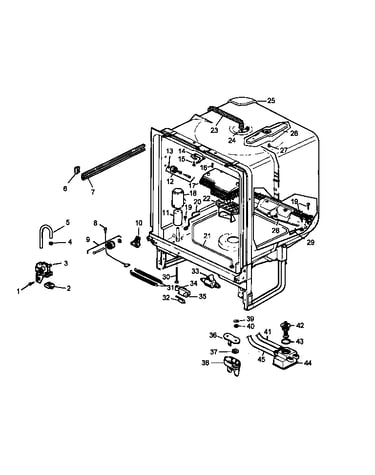

Tub assembly diagram

Piston & nut assembly

Part #R0903586

The manufacturer no longer makes this part, and there's no substitute part
