Model # 60871751 Official Sears 6 & 12-v 1.25-amp battery maintainer combination

Here are the diagrams and repair parts for Official Sears 60871751 6 & 12-v 1.25-amp battery maintainer combination, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

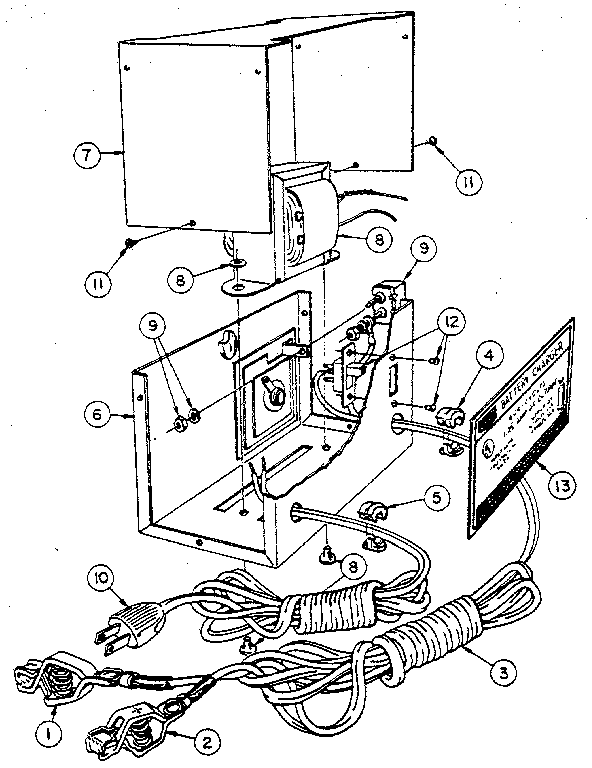

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Case Body 12991
#6

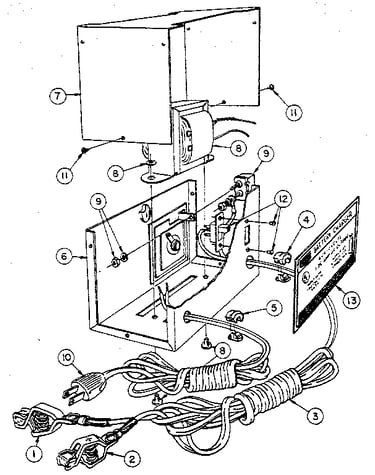

Unit diagram

Case body

Part #12991

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 12999
#13

Unit diagram

Nameplate

Part #12999

The manufacturer no longer makes this part, and there's no substitute part

Relief 450
#4

Unit diagram

Relief

Part #450

The manufacturer no longer makes this part, and there's no substitute part

Case Cover 12992
#7

Unit diagram

Case cover

Part #12992

The manufacturer no longer makes this part, and there's no substitute part

Screw 378
#11

Unit diagram

Screw

Part #378

The manufacturer no longer makes this part, and there's no substitute part

Relief 341
#5

Unit diagram

Relief

Part #341

The manufacturer no longer makes this part, and there's no substitute part

Clip Neg 338
#1

Unit diagram

Clip neg

Part #338

The manufacturer no longer makes this part, and there's no substitute part

Clip Pos 339
#2

Unit diagram

Clip pos

Part #339

The manufacturer no longer makes this part, and there's no substitute part

Output Cord 9380
#3

Unit diagram

Output cord

Part #9380

The manufacturer no longer makes this part, and there's no substitute part

Transformer 12993
#8

Unit diagram

Transformer

Part #12993

The manufacturer no longer makes this part, and there's no substitute part
