Side-By-Side Refrigerator

Model # LSXS26326S/04 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LSXS26326S-04 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Refrigerator Filter Dryer ADH73590310

#317A

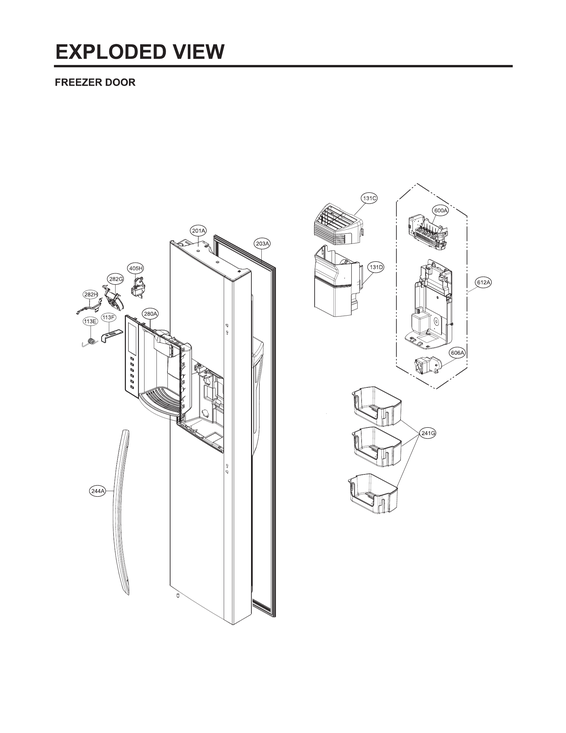

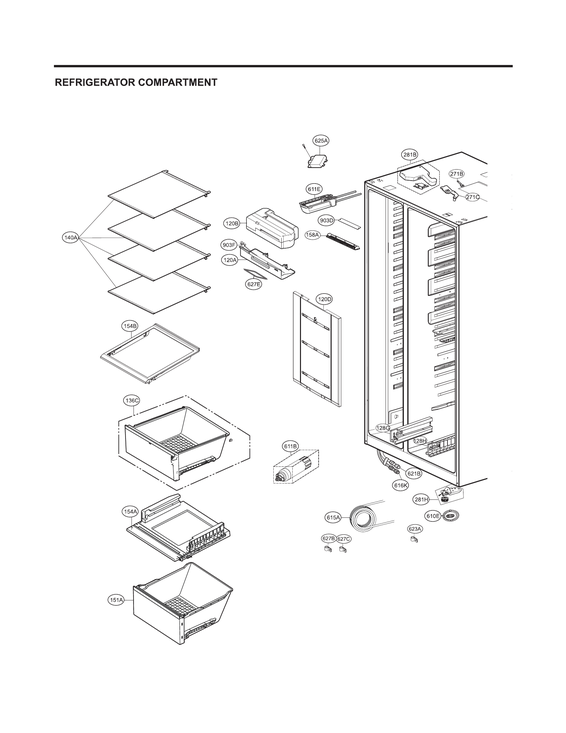

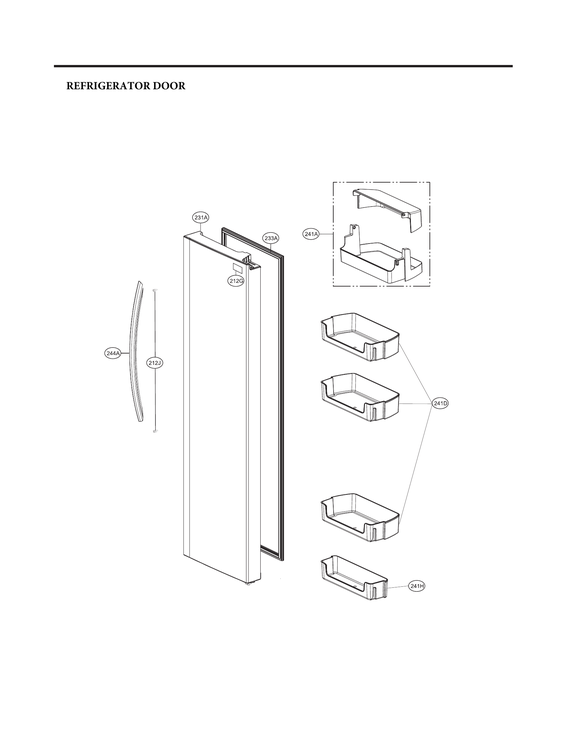

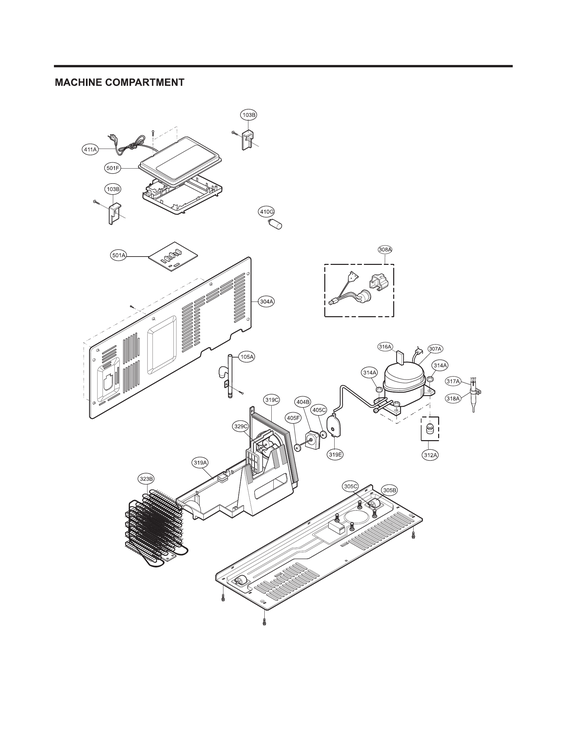

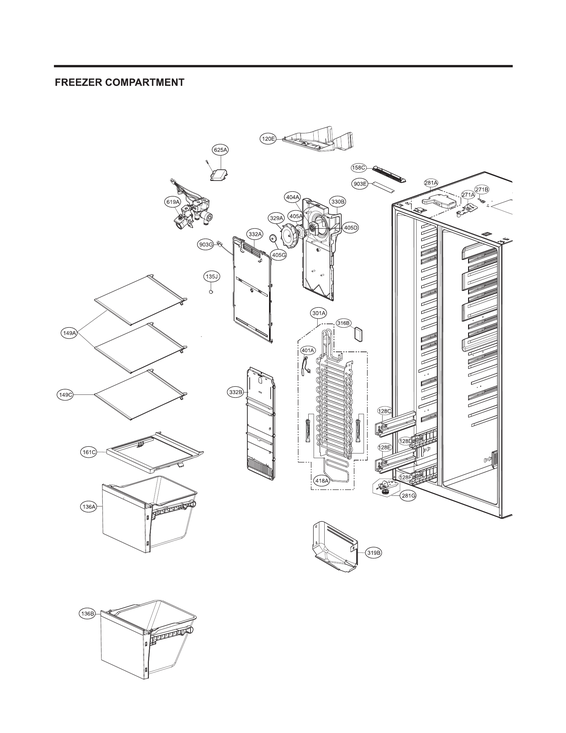

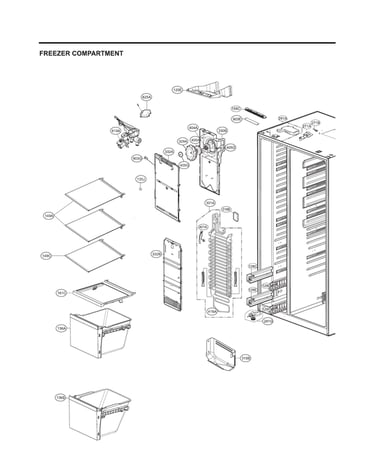

All parts diagram

Refrigerator filter dryer

Part #ADH73590310

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204

#405H

All parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Lg Refrigerator Ice Maker AEQ73209906

#600A

All parts diagram

Lg refrigerator ice maker

Part #AEQ73209906

BEST SELLER
$159.56 |
7% OFF Phone Price : $171.56
In Stock
Refrigerator Condenser Coil (replaces Acg75305701) ACG73748502

#323B

All parts diagram

Refrigerator condenser coil (replaces acg75305701)

Part #ACG73748502

BEST SELLER
$124.97 |
9% OFF Phone Price : $136.97
In Stock
Refrigerator Evaporator ADL74760901

#301A

All parts diagram

Refrigerator evaporator

Part #ADL74760901

BEST SELLER
$306.80 |
$12.00 OFF Phone Price : $318.80
In Stock
Refrigerator Dispenser Ice Chute Door Hinge Spring 4970JA3011K

#113E

All parts diagram

Refrigerator dispenser ice chute door hinge spring

Part #4970JA3011K

BEST SELLER
$14.75 |
12% OFF Phone Price : $16.75
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A

#314A

All parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Compressor Grommet MCQ66921101

#312A

All parts diagram

Refrigerator compressor grommet

Part #MCQ66921101

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Lg Refrigerator Ice Container (replaces Akc73009301, Akc73009302) AKC73029306

#131D

All parts diagram

Lg refrigerator ice container (replaces akc73009301, akc73009302)

Part #AKC73029306

BEST SELLER
$258.63 |
7% OFF Was : $278.10
In Stock
Refrigerator Defrost Heater 5300JB1114Z

#418A

All parts diagram

Refrigerator defrost heater

Part #5300JB1114Z

BEST SELLER
$78.14 |
7% OFF Phone Price : $84.14
In Stock
