GE
Electric Wall Oven

Model # ZEK938BF6BB Official GE wall oven

Here are the diagrams and repair parts for Official GE ZEK938BF6BB wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

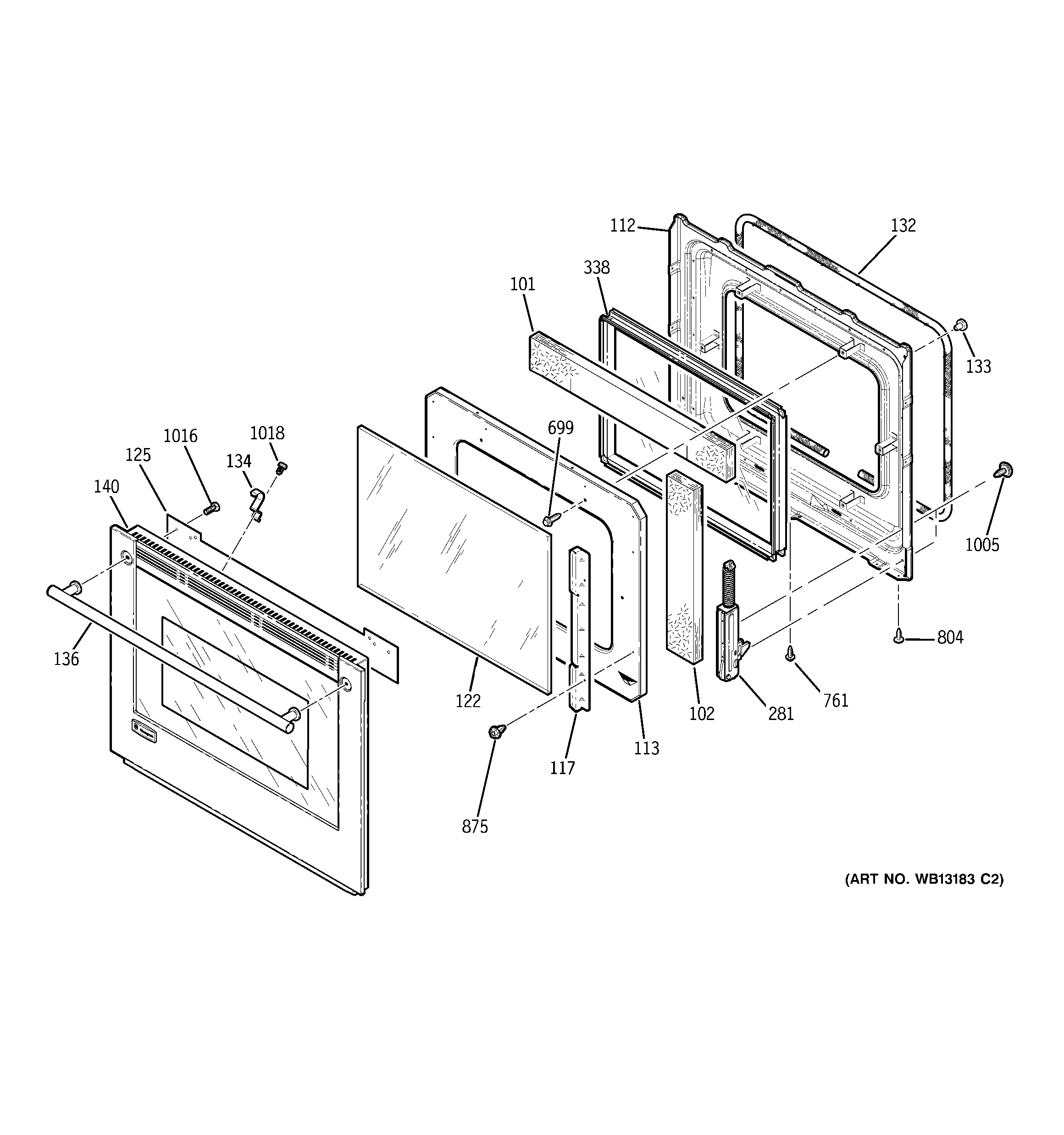

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Wall Oven Cooling Fan Assembly WB26K5061
#32

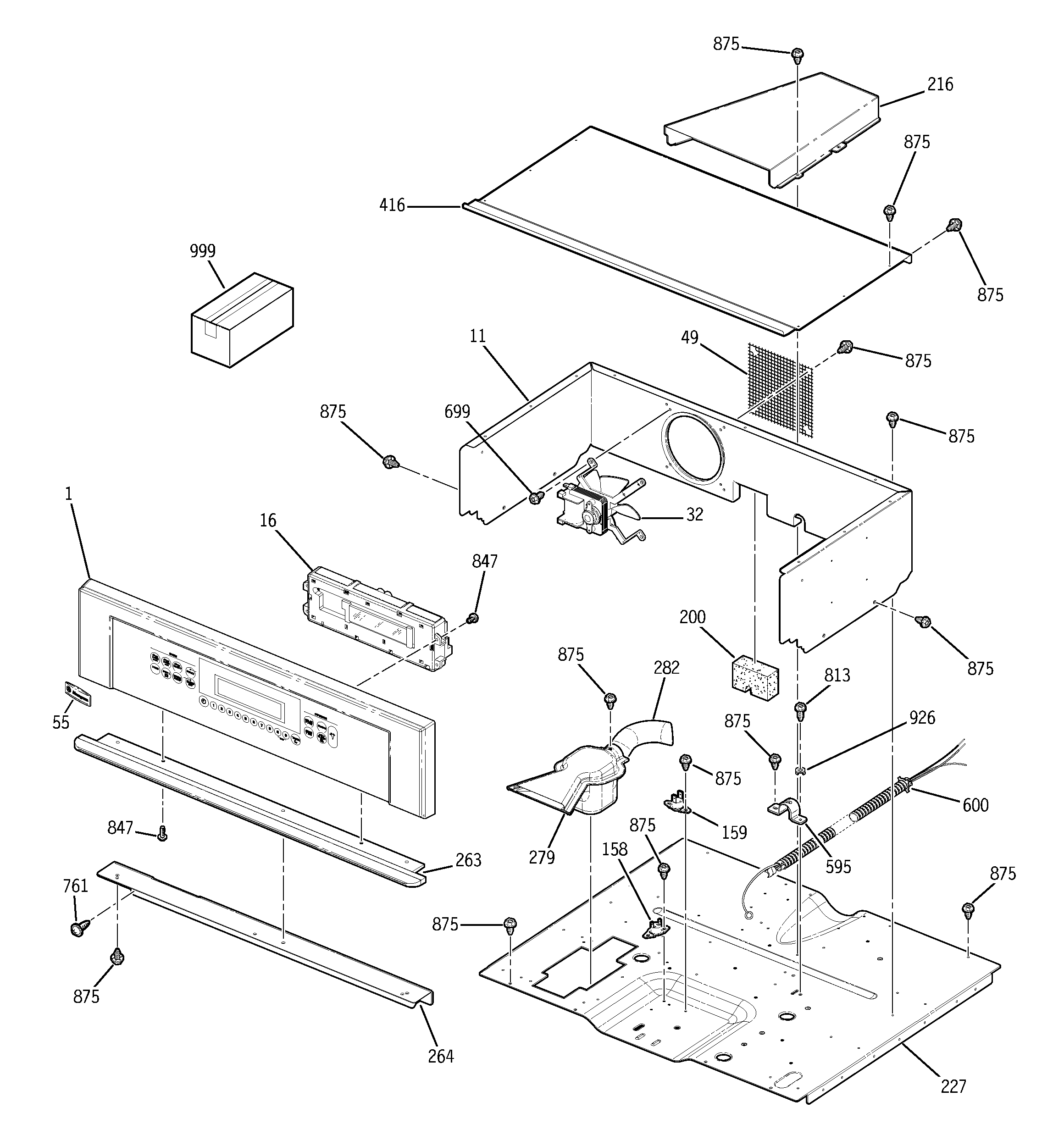

Control panel & cooktop diagram

Wall oven cooling fan assembly

Part #WB26K5061

BEST SELLER
$123.63 |
9% OFF Phone Price : $135.63
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

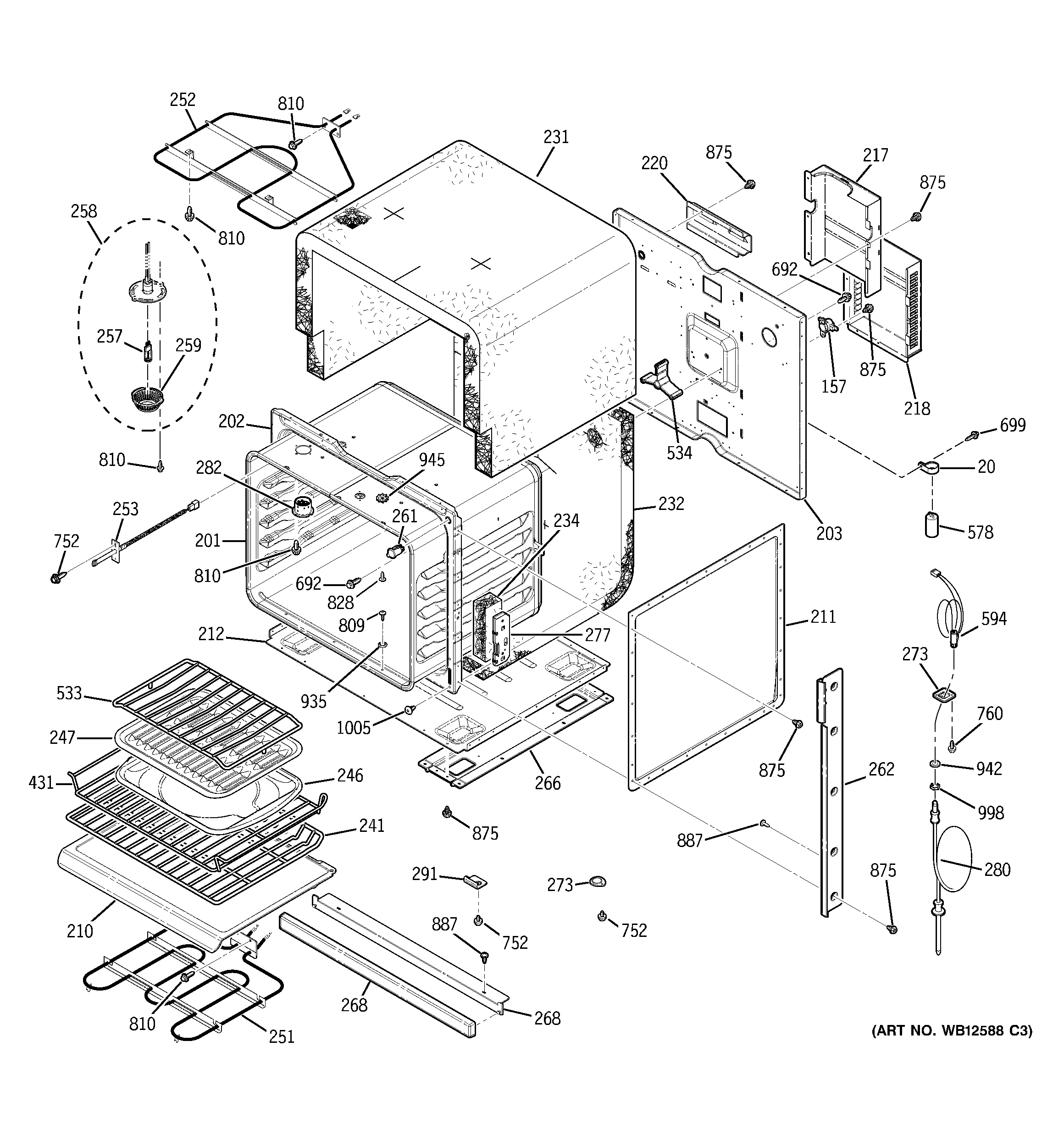

Body parts diagram

Range oven meat probe sensor

Part #WB20T10025

The manufacturer no longer makes this part, and there's no substitute part

Range Broil Element (replaces Wb44t10030) WB44T10051
#252

Body parts diagram

Range broil element (replaces wb44t10030)

Part #WB44T10051

$71.94 |
8% OFF Phone Price : $77.94
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Nut WB02T10017
#977

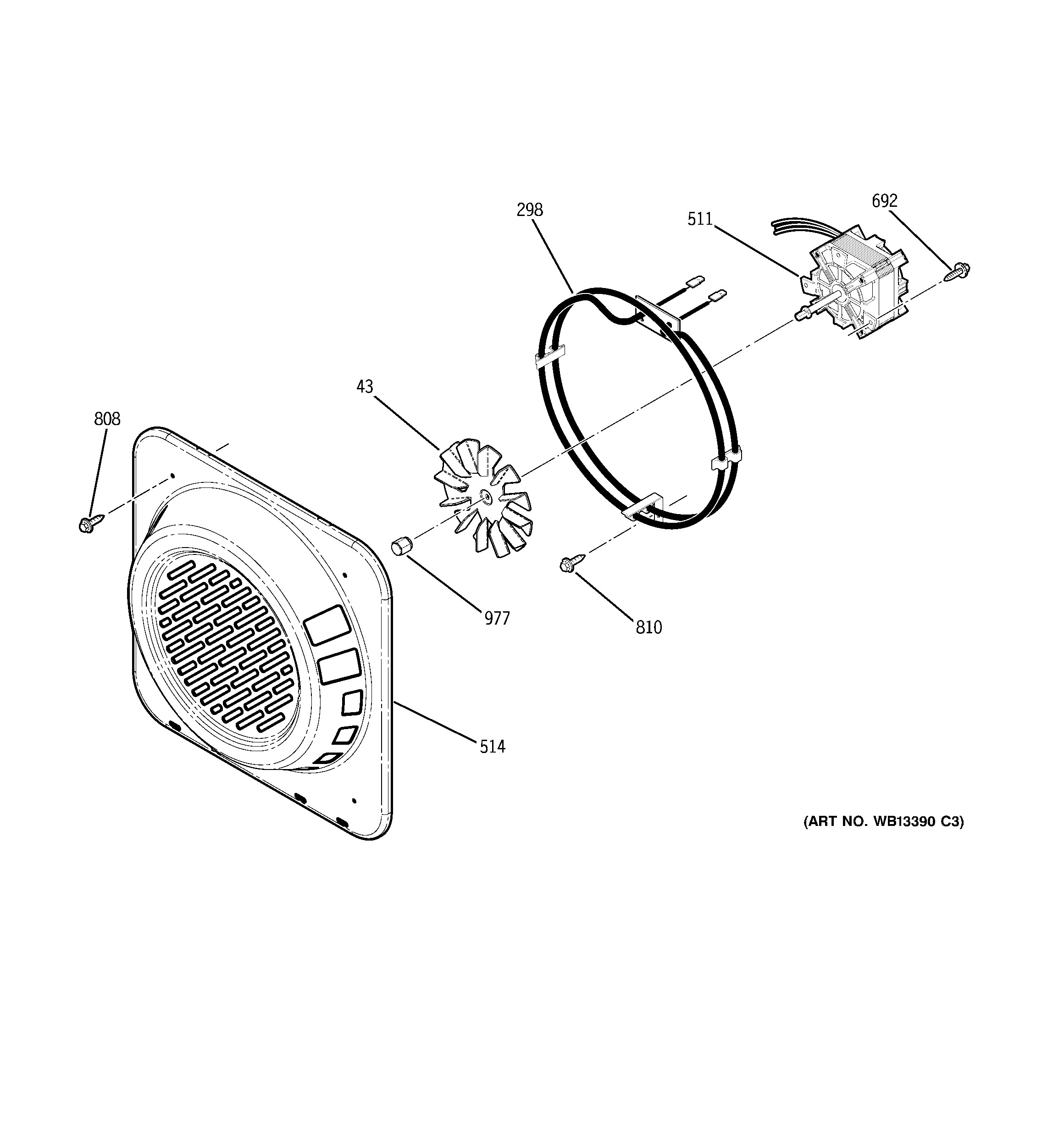

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Screw WB01K5150
Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5028
#760

Body parts diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pan Broil (2 WB48T10006
#247

Body parts diagram

Pan broil (2

Part #WB48T10006

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48T10006. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Grid Broiler Pan WB48T10005
#246

Body parts diagram

Grid broiler pan

Part #WB48T10005

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48T10005. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?
