Whirlpool
Electric Cooktop

Model # WBC31023 Official Whirlpool electric cooktop

Here are the diagrams and repair parts for Official Whirlpool WBC31023 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Range Coil Surface Element, 6-in 660532
#12

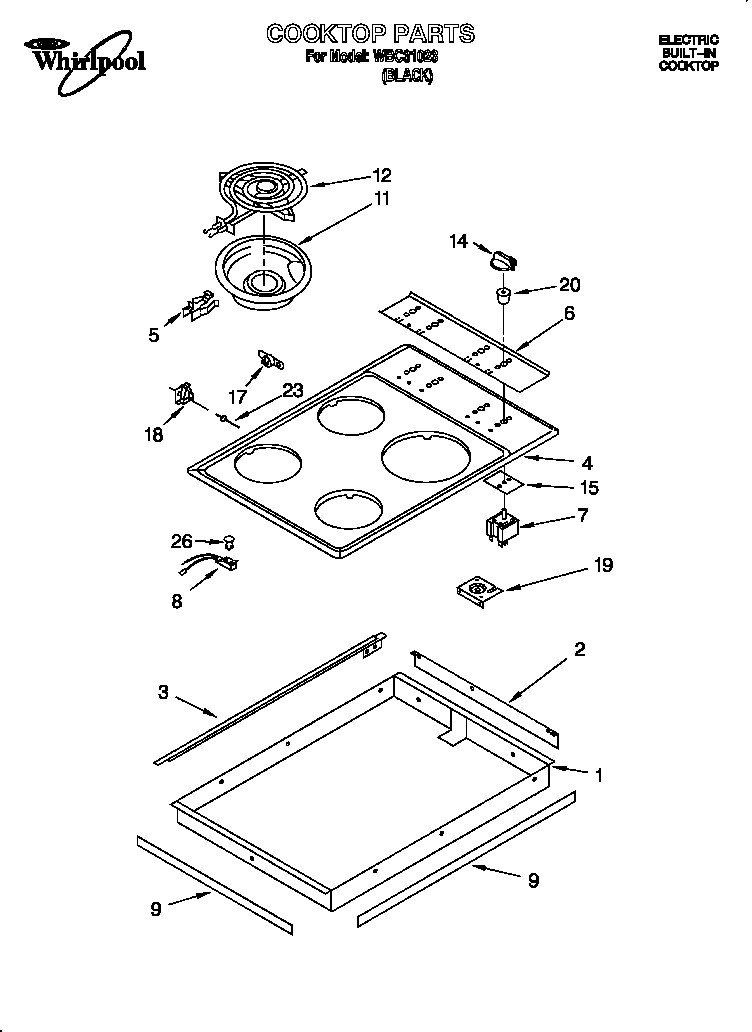

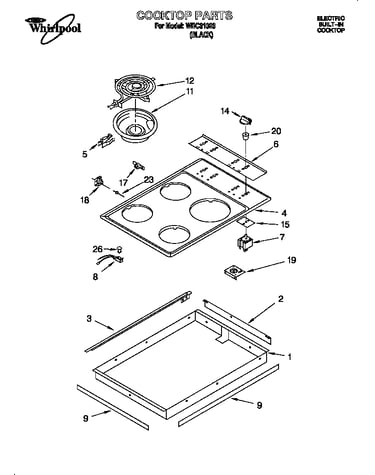

Cooktop diagram

Range coil surface element, 6-in

Part #660532

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 660532. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Range Coil Surface Element, 8-in 660533
#12A

Cooktop diagram

Range coil surface element, 8-in

Part #660533

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 660533. Substitute parts can look different from the original.
$26.68 |
18% OFF Phone Price : $32.68
In Stock
Drip Bowl 3169204
#11A

Cooktop diagram

Drip bowl

Part #3169204

Replaced by #W10290353RW

?
Manufacturer substitution
This part replaces 3169204. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Surface Element 660529
#12B

Cooktop diagram

Surface element

Part #660529

The manufacturer no longer makes this part, and there's no substitute part

Range Burner Control Knob 9750372FF
#14

Cooktop diagram

Range burner control knob

Part #9750372FF

Replaced by #WP9750372FF

?
Manufacturer substitution
This part replaces 9750372FF. Substitute parts can look different from the original.
This item is not returnable
$19.60 |
9% OFF Phone Price : $21.60
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Cooktop Element Control Switch Seal 3183956
#15

Cooktop diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Rivet 3148789
#23

Cooktop diagram

Rivet

Part #3148789

Replaced by #814103

?
Manufacturer substitution
This part replaces 3148789. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
Drip Bowl 3169205
#11B

Cooktop diagram

Drip bowl

Part #3169205

Replaced by #W10290350RW

?
Manufacturer substitution
This part replaces 3169205. Substitute parts can look different from the original.
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Thermostat 3188286
#17

Cooktop diagram

Thermostat

Part #3188286

Replaced by #WP3188286

?
Manufacturer substitution
This part replaces 3188286. Substitute parts can look different from the original.
$41.39 |
13% OFF Phone Price : $47.39
In Stock
