Front-Engine Lawn Tractor

Model # 536255231 Official Craftsman 36" 10-hp lawn tractor with electric start

Here are the diagrams and repair parts for Official Craftsman 536255231 36" 10-hp lawn tractor with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

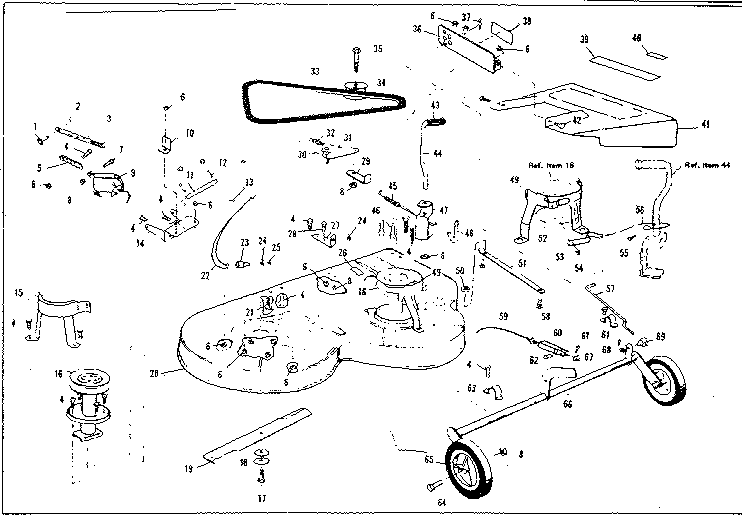

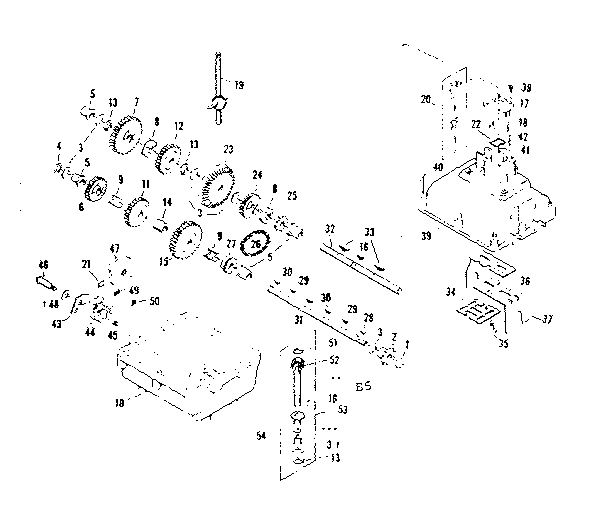

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 300 parts  |
Retaining Ring 36625
Retaining ring

Part #36625

Replaced by #812000029

?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Carriage Bolt 998013
#44

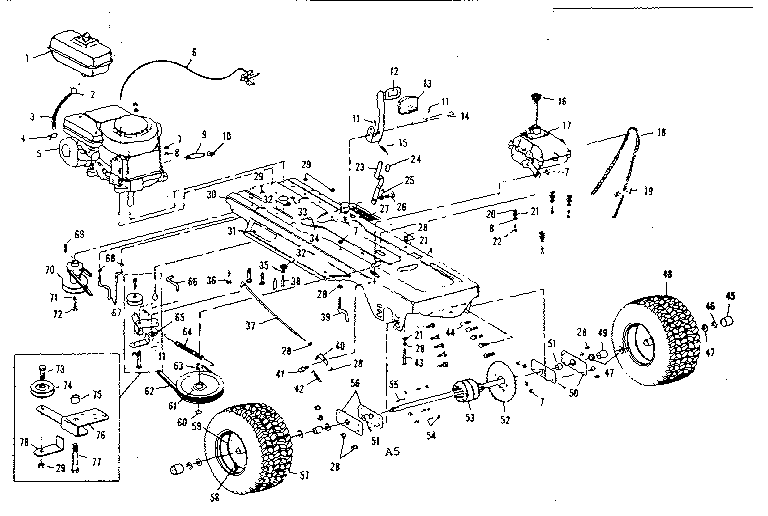

Drive assembly diagram

Carriage bolt

Part #998013

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 47345
#2

Drive assembly diagram

Hose clamp

Part #47345

The manufacturer no longer makes this part, and there's no substitute part

Fuel Clamp 41008
#4

Drive assembly diagram

Fuel clamp

Part #41008

The manufacturer no longer makes this part, and there's no substitute part

Locknut 18 271184
Locknut 18

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 792042
#12

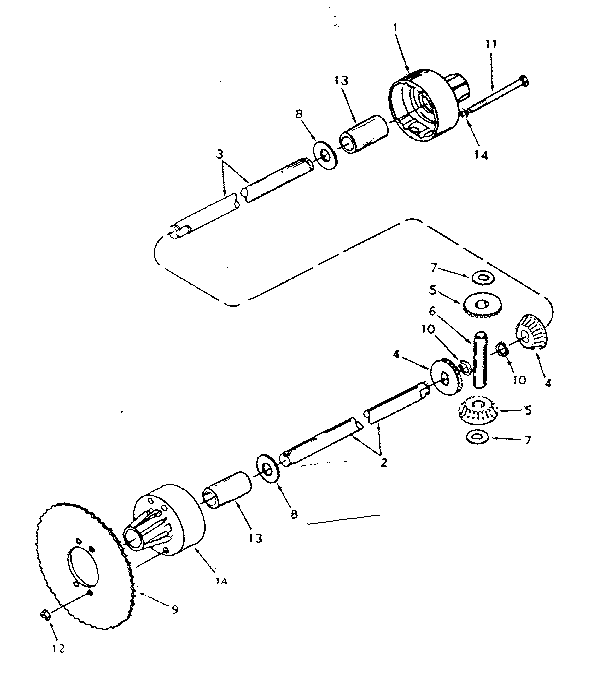

Differential diagram

Lock nut

Part #792042

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9413447
Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Drive Pin 786040
#6

Differential diagram

Drive pin

Part #786040

Replaced by #786040

?
Manufacturer substitution
This part replaces 786040. Substitute parts can look different from the original.
$12.51
In Stock
Switch With Key 44745
#6

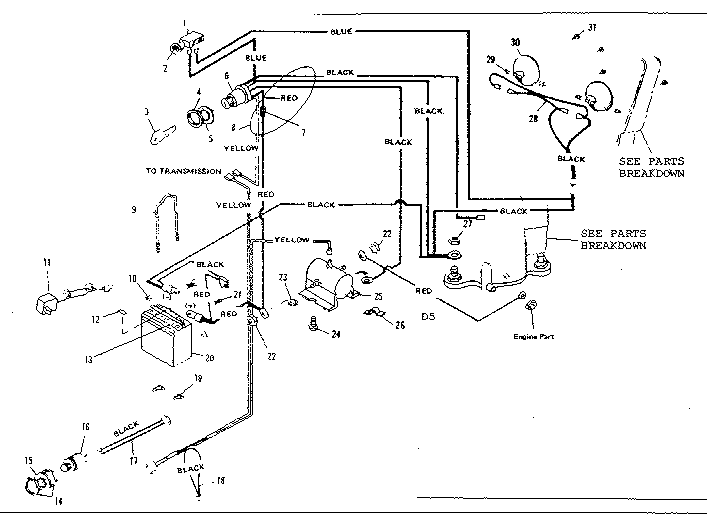

Wiring diagram diagram

Switch with key

Part #44745

Replaced by #421064MA

?
Manufacturer substitution
This part replaces 44745. Substitute parts can look different from the original.
$43.79 |
12% OFF Phone Price : $49.79
In Stock
Carriage Bolt 45892
#58

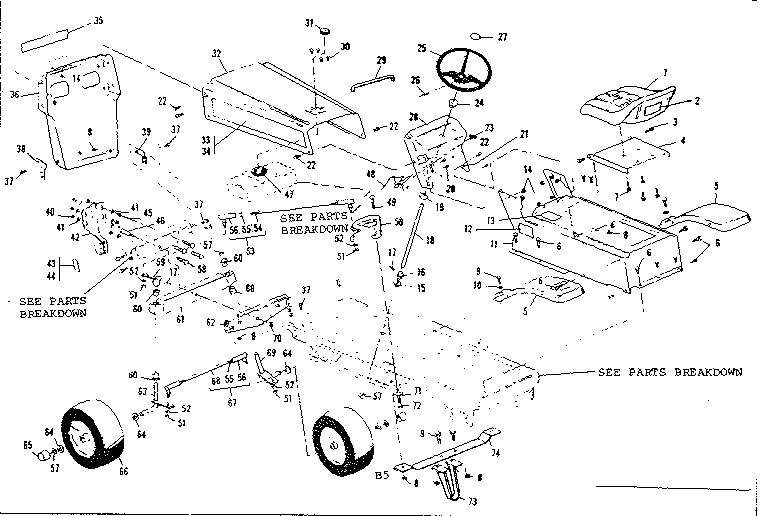

Top half diagram

Carriage bolt

Part #45892

Replaced by #45892MA

?
Manufacturer substitution
This part replaces 45892. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
