KitchenAid
Microwave/Hood Combo

Model # KHMS2040BW2 Official KitchenAid microwave/hood combo

Here are the diagrams and repair parts for Official KitchenAid KHMS2040BW2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

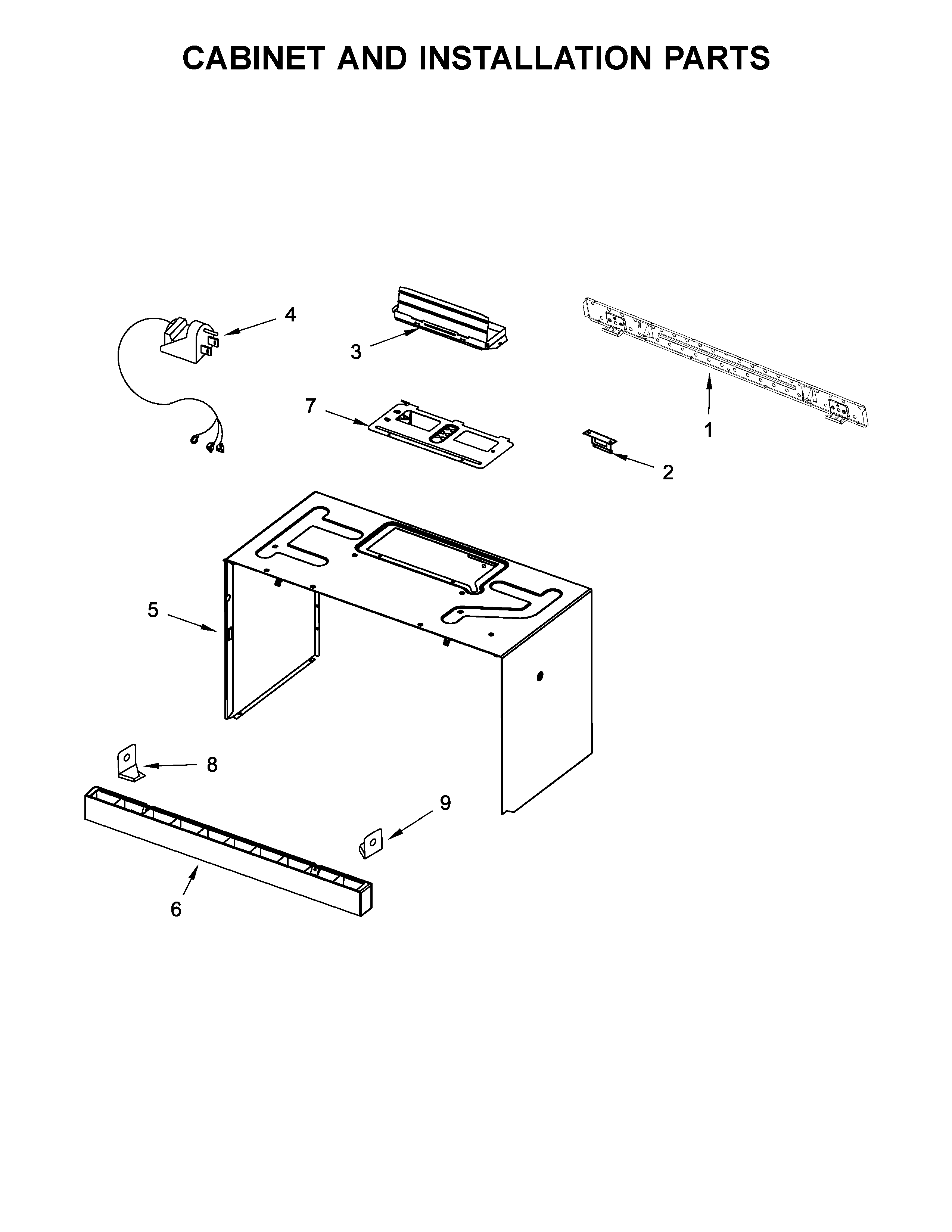

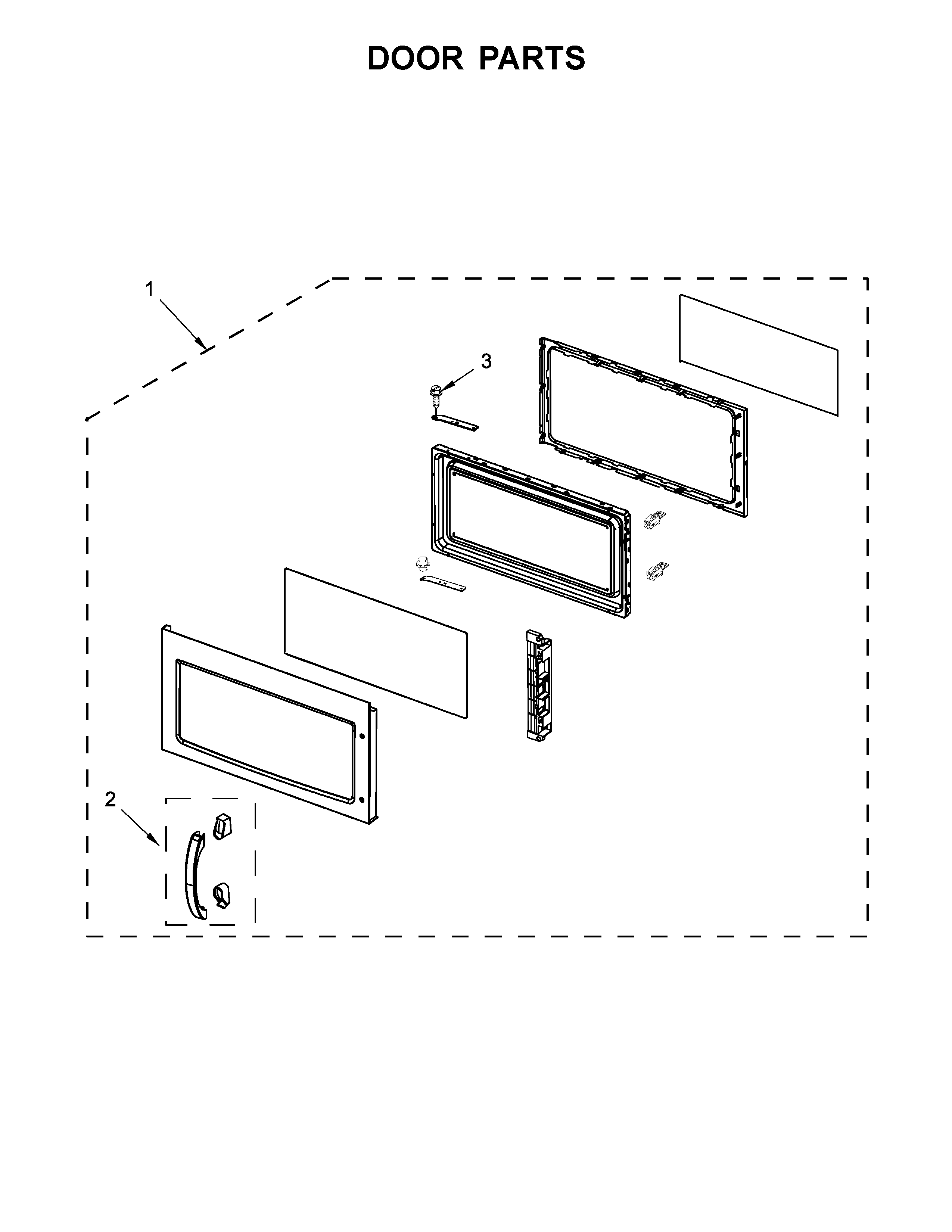

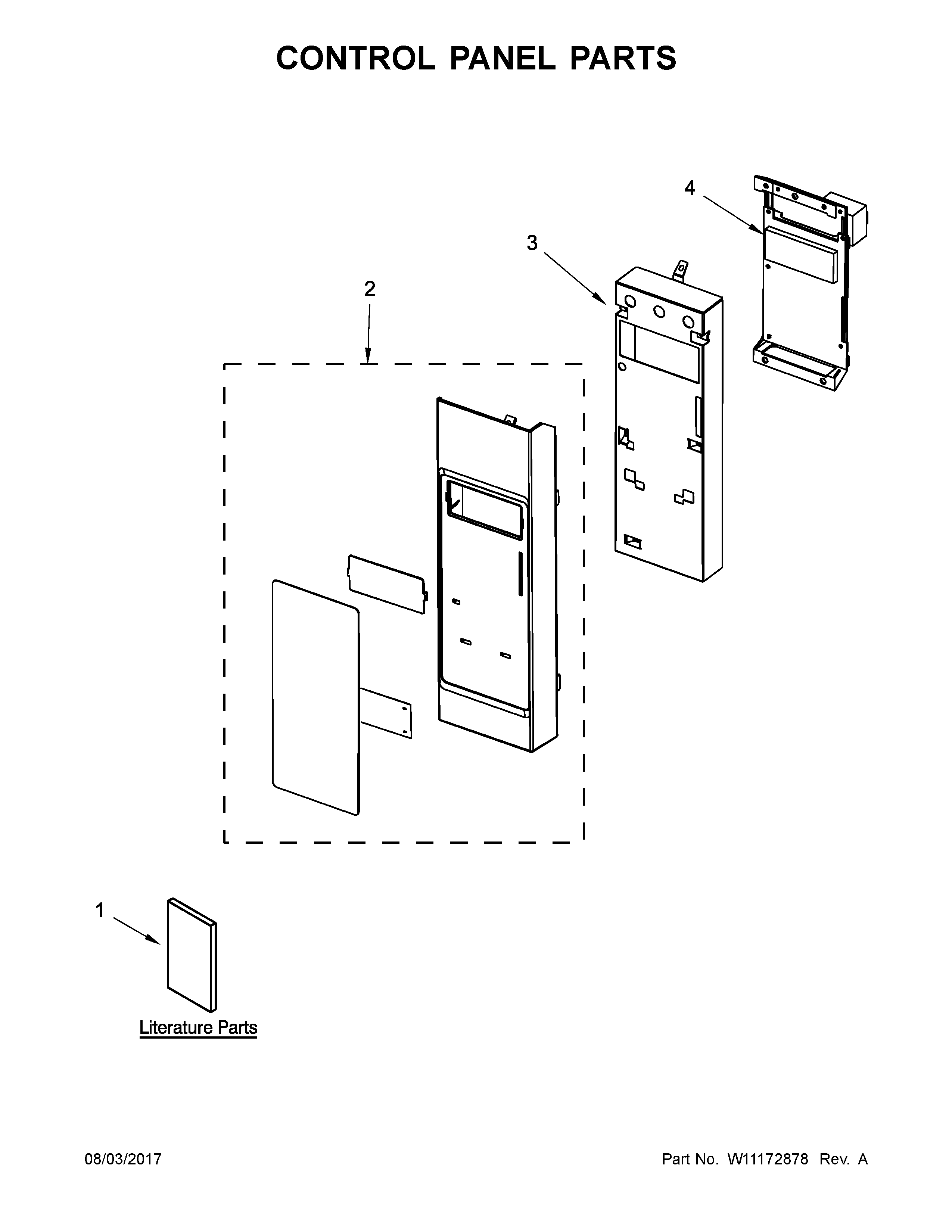

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Microwave High-voltage Diode W10492278
#3

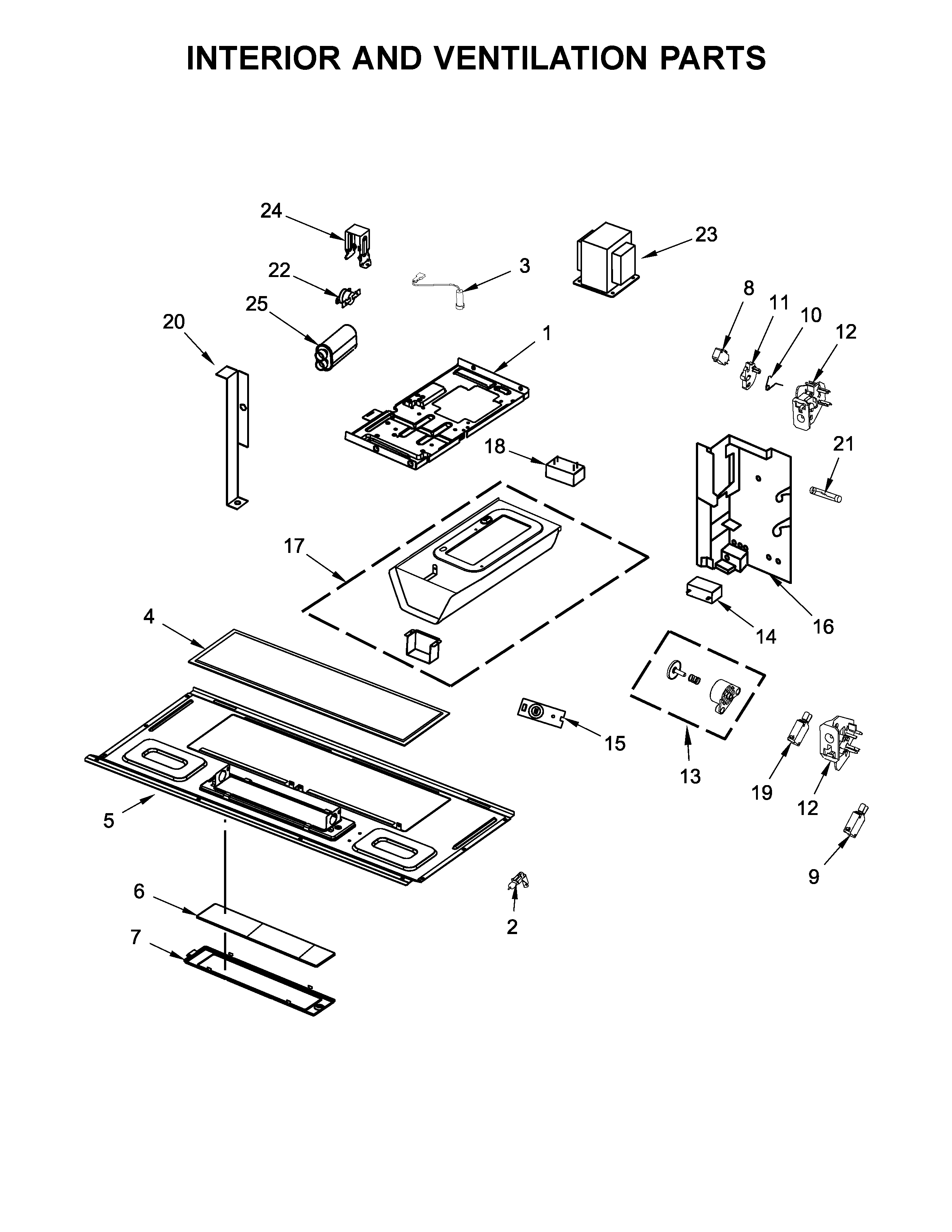

Interior and ventilation parts diagram

Microwave high-voltage diode

Part #W10492278

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10492278. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Door Switch W10269457
#19

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.84 |
17% OFF Phone Price : $5.84
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#9

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$23.43 |
20% OFF Phone Price : $29.43
In Stock
Lamp Assembly 4393681
#4

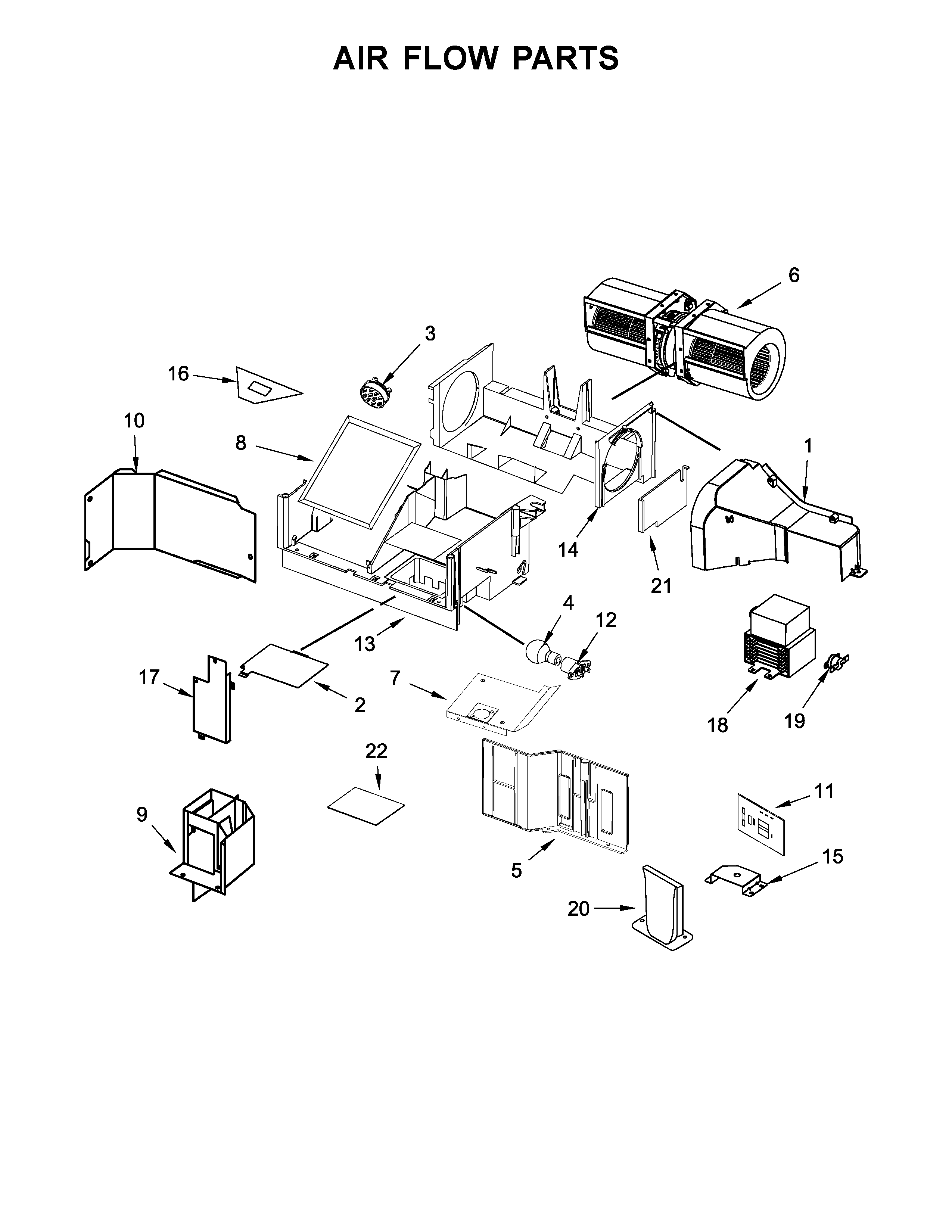

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave Door Interlock Switch W10269460
#8

Interior and ventilation parts diagram

Microwave door interlock switch

Part #W10269460

BEST SELLER
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Filter 8206230
#8

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Microwave Surface Light Bulb (replaces W10208564, W10618217, W10892536, W11414610) W10709921
#2

Interior and ventilation parts diagram

Microwave surface light bulb (replaces w10208564, w10618217, w10892536, w11414610)

Part #W10709921

$15.38 |
12% OFF Phone Price : $17.38
Back Order
Microwave Glass Turntable Tray W10337247
#6

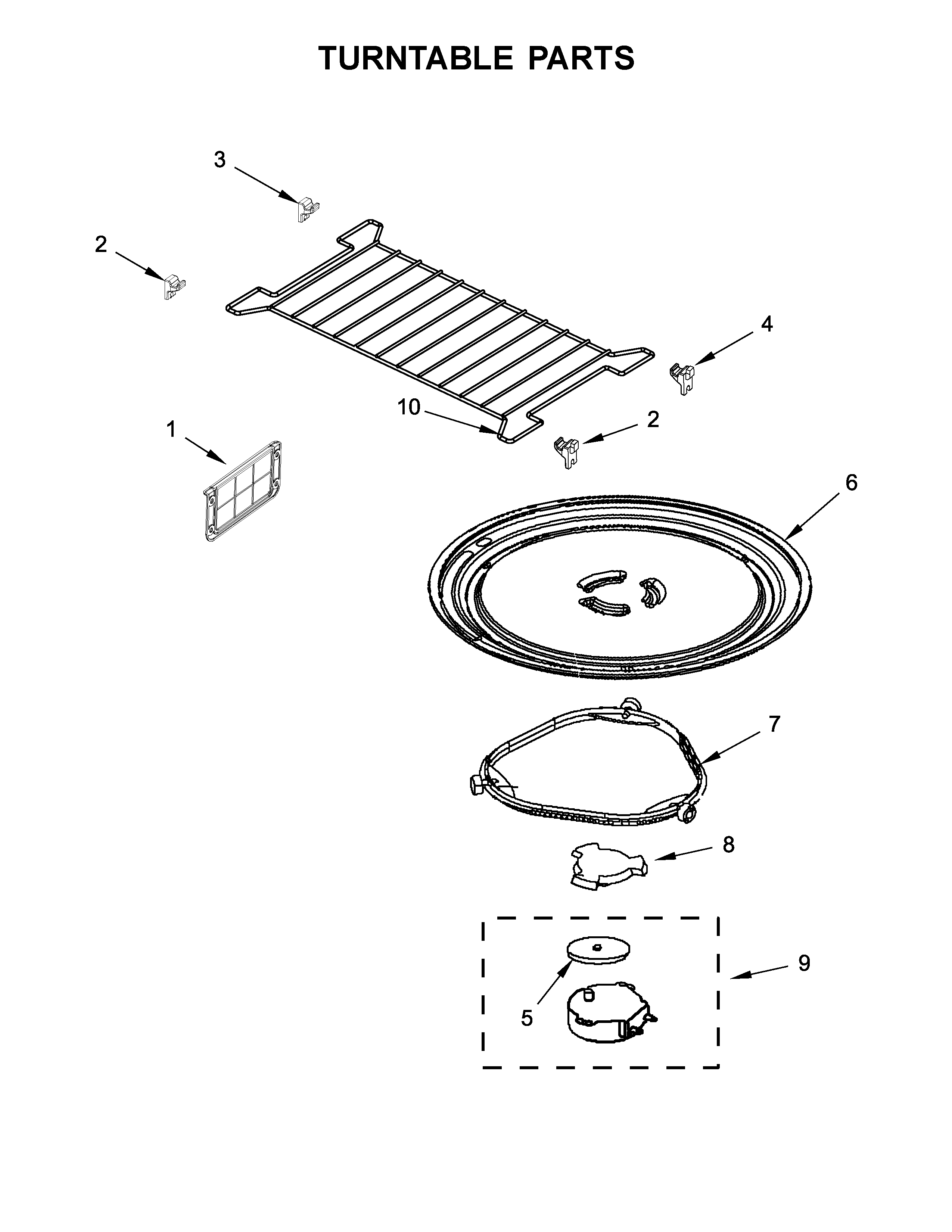

Turntable parts diagram

Microwave glass turntable tray

Part #W10337247

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W10337247. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave Door Interlock Switch Actuator (replaces 8206558) W10197758
#13

Interior and ventilation parts diagram

Microwave door interlock switch actuator (replaces 8206558)

Part #W10197758

$35.20
In Stock
