LXI
Compact Stereo System

Model # 56493261251 Official LXI stereo cassette deck

Here are the diagrams and repair parts for Official LXI 56493261251 stereo cassette deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 4 of 4 parts  |
Panel 46-21915-3

#67

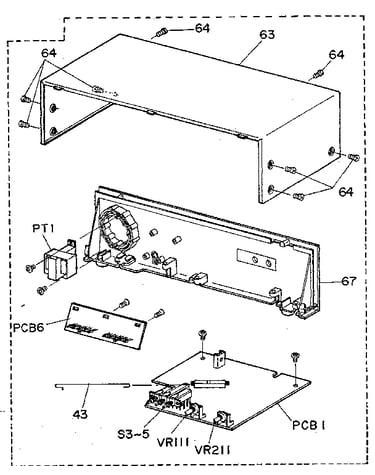

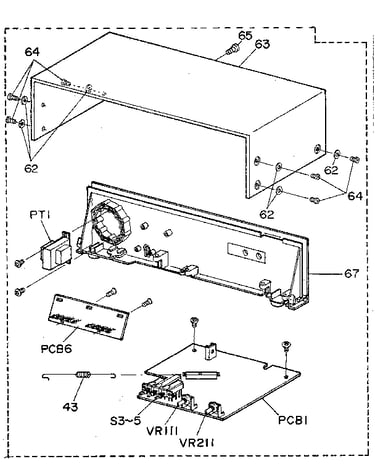

All parts diagram

Panel

Part #46-21915-3

The manufacturer no longer makes this part, and there's no substitute part

Joint R/p Sw 46-221211-3

#43

All parts diagram

Joint r/p sw

Part #46-221211-3

The manufacturer no longer makes this part, and there's no substitute part

"aa" Size, 1.5-volt Batteries (not A Service Part) N/P
"aa" size, 1.5-volt batteries (not a service part)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Top 46-21914-3

#63

All parts diagram

Cabinet top

Part #46-21914-3

The manufacturer no longer makes this part, and there's no substitute part
