Dacor
Gas Range

Model # ER36GSCHNGH Official Dacor range

Here are the diagrams and repair parts for Official Dacor ER36GSCHNGH range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

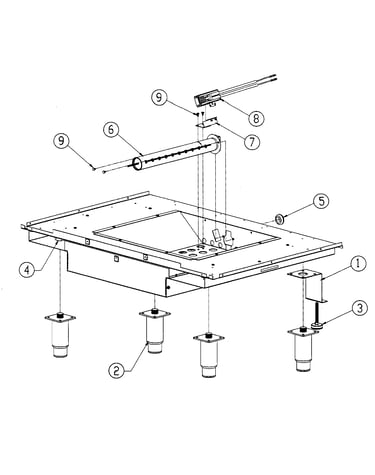

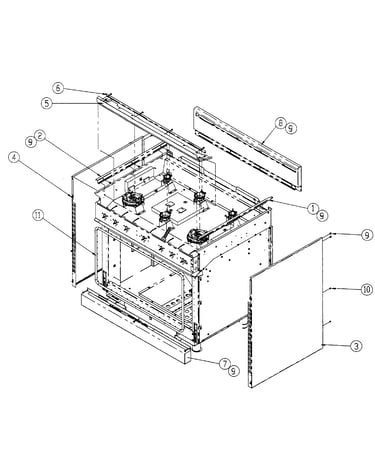

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Range Burner Head Mounting Screw, 4 X 12-mm 103755
#15

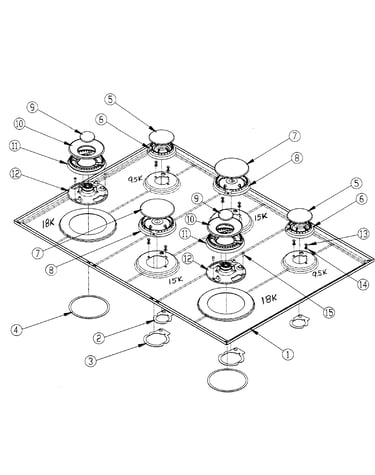

Top assy diagram

Range burner head mounting screw, 4 x 12-mm

Part #103755

This item is not returnable
$2.16
In Stock
Led W/sock 103705
#9

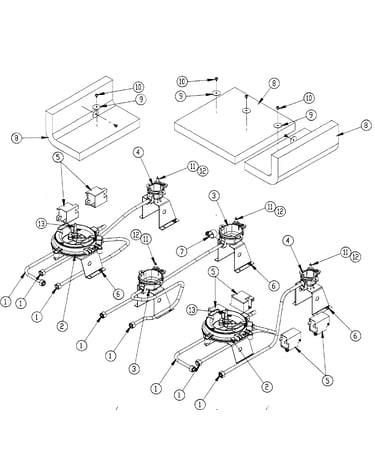

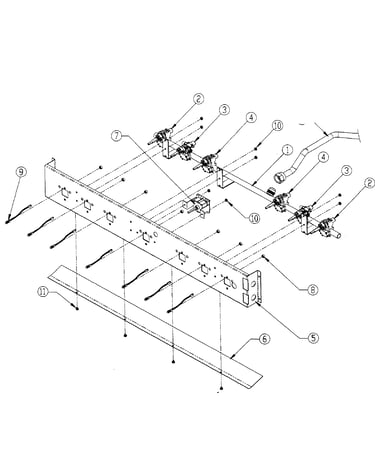

Manifold diagram

Led w/sock

Part #103705

$12.99
In Stock
Range Oven Light Bulb 100429
#NI

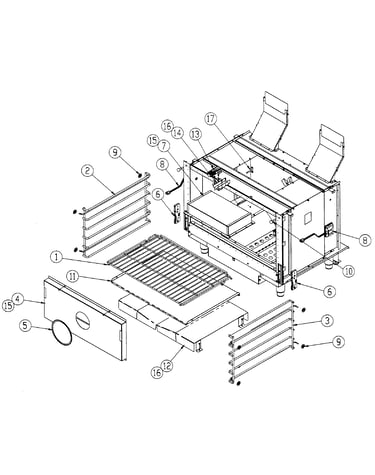

Cell assy diagram

Range oven light bulb

Part #100429

$27.49
In Stock
Range Oven Control Board 106169-02
#12

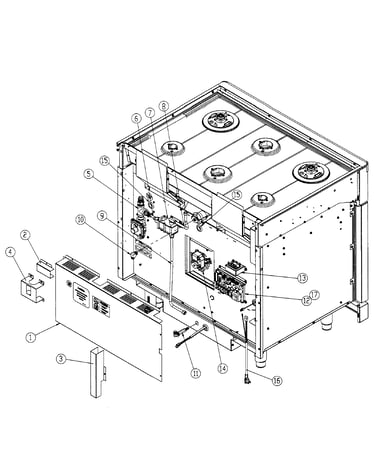

Rear assy diagram

Range oven control board

Part #106169-02

$187.99
In Stock
Chrome End Cap 100128CH
#2

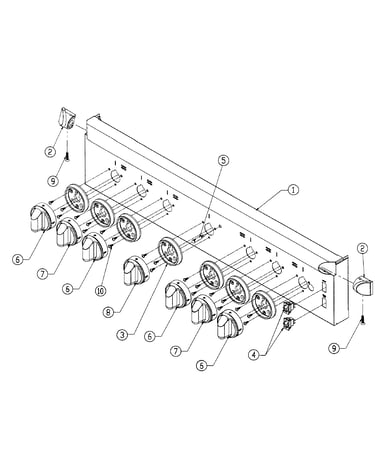

Control panel diagram

Chrome end cap

Part #100128CH

$50.49
In Stock
Door Hinge 701109
#2

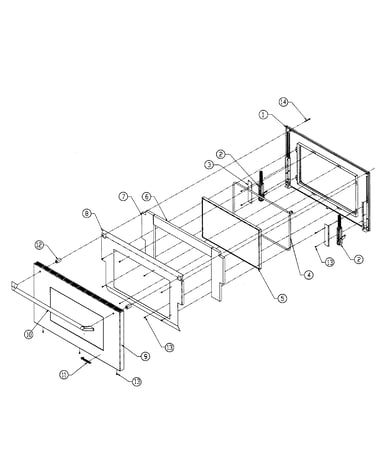

Door assy diagram

Door hinge

Part #701109

$156.99
In Stock
Outer Cap 102586
#10

Top assy diagram

Outer cap

Part #102586

$16.49
Back Order
Inner Cap 102585
#9

Top assy diagram

Inner cap

Part #102585

This item is not returnable
$7.49
Back Order
Range Surface Burner Head, Outer 102588
#11

Top assy diagram

Range surface burner head, outer

Part #102588

$32.56
Back Order
Range Surface Burner Cap 102590
#7

Top assy diagram

Range surface burner cap

Part #102590

$11.99
Back Order
