Porter Cable
Band Saw

Model # 5028 Official Porter Cable band saw & stand

Here are the diagrams and repair parts for Official Porter Cable 5028 band saw & stand, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Adjusting Screw, 5/16-18 X .875 823193
#21

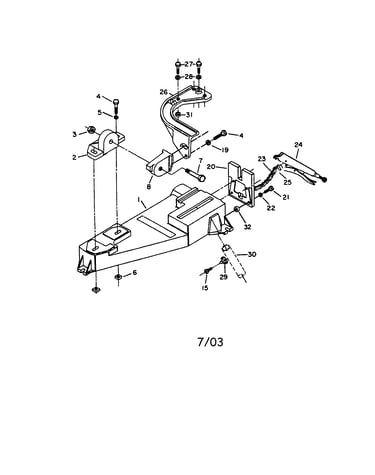

Bandsaw stand diagram

Adjusting screw, 5/16-18 x .875

Part #823193

The manufacturer no longer makes this part, and there's no substitute part

Screw 861849
#27

Bandsaw stand diagram

Screw

Part #861849

The manufacturer no longer makes this part, and there's no substitute part

Saw Arm 878752
#26

Bandsaw stand diagram

Saw arm

Part #878752

The manufacturer no longer makes this part, and there's no substitute part

Vise Grip Clamp 846915
#24

Bandsaw stand diagram

Vise grip clamp

Part #846915

The manufacturer no longer makes this part, and there's no substitute part

Segment Washer 801687
#28

Bandsaw stand diagram

Segment washer

Part #801687

The manufacturer no longer makes this part, and there's no substitute part

Spacer 880873
#32

Bandsaw stand diagram

Spacer

Part #880873

The manufacturer no longer makes this part, and there's no substitute part

Washer 823968
#19

Bandsaw stand diagram

Washer

Part #823968

The manufacturer no longer makes this part, and there's no substitute part

(not Avail) Switch (627-dc Applications) N/P
#30

Bandsaw stand diagram

(not avail) switch (627-dc applications)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Pivot Shaft 846235
#7

Bandsaw stand diagram

Pivot shaft

Part #846235

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 822195
#22

Bandsaw stand diagram

Lock washer

Part #822195

The manufacturer no longer makes this part, and there's no substitute part
