Model # FRU1767GW0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRU1767GW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Filter Drier 216938600
#4

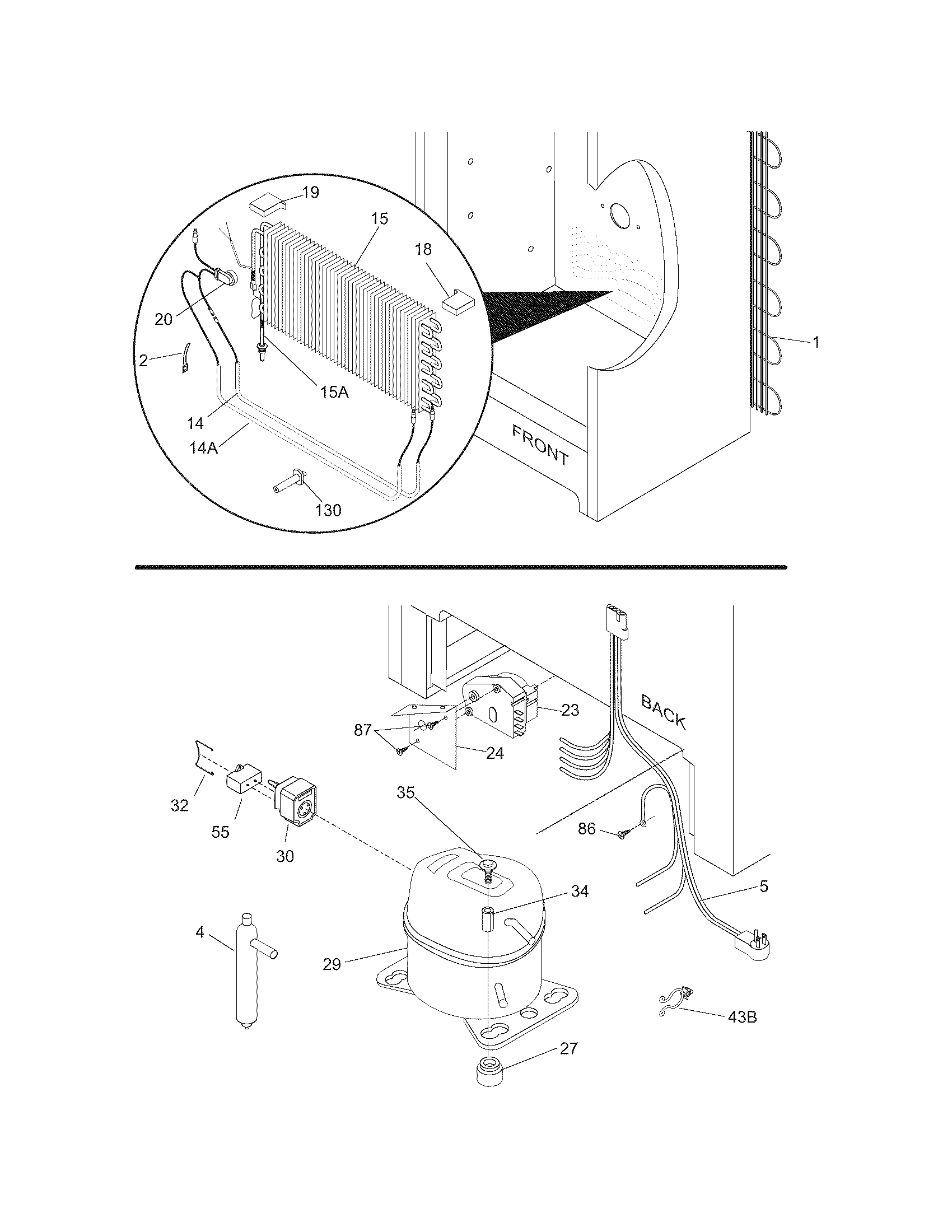

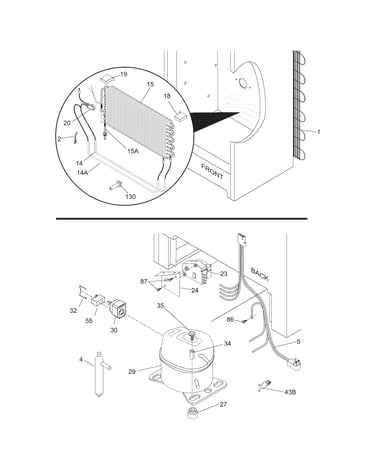

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 216997300
#15

System diagram

Freezer evaporator

Part #216997300

Replaced by #297414901

?
Manufacturer substitution
This part replaces 216997300. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
Refrigerator Door Gallon Bin 240338001
#48B

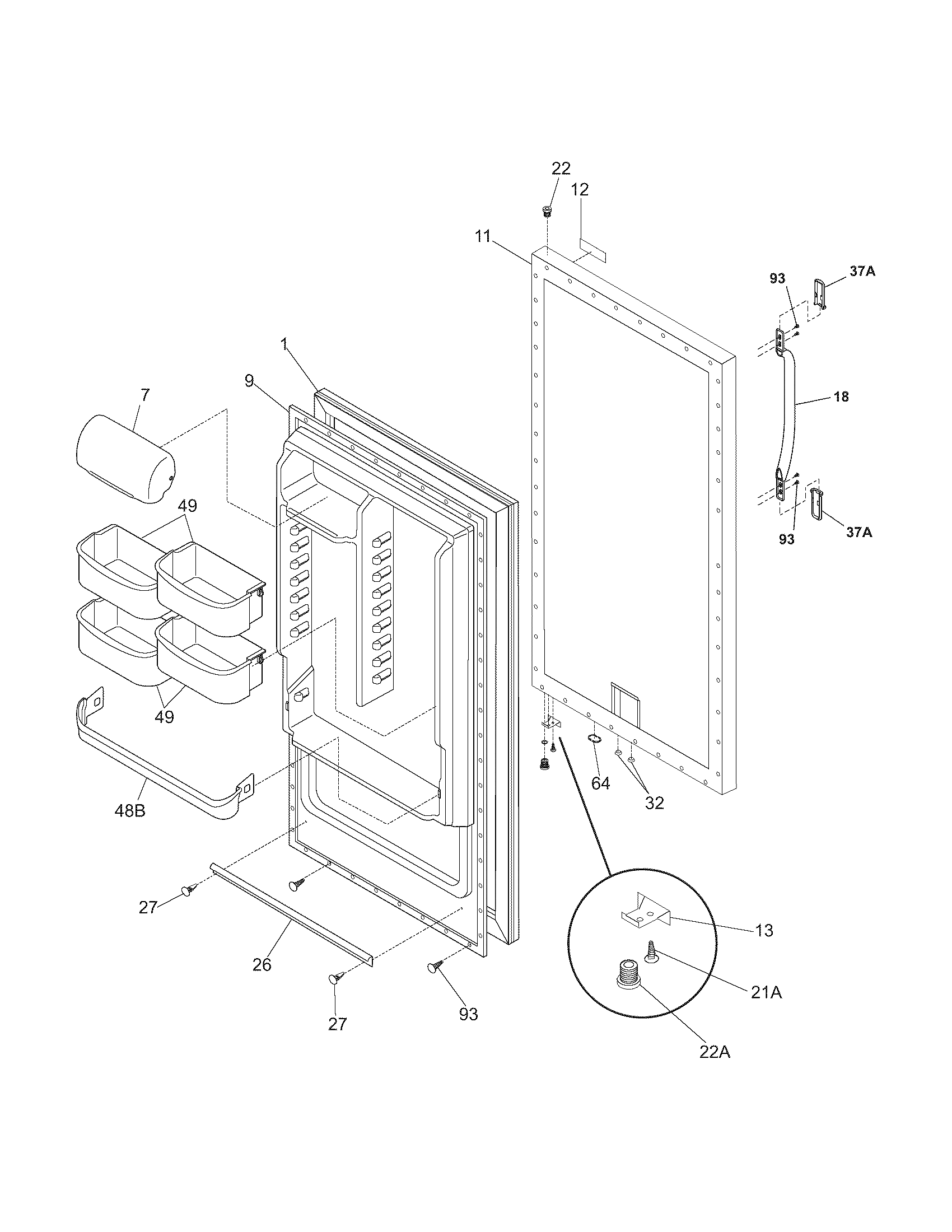

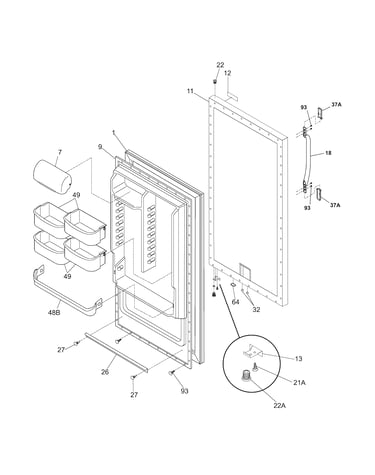

Door diagram

Refrigerator door gallon bin

Part #240338001

BEST SELLER
$42.36 |
12% OFF Phone Price : $48.36
In Stock
Heat Exchanger 216751100
#15A

System diagram

Heat exchanger

Part #216751100

Replaced by #297217900

?
Manufacturer substitution
This part replaces 216751100. Substitute parts can look different from the original.
BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Freezer Door Gasket 216522309
#1

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Freezer Door Closer Bearing 216503300
#26

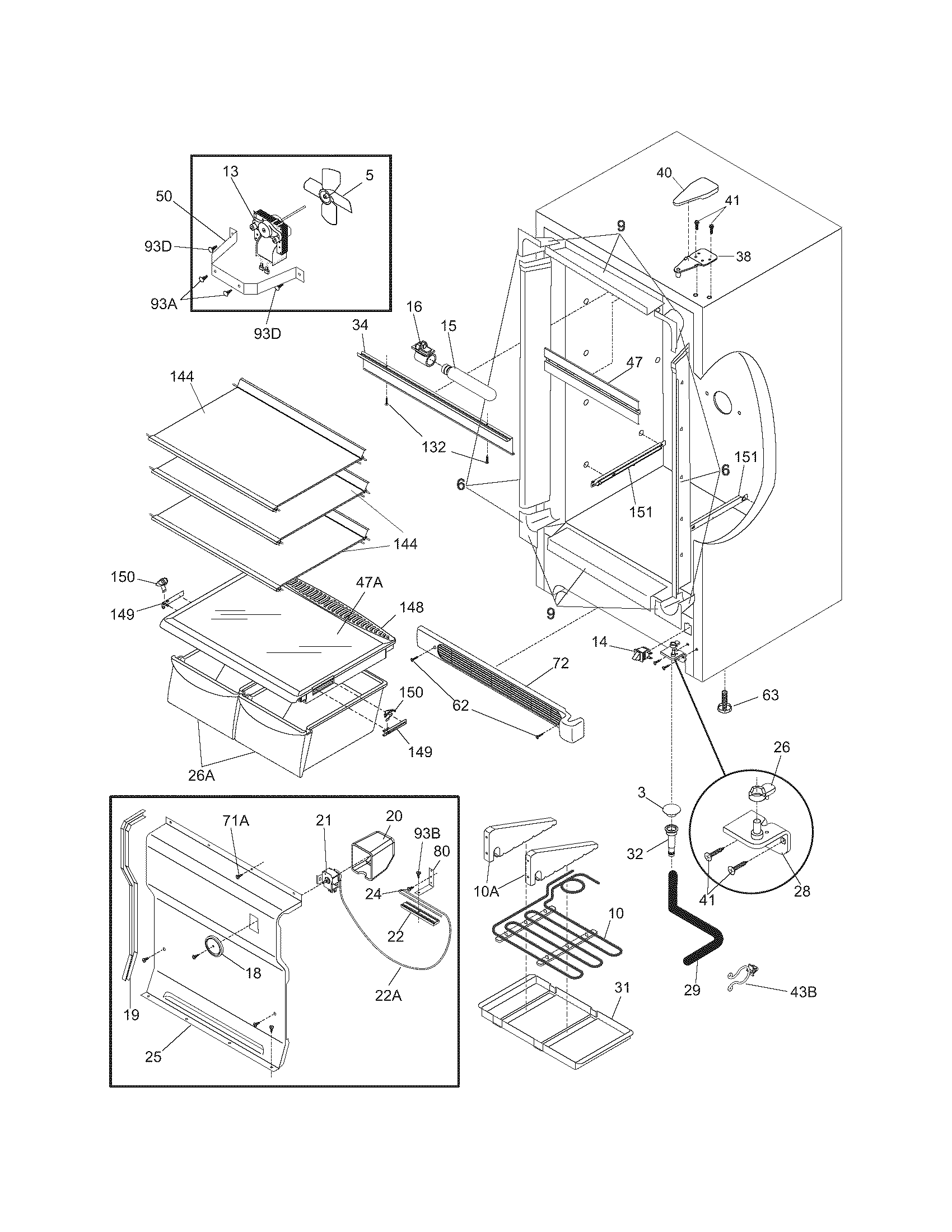

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Freezer Compressor 216966300
#29

System diagram

Freezer compressor

Part #216966300

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 216966300. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Refrigerator Run Capacitor 216985000
#55

System diagram

Refrigerator run capacitor

Part #216985000

Replaced by #297286802

?
Manufacturer substitution
This part replaces 216985000. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Freezer Door Hinge Bearing 216970800
#22

Door diagram

Freezer door hinge bearing

Part #216970800

Replaced by #216970802

?
Manufacturer substitution
This part replaces 216970800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
