Stand Mixer

Model # 3KSM95TCZ0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 3KSM95TCZ0 mixer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
3KSM95TCZ0 Mixer
Stand Mixer Worm Gear Assembly 240309-2
#27

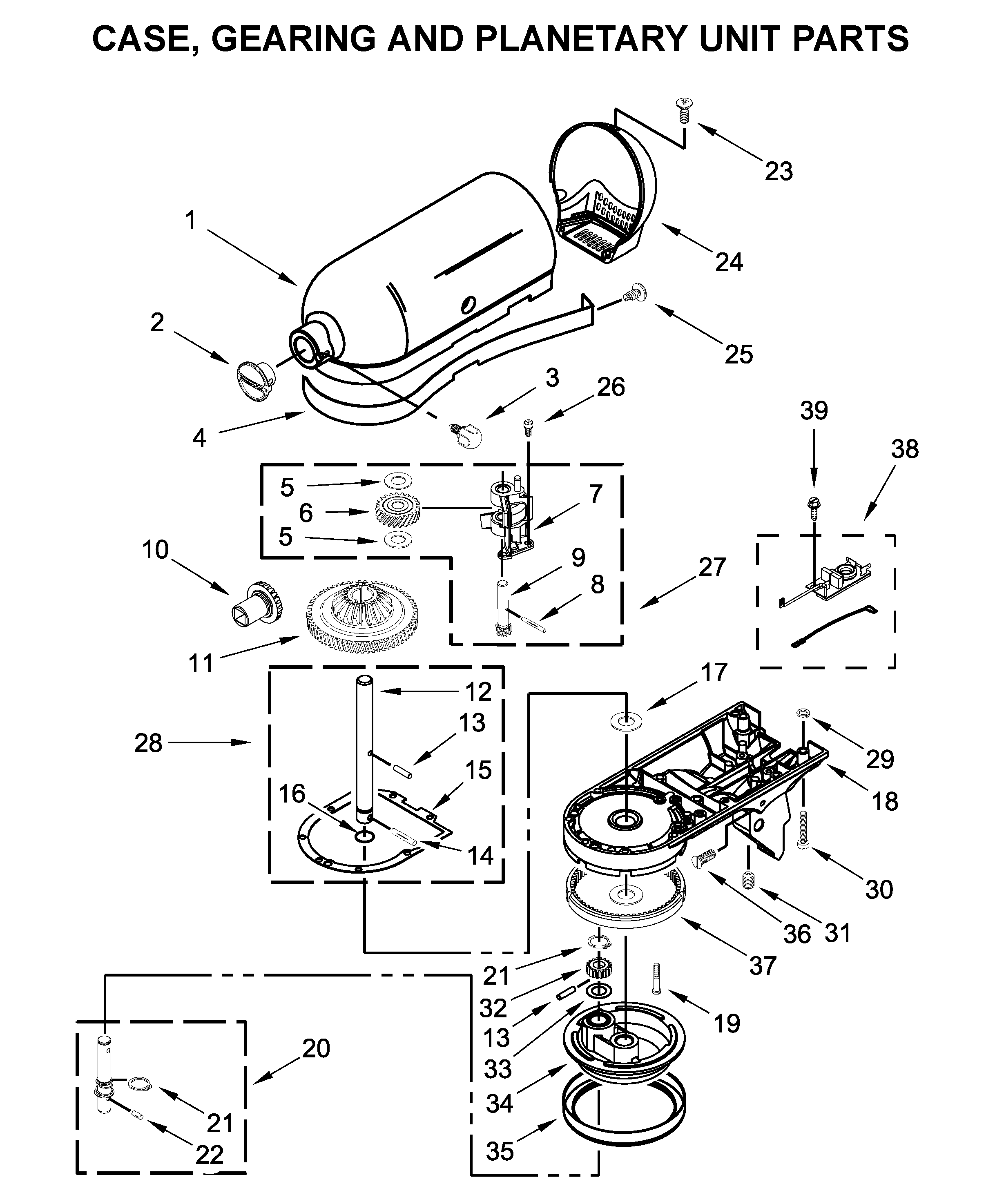

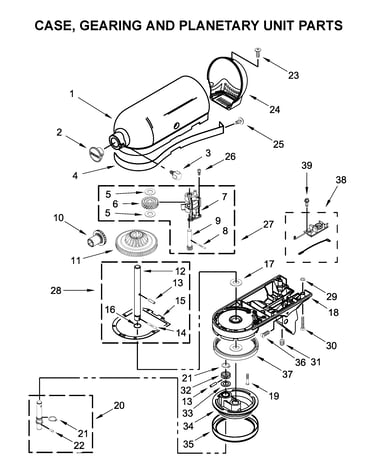

Case, gearing and planetary unit parts diagram

Stand mixer worm gear assembly

Part #240309-2

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
$32.07 |
16% OFF Phone Price : $38.07
In Stock
Gasket 4162324
#15

Case, gearing and planetary unit parts diagram

Gasket

Part #4162324

Replaced by #WP4162324

?
Manufacturer substitution
This part replaces 4162324. Substitute parts can look different from the original.
This item is not returnable
$15.90 |
11% OFF Phone Price : $17.90
In Stock
Brush-mtr W10380496
#19

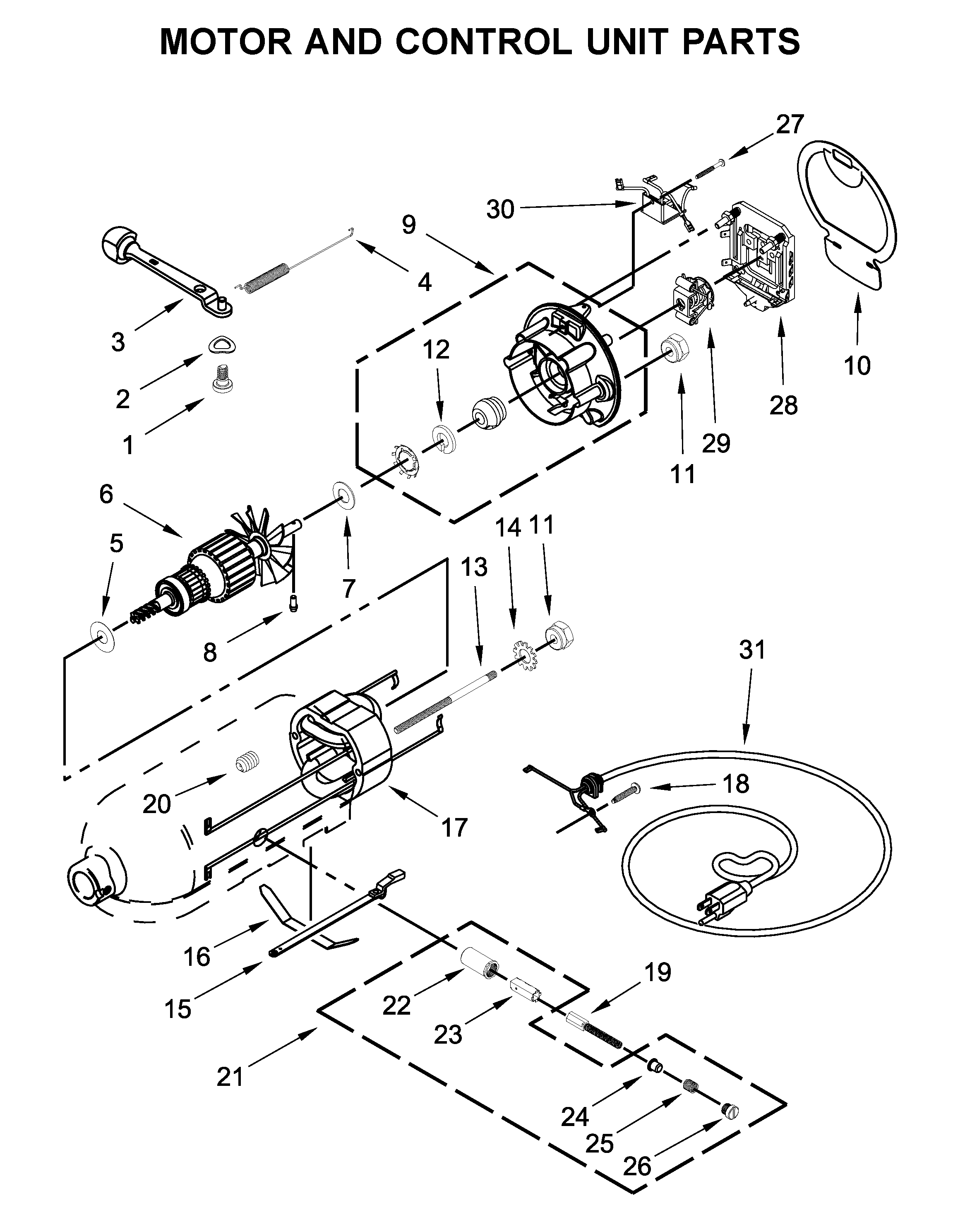

Motor and control unit parts diagram

Brush-mtr

Part #W10380496

Replaced by #WPW10380496

?
Manufacturer substitution
This part replaces W10380496. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Speed & Cam W10898250
#15

Motor and control unit parts diagram

Speed & cam

Part #W10898250

Replaced by #W11557271

?
Manufacturer substitution
This part replaces W10898250. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Gear, Center Bevel Pinion W11175138
#11

Case, gearing and planetary unit parts diagram

Gear, center bevel pinion

Part #W11175138

Replaced by #W11192794

?
Manufacturer substitution
This part replaces W11175138. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
Gear, Attachment Hub W11175140
#10

Case, gearing and planetary unit parts diagram

Gear, attachment hub

Part #W11175140

Replaced by #W11192794

?
Manufacturer substitution
This part replaces W11175140. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
Stand Mixer Phase Control Board W10325124
#30

Motor and control unit parts diagram

Stand mixer phase control board

Part #W10325124

Replaced by #WPW10325124

?
Manufacturer substitution
This part replaces W10325124. Substitute parts can look different from the original.
This item is not returnable
$16.63 |
11% OFF Phone Price : $18.63
In Stock
Center Shaft 4160474
#28

Case, gearing and planetary unit parts diagram

Center shaft

Part #4160474

$22.88
In Stock
Planetary 240286-1
#3

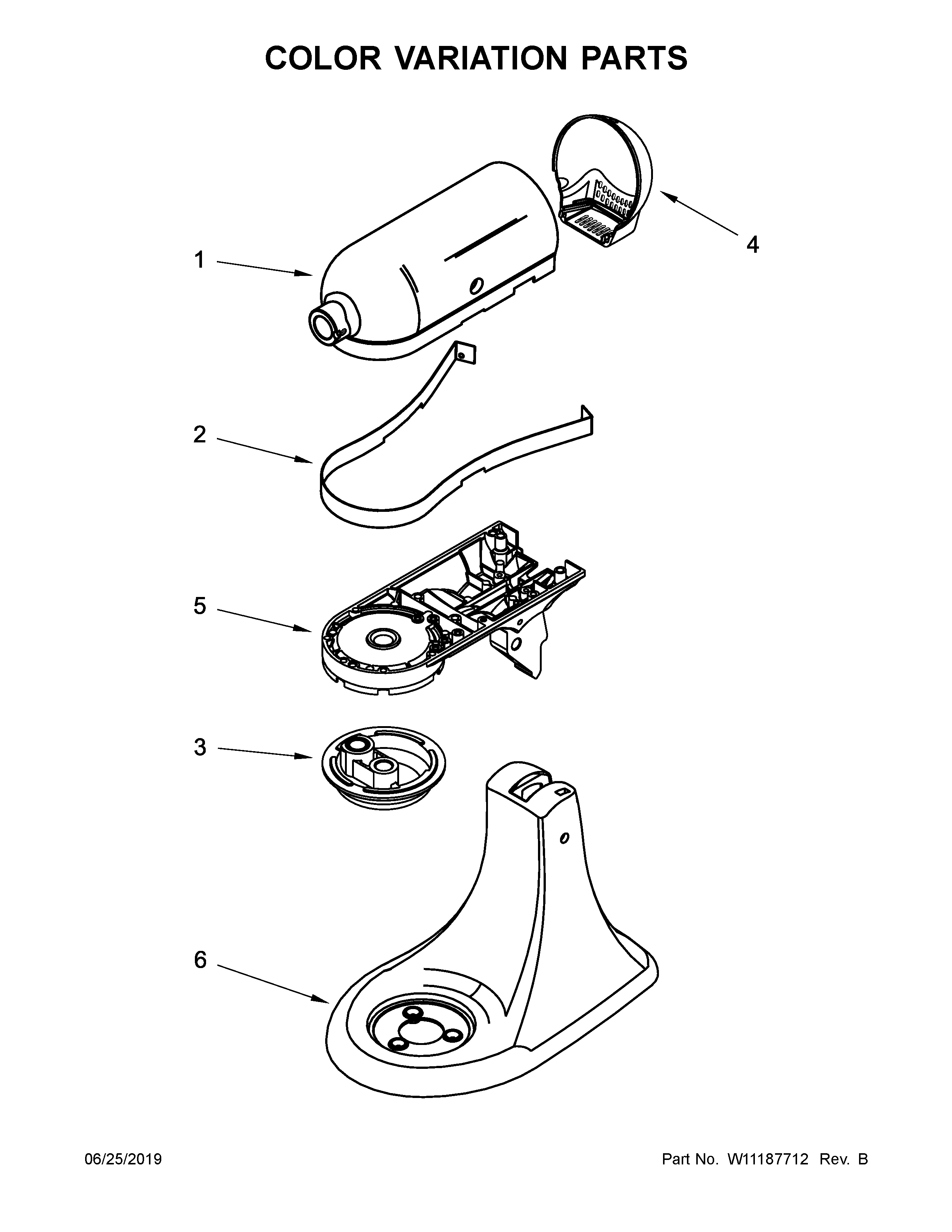

Color variation parts diagram

Planetary

Part #240286-1

Replaced by #WP240286-1

?
Manufacturer substitution
This part replaces 240286-1. Substitute parts can look different from the original.
$19.89
In Stock
Washer 9706090
#33

Case, gearing and planetary unit parts diagram

Washer

Part #9706090

Replaced by #WP9706090

?
Manufacturer substitution
This part replaces 9706090. Substitute parts can look different from the original.
This item is not returnable
$4.91
In Stock
