Model # D1002W Official Danby refrigerator

Here are the diagrams and repair parts for Official Danby D1002W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Light Switch Cover 538109
#45

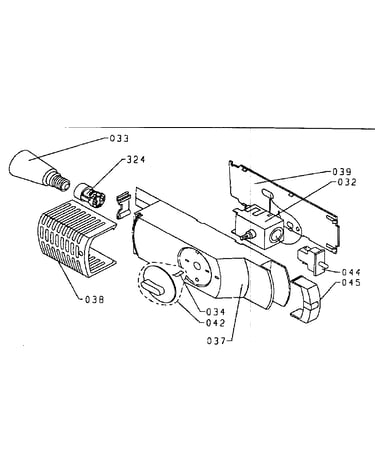

Control panel diagram

Light switch cover

Part #538109

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Tray Cover 613016
#452

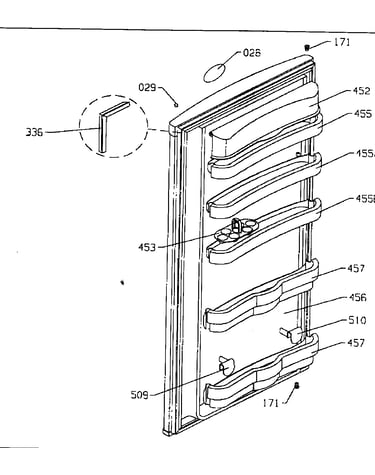

Door assy diagram

Refrigerator door tray cover

Part #613016

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 394466
#209

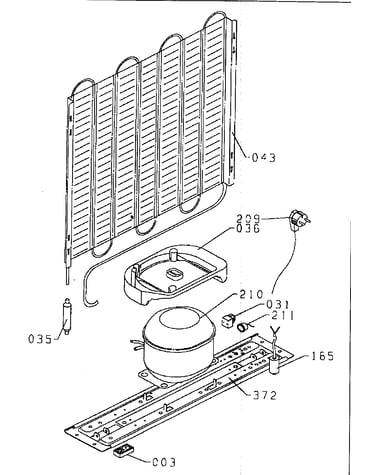

Compressor diagram

Ac cord

Part #394466

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Kick Plate 528455
#384

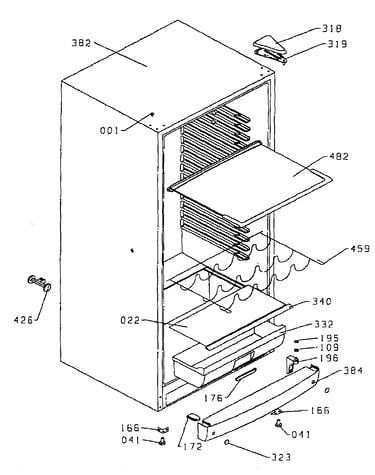

Shelf assy diagram

Refrigerator kick plate

Part #528455

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 540263
#32

Control panel diagram

Refrigerator thermostat

Part #540263

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Tray 613017
#455

Door assy diagram

Refrigerator door tray

Part #613017

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Egg Tray 613015
#453

Door assy diagram

Refrigerator egg tray

Part #613015

The manufacturer no longer makes this part, and there's no substitute part

Bottle Support 627009
#459

Shelf assy diagram

Bottle support

Part #627009

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover Plug 050452
#29

Door assy diagram

Hinge cover plug

Part #050452

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Tray 613013
#457

Door assy diagram

Refrigerator door tray

Part #613013

The manufacturer no longer makes this part, and there's no substitute part
