Model # WM3700HVA/01 Official LG washer

Here are the diagrams and repair parts for Official LG WM3700HVA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

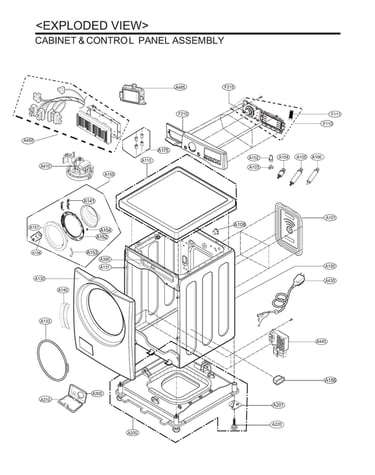

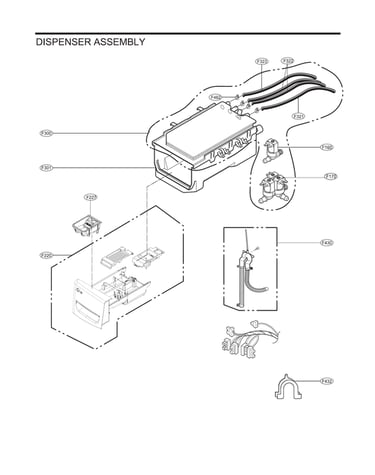

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Lg Washer Door Lock EBF61315802

#A440

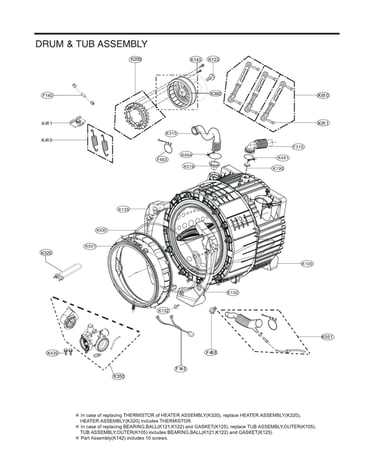

All parts diagram

Lg washer door lock

Part #EBF61315802

BEST SELLER
$99.80 |
11% OFF Phone Price : $111.80
In Stock
Lg Washer Shock Absorber (replaces Acv72909501) ACV72909503

#K610

All parts diagram

Lg washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$29.83 |
17% OFF Phone Price : $35.83
In Stock
Washer Door Boot Spring Clamp (replaces 4861en3004l, Aca56078802) ACA56078801

#A133

All parts diagram

Washer door boot spring clamp (replaces 4861en3004l, aca56078802)

Part #ACA56078801

BEST SELLER
$16.43 |
11% OFF Phone Price : $18.43
In Stock
Washer Door Boot Spring Clamp, Outer (replaces 4861en3004j) 4861ER2001J

#K530

All parts diagram

Washer door boot spring clamp, outer (replaces 4861en3004j)

Part #4861ER2001J

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Washer Water Inlet Valve 5220FR2006Z

#F160

All parts diagram

Washer water inlet valve

Part #5220FR2006Z

BEST SELLER
$38.73 |
13% OFF Phone Price : $44.73
In Stock
Kenmore Washer Door Boot MDS66290801

#K501

All parts diagram

Kenmore washer door boot

Part #MDS66290801

BEST SELLER
$93.72 |
6% OFF Phone Price : $99.72
In Stock
Refrigerator Single Coil Water Inlet Valve 5221ER1003S

#F170

All parts diagram

Refrigerator single coil water inlet valve

Part #5221ER1003S

BEST SELLER
$100.25
In Stock
Rotor Assembly AHL72914413

#K360

All parts diagram

Rotor assembly

Part #AHL72914413

Replaced by #AHL72914401

?
Manufacturer substitution
This part replaces AHL72914413. Substitute parts can look different from the original.
BEST SELLER
$180.50 |
6% OFF Phone Price : $192.50
In Stock
Washer Hose Clamp (replaces 3w40106m) 4861FR3068A

#F462

All parts diagram

Washer hose clamp (replaces 3w40106m)

Part #4861FR3068A

BEST SELLER
This item is not returnable
$6.77 |
13% OFF Phone Price : $7.77
In Stock
Washer Suspension Spring (replaces Mhy57694605, Mhy62964801) 4970FR2084Z

#K410

All parts diagram

Washer suspension spring (replaces mhy57694605, mhy62964801)

Part #4970FR2084Z

BEST SELLER
$27.67 |
18% OFF Phone Price : $33.67
In Stock
