Heating & Cooling Combined Unit

Model # NPGAA60G1K3 Official ICP heating & cooling unit

Here are the diagrams and repair parts for Official ICP NPGAA60G1K3 heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Valve 1009093
#1

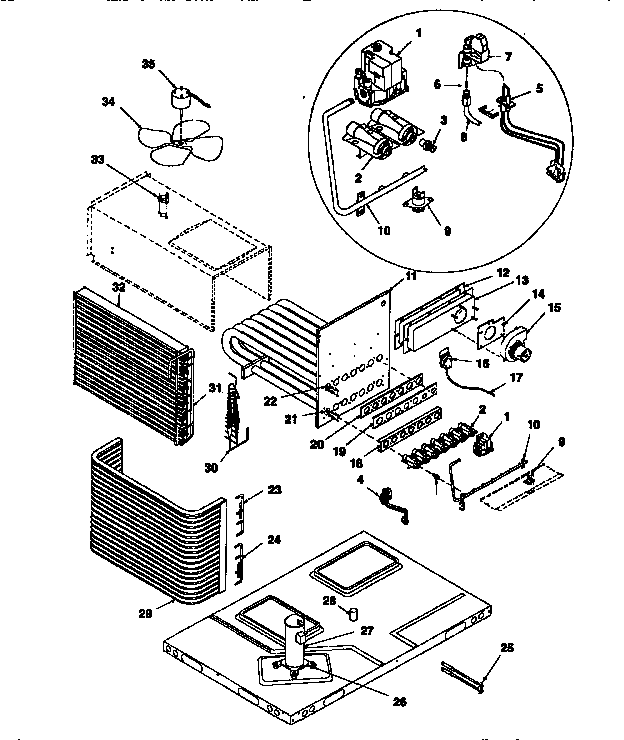

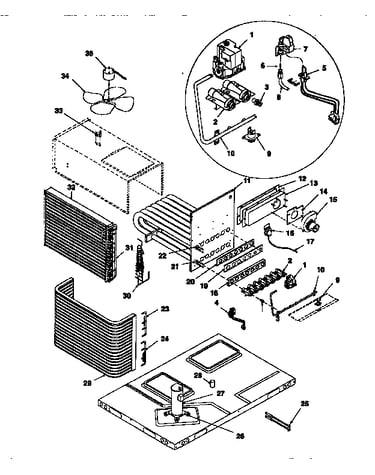

Functionial replacement parts diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Contactor 1053980
#2

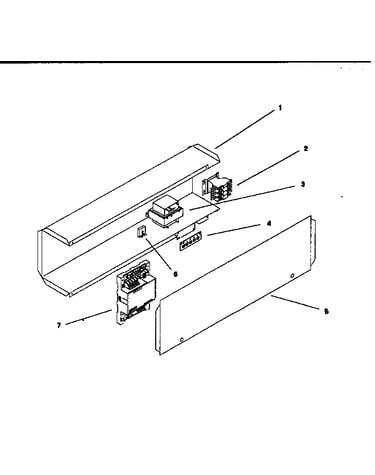

Control box diagram

Contactor

Part #1053980

Replaced by #90-247

?
Manufacturer substitution
This part replaces 1053980. Substitute parts can look different from the original.
$42.10 |
12% OFF Phone Price : $48.10
In Stock
Lp Valve 1009094
#1A

Functionial replacement parts diagram

Lp valve

Part #1009094

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009094. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Limit Switch 1005549
#9

Functionial replacement parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Gasket Restr 1065211
#20

Functionial replacement parts diagram

Gasket restr

Part #1065211

$25.89
In Stock
Plate Restri 1054392
#19

Functionial replacement parts diagram

Plate restri

Part #1054392

$78.80
In Stock
Furnace Vent Motor Gasket 607014
#14

Functionial replacement parts diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Box Collecto 1065257
#13

Functionial replacement parts diagram

Box collecto

Part #1065257

$180.66
In Stock
Board Termin 612254
#4

Control box diagram

Board termin

Part #612254

$20.06
In Stock
Wheel .xx. 1054593
#5

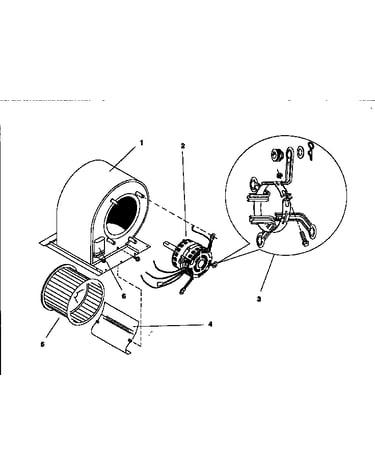

Blower diagram

Wheel .xx.

Part #1054593

$166.06 |
7% OFF Phone Price : $178.06
In Stock
