Model # NVL333GB6WW Official Hotpoint gas dryer

Here are the diagrams and repair parts for Official Hotpoint NVL333GB6WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Igniter Assembly WE04X10128
#1374

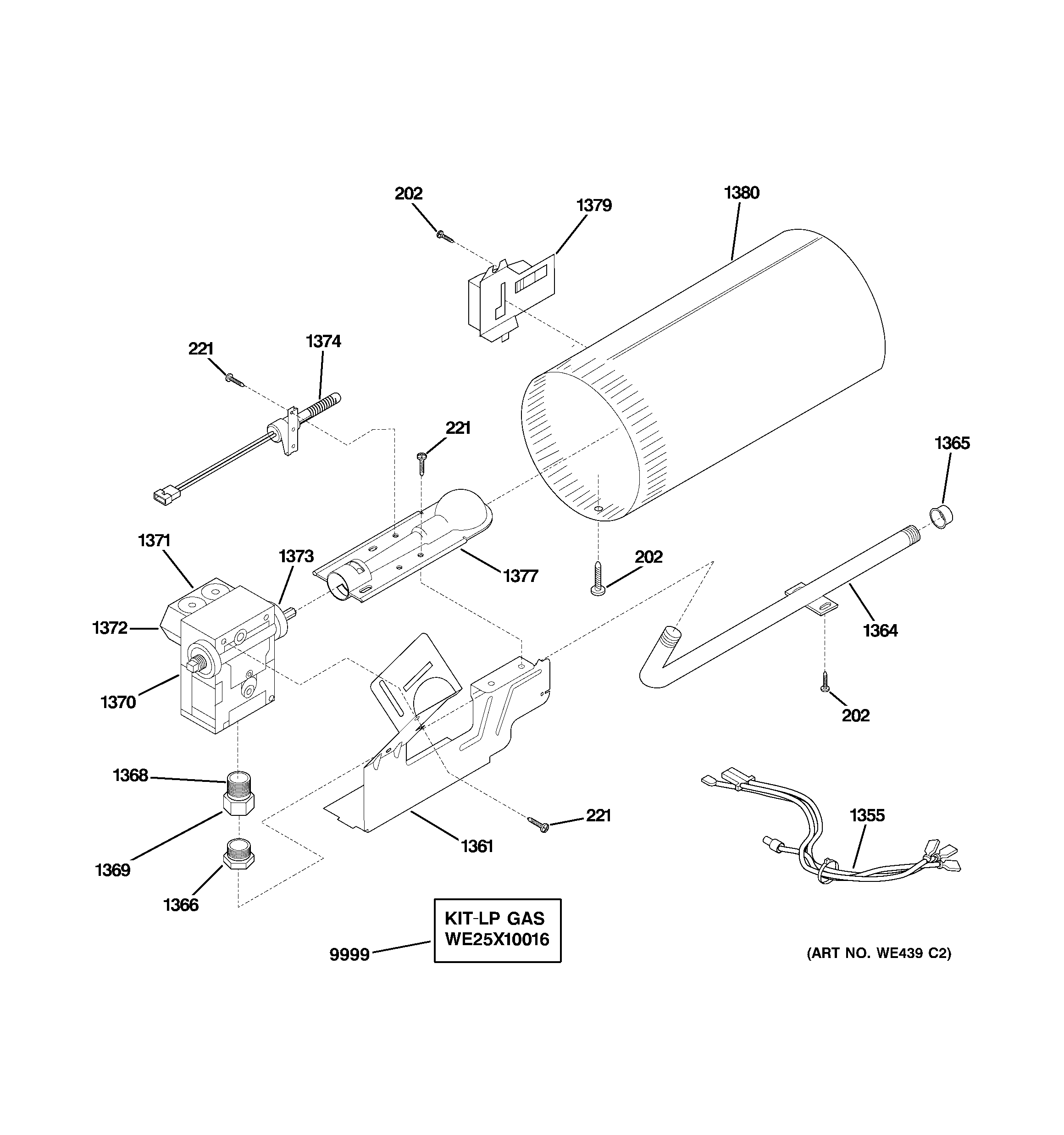

Burner diagram

Igniter assembly

Part #WE04X10128

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE04X10128. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Dryer Start Switch WE04X10033
#15

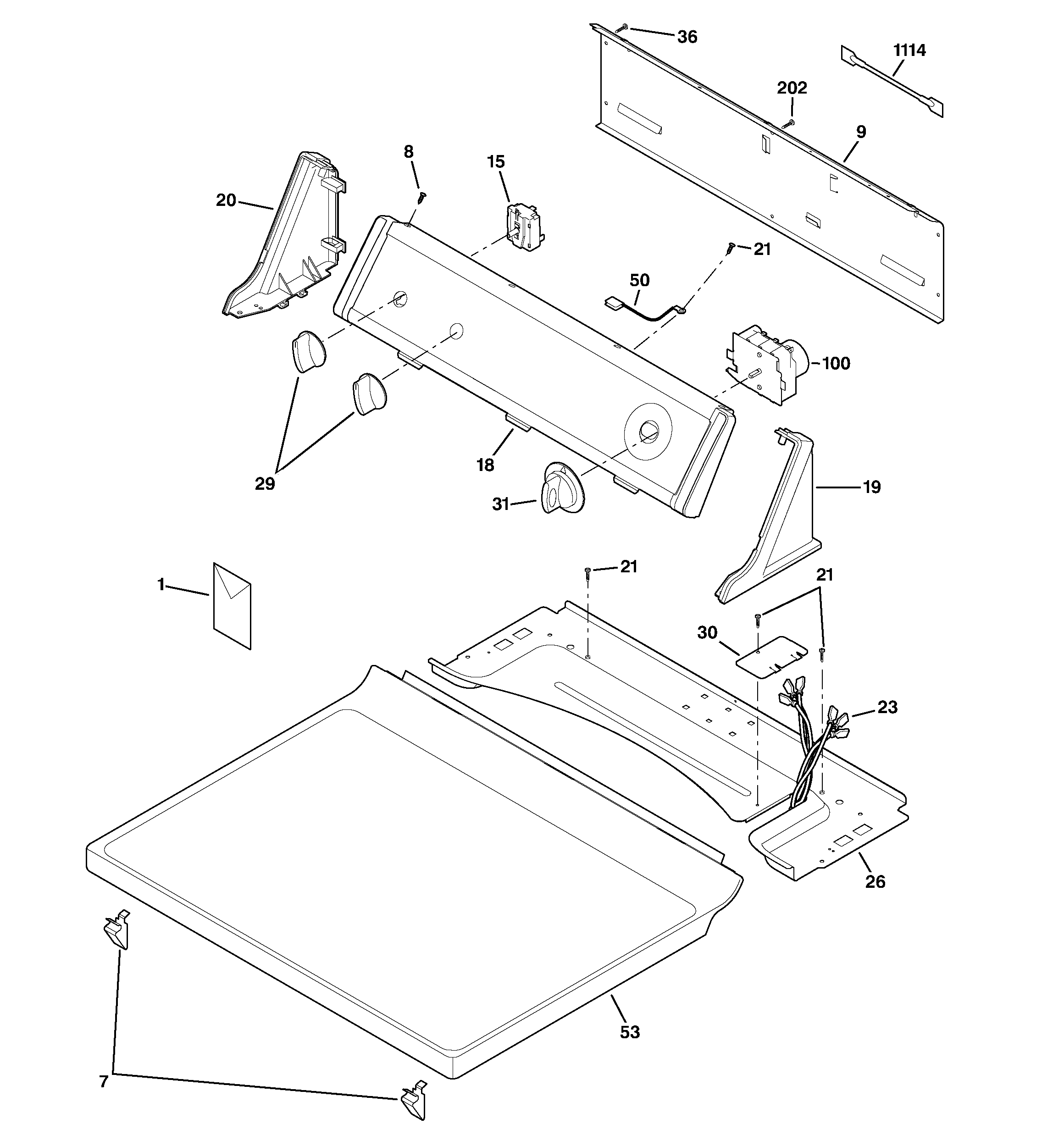

Controls & top panel diagram

Dryer start switch

Part #WE04X10033

Replaced by #WE4X881

?
Manufacturer substitution
This part replaces WE04X10033. Substitute parts can look different from the original.
BEST SELLER
$56.01 |
10% OFF Phone Price : $62.01
In Stock
Dryer Drum Belt (replaces We12x10001, We12x90) WE12X10009
#1325

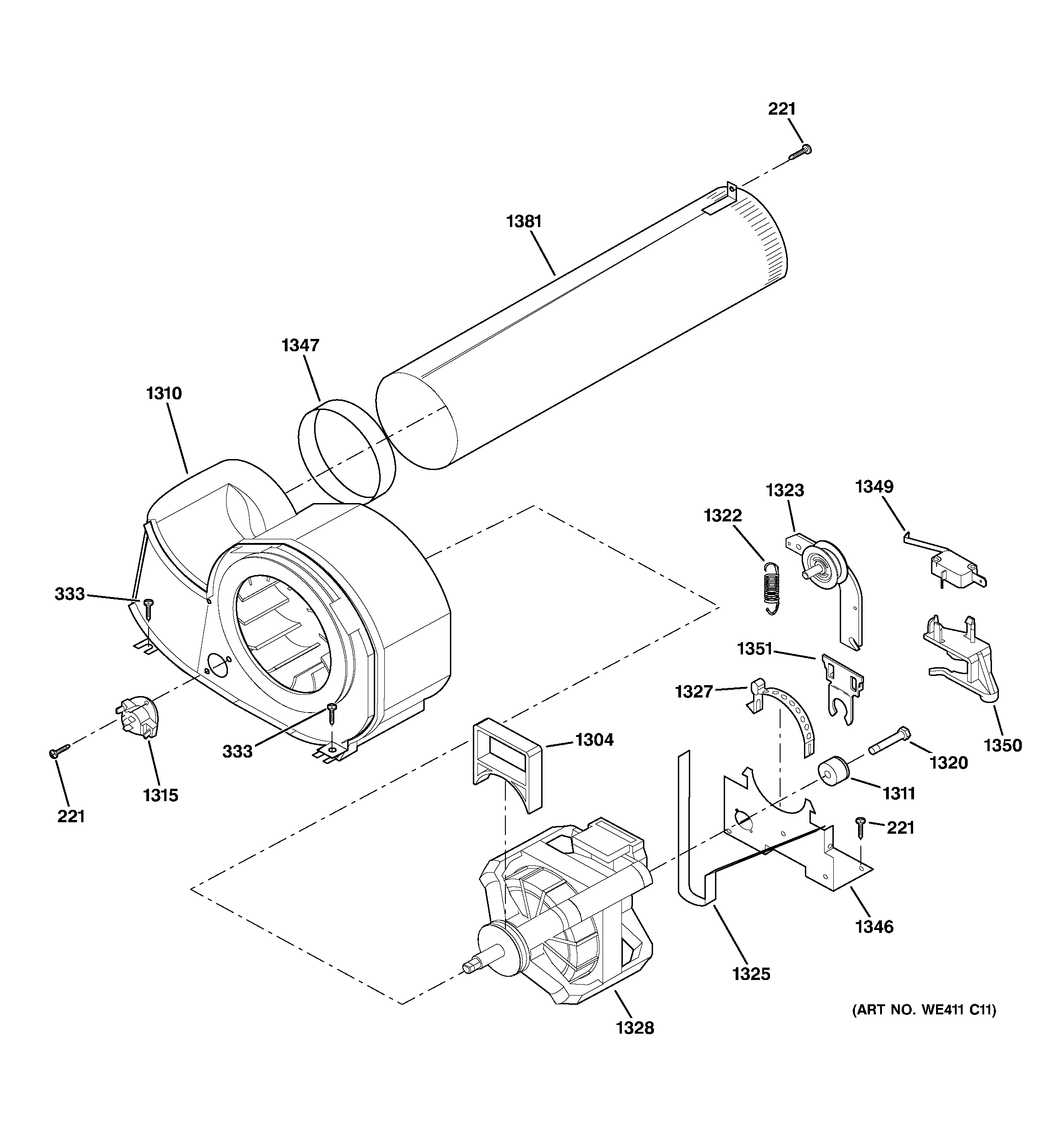

Motor diagram

Dryer drum belt (replaces we12x10001, we12x90)

Part #WE12X10009

BEST SELLER
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Dryer Drum Felt Seal, Upper WE09X10013
#1220

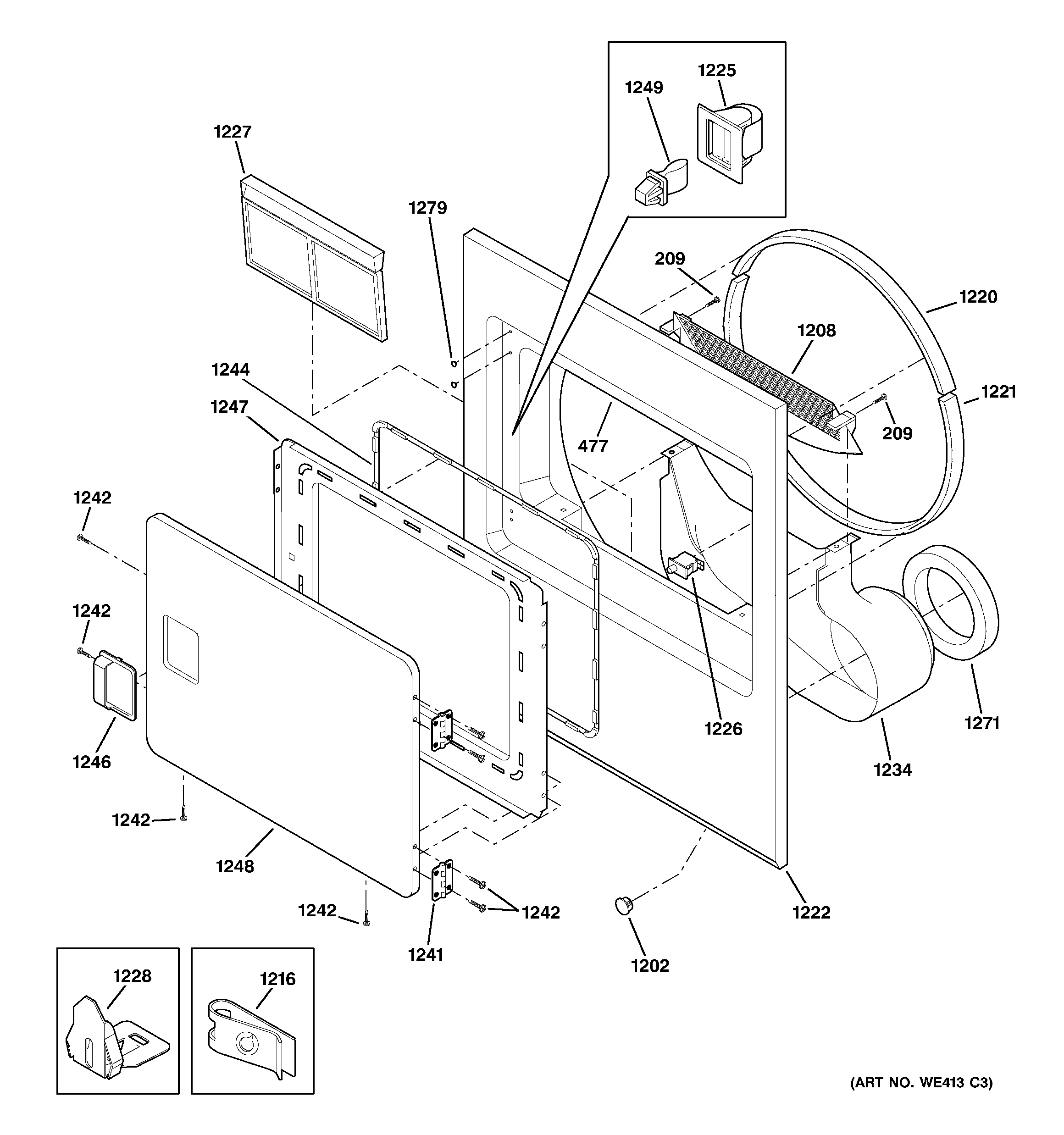

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

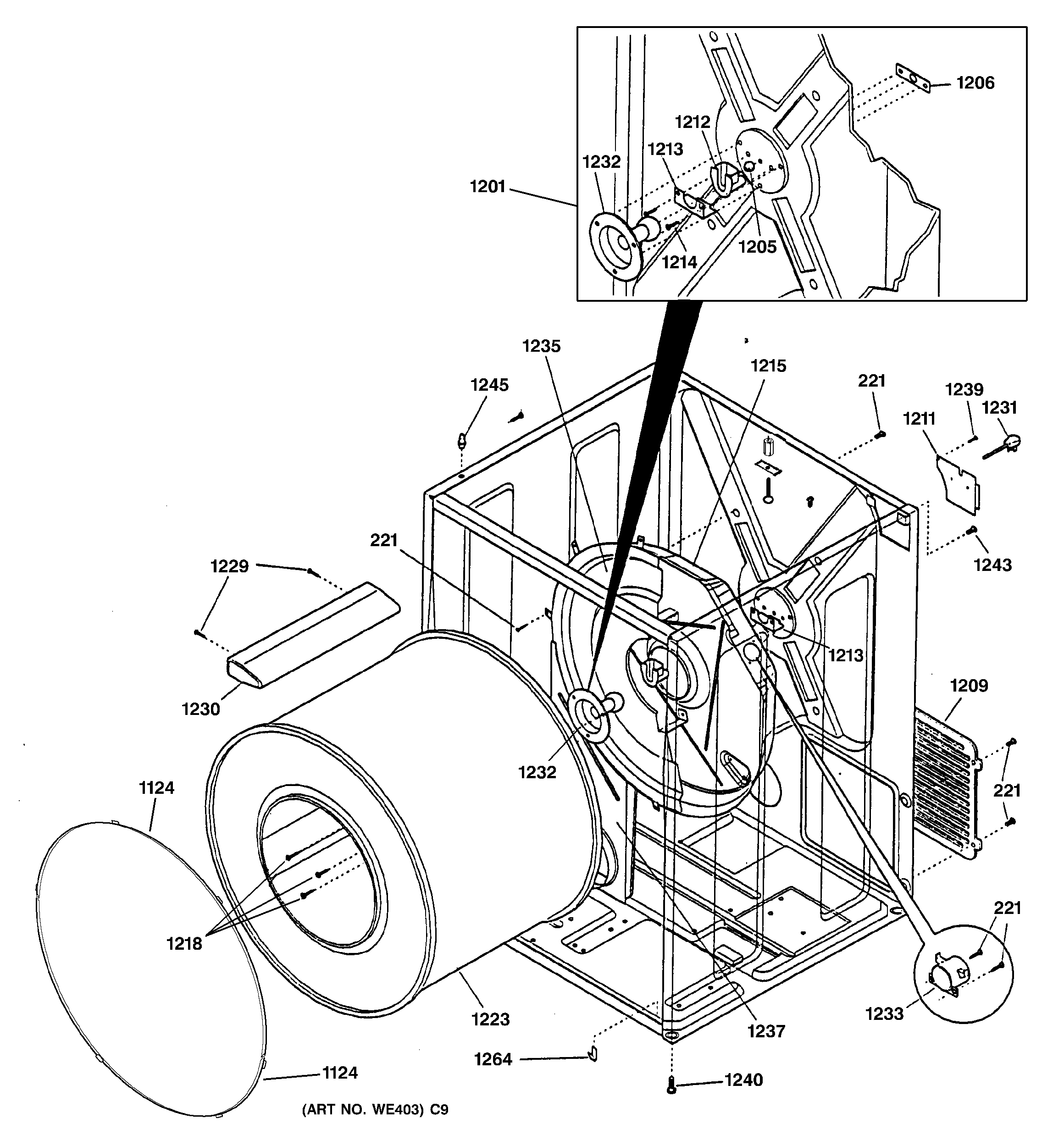

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
Dryer Cabinet Hole Plug WE01X10137
#477

Front panel & door diagram

Dryer cabinet hole plug

Part #WE01X10137

$54.21 |
10% OFF Phone Price : $60.21
In Stock
Dryer Drum Front Glide WE03X10007
#1124

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Screw WE02X10011
#1239

Cabinet & drum diagram

Screw

Part #WE02X10011

$23.71
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
