White-Westinghouse
Top-Mount Refrigerator

Model # RTG174GCH3A Official White-Westinghouse top-mount refrigerator - lw30589110

Here are the diagrams and repair parts for Official White-Westinghouse RTG174GCH3A top-mount refrigerator - lw30589110, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Drier 3007351
#1

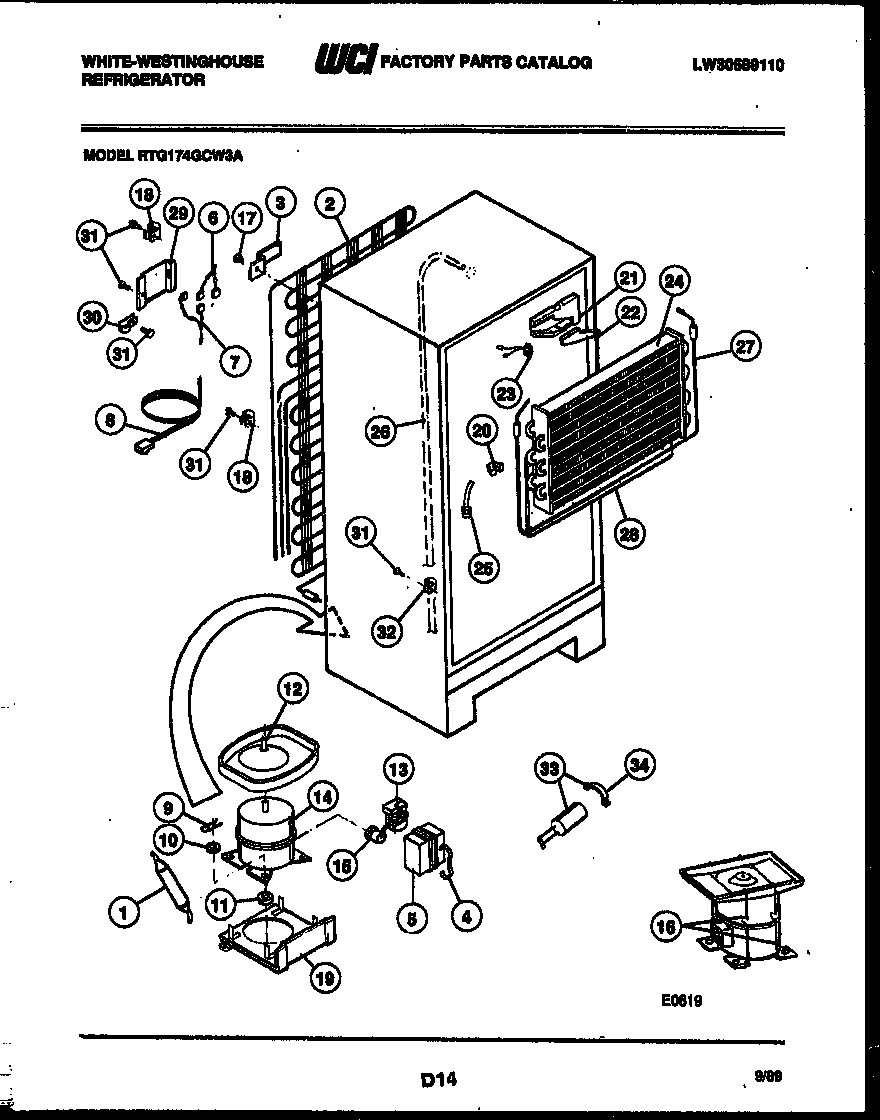

System and automatic defrost parts diagram

Drier

Part #3007351

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 3007351. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Bulb 3001179
#18

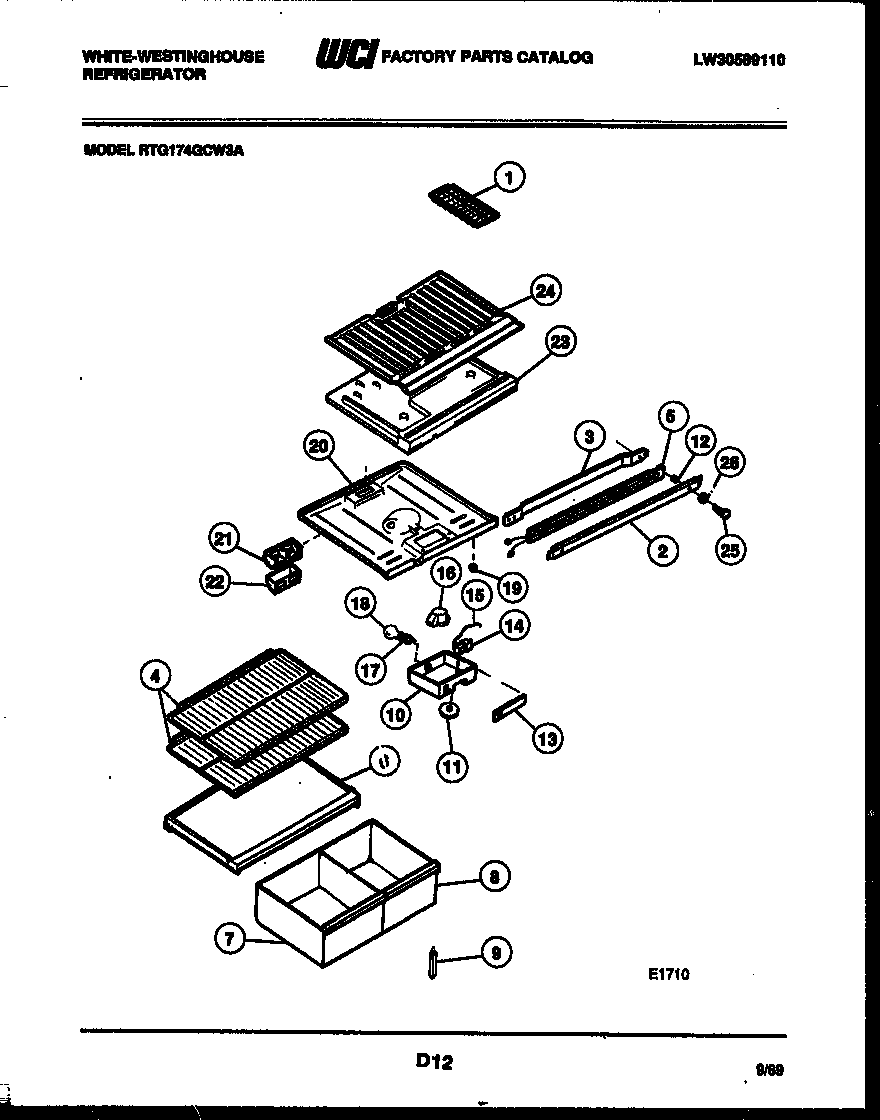

Shelves and supports diagram

Refrigerator bulb

Part #3001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Fan Blade G174705
#7

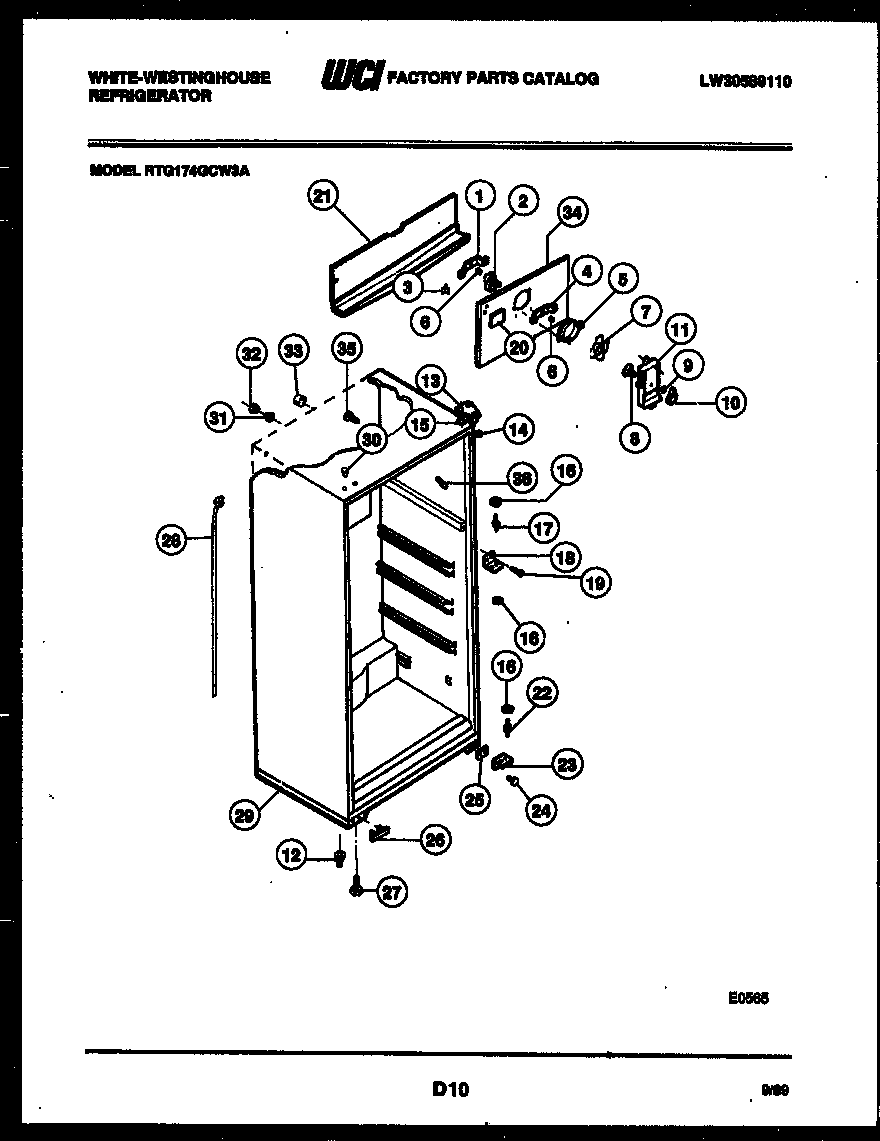

Cabinet parts diagram

Fan blade

Part #G174705

Replaced by #5308000010

?
Manufacturer substitution
This part replaces G174705. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Defrost Thermostat G162690-01
#23

System and automatic defrost parts diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Strap-evap/h G165546
#25

System and automatic defrost parts diagram

Strap-evap/h

Part #G165546

Replaced by #5308000110

?
Manufacturer substitution
This part replaces G165546. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Sleeve 08037932
#15

Shelves and supports diagram

Sleeve

Part #08037932

Replaced by #5303916855

?
Manufacturer substitution
This part replaces 08037932. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Tray 3001324
#1

Shelves and supports diagram

Refrigerator tray

Part #3001324

Replaced by #215667501

?
Manufacturer substitution
This part replaces 3001324. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Light Switch 09918806
#19

Shelves and supports diagram

Refrigerator light switch

Part #09918806

Replaced by #5309918806

?
Manufacturer substitution
This part replaces 09918806. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Screw G187009
#31

System and automatic defrost parts diagram

Refrigerator screw

Part #G187009

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G187009. Substitute parts can look different from the original.
$13.26
In Stock
Gasket G186932-11
#7

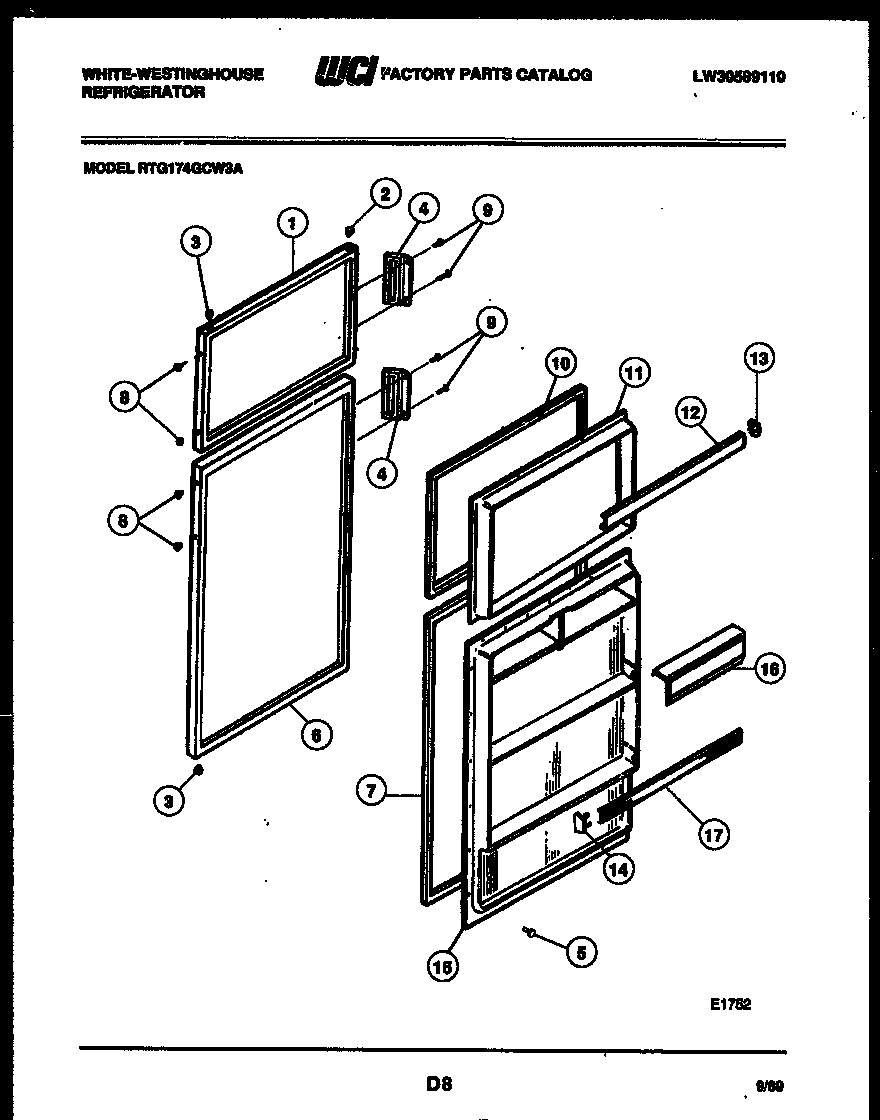

Door parts diagram

Gasket

Part #G186932-11

Replaced by #218730604

?
Manufacturer substitution
This part replaces G186932-11. Substitute parts can look different from the original.
$171.69 |
7% OFF Phone Price : $183.69
In Stock
