Room Air Conditioner

Model # AJHS08ASCM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJHS08ASCM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Room Air Conditioner Air Filter WJ85X10041
#1097

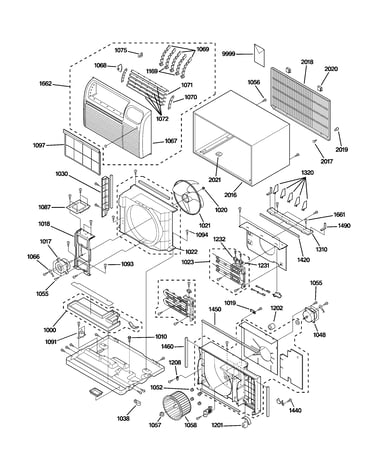

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Room Air Conditioner Control Knob WJ12X10072
#1086

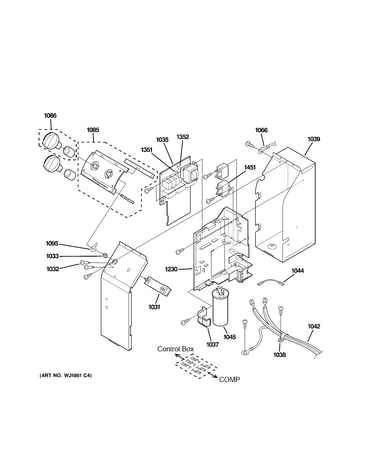

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Complete Cushion WJ01X10002
#1084

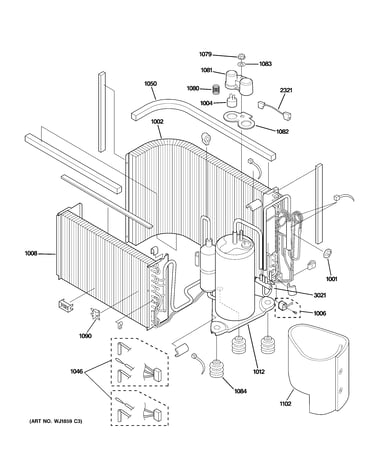

Sealed system & components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Louver Holder WJ01X10142
#1169

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Special Nut WJ01X0981
#1020

Cabinet & components diagram

Special nut

Part #WJ01X0981

Replaced by #WJ01X10041

?
Manufacturer substitution
This part replaces WJ01X0981. Substitute parts can look different from the original.
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Evapporator WJ87X10136
#1008

Sealed system & components diagram

Evapporator

Part #WJ87X10136

The manufacturer no longer makes this part, and there's no substitute part

Varistor WJ27X10008
#1352

Control parts diagram

Varistor

Part #WJ27X10008

The manufacturer no longer makes this part, and there's no substitute part

Clamp WJ01X10159
#1019

Cabinet & components diagram

Clamp

Part #WJ01X10159

The manufacturer no longer makes this part, and there's no substitute part

Stud Bolt WJ01X10045
#1010

Cabinet & components diagram

Stud bolt

Part #WJ01X10045

The manufacturer no longer makes this part, and there's no substitute part
