Craftsman
Gas Walk-Behind Mower

Model # 917371812 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371812 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Lawn & Garden Equipment Nut 409148
#33

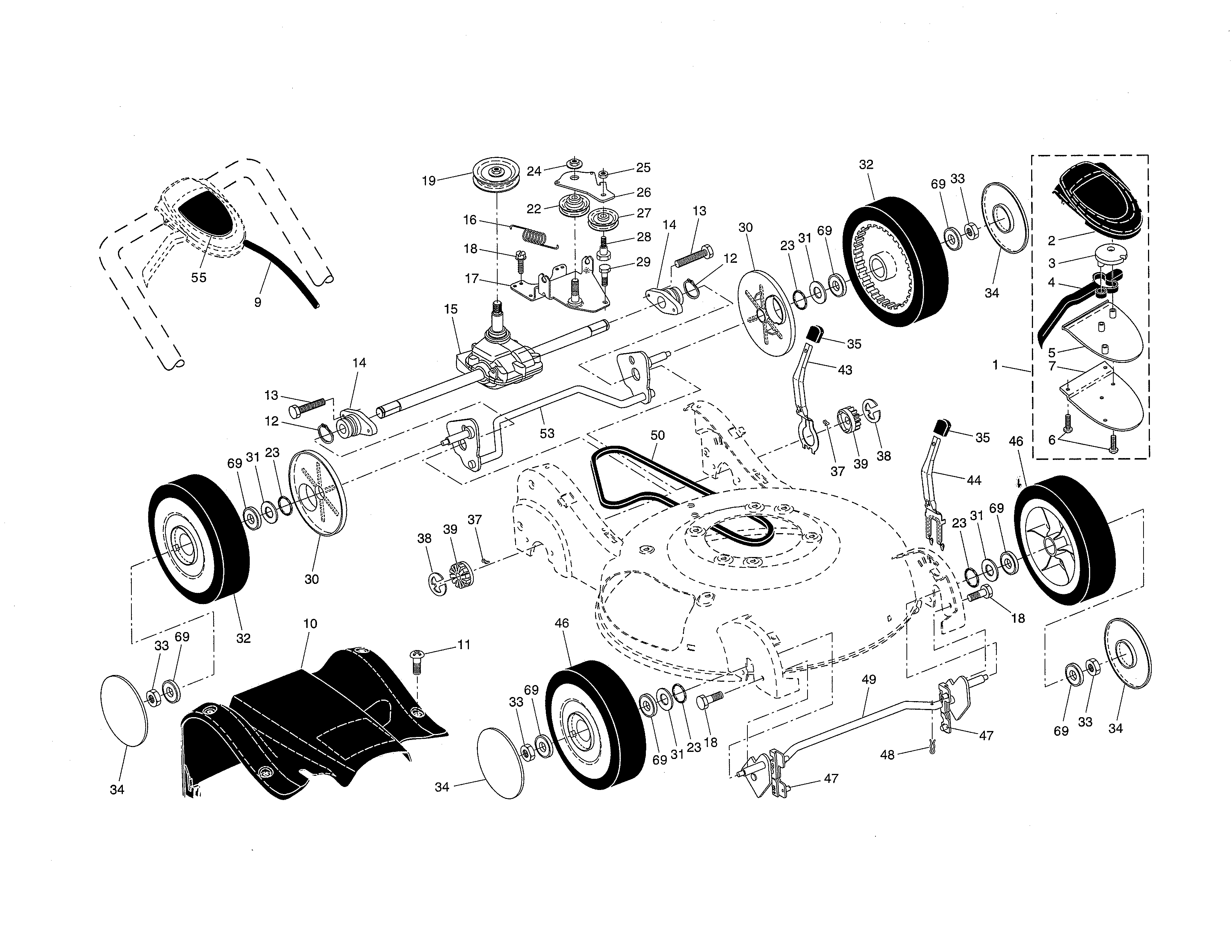

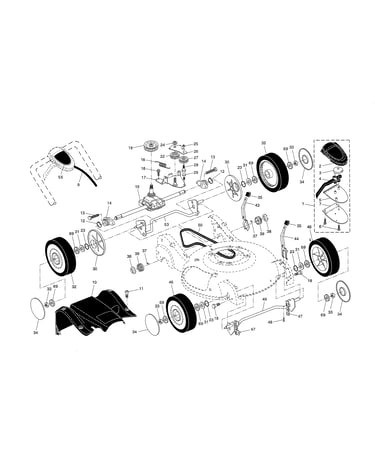

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#24

Drive control/gear case/wheels diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Bolt 191574
#39

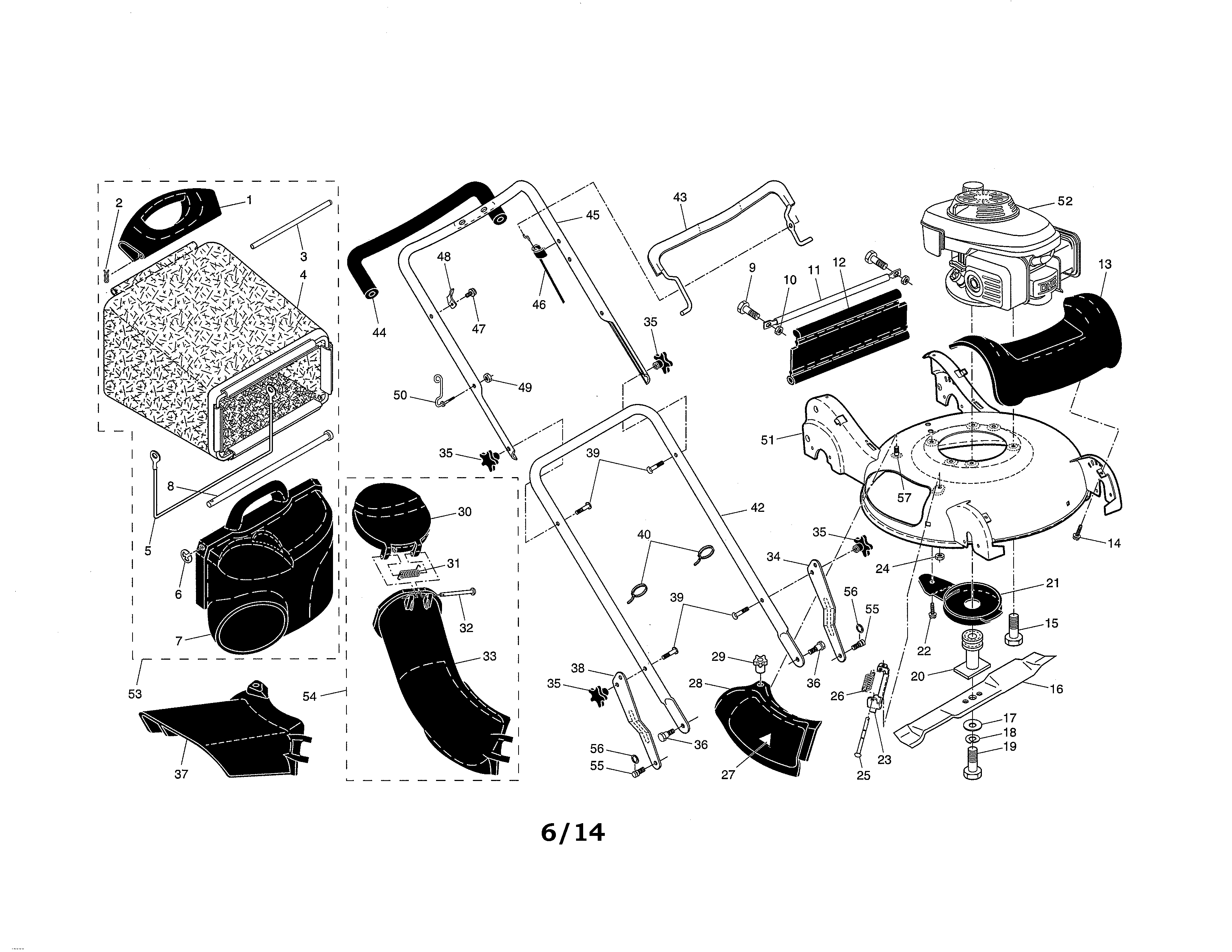

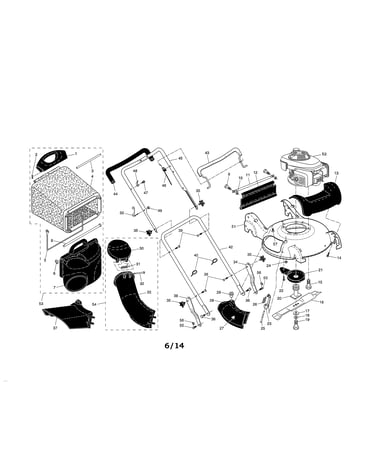

Engine/housing/handle/grassbag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Drive Pawl 404845
#37

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#10

Engine/housing/handle/grassbag diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#49

Engine/housing/handle/grassbag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bolt 72140405
#9

Engine/housing/handle/grassbag diagram

Bolt

Part #72140405

Replaced by #872140405

?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Pinion.14.te 403849
#39

Drive control/gear case/wheels diagram

Pinion.14.te

Part #403849

Replaced by #532403849

?
Manufacturer substitution
This part replaces 403849. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Grass Bag Door 188498X418
#7

Engine/housing/handle/grassbag diagram

Lawn mower grass bag door

Part #188498X418

Replaced by #532188498

?
Manufacturer substitution
This part replaces 188498X418. Substitute parts can look different from the original.
This item is not returnable
$43.98 |
12% OFF Phone Price : $49.98
In Stock
